Replacing a Sideboard

Featured Replies

  • Popular Post

Been there. Please take time to reflect how that happened so there is no repeats. Praying for a quick recovery. Danl

  • Replies 151
  • Views 5.7k
  • Created
  • Last Reply

Top Posters In This Topic

Most Popular Posts

  • Looks like a sideboard to me. Though usually the antique ones of years past circa 1780 -1880 had mirrors on it and little shelves off the mirrors. Like this:

  • steven newman
    steven newman

    2 panels in the clamps... Gonna be sitting there a spell... This board.. soon became this mess.. Stiles for 2 doors...when I can get back to the shop....needed to resaw a few other boards.. But..

  • Grandpadave52
    Grandpadave52

    I'm here for the journey. This is gonna be a fun project to watch. You will be able to get it out of the Dungeon, right?

Posted Images

In order to protect my own fingers, I would like to see an AAR. :)

  • Author
  • Popular Post

son got photos after the stitches were in...


3 stitches in the tip of the left thumb..and ...


this is the right thumb. it did get a tendon..

got home this morning, after a 0700 same day surgery to repair the right thumb...sitting here in a sling, supporting the totally numb arm...

will see the hand guy on the 16th of this month...right now, i am on very light duty..

  • Popular Post

Thanks for the courage to share the accident Bandit. I could only take a quick glance. Thankful, you survived mostly intact. Prayers you experience a quick and complete recovery. Take care of yourself and please stay away from the shop. You need time to heal properly.

  • Popular Post

Ouch! I am happy you still have all the digits, but sorry to see that.

As others have said, let them heal up. Hard to do amything when your thumbs ain't working.

Edited by Handfoolery

  • Popular Post

Late to the party but I feel your pain. Two years ago I wasn't paying enough attention and shortened the bird on my left hand. Did heal nice but takes time. Hang in there after all it's still winter.

Sorry to hear about your mishap Bandit and hope your recovery is quick.

  • Author
  • Popular Post

OK...Reason for the resaw...was to slim down the fat boards..

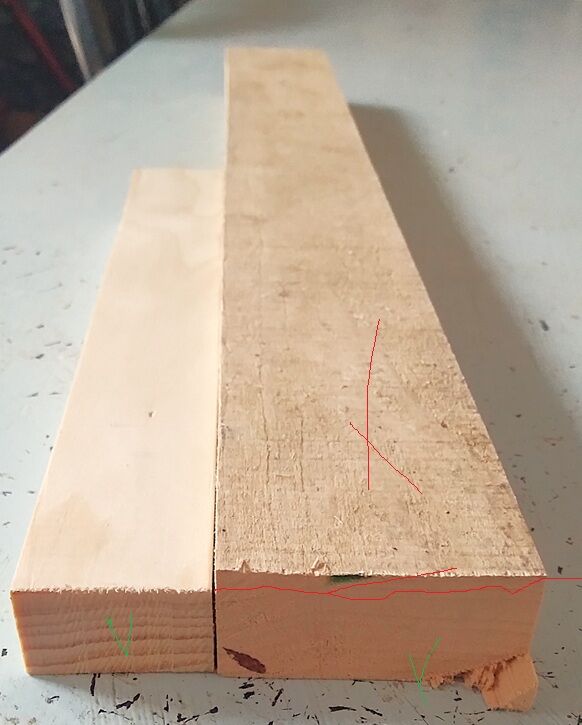

Sideboard Proj., thicknesser, goal  .jpg

Board on the left is 3/4" thick...which is where the one on the right is supposed to be..had already resawn a few parts without any issues..

So, a change of plan...need to decide which face looks the worst...

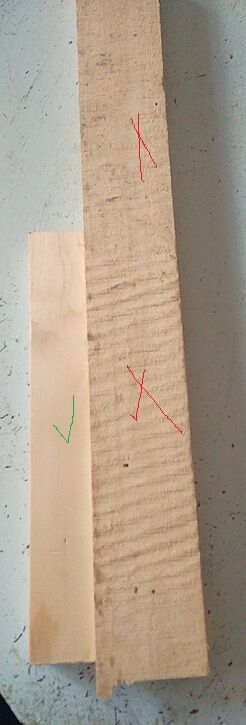

Sideboard Proj., thicknesser, bad face  .jpg

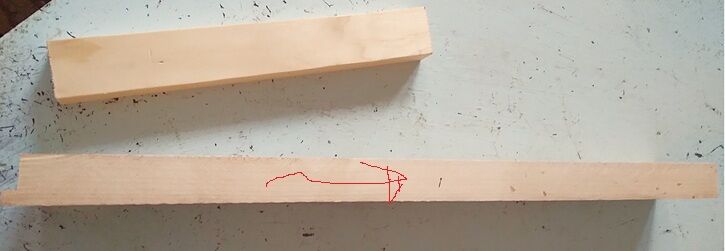

Which way the grain is going..

Sideboard Proj., thicknesser, grain direction  .jpg

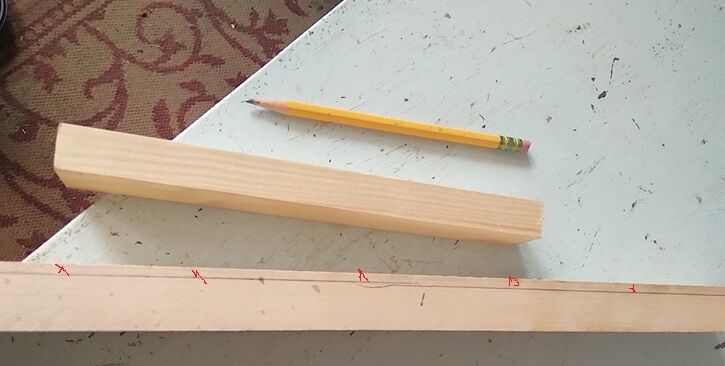

Something like this..mark a line...

Sideboard Proj., thicknesser, plane to the line  .jpg

Then, clamp the part in the end vise on the bench...use this...

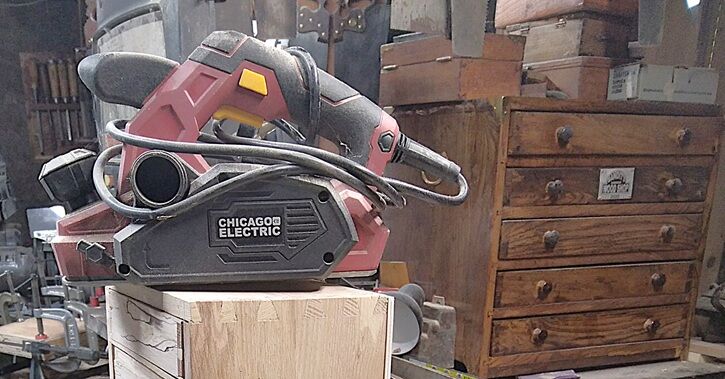

Power Planer, logo side.jpg

To remove the excess wood down to that line...then the No. 62 to smooth things out, taking just the line.

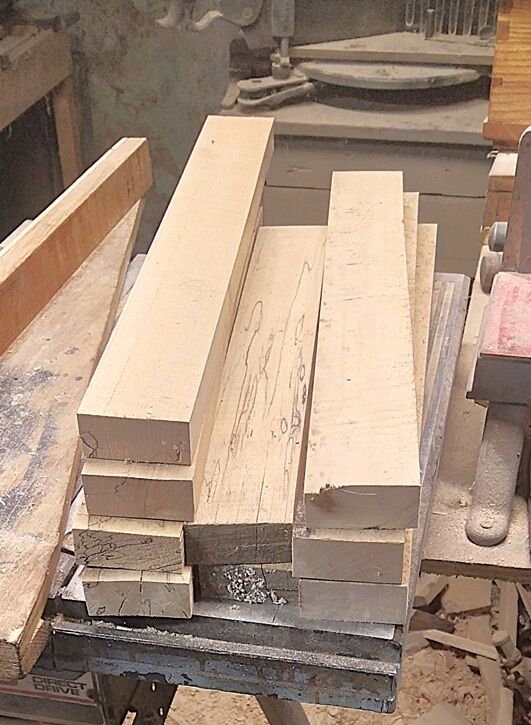

Sideboard Proj., door frame, door rails  .jpg

need the best 4 out of this pile for the door's top and bottom rails...then..

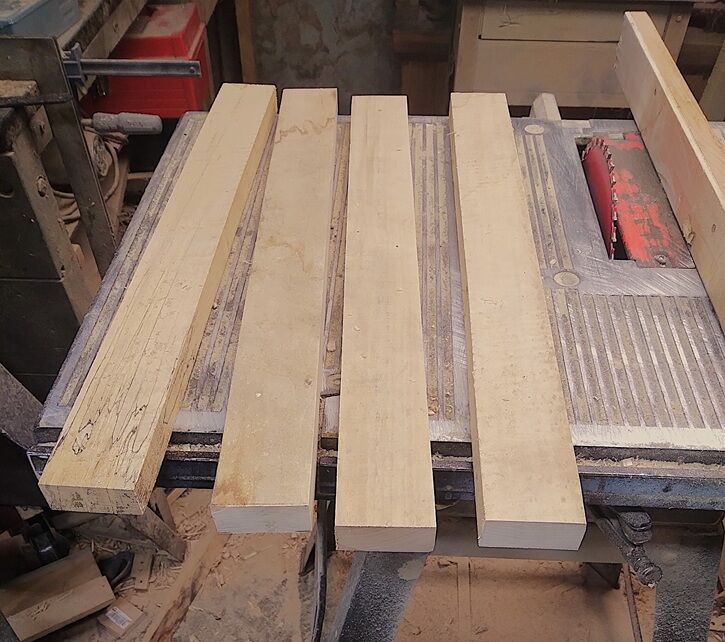

Sideboard Proj., door frame, door stiles  .jpg

these 4 to be the stiles for the 2 doors...have not decided on these 2..

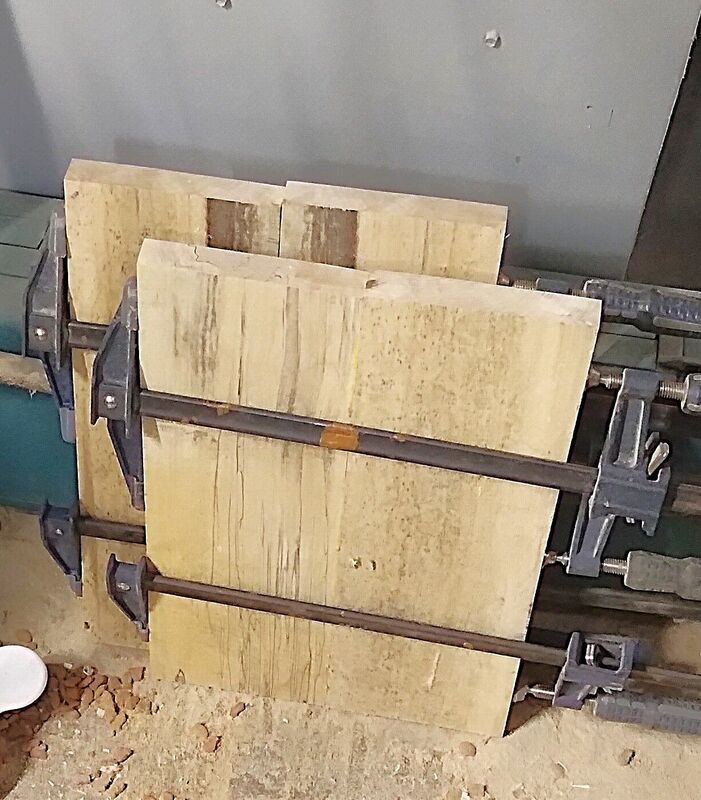

Sideboard Proj., door frame, door panels  .jpg

Msy buzz these 2 flat...as they will be the raised panels for the doors...same with the panels to build 3 drawer fronts with..

Sutures come out Monday morning...may get fitted for a brace...and schedule some PT for both thumbs..we'll see..

Need to also mill grooves fro the raised panels to sit in...and, a mitered half lap at each corner...

Stay tuned...might get rather busy...maybe add wood working to the PT schedule?OldManSmiley

Besides a chisel slice here and there, I haven't had a major accident in years. Once when in my early twenties, I had a 12" Maple splinter kick back off a tablesaw and straight into my sternum. Not good. I walked into the house with it sticking out and my mom freaked out. I was in no pain. Weird. Anyways.... I pulled it out, no blood, and went to emergency. After xray they bandaged me and sent me home.

  • 3 weeks later...
  • Author
  • Popular Post

Can't use the tablesaw, so..

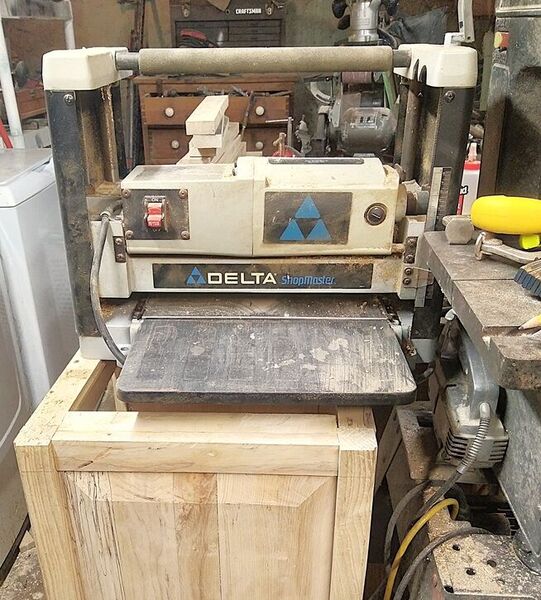

MAR 4 shopping, old planer, Delta   .jpg

Light passes...pushing with the left hand only...

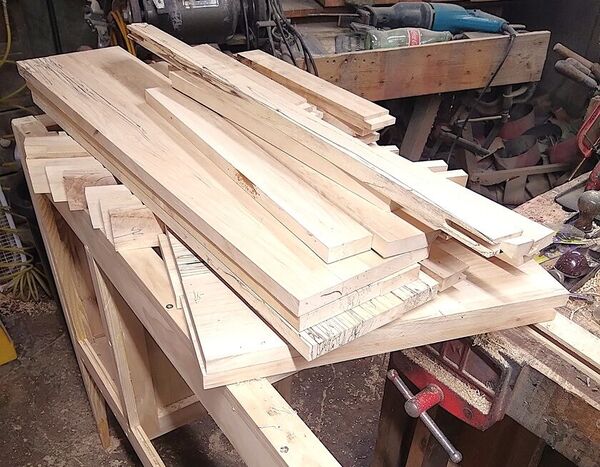

MAR 6 clean-up, all planed  .jpg

ALL parts are NOW 3/4" thick..even the webframe stiles and rails...

need to move a few things around...that planer can go sit over here..

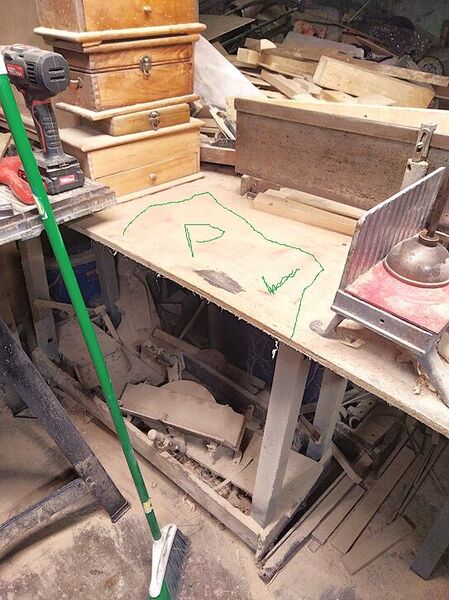

MAR 6, clean-up, planer's home base  .jpg

Until needed again..

Have swept up the shop..

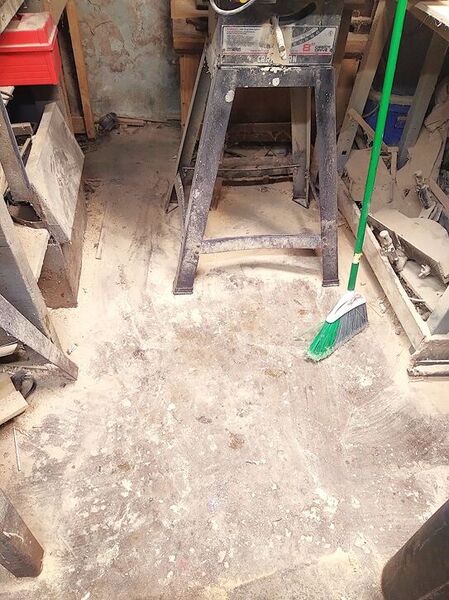

MAR 6, clean-up, almost done  .jpg

Almost filled a trash can...

MAR 6 clean-up, almost full  .jpg

Edited by steven newman

  • Author
  • Popular Post

Trouble with edits...

once that planer is put away..will see about webframe install..

Stay tuned..

  • Popular Post

Easy and steady as she goes Bandit.

  • Popular Post
1 hour ago, Grandpadave52 said:

Easy and steady as she goes Bandit.

100%.

  • Popular Post

I'm sure you're happy to be in your shop area but please be careful as you heal.

  • Author
  • Popular Post

Re-organized the work area, this evening...

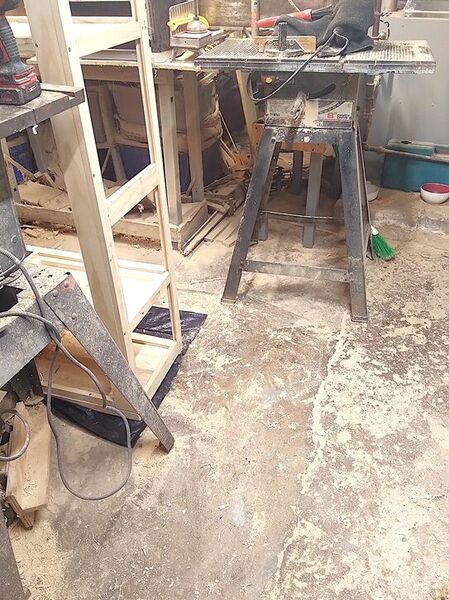

MAR 8, back at it, moved around  .jpg

Old tablesaw blade was taken out of the saw, and turned into a Frisbee to sights unknown...

Once the new blade was installed, the tablesaw could be moved here...then..

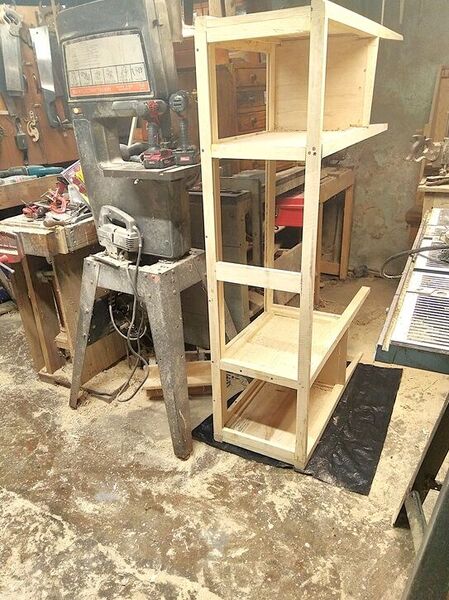

MAR 8, back at it, new work area  .jpg

A plastic trash bag was laid down, then the case was set on it...to protect the wood from any wet floors...and turned so I can work on the front of the Case.

Dug out the 3 drawer fronts, squared one end, then cut the length to final length...2 needed a curved edge rip off...and they were ripped to 6-1/2" width. Tested with the drawer dividers, to see if the "unit" will fit in the required space...

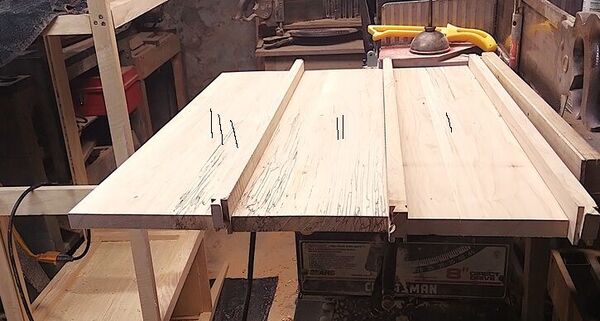

MAR 8, back at it, re-sized  .jpg

Right on the money...at 21-1/2"...numbers are backwards...should read 1, 2 , 3 left to right...top drawer is about 1" shallower than the others.

Took the time to sort through the stack of parts....to find all the parts for the 2 doors...and laid them out, for now...

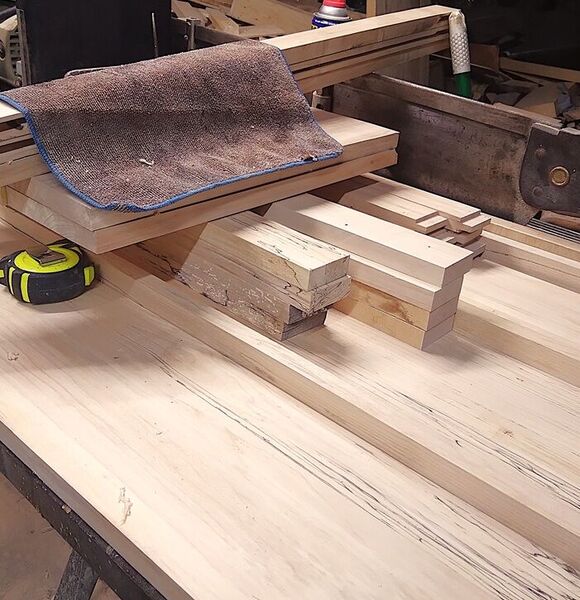

MAR 8, back at it, door parts  .jpg

Stay tuned...cowboypistol1

MAR 8, back at it, new work area  .jpg

  • Author
  • Popular Post

Drawer Dividers...have a dovetail "tail" on each end....means I need to mill a socket for each one...

Lets try this..

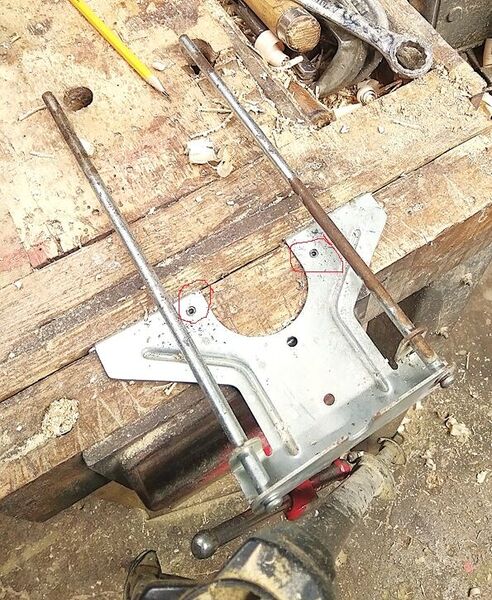

MAR 12, router work, drilled jig  .jpg

This needed flattened a bit, and a couple more screw holes drilled..

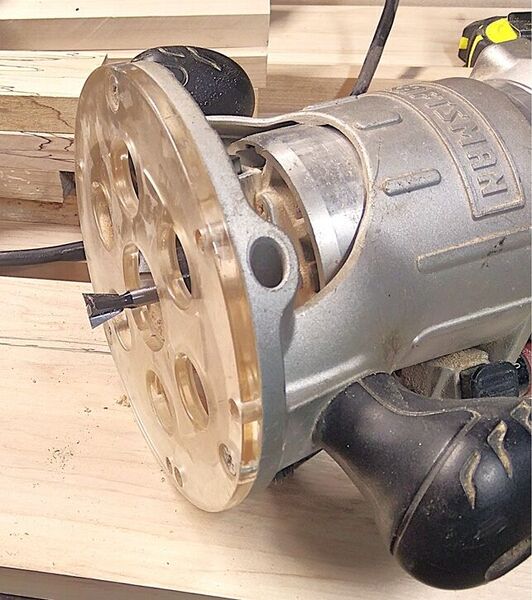

MAR 11, router work, bit installed  .jpg

Yes, it does stick out a bit...had to allow for the guide..

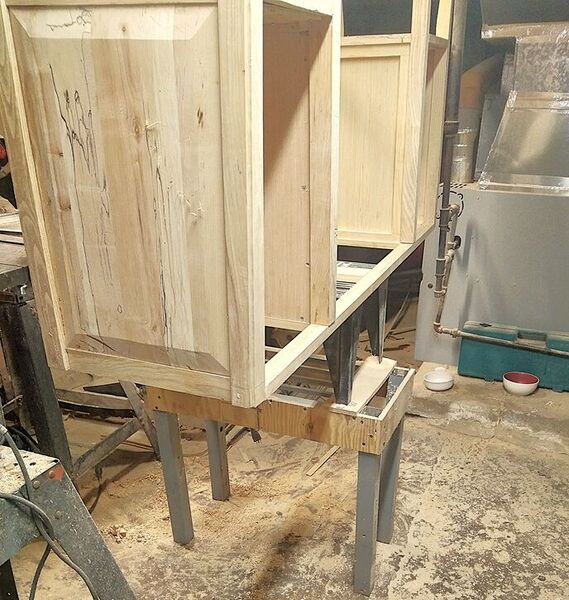

MAR 12, router work, two,six, LIFT  .jpg

Tied to use the top of the tablesaw...legs were too tall. So, router table was used,,

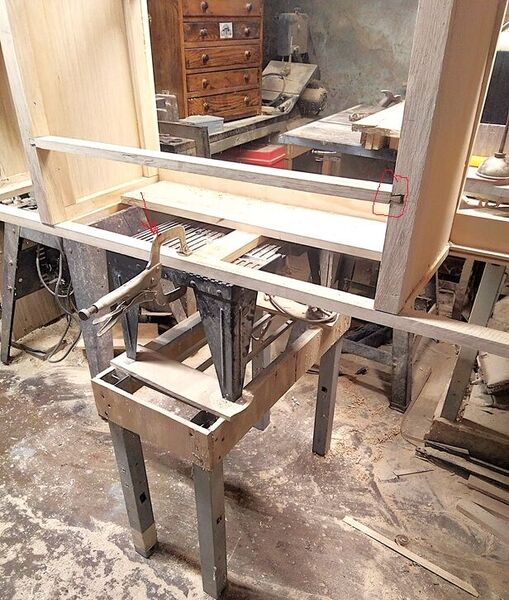

MAR 12, router work, clamped down  .jpg

Added a clamp...burnt socket was from the router bit set too deep, that the shaft was also try to make the cut..

Clamp the guide in place with a c clamp or 2...add the screws..slide the router on to the guide rods..

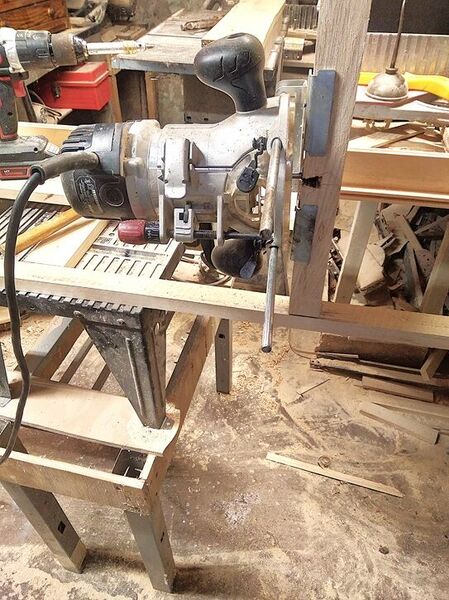

MAR 12, router work, too deep  .jpg

Shove the router to make a cut

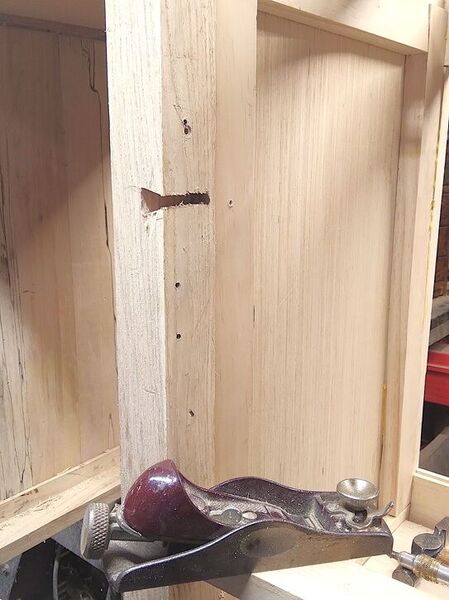

MAR 12,  router work, clean up  .jpg

Clean up the fuzzies with a block plane...that only needs one hand to use...

Took a few trips to the shop...and a couple Laundry Details...to get all 6 sockets milled...might as well get out the glue and clamps..

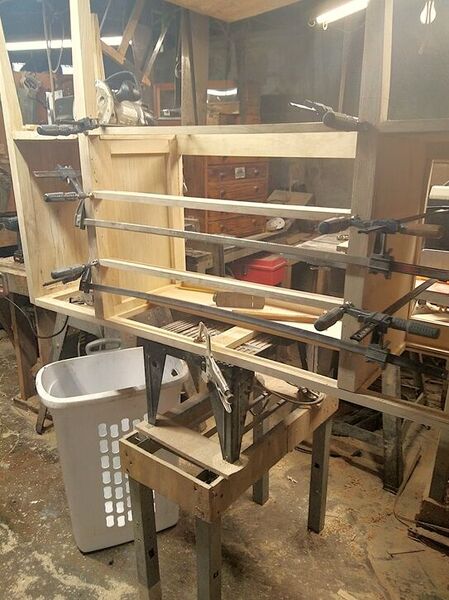

MAR 13, glue-up, front dividers .jpg

Plan for today...is to remove all them clamps...then we'll see what happens next..

Stay tuned cowboypistol1

2 hours ago, steven newman said:

Clamp the guide in place with a c clamp or 2...add the screws..slide the router on to the guide rods

Cool idea!

  • Author
  • Popular Post

Busy Sunday...drawer runners installed, along with the back of the frames. Rotate the case a few times...plywood back is now installed, and a sabre saw to trim that to final size.

Today: Set the case back down onto the shop floor. on one of the ends, with a trash bag underneath. Trip to Lowes on the way back home this afternoon...three 1 x8 x 6' pine planks = $23.10.....will be the backs and sides of three drawers.

Router table has been freed up, and moved aside, for now. Tablesaw is now able to come out to where I can USE it, along with all the new safety gear that has been sent to the shop..

5 hours ago, steven newman said:

the new safety gear

What have you added for safety?
