That WIP: Drawer building

Featured Replies

Steve, now I realize it was for the shop.  Thanks for the update.  I thought you were going to paint it and put it up stairs.  My bad.

That said great work and explanations.  Many Kudos.

  • Replies 45
  • Views 8.3k
  • Created
  • Last Reply

Top Posters In This Topic

Most Popular Posts

  • steven newman
    steven newman

    Ok, dragged the drawer out to add a pair of handles... But it still had a problem with the fit on the sides... Millers Falls No. 900 ( Stanley #4 size)  as there was a high spot or

  • Harry Brink
    Harry Brink

    My Dad always told me you can waste more time thinking about than if you just went ahead and did it!

  • steven newman
    steven newman

    Well, let's see, this MIGHT be a bit picture heavy...anyone mind? Got a few tools out Will need these, and then some...Laid out more pins.....brain locked up for a moment, took a couple

Posted Images

Well missed a few days here...looks like you've done really well without me so maybe I'll leave you alone for a couple more days...:D



You get more out of your hand tools in a couple of weeks than I do out of power tools in a couple of months especially this time of year.



I hope you've got another project in mind to start after this one? I've gotta have something to follow along everyday to keep my skills sharp...:rolleyes::P

Well done, and for the record BLO kinda stinks in the PM as well! saying-yes-nodding-smiley-emoticon.gif

  • Author
  • Popular Post

well, after a full day,the BLO is now down to a tolerable level...seems to be dry.   Will need a second coat, though.



Wasn't too happy with the way the cordless cicular saw was doing the crosscuts,...kind of wavy, again  ( operator, maybe :rolleyes:)

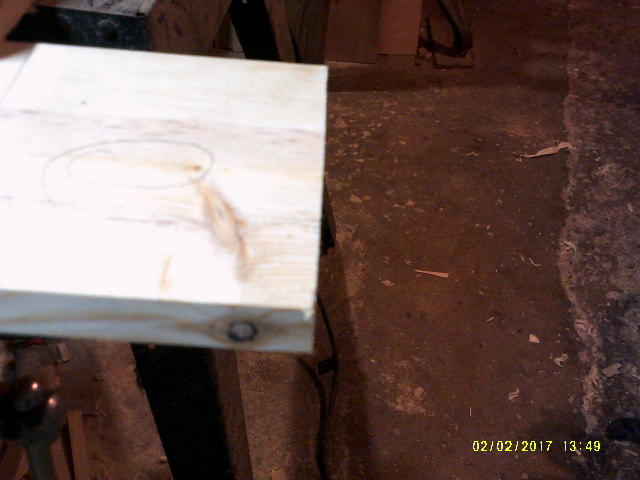

wavy cut.JPG

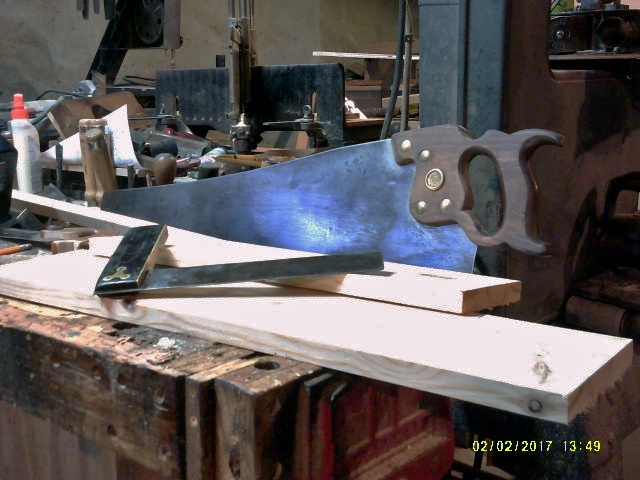

So, I got down a couple handsaws, to see IF I remembered how to use one( and a Cardio).   First saw was a D-23 crosscut....wanted to bind in the cut...needs more set.   Next up..D-8 and a square.JPG

Was a Disston D-8, Crosscut saw.   I also brought  that stanley square down to the shop, as the combo was feeling a bit too loose.

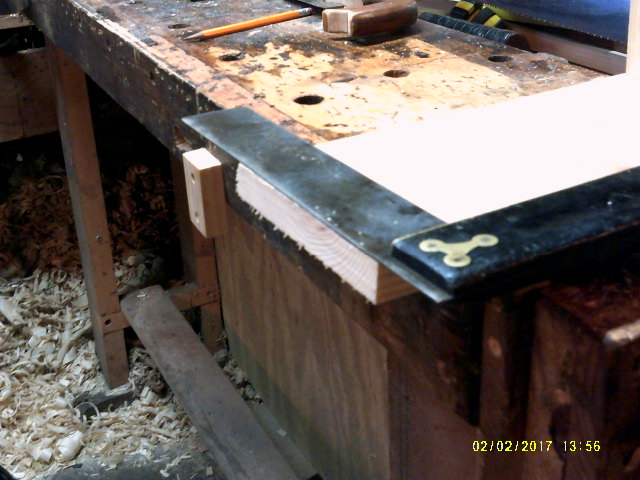

square cut.JPG

well almost square, have a "rookie" running the saw tonight....There is that Stanley #358 Mitre Box back there, and I used that to fine tune a few cuts..

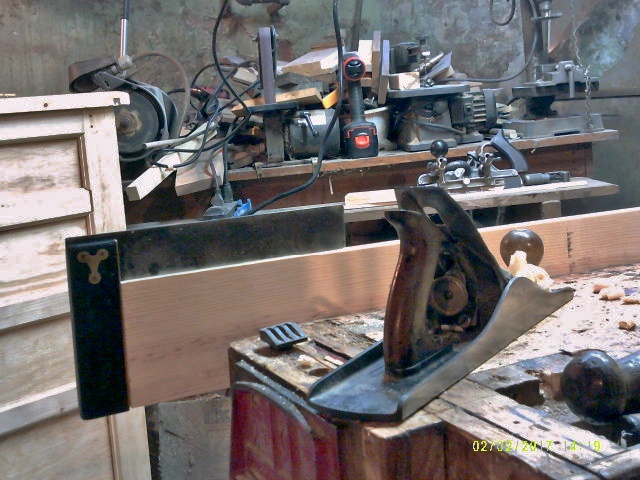

square and jointer.JPG

All of the boards from that 1 x 6 had to be resawn down, to fit into a 4-1/2" high space.  Once the ends were square, then that plane could joint the sawn edges.   Check the two pieces for the drawers sides...


Should work.  Then the "Usual Suspects were rounded up..

usual suspects.JPG

As I had a few more of these to get done...BTW, Lew, you Mallet has been taking a beating, lately..


Hitting on all those chisel to make these things...Then some more work with the Stanley 45....size the back of the drawer,  cut a plywood bottom, and glue it up..

glued up.JPG

The back WAS clamped up, just long enough to add a few screws.  Tomorrow I can get rid of the other clamps, and add these two items..


As it turned out, I have just enough knobs that matched each other.   May post a completed picture, tomorrow.   I have to finish fitting the drawer to the case, and add the Brew....stay tuned...

Waiting intensely!

32 minutes ago, steven newman said:

stay tuned...

I'm tuned...well mostly...sometimes I break a string or two.:P
