Wood Joint #14....Box Joint

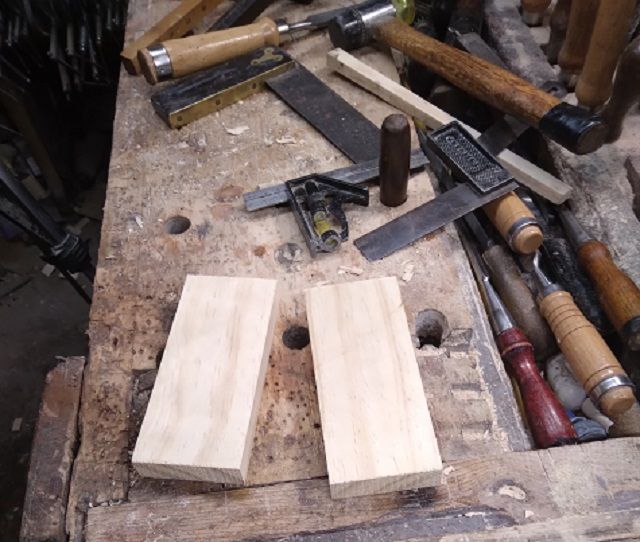

Prep 2 blanks

Try a layout...using a chisel for the finger spacing..

Then adjust to blend thing in better...and run the Backsaw...

Next, set up a way and place to do some chopping..

Choose the best looking face...chop half way down, leave a support "porch"  Flip the blank over..

And finish chopping out the waste...an 1/8" thick layer at a time...



Once this blank is done, trace around the fingers onto the other blank..finish the layout, saw the lines on the waste side...then, chop out the waste...

Dry fit?

Not too hateful?   Check for square?

Seems to be square?   Grade?   Thinking maybe a "B+" ?



And that concludes the Wood Joint Class Exam...

Unless anyone can think of any other joints a Freshman in High School should know how to do...



Next up?  Well..

These 15 Ash Planks are now sitting in my house, getting used to the place...after spending 10+ years in a barn...Price?  $25....

4/4 x 6"   average length is 5'

Have the Single Brain Cell Sketch Up working on a plan of some sort...we'll see...

Thanks for looking in!

Thanks Bandit for the class sessions with all the pictures and explanations. Brought back lots of memories...most of them good.



Sorry I skipped class so often. Principal had me in the office several times. Some crazy talk about serving detention.

By request...



So, a simple miter joint is fairly easy to cut..and there are all sorts of ways to glue it up...

Going to take these 2 pieces, and kick things up a notch....

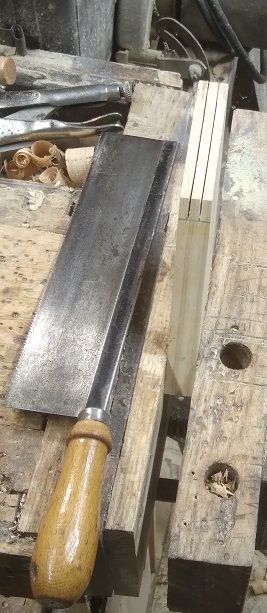

Do a wee bit of layout work..

Looking for a 1/2" tenon to fit into a groove...then the saws come out..

Now..this can either be a 1/4" wide tongue, or a 1/4" wide groove..depends on which side of the lines you cut on..kind of helps IF you start with the tongue first..then lay out for the matching groove..



They should come out looking like this..

Hardest part was chopping end grain Pine...to make the groove..so..dry fit?

There will be a little wedge sticking out of the top of the corner, that needs to be trimmed flush...



Not too bad?

Excellent! Grade- A

Ok..back to that table build....



How many remember that first day at the Reception Center, Recruit training center....day 1?



Well...there was the same level of cussing going on in my shop, this morning



A few simple tasks needed to be done.  Such as rotating the table so I can work on the table's top..Way too many overhead items in the way...finally done, without ripping things down..

Next task, was to adjust the depth of the router's cut....after a LOT of fussing and fighting and CUSSING

Was able to try to mill a cove around the edge of the table's top....even though the table was trying it's best to run away, the cord for the router trying to do a Tangle Foot impression...wound up with this..

And only one burn mark?  Next task?  Well since the table is sitting like this...

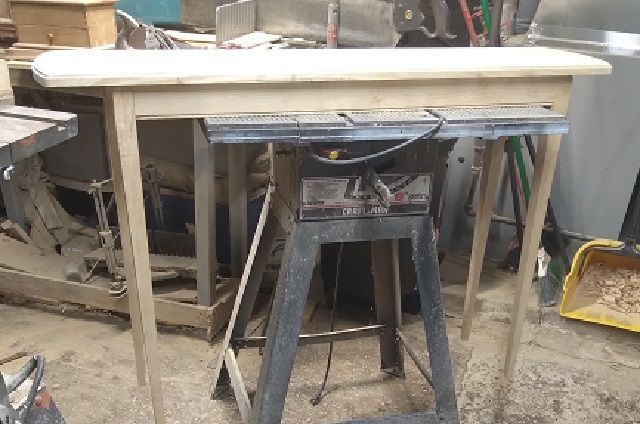

I got to thinking I could TRY to sand the top nice and smooth..

Got out the ROS and a few sander discs..80 grit and 220 grit...and give the entire top, burn mark and all a good sanding



Of course, the cord was still try the Tangle Foot stunts



Last time I used the Witch's Brew..it was a bit on the RED side...so..gave the "Mix" a few shots of a Dark Walnut stain...and stirred things up...and, of course, all the brushes were still upstairs..

Brushed on a coat of the Brew..

Then find a clean (not for long) rag, and wipe everything down..

Will let this sit a spell...maybe later today, I can flip this over...

And work on everything below the top...and work on another sort of "Brew"?



Stay tuned..
