Door Mode

Featured Replies

  • Author
  • Popular Post

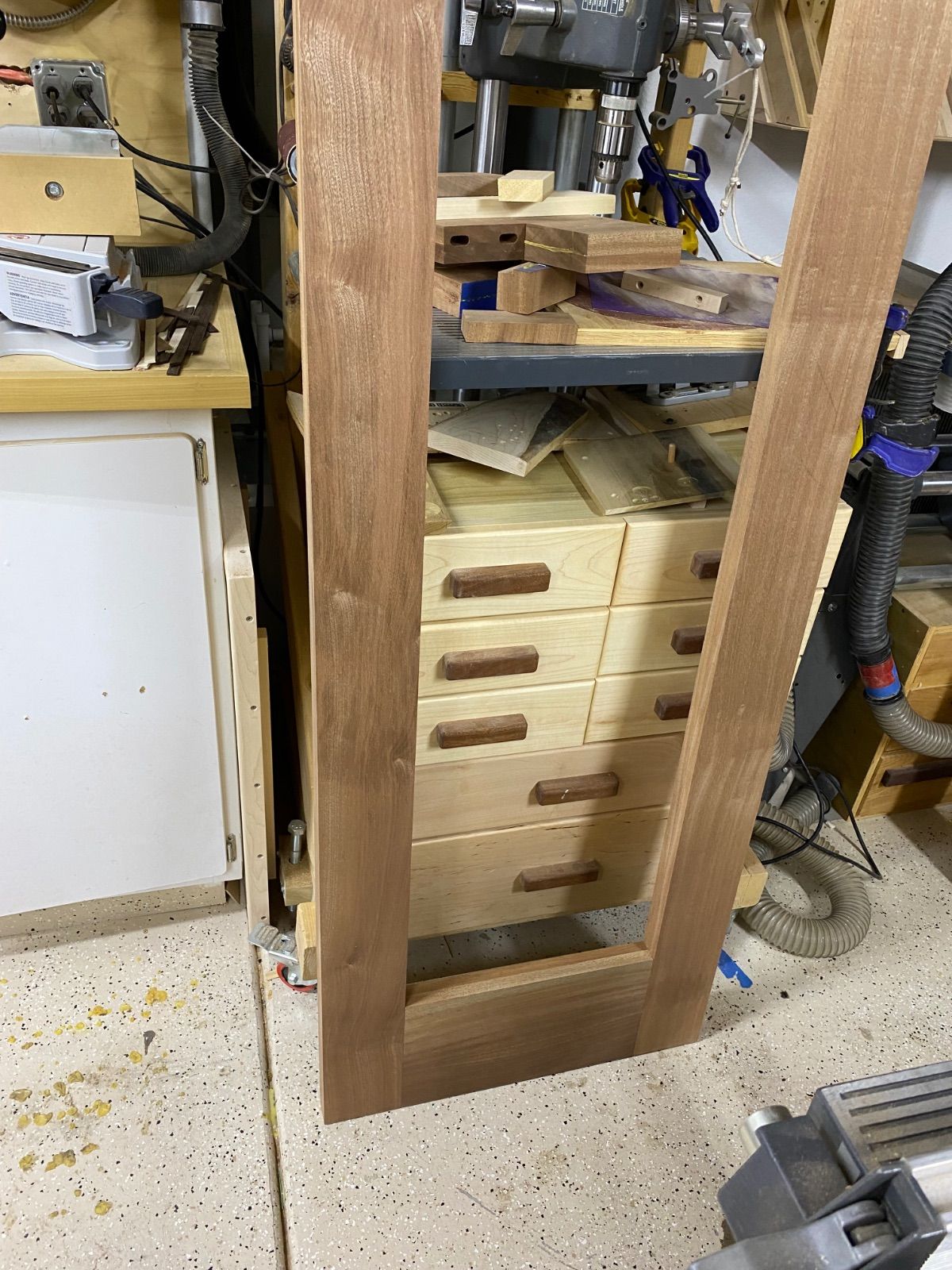

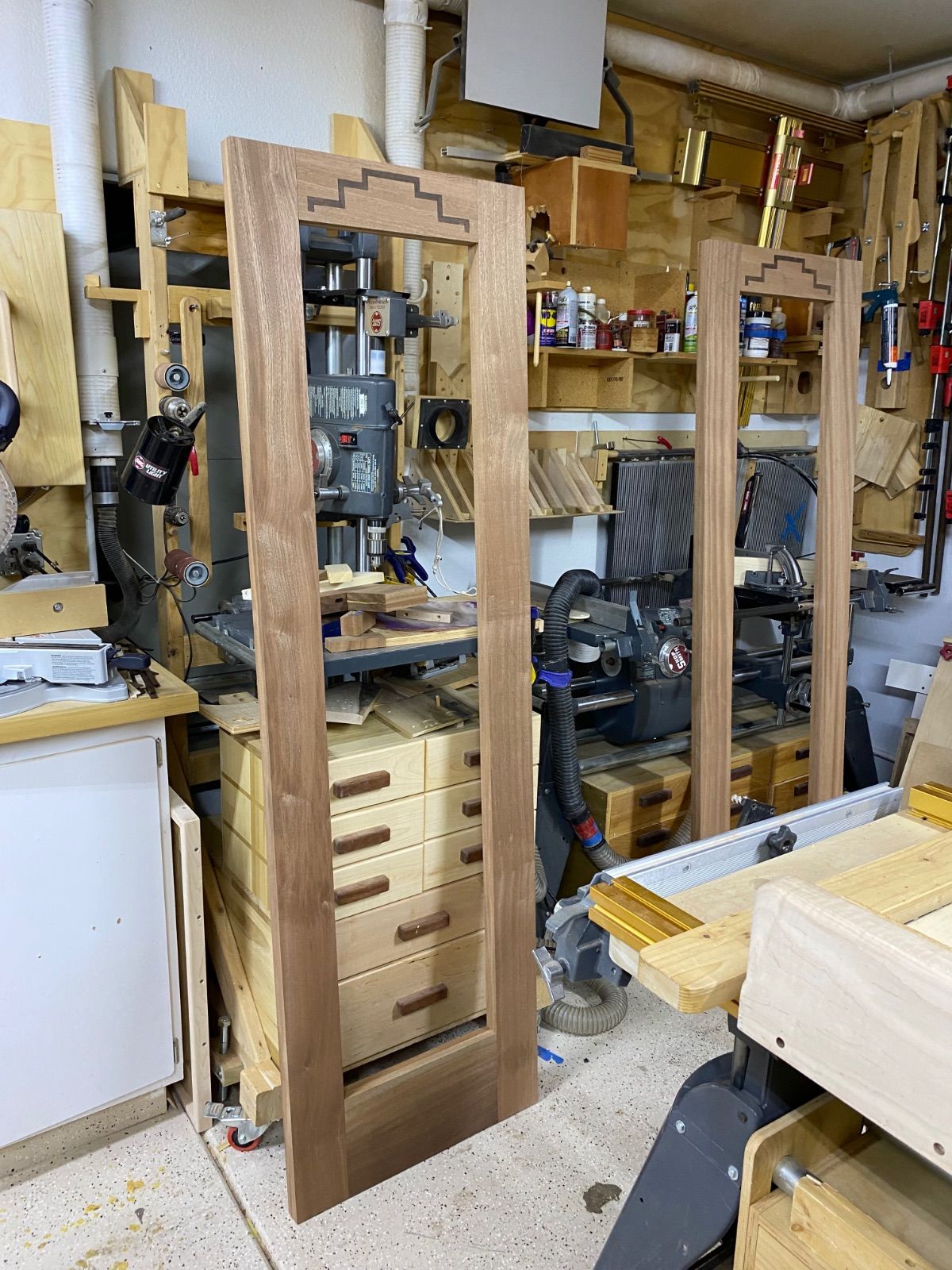

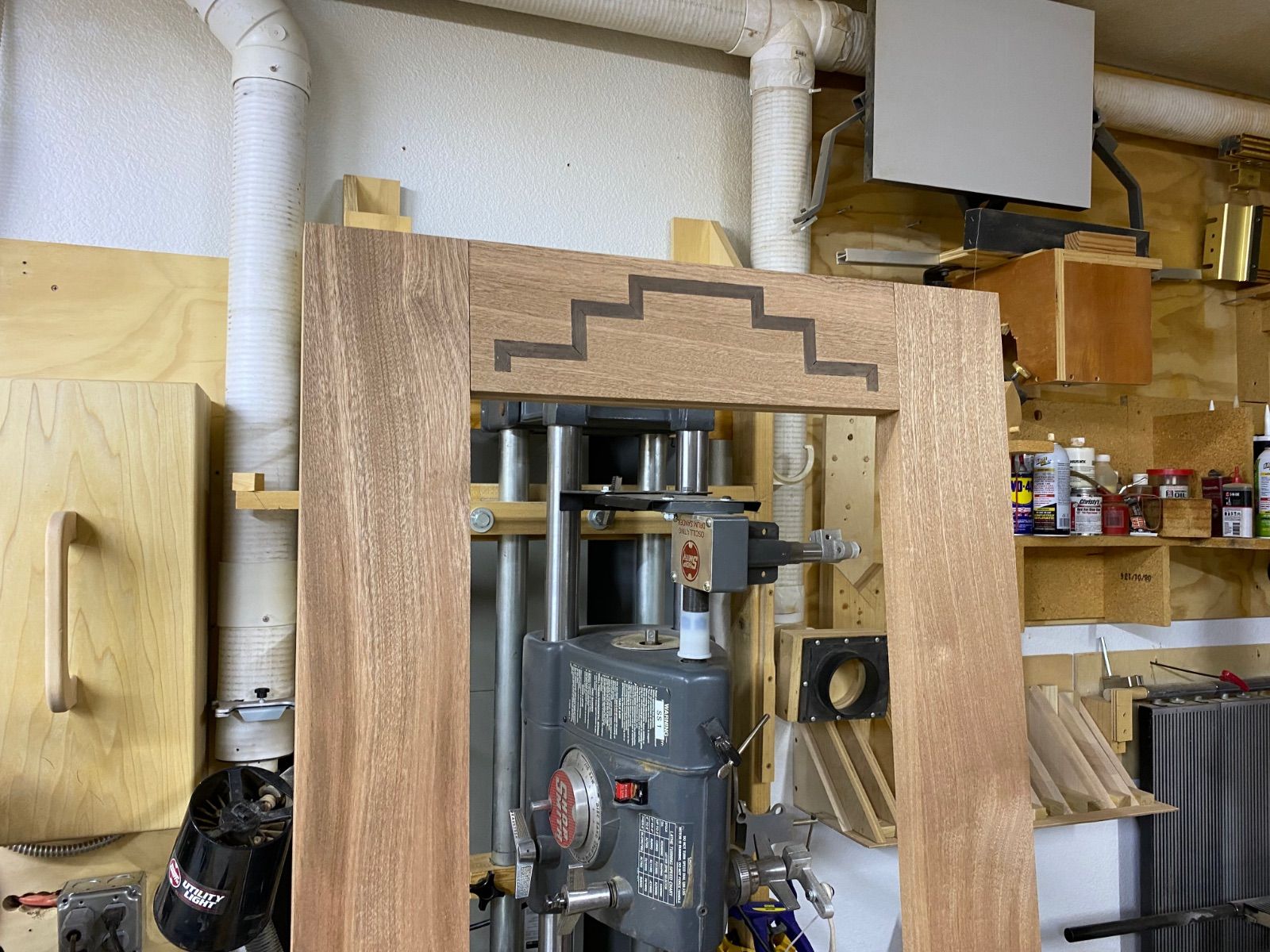

Today was getting all the mortising and inlay done. Now I have the glass dimensions so I can get them ordered. They are not glued up yet. That will make it easier to do the last step which is mortising in the Tectus hinges. Today was my first time using the domino machine. I’m very impressed. It has a very short learning curve and the accuracy is right on the money. I think the actual time spent mortising both doors was maybe 30 minutes.
Paul




  • Replies 93
  • Views 12.1k
  • Created
  • Last Reply

Top Posters In This Topic

Most Popular Posts

  • Masonsailor
    Masonsailor

    This door is done. This one was a unique door in the house as it was the only double door and a difficult wall to deal with. From here on in it gets pretty monotonous. They are all either 30 or 28 inc

  • Masonsailor
    Masonsailor

    Not a lot happening except for a lot of glue up. I should be done gluing up components in the next few days as well as the routering for the inlays. The glass for door number two and the hardware for

  • Masonsailor
    Masonsailor

    Now that I am pretty much over the COVID thing it has been back to work on the doors. At this point all 13 top pieces have been inlaid and most of the lamination is done. The lockset hardware is still

Posted Images

Paul, the inlay looks nice and so the rest of the door.  thanks  Danl

  • 2 weeks later...
  • Author
  • Popular Post

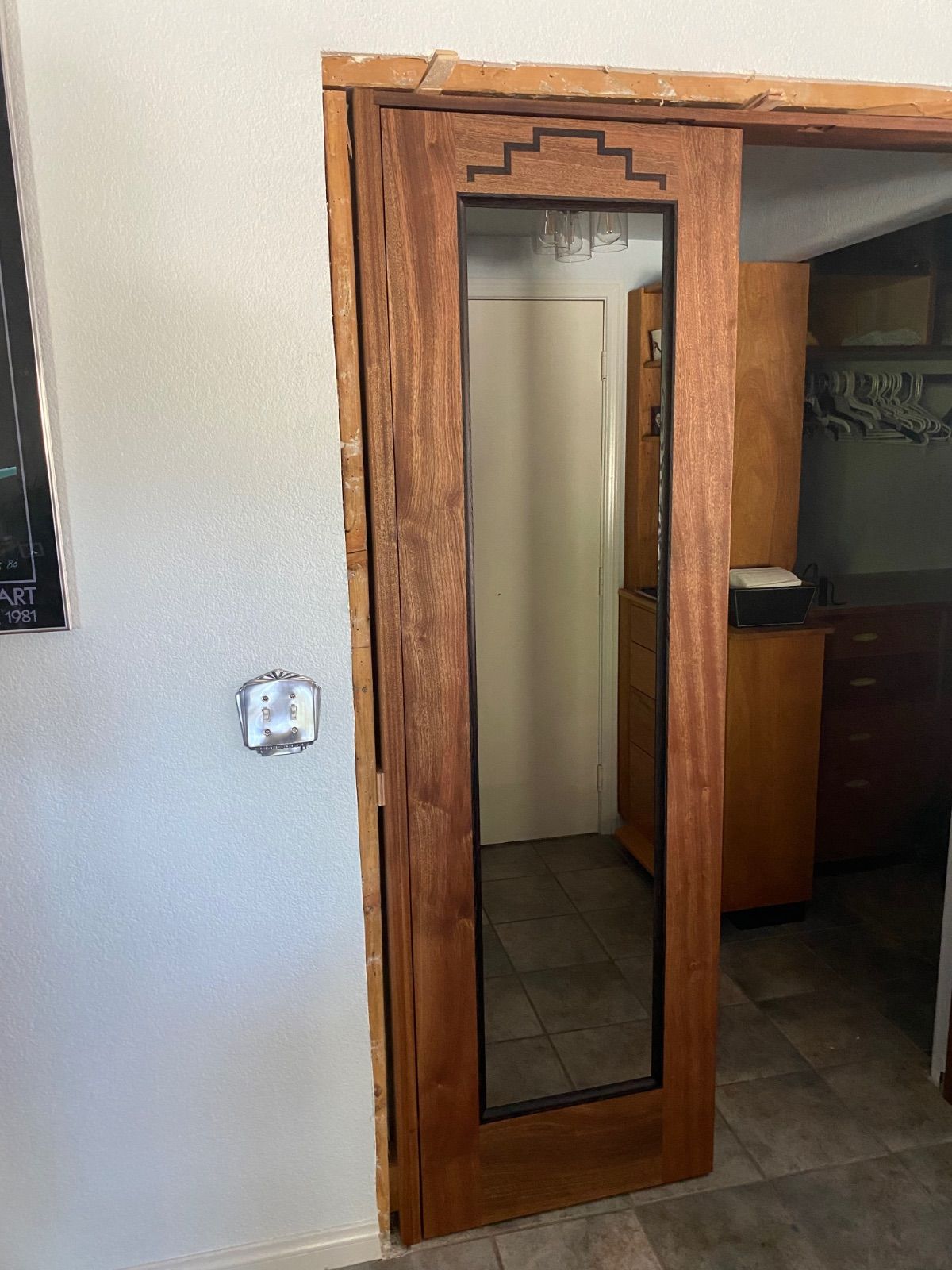

Today I decided to get a door up  and a coat of finish on before the festivities
Paul




That will work nicely!!!!

Love that inlay Paul :TwoThumbsUp:

Beautiful and quite classy Paul

  • Author
  • Popular Post

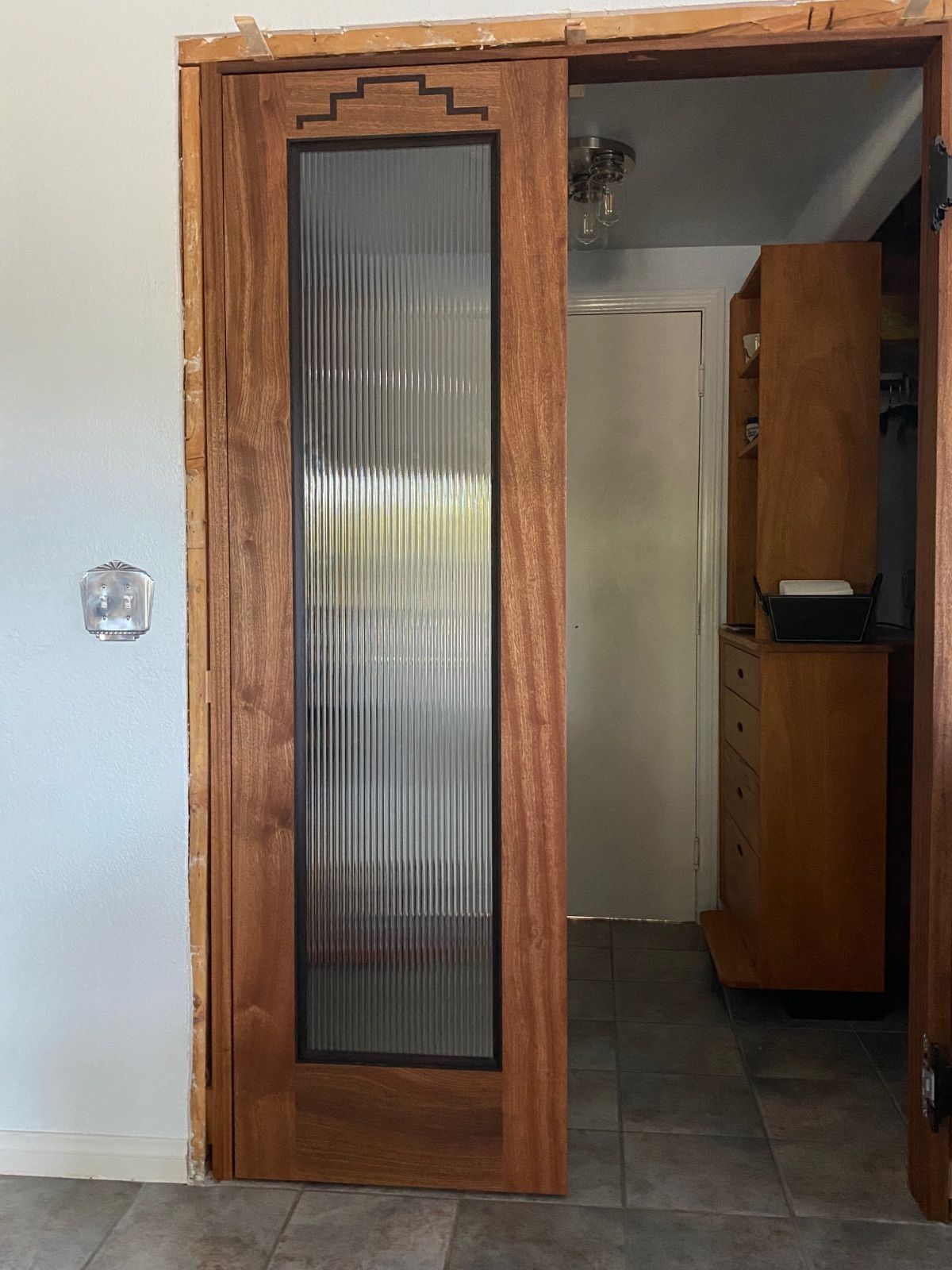

Made progress on the second door and hopefully have it installed tomorrow. The left door is done with glass installed.
Paul


Very elegant Paul. Beautiful design.

That looks great Paul! Maybe I missed it but what did you finish with?

Not to take away from the beautiful door, but that light switch cover is the perfect compliment for it.  Excellent :)

  • Author
  • Popular Post

The finish so far is one coat of Watco. I’m not sure what she wants for the final finish. Probably several more coats of Watco. Here are a couple of my lessons on these doors so far. Our first choice for doors has always been Honduran Mahogany. Sapele is not nearly as stable but also much harder so even though the Sapele has to be laminated the end result is pretty decent. It does not tool as well as mahogany so routing and shaping requires a bit more attention. The Tectus hinges most definitely live up to their reputation. Having control in all directions much like a euro cabinet hinge is a game changer and they are as smooth as any standard hinge with bearings. The real lesson for us was Wenge. What a nasty wood to work with. It is now my least favorite wood of all time. It turns black with finish so color wise it is a good substitute for ebony but everything else about it is miserable. It is very brittle. Worse than bamboo. Even with the best blade and fully backed fence the stuff will just explode occasionally. In  most cases we are using abrasives to grind the miters. It is very fibrous like bamboo and the splintering is hard on the hands. Oh well. These things are meant to challenge us.
Paul

  • Author
  • Popular Post

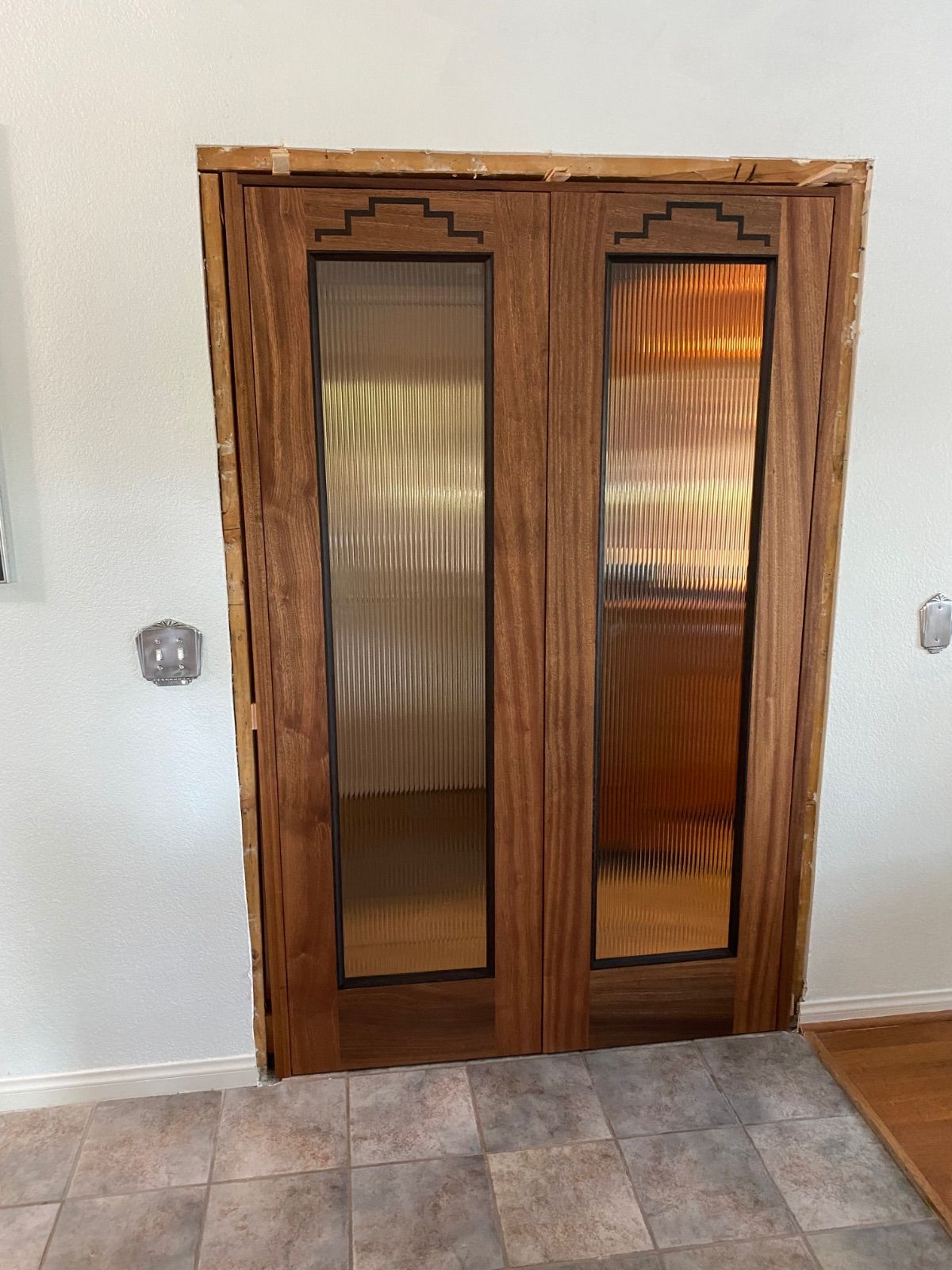

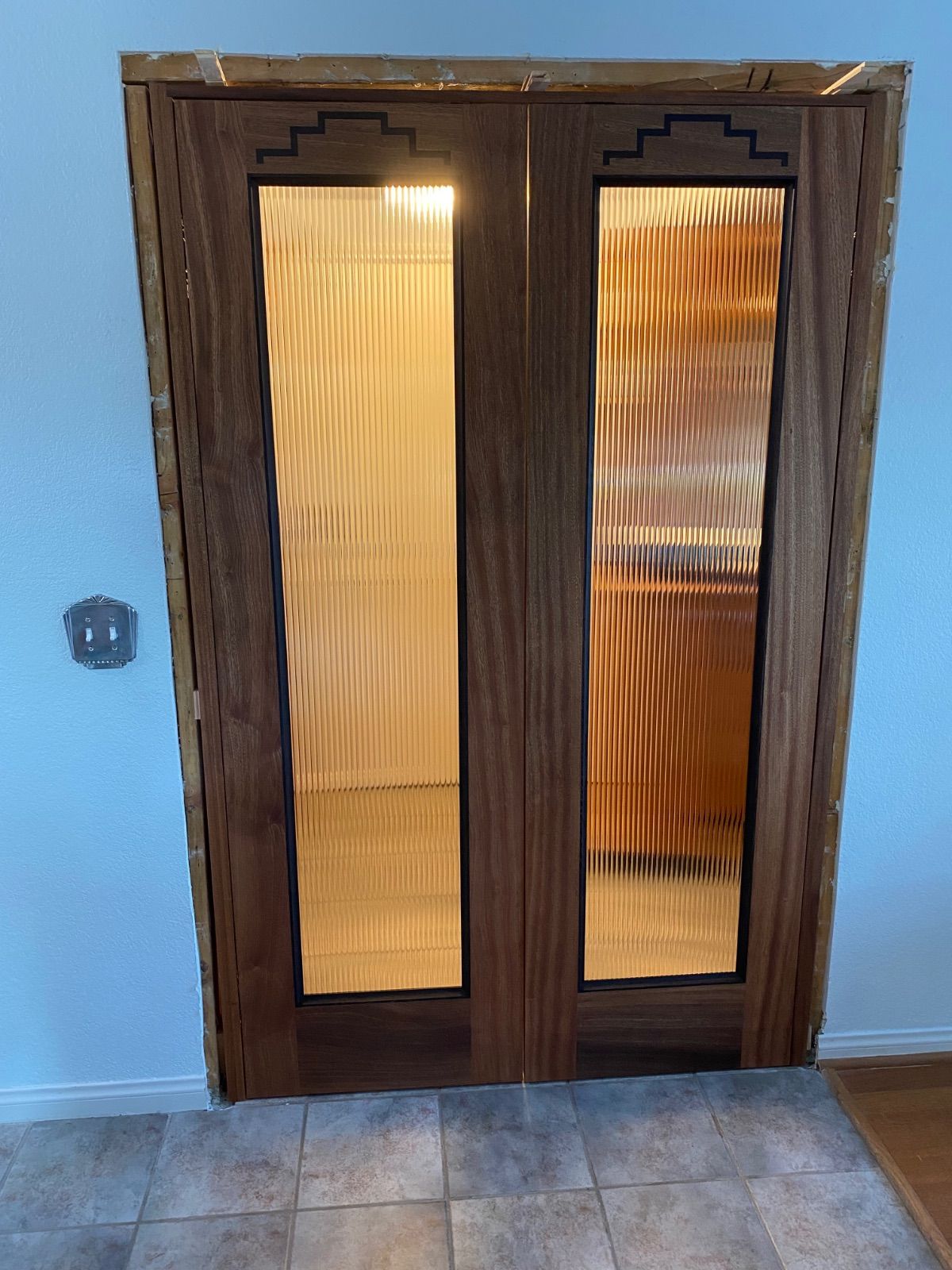

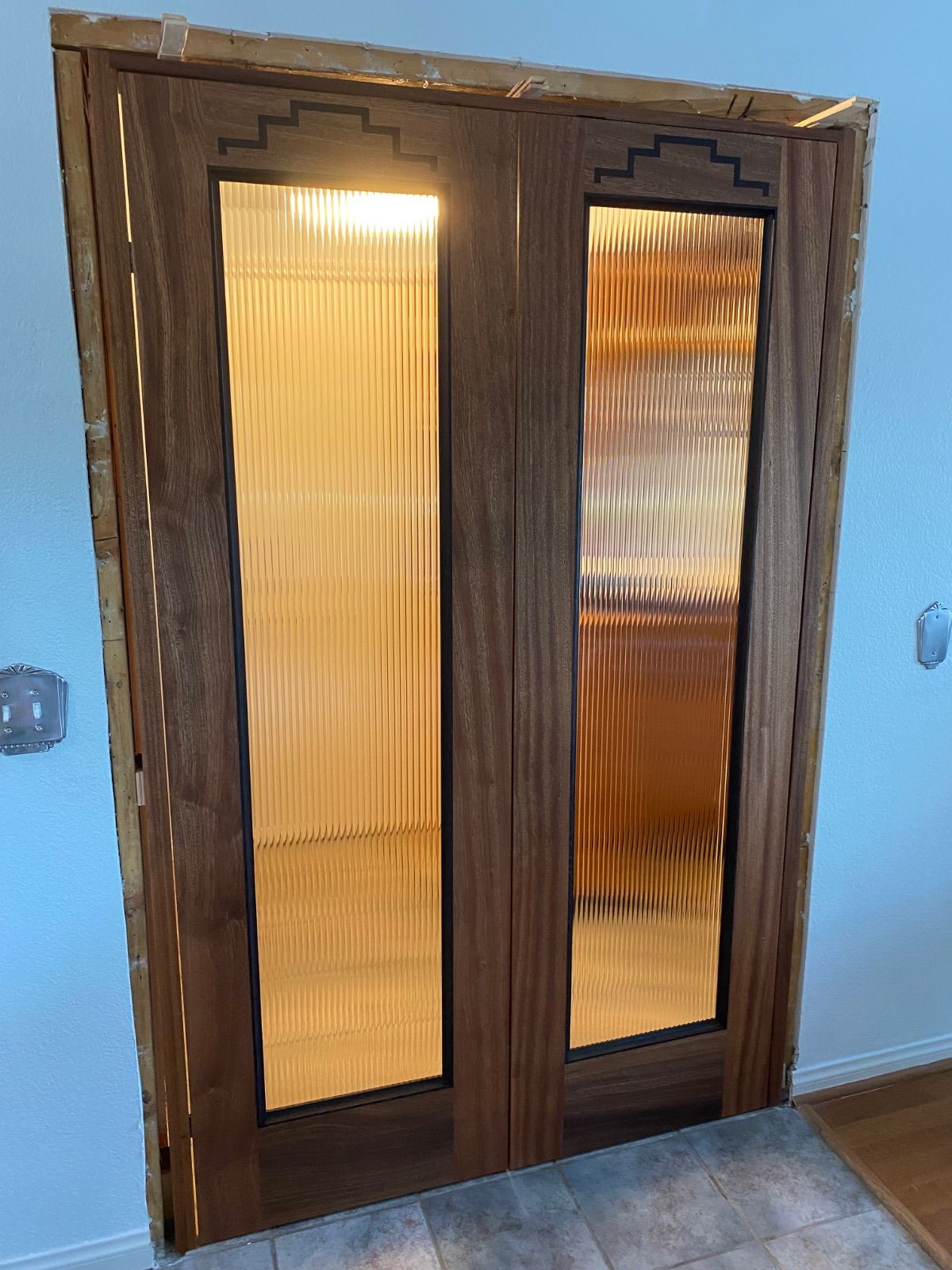

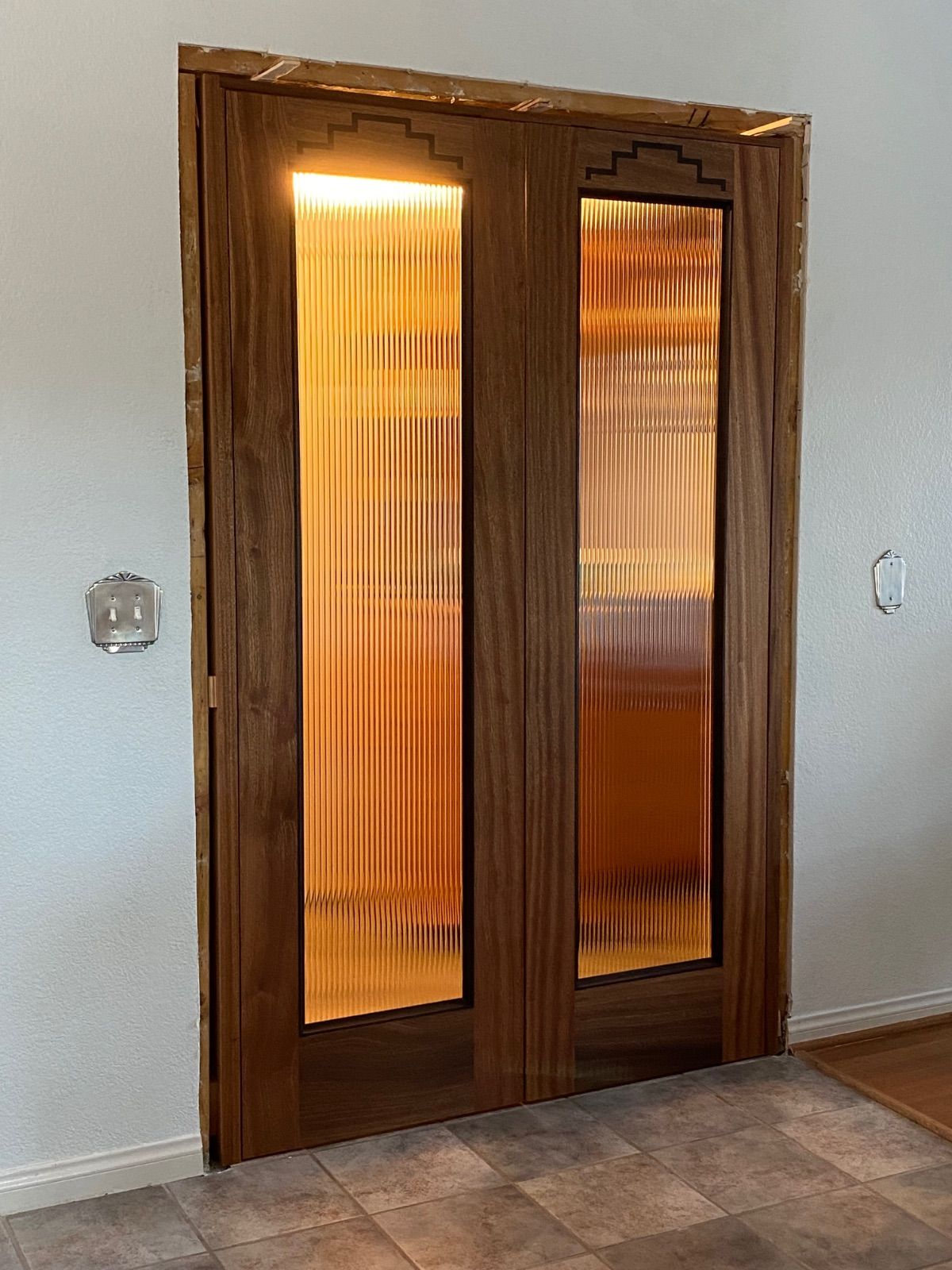

Door #2 done

Paul





Spectacular Paul!:Praise::Praise:

Dang Paul! Not sure how you’re going to top this project!

Looks great with that blue background too

  • Popular Post

Absolutely gorgeous, old buddy. Worth all the hassles and more.

  • Author
  • Popular Post

Thanks Gene. Now only 15 more to go 🥺

  • Author
  • Popular Post

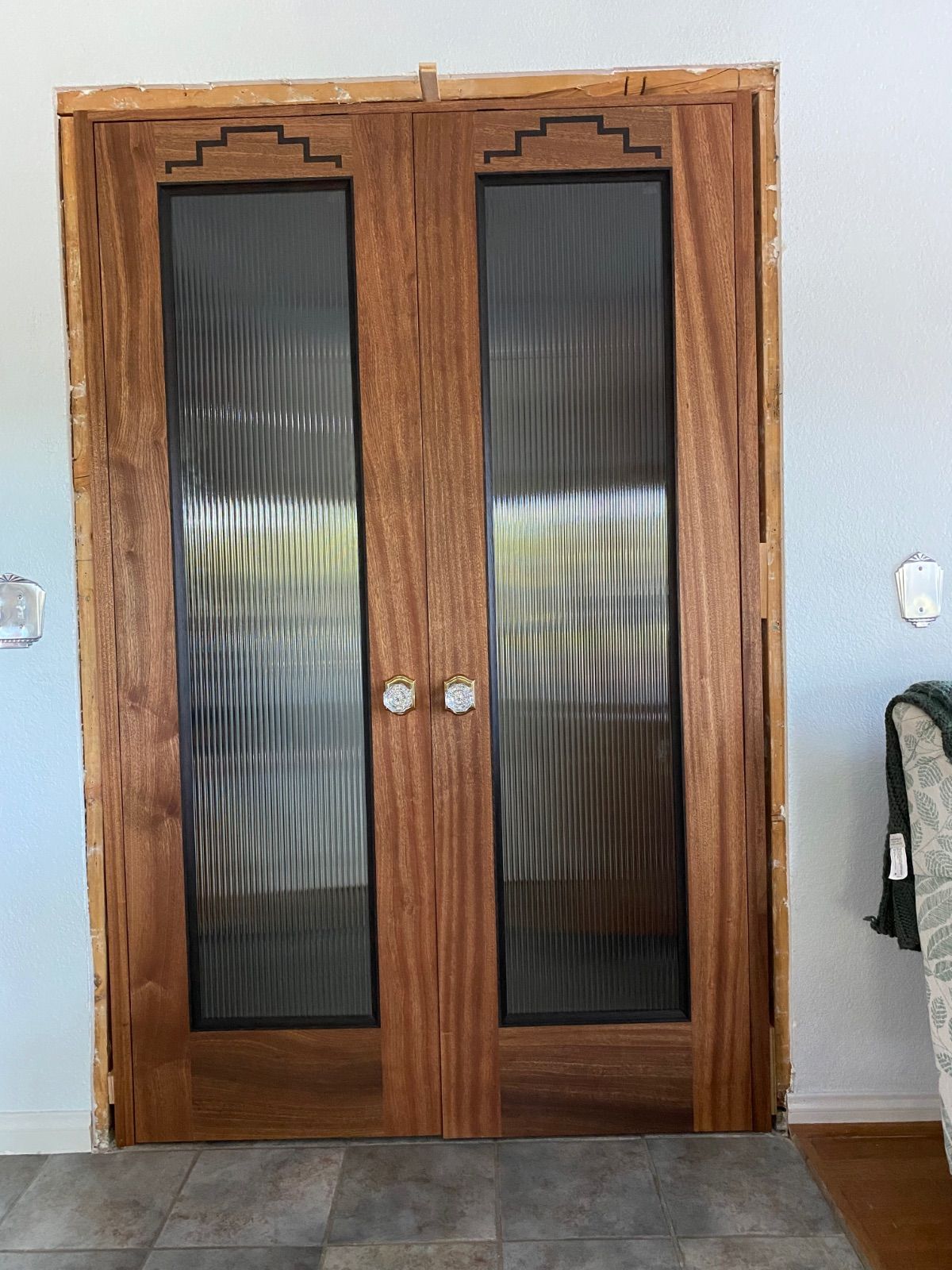

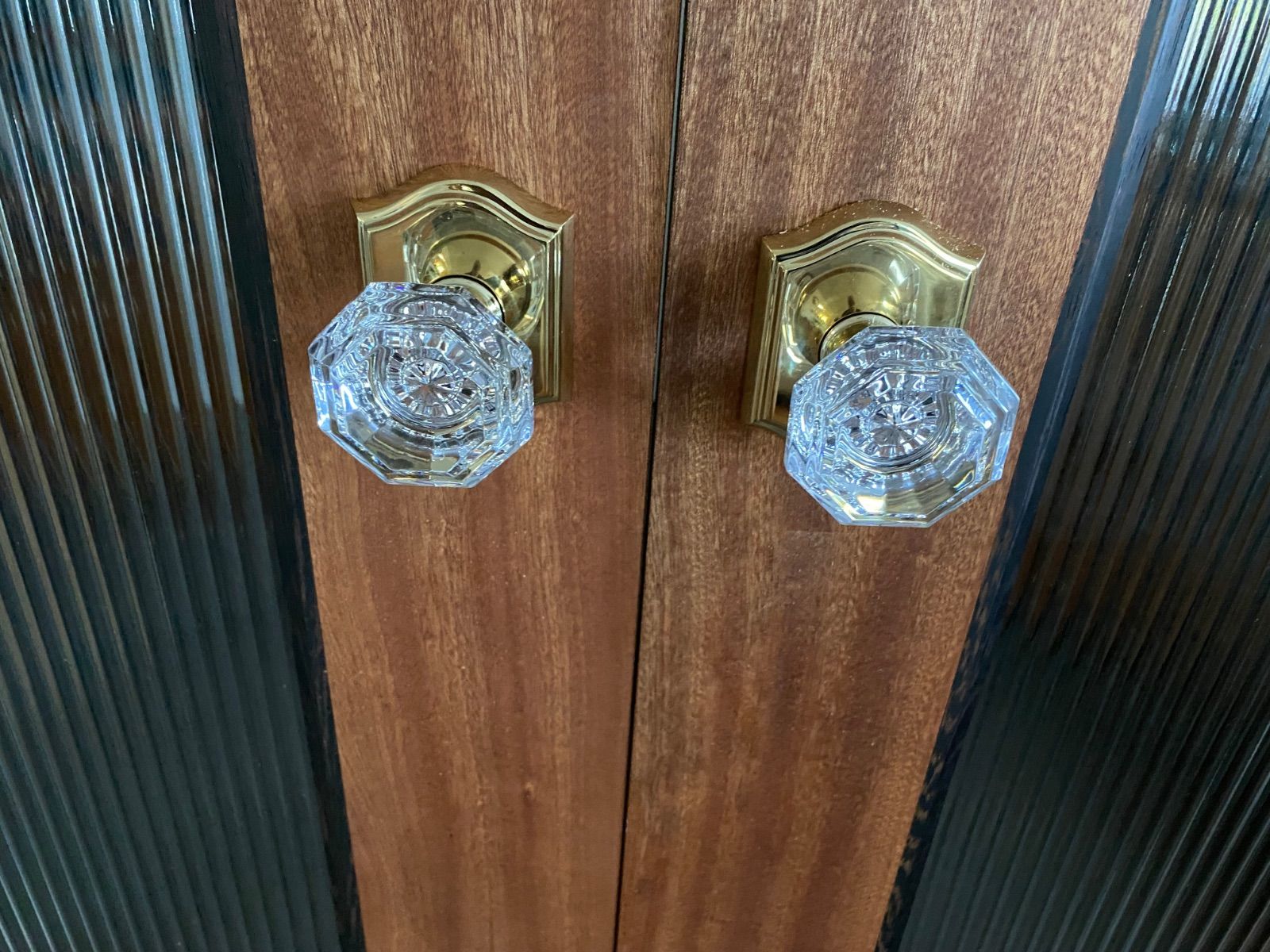

Progress. Today was hardware installation. Now for the mounding.
Paul
