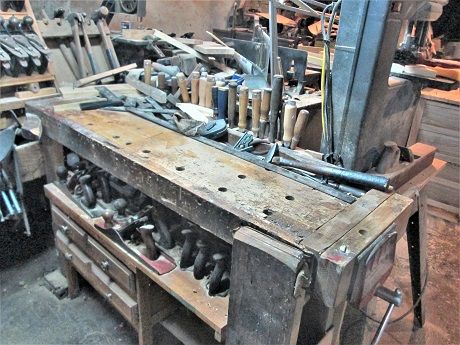

Then, there is the Dungeon Workbench..

.

5' long, when the end vise is closed.   Since 90% of the work is on this end of the vise, leg vise is also down here.  There is a Crochet at the far end, to hold LONG pieces for jointing.  Apron is a 5/4 x 5" that I can c clamp items to....Cabinet and shelf are options....Yes, there is a tool well....comes in handy, to keep items from bouncing off the side of the bench, or chisels from rolling away.  Chisel rack across the back of the bench, as I don't have the room in the shop to work from both sides of the bench...

YMMV...

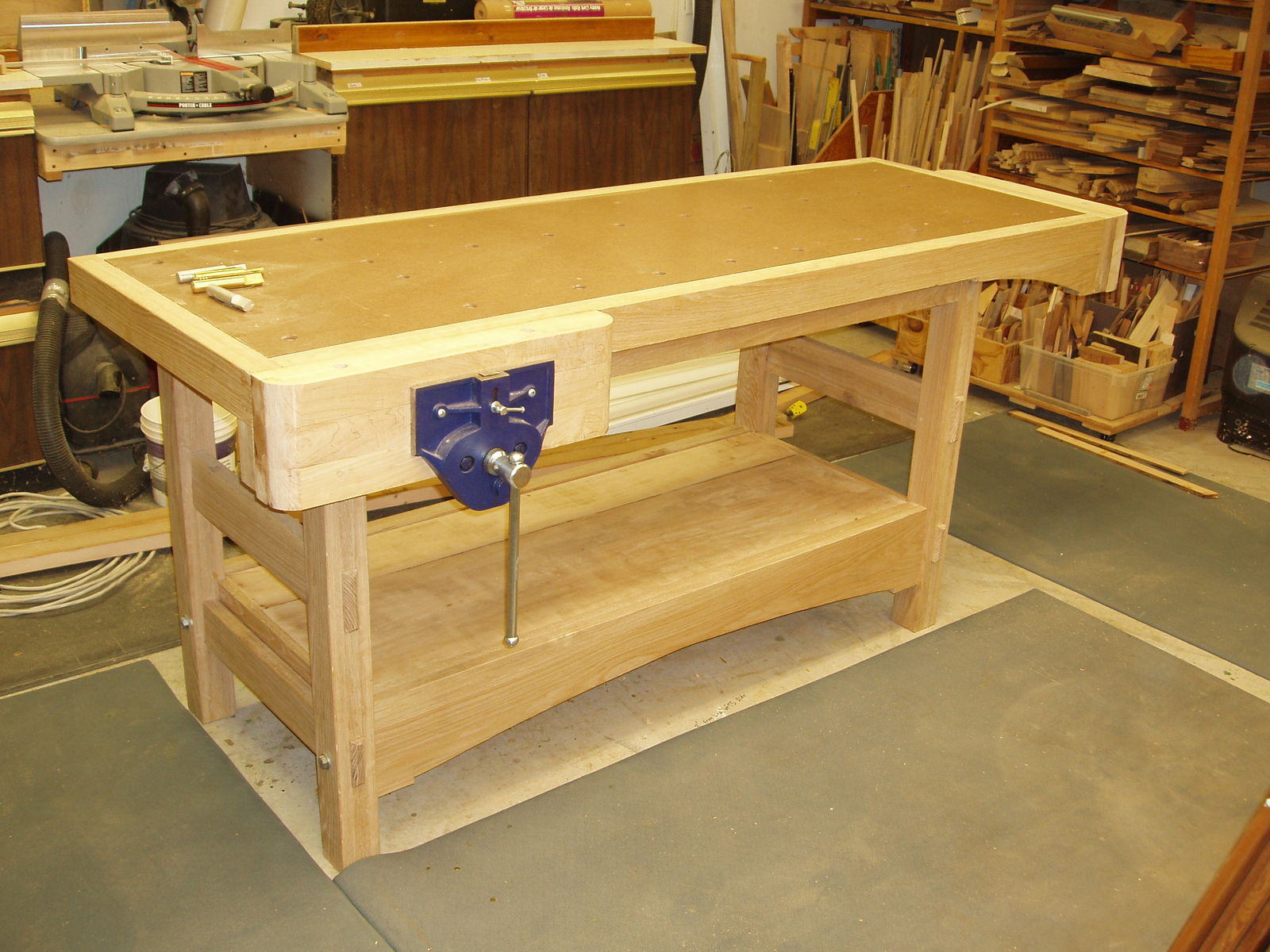

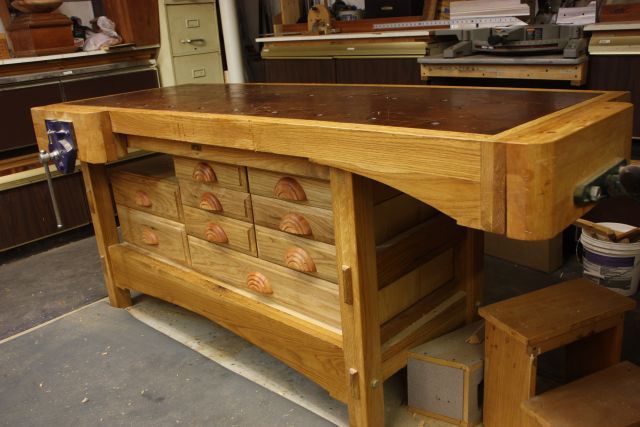

I think it took me two years to decide what I wanted and then to design and acquire the white oak to build this one and I cannot even pick up one end . I do not know but would guess it weighs in over 300. Plan is a amalgam of Wood, Family Handyman and Popular Mechanics benches and the some of my own design to pull it all together. Top is 3 layers 3/4 MDF trimmed in white oak and 1/4 Masonite top cover.

Before adding drawer unit.



Nice work. I can't have that I would have to hide all the hammers...

@Gerald,

Nice workbench! How big is that?

I need to make a couple of benches, well actually machine stands that I can roll.

They need to be able to go over the wheel wells in my trailer shop when in the storage position.

@kmealy , you are completely awesome, exactly what I was looking for!!!

53 minutes ago, Gerald said:

I think it took me two years to decide what I wanted and then to design and acquire the white oak to build this one and I cannot even pick up one end . I do not know but would guess it weighs in over 300. Plan is a amalgam of Wood, Family Handyman and Popular Mechanics benches and the some of my own design to pull it all together. Top is 3 layers 3/4 MDF trimmed in white oak and 1/4 Masonite top cover.

Another great entry for our wiki, thank you Gerald! Can I use your images in our wiki?

1 hour ago, steven newman said:

Then, there is the Dungeon Workbench..

.5' long, when the end vise is closed.   Since 90% of the work is on this end of the vise, leg vise is also down here.  There is a Crochet at the far end, to hold LONG pieces for jointing.  Apron is a 5/4 x 5" that I can c clamp items to....Cabinet and shelf are options....Yes, there is a tool well....comes in handy, to keep items from bouncing off the side of the bench, or chisels from rolling away.  Chisel rack across the back of the bench, as I don't have the room in the shop to work from both sides of the bench...

YMMV...

Thank you Steve! Can I use your image in our wiki?

Might as well....

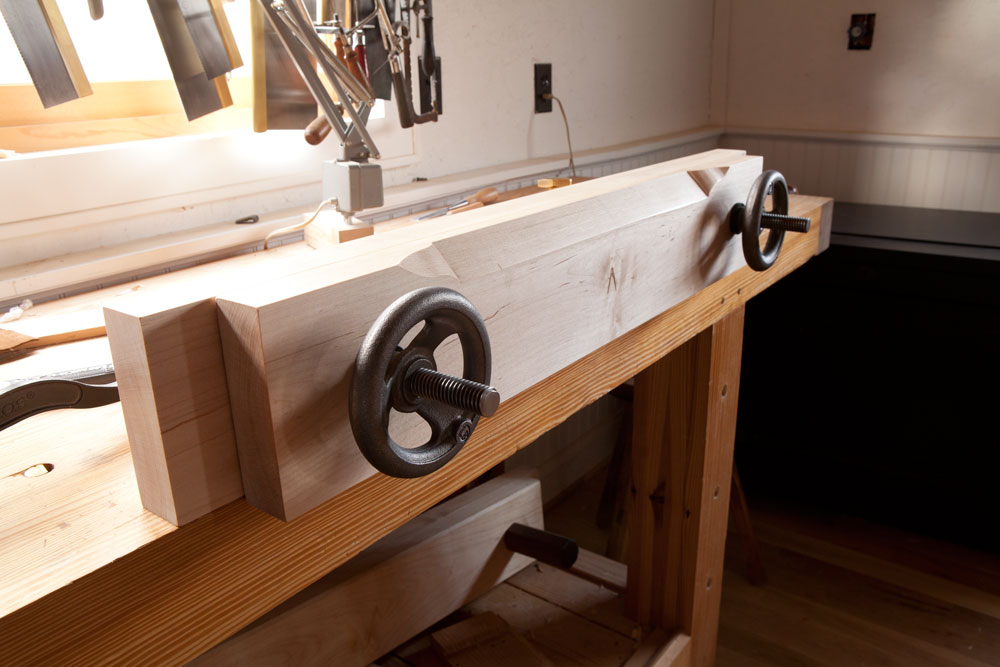

Moxon workbench vise (add on to a workbench)

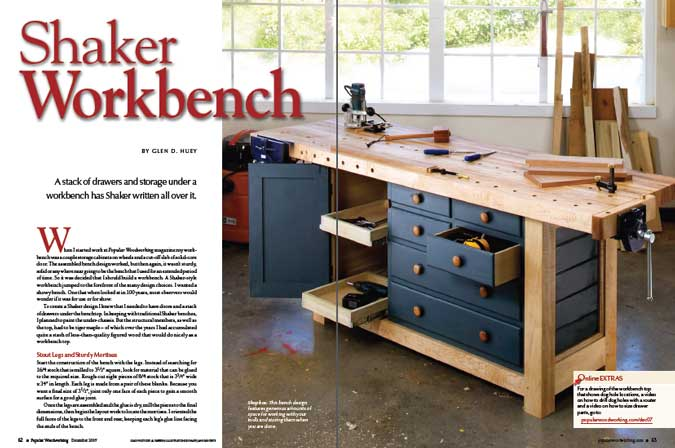

Shaker workbench







The one at Hancock Shaker Village

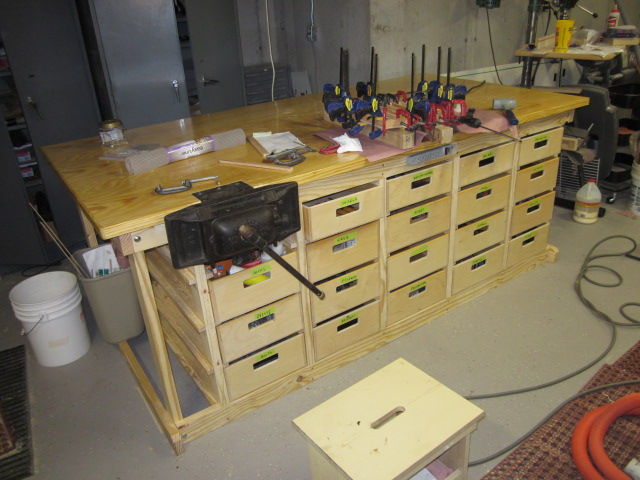

And my recently completed Monster Work and Assembly table.  48"x96"x38"  Complete with 19 drawers (repurposed from wine display cabinet at a closed up Sam's Club -- sorry, no Systainers ) and Emmert Patternmaker's Vise.   Tape labels on drawers are until I decide on a final layout.   From right to left on drawers -- routers & bits, drills and bits, sanders, planes, chisels, glue, F-clamps, Zyliss vise.  Heavy hardware (screws, nuts & bolts) across the bottom.   I lucked out, the HF storage boxes that I've used for hardware fit perfectly in the drawers.  Me like.









Edited October 10, 20196 yr by kmealy

Sorry the hardware alone would set me back...

Just now, BillyJack said:

Sorry the hardware alone would set me back...

Ain't enough coke bottles in the garage these days...

On 4/26/2019 at 7:07 AM, John Morris said:

That'll work too as a type, what should we call it? Mechanical, portable, multi-purpose?

Workmate.



Multifunction table (Festool)

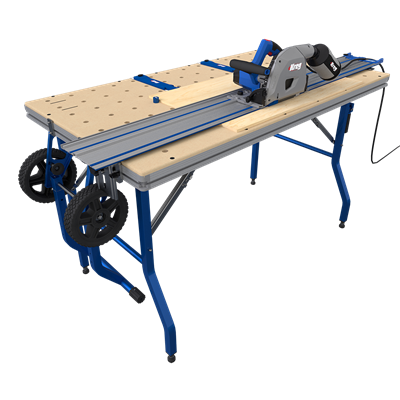

And the new Kreg Version,  Adaptive Cutting System

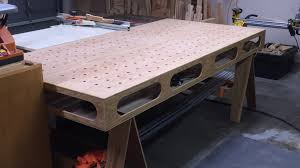

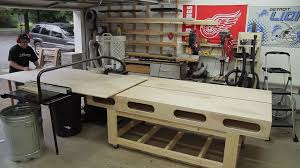

Paulk Workbench





And Jay's Custom Creations adaptation (more non-portable)

Shop Boxes by Bob Lang. Boxes of three different dimensions to make 3 different height work surfaces and two I-beams to add on a bit more and make a good clamp-to surface.  https://www.popularwoodworking.com/article/the_shop_box_system/

Mobile, folding workbench / work tables

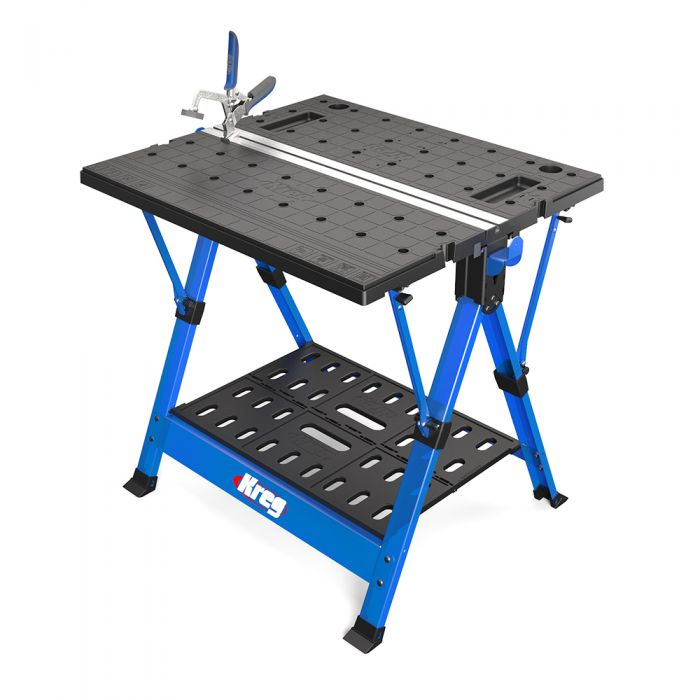

Kreg version

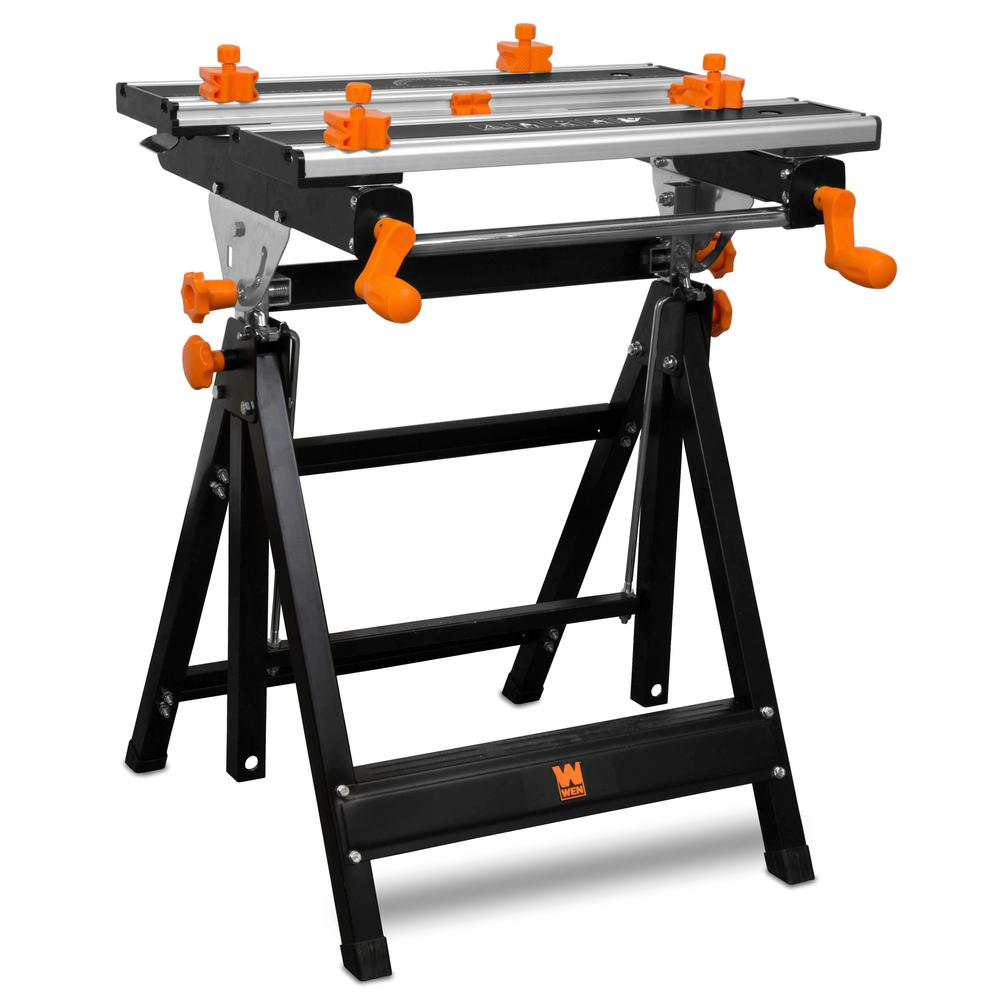

Wen

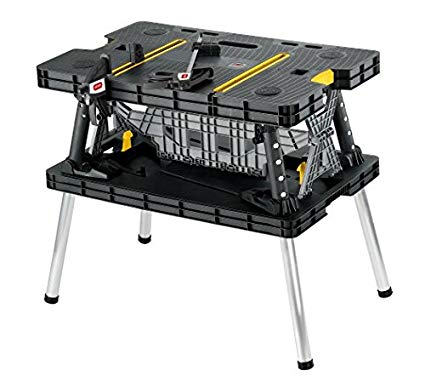

Keter version

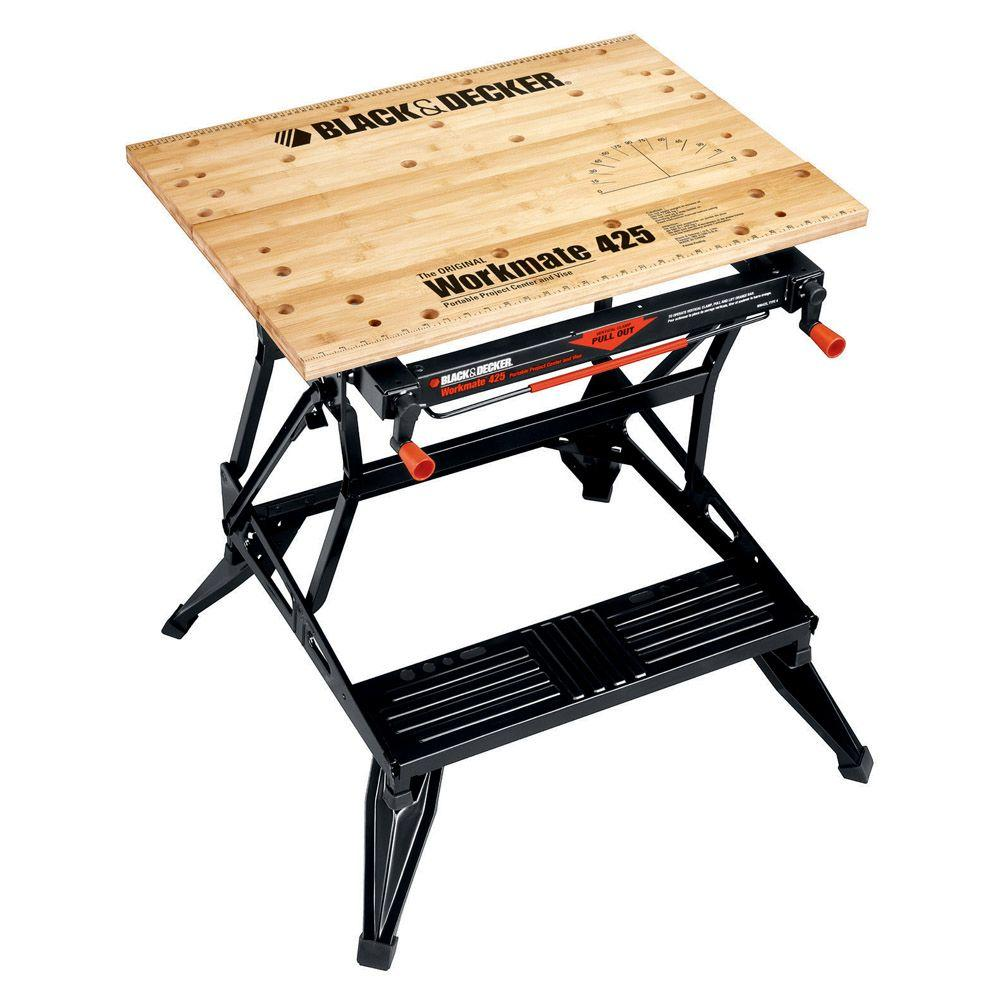

And the original, Workmate

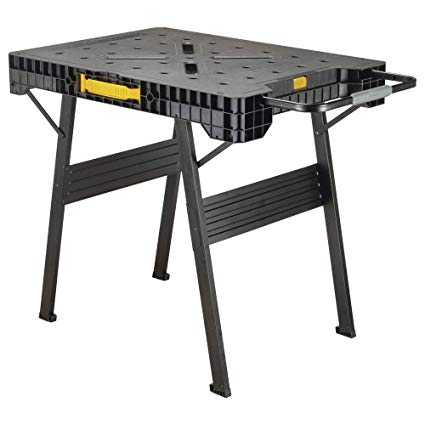

DeWalt Version

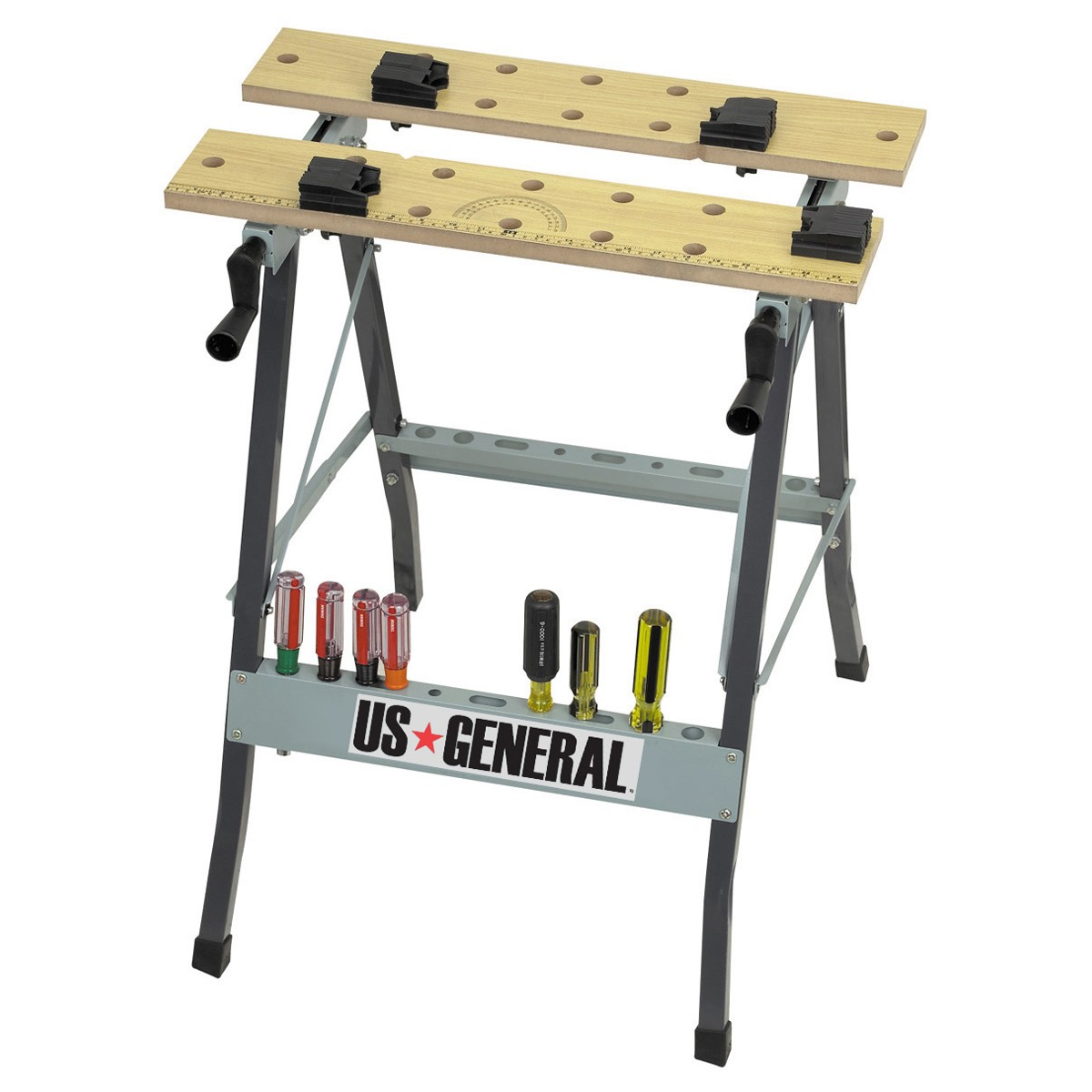

US General (Harbor Freight)





Worx Pegasus



et cetera, et cetera, et cetera







More on the Moxon https://forums.woodnet.net/showthread.php?tid=7350532

6 hours ago, Gerald said:

Top is 3 layers 3/4 MDF trimmed in white oak and 1/4 Masonite top cover.

You are trying to make us look bad!!!  I don't see a speck of sawdust.  Now how did that happen.



Never mind, fire the maid that you have doing it post haste.



Or we may have to rethink your membership in the Brotherhood of Sawdust....

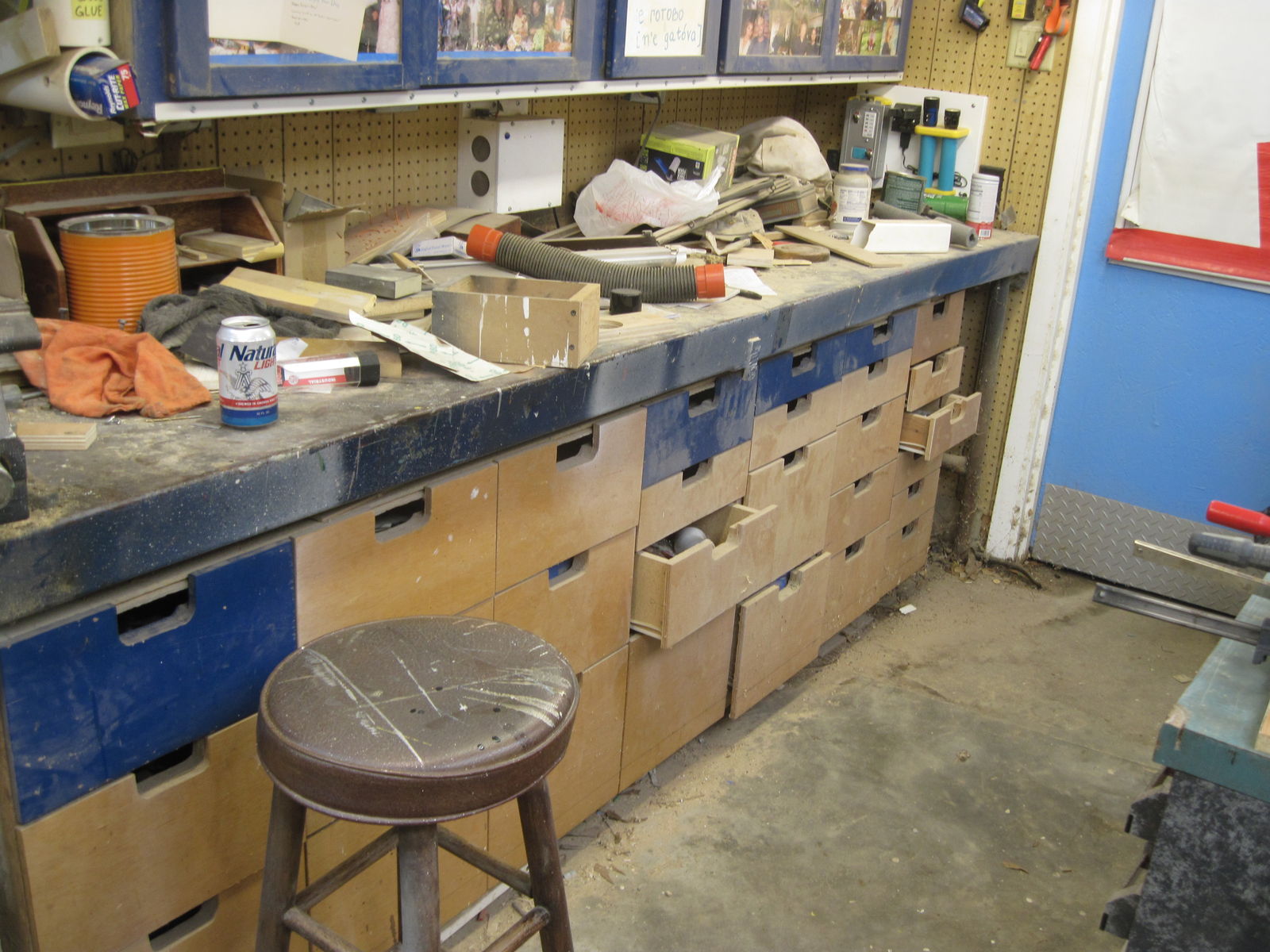

Have no idea what type or style of bench this is, but hey it works.
