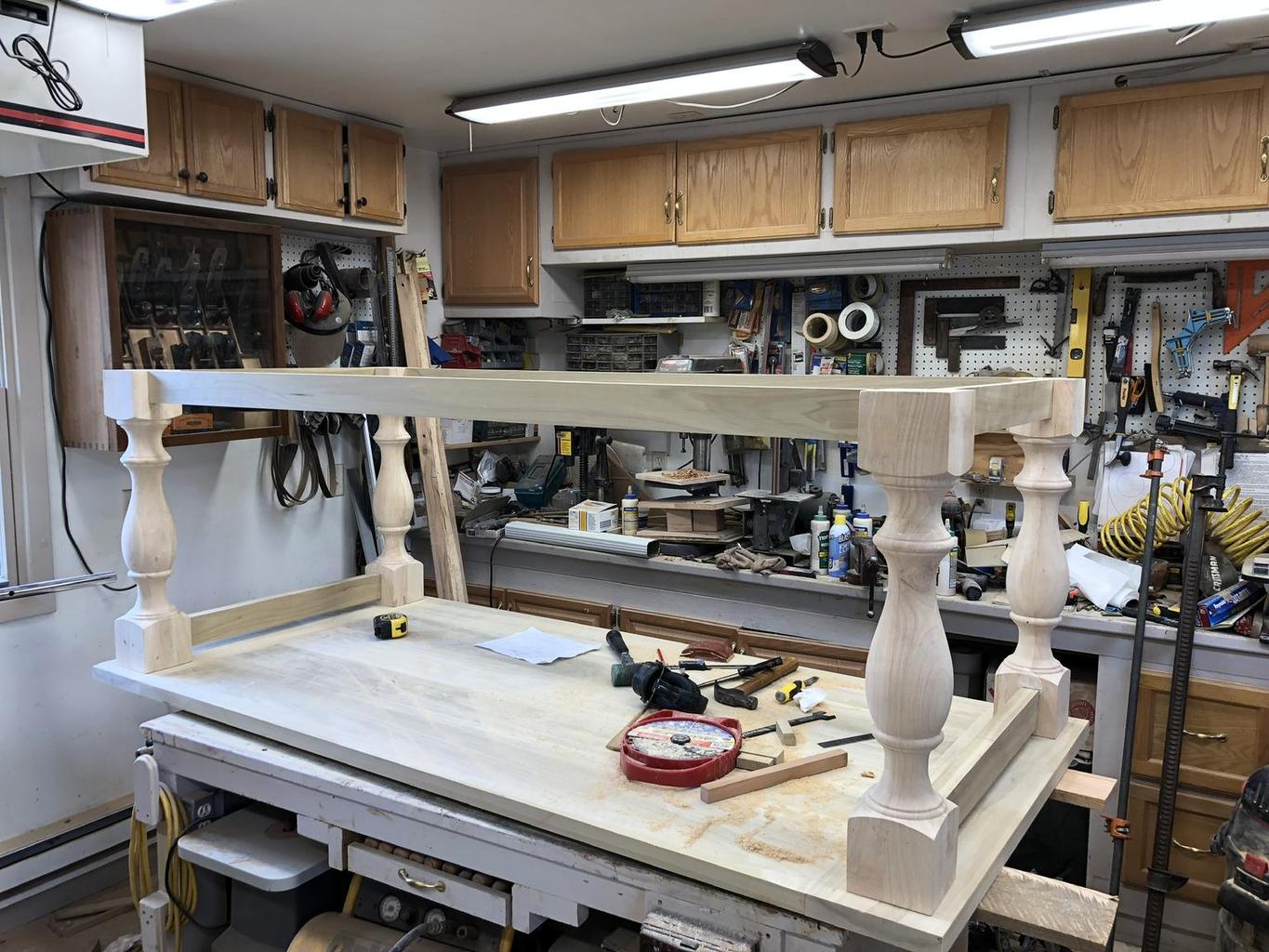

Very nice Ron. That is one beast of a table. I hope you have someone close to help you maneuver it?

Share this post


Link to post
Share on other sites

that is some next level nice Ron..

Share this post


Link to post
Share on other sites

after looking at the table..

I would put no less than four ''8's'' on the short side and seven on the long side..

I just wouldn't....

Share this post


Link to post
Share on other sites
9 hours ago, Stick486 said:

after looking at the table..

I would put no less than four ''8's'' on the short side and seven on the long side..

I just wouldn't....

Great minds think alike.  That’s what I had in mind.  I’m also consisting adding a couple of braces across the skirt with 1 “8” in the middle

Share this post


Link to post
Share on other sites
35 minutes ago, Ron Dudelston said:

Great minds think alike.  That’s what I had in mind.  I’m also consisting adding a couple of braces across the skirt with 1 “8” in the middle

skirt = apron???

describe what you have in mind for braces if you would..

I wouldn't put an ''8'' in the middle...



mere mortals won't be able to pick that table up so when it gets moved it will be shove/pushed/drug around which will be tough on the apron/leg joints so here's something you might want to consider...

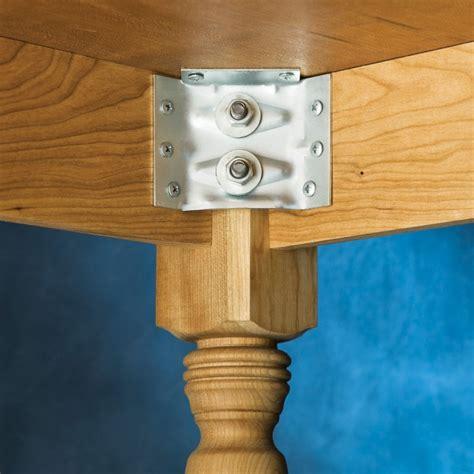

th?id=OIP._rpzpMPOk7BOTcalft_L2wHaHa%26pid=15.1&f=1  2914946_f520.jpg.f0d867e48c3b351b8c181fe549f23a9d.jpg





Edited by Stick486

Share this post


Link to post
Share on other sites

Hey Ron.



Only 1/8th out of square? You just can't find quality like that everywhere. LOL Thanks for posting, this is going t be fun to watch.

Share this post


Link to post
Share on other sites
12 hours ago, Stick486 said:

skirt = apron???

describe what you have in mind for braces if you would..

I wouldn't put an ''8'' in the middle...



mere mortals won't be able to pick that table up so when it gets moved it will be shove/pushed/drug around which will be tough on the apron/leg joints so here's something you might want to consider...



th?id=OIP._rpzpMPOk7BOTcalft_L2wHaHa%26pid=15.1&f=1  2914946_f520.jpg.f0d867e48c3b351b8c181fe549f23a9d.jpg





I have seen brackets like the top picture but not the bottom picture. Are the wood brackets bought or homemade?

Share this post


Link to post
Share on other sites

home made...

Share this post


Link to post
Share on other sites

the homemade version should have a key cut into it to receive the corner of the leg...

your dado blade set over to 45° is just the ticket for this and the key way helps w/ fastening the bracket to the leg...

not only do those brackets help the corner junction strength immensely they work hard at keeping the leg from getting ''laid over''when the table is slid around...



note...

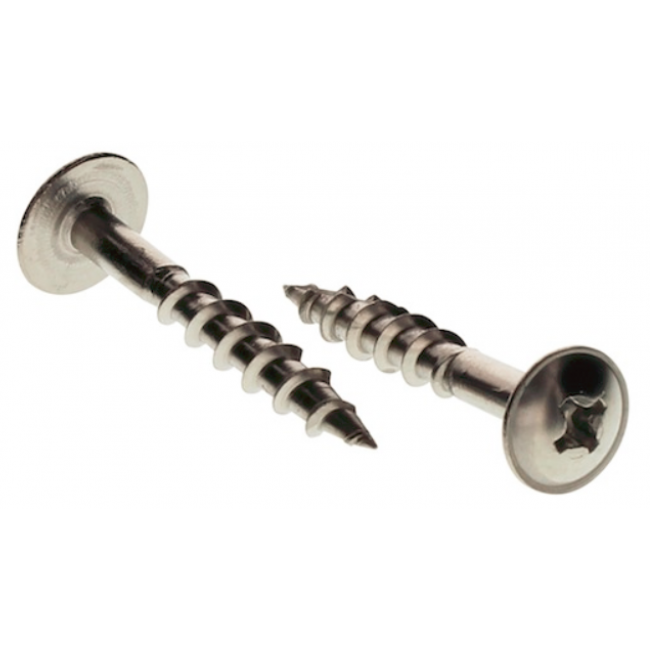

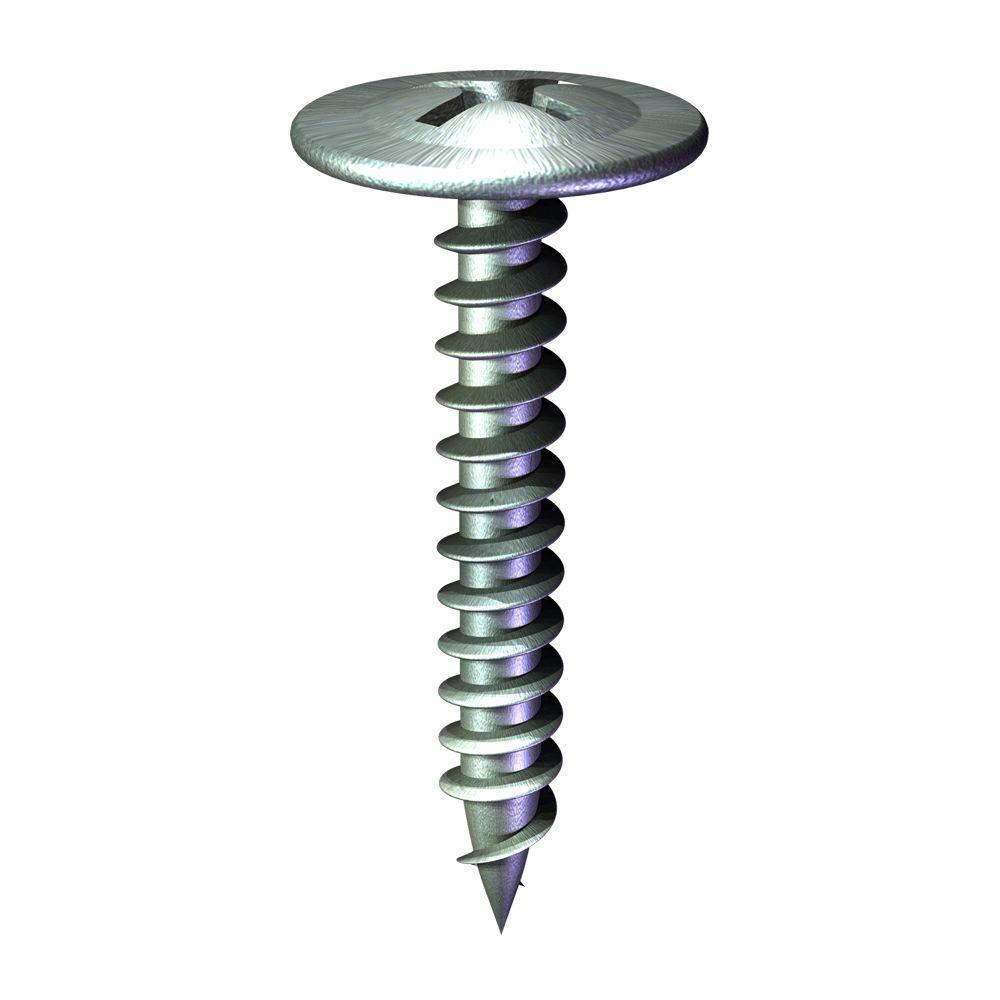

use modified truss headed (see pic) or pan head screws w/washers to screw the brace in...

if you use a full threaded screw, drill a clearance hole for it in the bracket...

FH screws tend to split the wood when put under duress... think splitting wedge...

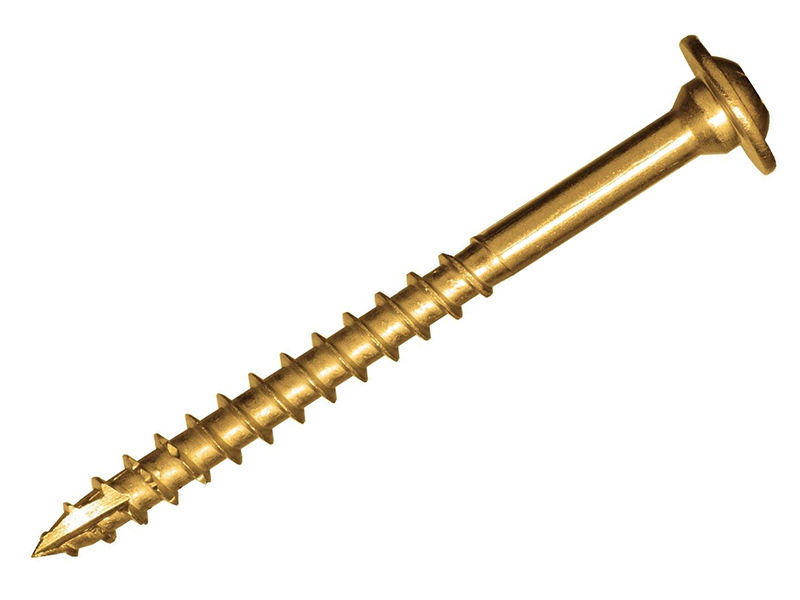

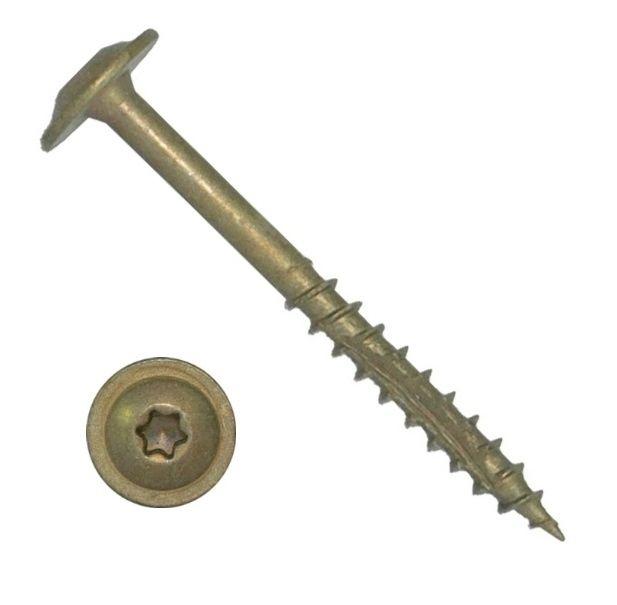

instead of lagging the leg I use GRK or RSS structural screws... (4th picture)...  you get strength w/o the risk of splitting the leg...



k-screw-big.png s-l1000.jpg&f=1grabber-wood-screws-23355-64_1000.jpg&f=1$_32.JPG



Edited by Stick486

Share this post


Link to post
Share on other sites
6 minutes ago, p_toad said:

Both styles of bracing (brackets) have been around for a long time and either will work just fine on this.

since the 1st table anyways...

Share this post


Link to post
Share on other sites

deleted duplicate post....

Edited by Stick486

Share this post


Link to post
Share on other sites

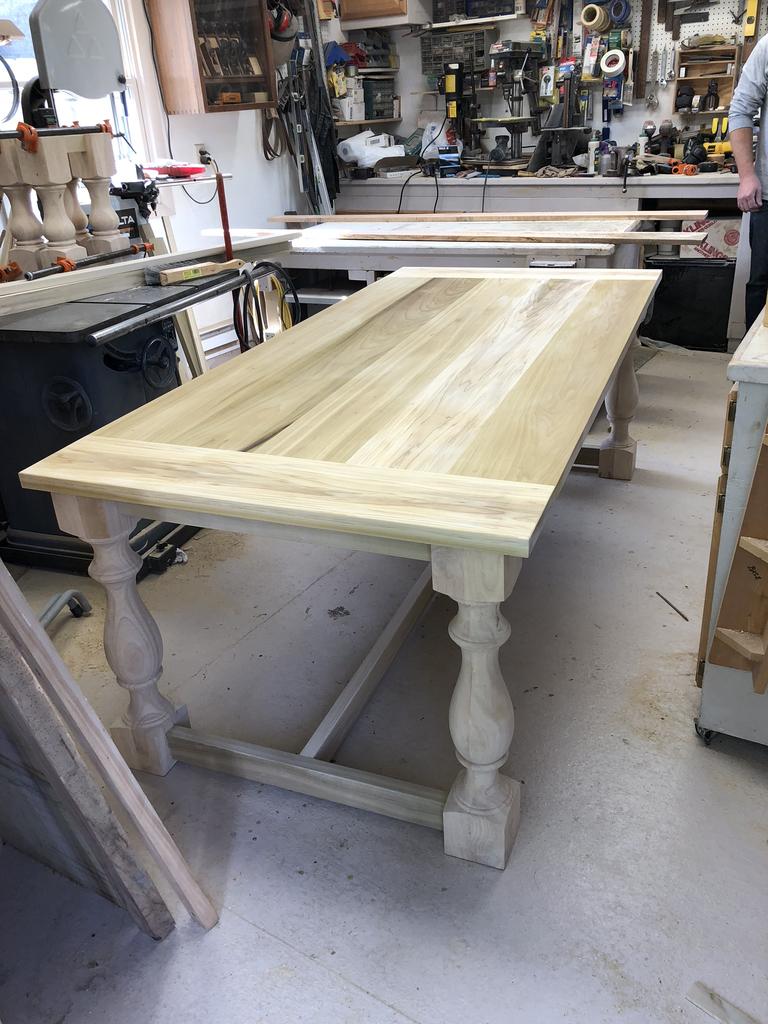

Table is looking good Ron.



a masterpiece in progress!
