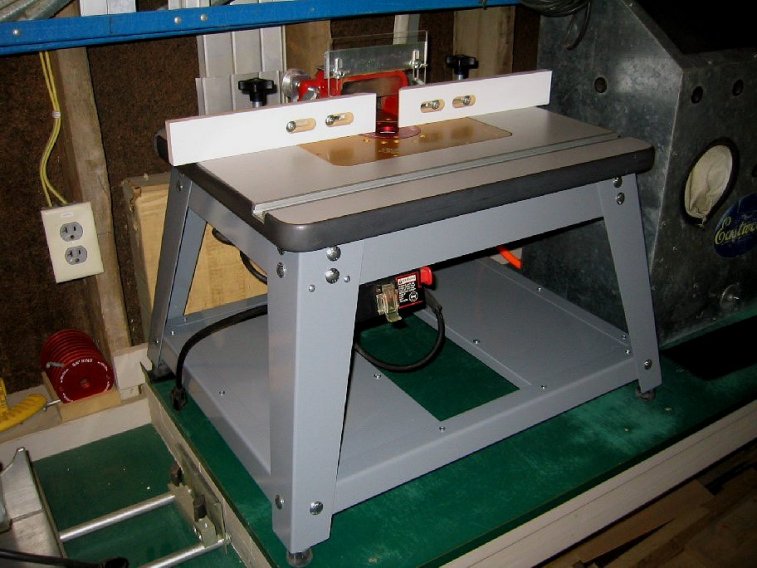

July 4, 20179 yr Author Looks good Mike. I know what your saying, but that is what came with the ShopSmith router table. I was hoping that I could just add to it to make it taller. Here is a picture of a portable router table that I put together a few years ago, and is in my main shop. The stand and top I built, then added a Freud fence, Woodpeckers plate and ring set. Edited July 4, 20179 yr by CharlieL

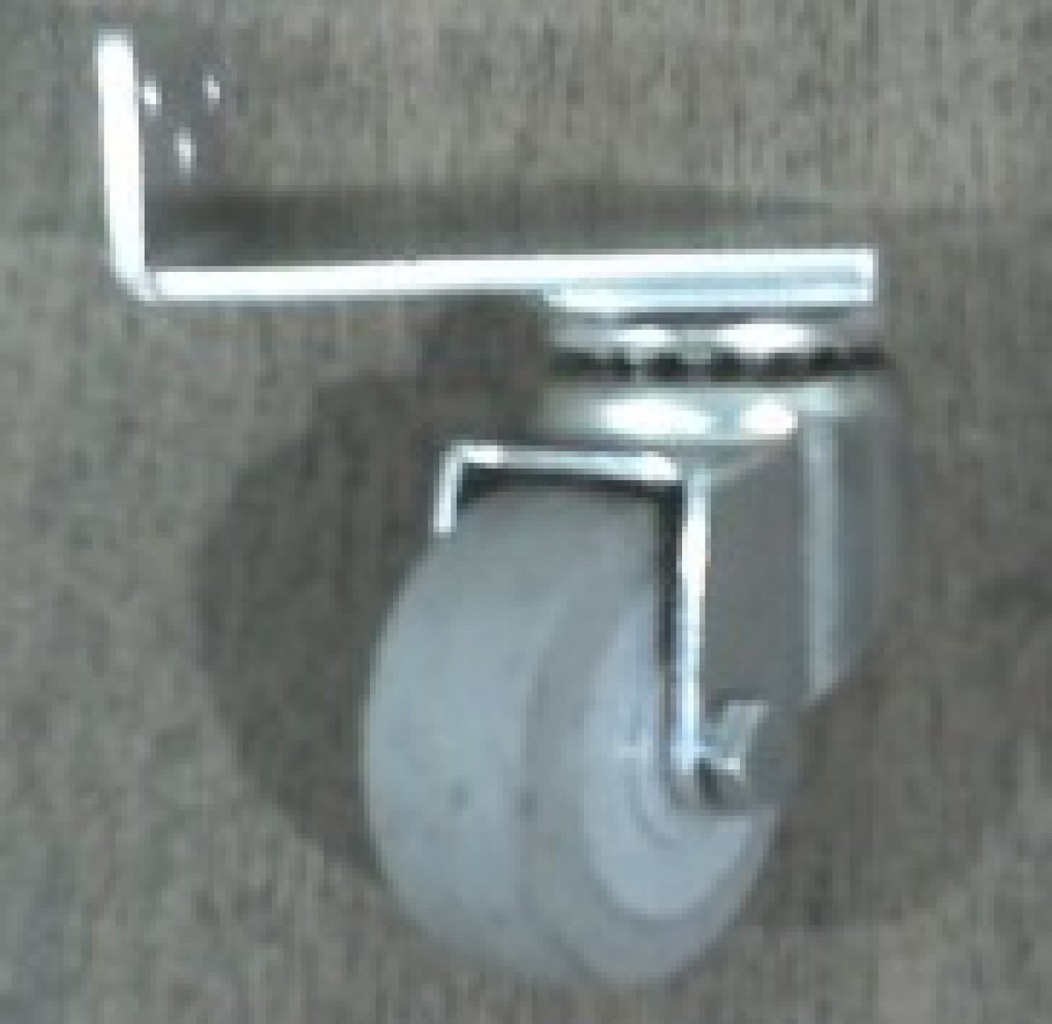

July 5, 20179 yr Recently I bought some casters at the big blue box store. They lock both ways. So far, I like them. If you plan to raise your table with casters, it would be a good time to make the finished table height comfortable for your routing. The router table I have now has adjustable height and can be raised to about 39 inches at the highest. That makes it nice for routing. I am 5'10" or I used to be.
July 5, 20179 yr Author 9 hours ago, MT Stringer said: If you plan to raise your table with casters, it would be a good time to make the finished table height comfortable for your routing. The router table I have now has adjustable height and can be raised to about 39 inches at the highest. That makes it nice for routing. I am 5'10" or I used to be. I'm about 6' 2". The height is a concern that I have because the working surface on the stock stand is already at 43", and I'm not so sure that I want it any higher then it has to be, I really do not want to cut the stand height. A mobile base would only raise it about an inch, verses casters at atleast a 3" raise. In a nut shell a mobile base would be the best and easier solution then casters where I'd probably have to cut the stand height down, and make brackets to fasten the casters to. More work then it's worth to save a couple bucks and then not have a easy to operate mobile base. Edited July 5, 20179 yr by CharlieL
July 5, 20179 yr who says you have to have the casters under the table... put them on brackets (add a gusset if need be) as outriggers part way up the stand's legs and make them long enough that the swivel casters operate freely... or mount them to to an internal self inside of the legs...
July 5, 20179 yr Author 11 hours ago, Stick486 said: who says you have to have the casters under the table... put them on brackets (add a gusset if need be) as outriggers part way up the stand's legs and make them long enough that the swivel casters operate freely... or mount them to to an internal self inside of the legs... Stick, thats not a bad idea. Here is a quick sketch of how I would try your suggestion. fixed casters on the back two, and two swivel locking casters in the front. I will definitely consider it. Thanks. Edited July 6, 20179 yr by CharlieL
July 5, 20179 yr 2 hours ago, CharlieL said: Stick, thats not a bad idea. Here is a quick sketch of how I would try your suggestion. I will definitely consider it. Thanks. use angle iron...
July 5, 20179 yr Come to think of it, a mobile base might work nicely. I have three of the Harbor freight mobile bases on the band saw, drill press and the drum sander. The additional height is minimal. In fact, my poor garage floor is so unlevel and uneven, the bases drag sometimes when I move them about. So mostly, they stay in the same spot unless I just have to get in behind them. Edited July 5, 20179 yr by MT Stringer
July 6, 20179 yr Author 7 hours ago, MT Stringer said: I have three of the Harbor freight mobile bases on the band saw, drill press and the drum sander. I'm not a fan of Harbor Freight. Edited July 6, 20179 yr by CharlieL
July 6, 20179 yr 9 hours ago, MT Stringer said: I have three of the Harbor freight mobile bases on the band saw, drill press and the drum sander. Mike,,,what does the "pinkish" color on the outside of each of the stretchers indicate? I've got a similar set from H-F I haven't used yet...still trying to decide to use on the bandsaw or joiner. If I recall correctly, the stretcher size is 1-1/4" x 1-1/4"?? I did buy a set of these on sale at Woodcraft sometime back to install on the table saw. I've considered another set for the joiner/planer. https://www.woodcraft.com/products/woodriver-retracting-casters
July 6, 20179 yr 1 minute ago, MT Stringer said: Dave, that pink color is a 2x4 stud ripped to fit the metal brackets. Thanks Mike...I guess I haven't seen any treated that color but I don't get out much I have seen the blue treated at BORG. And here I thought I was gonna' get you to spill some proprietary secret
July 9, 20179 yr Author This morning I finished mounting two shelves to the stand. I did not put a finish on them because I figure that they would just get scratched up in time. Someday I may add a rubber mat to the tops of them. Next is to try to refurbish the router table top surface. Edited July 10, 20179 yr by CharlieL
July 9, 20179 yr 3 hours ago, CharlieL said: Someday I may add a rubber mat to the tops of them. Charlie, Next time you're at Wally-world, pick up a roll of this. Inexpensive, protects tool surfaces and stays put. I've even used it for sanding and routing "minimal slip" surfaces besides drawer liners in my tool boxes. doing so, you can put a finish on the shelves which gives the wood some protection from absorbing unwanted material. Wal-Mart Duck Drawer Liner
July 11, 20179 yr I know a fellow that took the saw off of a Craftsman RAS, and replaced it with a router.... Never mind those two Hooligans, back by the small lumber rack is the router, right beside that green thing.
July 12, 20179 yr Afraid my rarely used Router Table is a bit modest.. Almost the same as Norm started with.. I did make a stand for it, though Just haven't used it much....
July 12, 20179 yr 2 hours ago, steven newman said: Afraid my rarely used Router Table is a bit modest.. Whaaat? You have a router with a cord? What else are you keeping hidden from us?
July 17, 20178 yr Author Done for now, relaminated top, and added some height to the fence. A mobile base will have to wait. Edited July 17, 20178 yr by CharlieL
July 17, 20178 yr Great job Charlie and great find. Next is finding a dedicated router for it (or two)?
