I think we worked through this very nicely, I'll have to add some supports/stop to the small shelves if I add them. Guys, do you see any room for improvement??

I might just go with one depending on how small the area is.

These are the wheels I'll use.

cart wheels.jpg

Edited by Pat Meeuwissen

Share this post


Link to post
Share on other sites

After looking at this again, I wonder if you might need a small support at the top of the space where you are planning to store larger sheets of plywood. Something between the back piece and the next large upright.

Share this post


Link to post
Share on other sites

Could add a small block on top to keep it square. Kept the top clear of the stairs by a little bit.

Share this post


Link to post
Share on other sites

Good morning guys, thought I would post an update to this thread. The project is much further along then this but more important projects have taken up my time. I'll try to get a progress shot later today after I clear out the current work.2018-12-15 17.53.37.jpg

Edited by Pat Meeuwissen
update

Share this post


Link to post
Share on other sites
5 hours ago, Pat Meeuwissen said:

Good morning guys, thought I would post an update to this thread. The project is much further along then this but more important projects have taken up my time. I'll try to get a progress shot later today after I clear out the current work.2018-12-15 17.53.37.jpg

Pat, That looks really great!



Thanks for allowing me to help with the sketchup drawing. I learned a couple of new things about the cutlist and how it works with Sketchup.

Share this post


Link to post
Share on other sites

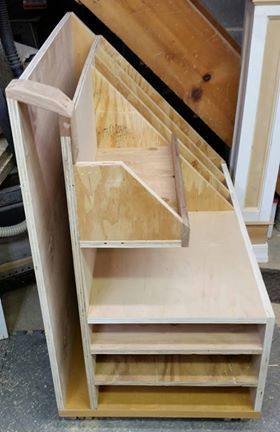

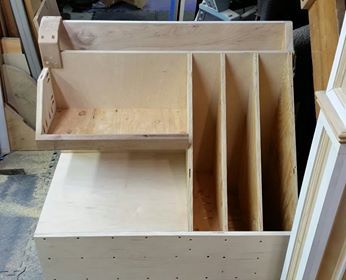

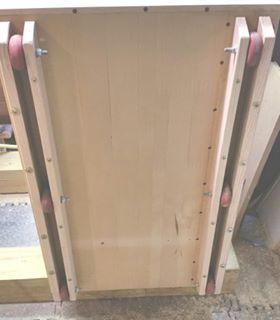

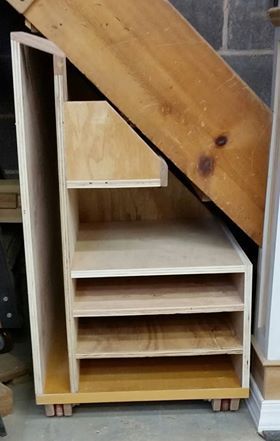

Here is the final version, you'll notice it's all screwed together to allow for changes if need be. Today I'll load it up with all my short pieces. Will probably add some markings for depth and a stop on the open flat shelf.

49054442_385675815533458_92134949177440349343438_1983619601729727_5323953056809749705043_2686198111398294_3611083175331149459797_350622152426797_495652923038603
