January 1, 20197 yr Author Popular Post I will do a separate thread on the Bow Sanders Stand by. Herb
January 1, 20197 yr 1 hour ago, Dadio said: I will do a separate thread on the Bow Sanders Stand by. Herb copy that...

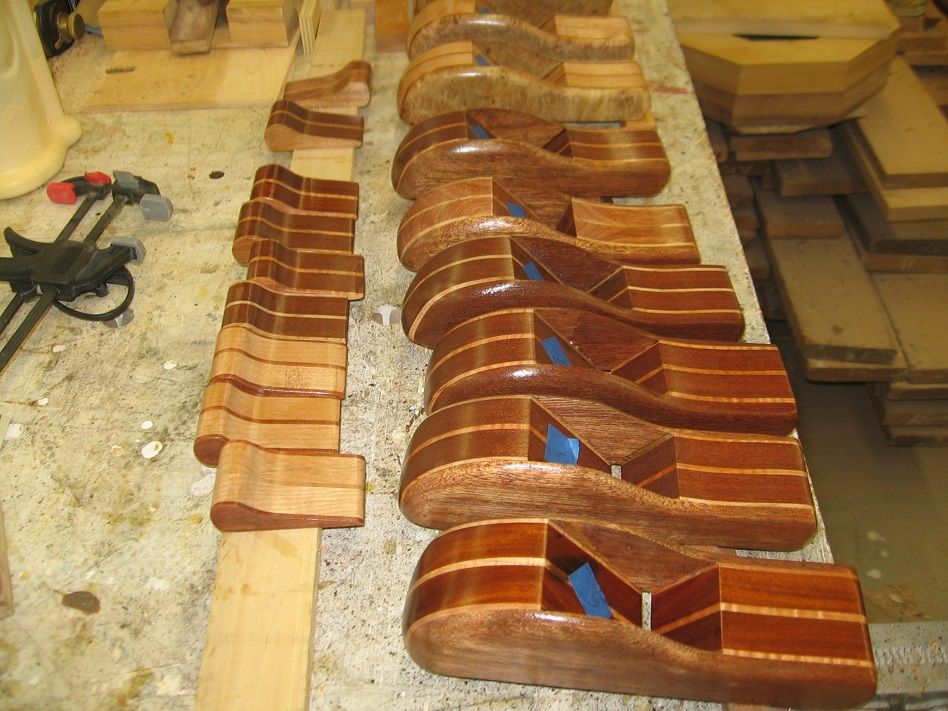

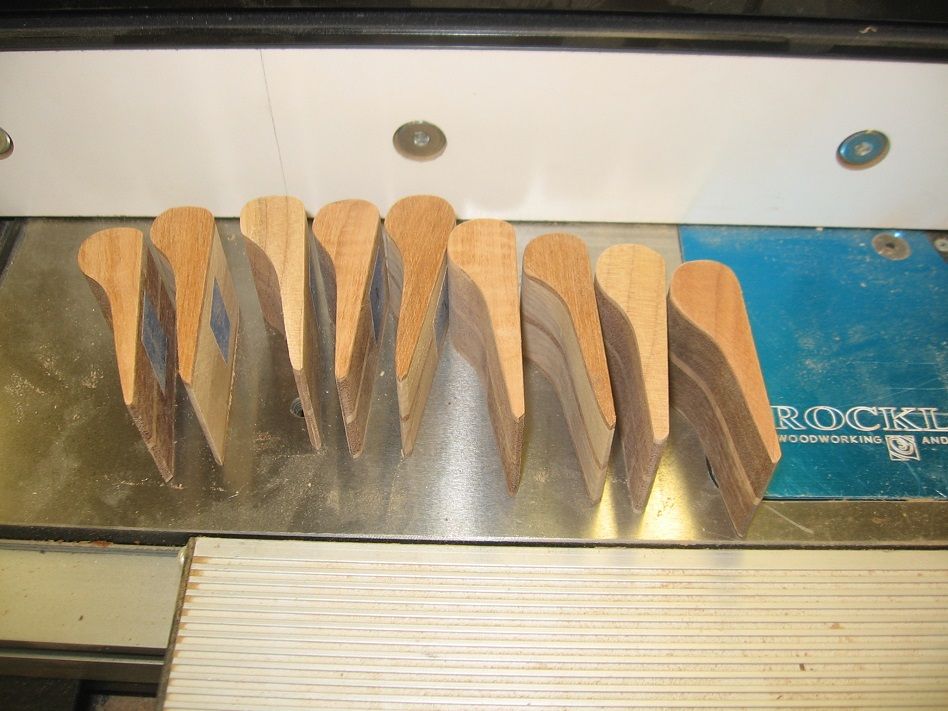

January 2, 20197 yr Author Popular Post So today I just worked on the wedges that hold the blades in the plane bodies. I used the scrap that was left over when I cut the planes out. That way the stripes match each plane they came from. Edited January 2, 20197 yr by Dadio
January 2, 20197 yr On 12/31/2018 at 10:54 PM, Dadio said: I will do a separate thread on the Bow Sanders Stand by. Herb Those planes are great Herb. What's the metal patch on the flat side for? You did a thread on the sanders the beginning of December of "2016". Here is a link to it to save you the time of doing it again. We weren't using many "Tags" back then.
January 2, 20197 yr 6 minutes ago, HandyDan said: Those planes are great Herb. What's the metal patch on the flat side for? I KNOW!!!! I KNOW!!! piece of identity tape to keep the parts synced...
January 2, 20197 yr Beautiful work on those planes, Herb. They're gorgeous. Your attention to detail in matching the wedges to the planes is awesome. Where/how did you obtain the blades? I'll bet sharpening all of them took some time. Edited January 2, 20197 yr by Gene Howe
January 2, 20197 yr Author Popular Post 2 hours ago, Gene Howe said: Beautiful work on those planes, Herb. They're gorgeous. Your attention to detail in matching the wedges to the planes is awesome. Where/how did you obtain the blades? I'll bet sharpening all of them took some time. Yup, I was wondering when someone would ask. I bought all the blades off ebay. I found a bundle of 10/ brand new Stanley block plane blades for $4.50 ea., and the rest were a bundle of 10/brand new Stanley's for $8.50 ea.,which is a bargain. The beater blades run anywhere $10,$15,$25,$35, on up to $125. for block plane blades depending on their antique value. They are factory sharpened and all I will have to do is hone them to razor sharpness. Herb Stick is right ,the tape on the back is for easy reference to which plane gets what. Some are very close to the same. Edited January 2, 20197 yr by Dadio
January 2, 20197 yr Author 4 hours ago, HandyDan said: Those planes are great Herb. What's the metal patch on the flat side for? You did a thread on the sanders the beginning of December of "2016". Here is a link to it to save you the time of doing it again. We weren't using many "Tags" back then. Thanks, Dan, I did a search but it didn't come up. Just a good lesson in the value of "Tags"
January 2, 20197 yr Popular Post 2 hours ago, Dadio said: all I will have to do is hone them to razor sharpness. Better get several boxes of band-aids or a roll of shop towels & duct tape...it will be like a "Wet Paint-Do Not Touch" sign...you know they will I say that because I know I would
January 2, 20197 yr Author Popular Post 3 hours ago, Stick486 said: but I did... Yes you did, but we were in a "Top Secret" conversation at the time, of National Security Classified information. Herb
January 2, 20197 yr 20 minutes ago, Dadio said: Yes you did, but.... yeah, but neither of us were there...

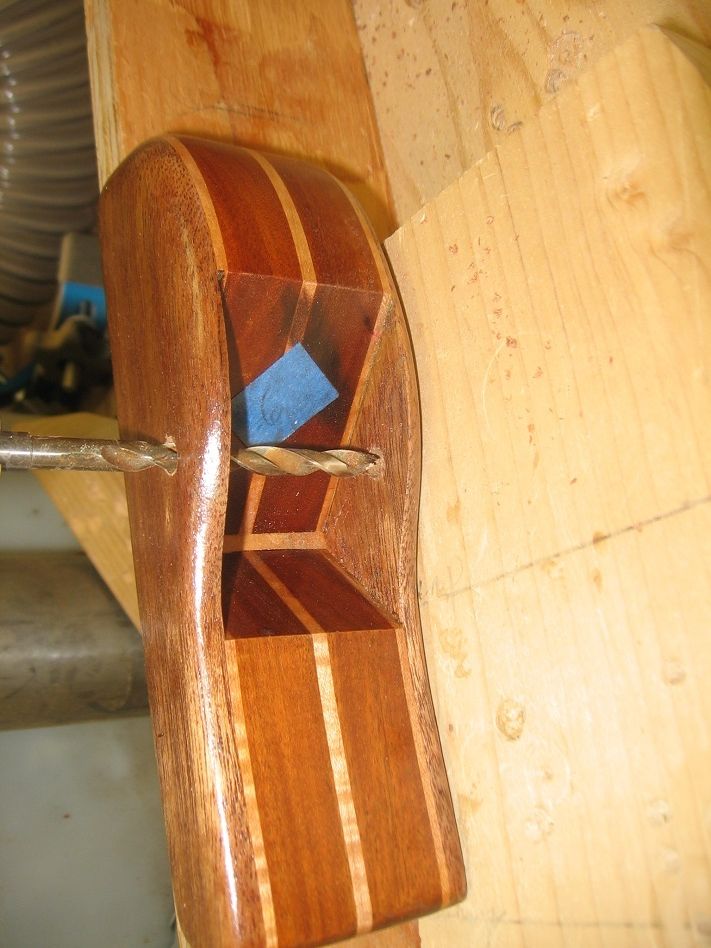

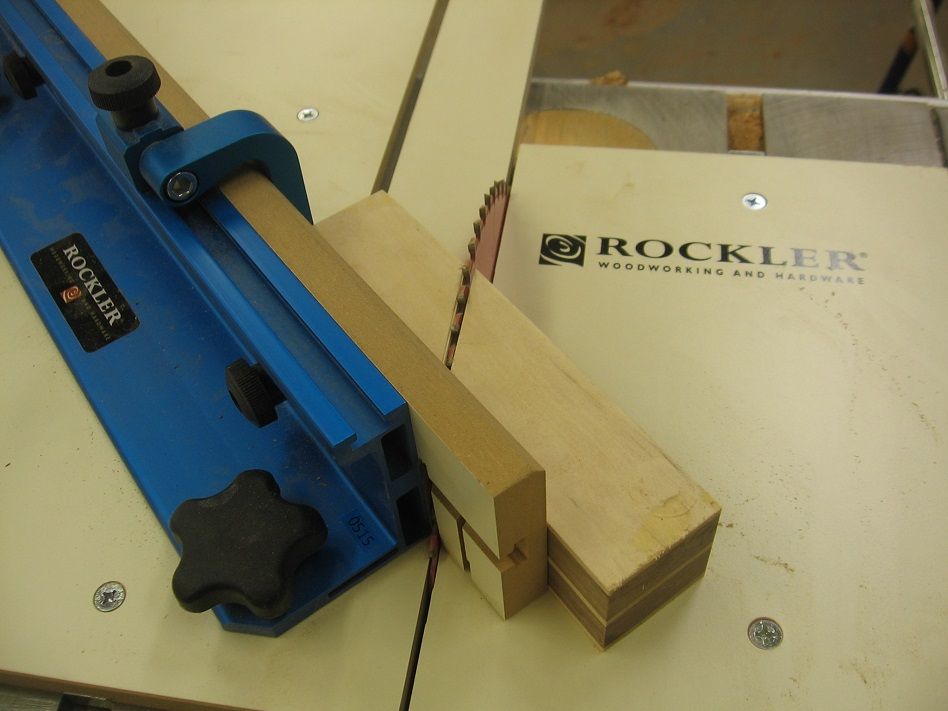

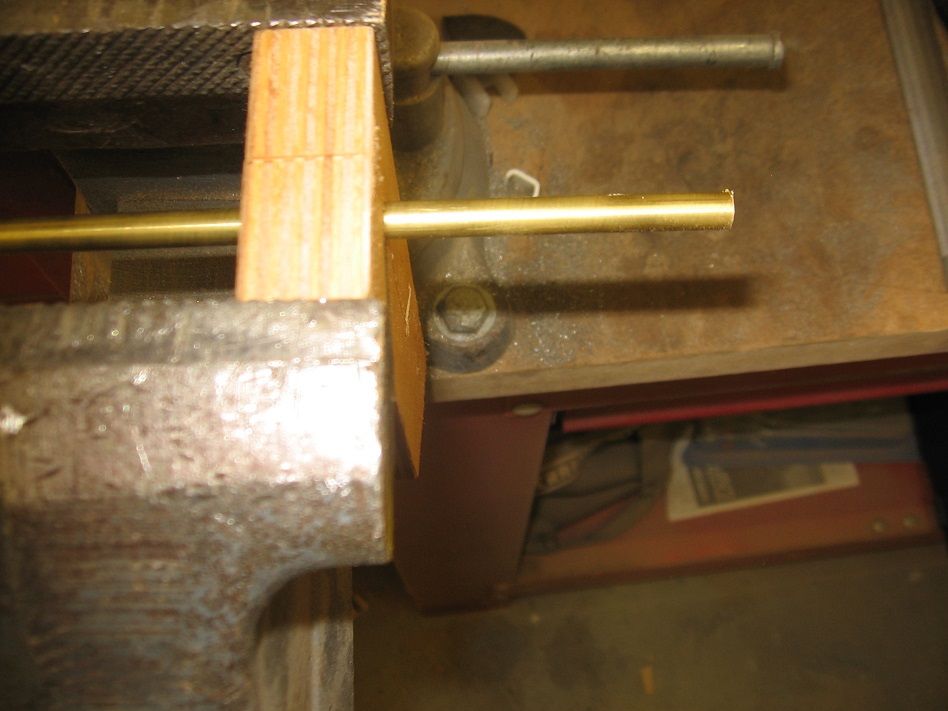

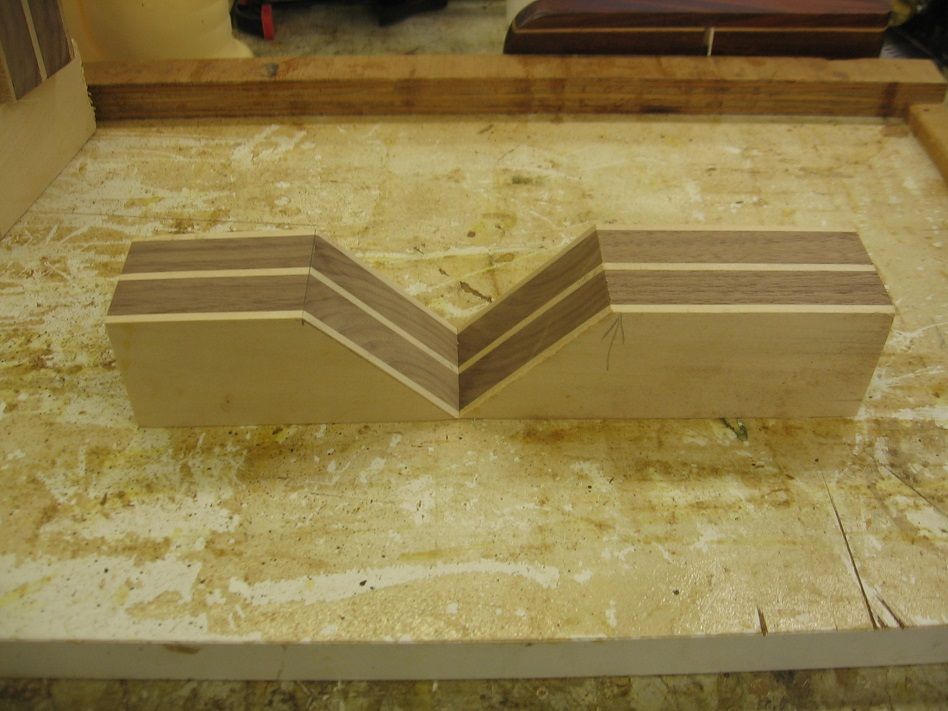

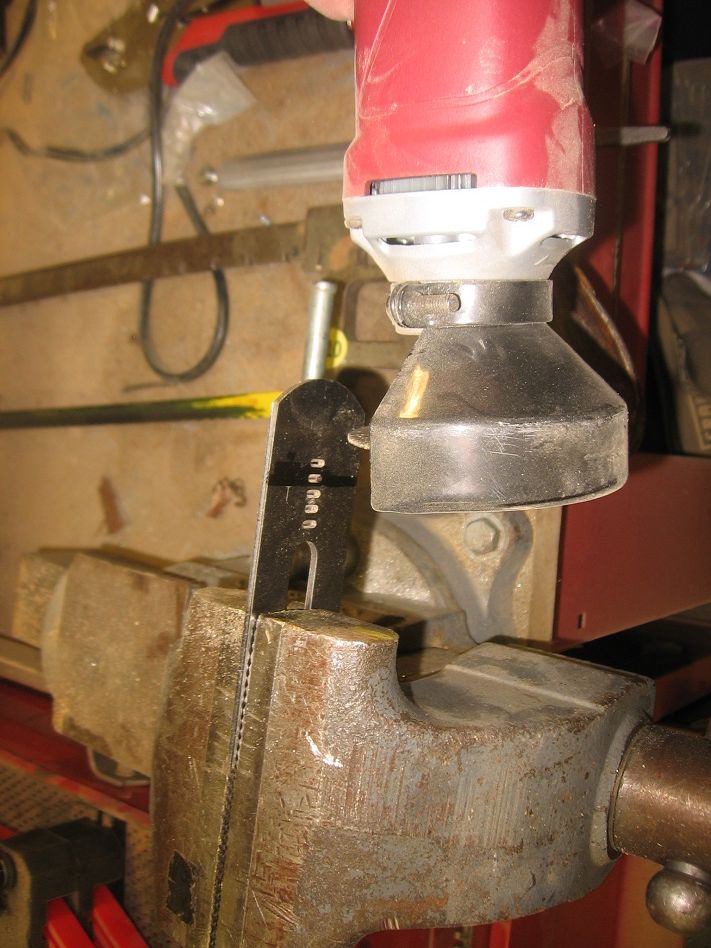

January 2, 20197 yr Author Popular Post I am working on the second Phase of 9 more now and the 1/4"brass rod arrived from McMaster Carr, so I fitted up the blades for a couple of planes to see I was doing every thing right. Phase II: Then cutting the blocks into 2 pieces. Turning the forward piede over to form the "V" for the blade Glueing the sides on to hold the 2 pieces together. While those are being glued up, I will start detting the pins in the first bunch. First drill the hole, then cut the Brass rod. Each plane is a tad different width, so I will cut each rod separate. Next is cutting the plane blade to length and installing in the plane. That is it for today. Herb
January 2, 20197 yr Author Popular Post 5 minutes ago, Stick486 said: yeah, but neither of us were there... Thats right we weren't were we, it must have been an information leak, I can/t seem to remember. Herb
January 2, 20197 yr 11 minutes ago, Dadio said: I am working on the second Phase of 9 more more ''I be impressed''....
January 3, 20197 yr What's the brass rod diameter? 3/16"? 1/4"? How much under-size is the hole to retain the pin? Good choice on the cut-off tool...got one just like it====>GO H-F!
