It has been some time back when I was out picking that I ran across this wooden clamps. They were not all found at the same place but all came out of old woodworking shops. They just looked to cool to leave and it nothing else will make nice wall art in the shop. I havne found any real markings or names on any of them so I know no real history to them. These are about 50" long and in full working order. The loose end will just slide up and down the wooden bar but lock in when pressure is applied. The adjustment end is all free and will screw in and out. I then ran across this neat wooden bar clamp. The adjustment handle is on the end and the hardware mounted inside. It has been cracked so you can see the workings. There are notches in the bottom and as you move the loose end it will lock into the notches so you can tighten the clamp. It has a spring spring clip to hold it tight against the bar. The other piece is a homemade bench vise I believe. The gear on the end is wired on so they could use the inside threads for the adjustments. The outer gear has no other function. You could mount this under a table and with stop dogs tighten a piece down. It has a bar that moves in and out as you tighten. I guess you could put a piece in that part and used it but you would be limited to the size you could hold. Anyway they were just nice old pieces that needed to be saved and not put into the burn pile. So I'll just display them in the shop with a few other tools that have called my name. Hopefully I'll be bak out Patriot Picking again real soon. Till Then.... Happy Patriot Picking
-
Here is a pictorial of how to make a wooden hinge, I am not a professional,I think this is the common way to do it. someone mentioned that it was above their skill level, so I thought I would just submit the way I do it. There are all kinds of ways a person can cut the hinge,i.e. like a leaf,or a spear etc. to dress it up. Herb
-
Today I finished another batch of 8 wooden planes so I will bore you with the pictures. Herb
-
The first one was that little guy that hurt my hand to use. I thought if I made it larger to get a better grip it would be better. But not so, still was a pretty plane but not so pretty to use, Then I fixed it on the 3rd try. Pic 1. is the first one you have already seen. The last picture is a reject block plane I threw in to fill out the upload. For some reason the pictures loaded before my Text ??????? Herb
-
Here is my latest creation in my wooden plane creations. Black Walnut, Holly racing stripe. Shellac Finish Herb
-
Today I finish sanded 4 planes and got the 1st coat of shellac on them to see if any marks show up that I need to sand out.
- 63 replies
-
- 13
-
-
I got to thinking that maybe since I had a couple of plane blades left that I would make a couple more planes. This time I used some Russian Birch Plywood scraps I wanted to use up. Russian birch is not as good of a grade as Baltic birch, but there was a time not so long ago where the Chinese had bought up all the BB and we couldn't get any, so the lumber yards here stocked 4X8 sheets of Russian birch. Also I had a piece of Purple Heart that I have been trying to find a project to make out of it. I found out one thing when I finished the other planes I gave them a coat of shellac and sanded off the grain, then another coat of shellac and then went to the water based Acrylic 50/50 mix. On the purple heart plane I didn't want the yellow in the shellac messing with the purple color, I wanted that purple just like the raw wood. So I decided to seal it with the WB Acrylic. Big mistake , it turned the purple heart a dark greenish black , like swamp mud. so after messing with it,I finally sanded it down to raw wood and put 3 coats of shellac on it. Herb Herb
-
As I posted in another thread I have started making 18-20 wooden block planes that I made 4 several years ago copied from a Wood magazine. Since I have a presentation at our local WW club, I plan on giving a presentation on how to make these. I figure if I give each member that comes to the meeting one of these to hold and examine while I go through the steps of building one, it might be more clear in their mind how to do it themselves. And they might not fall asleep during the presentation. Yesterday I showed the blocks glued up for the bodies, and the one I am using for the pattern. The next step was to roughcut out the 1/4" thick sides and sand edges to finish size. After they were sanded close to size I cut the blocks I had previously glued up 4" from the heel of the plane to the mouth of the blade slot on a 45°angle. The cut-off is then turned over and butted up tight to the heel piece,thus creating a "V" for the plane blade to rest in. and the sides are glued on to hold the assembly together. It takes lots of clamps to dlamp these up , I ran of two planes short and had to wait to finish the final two.
- 56 replies
-
- 14
-
-
-

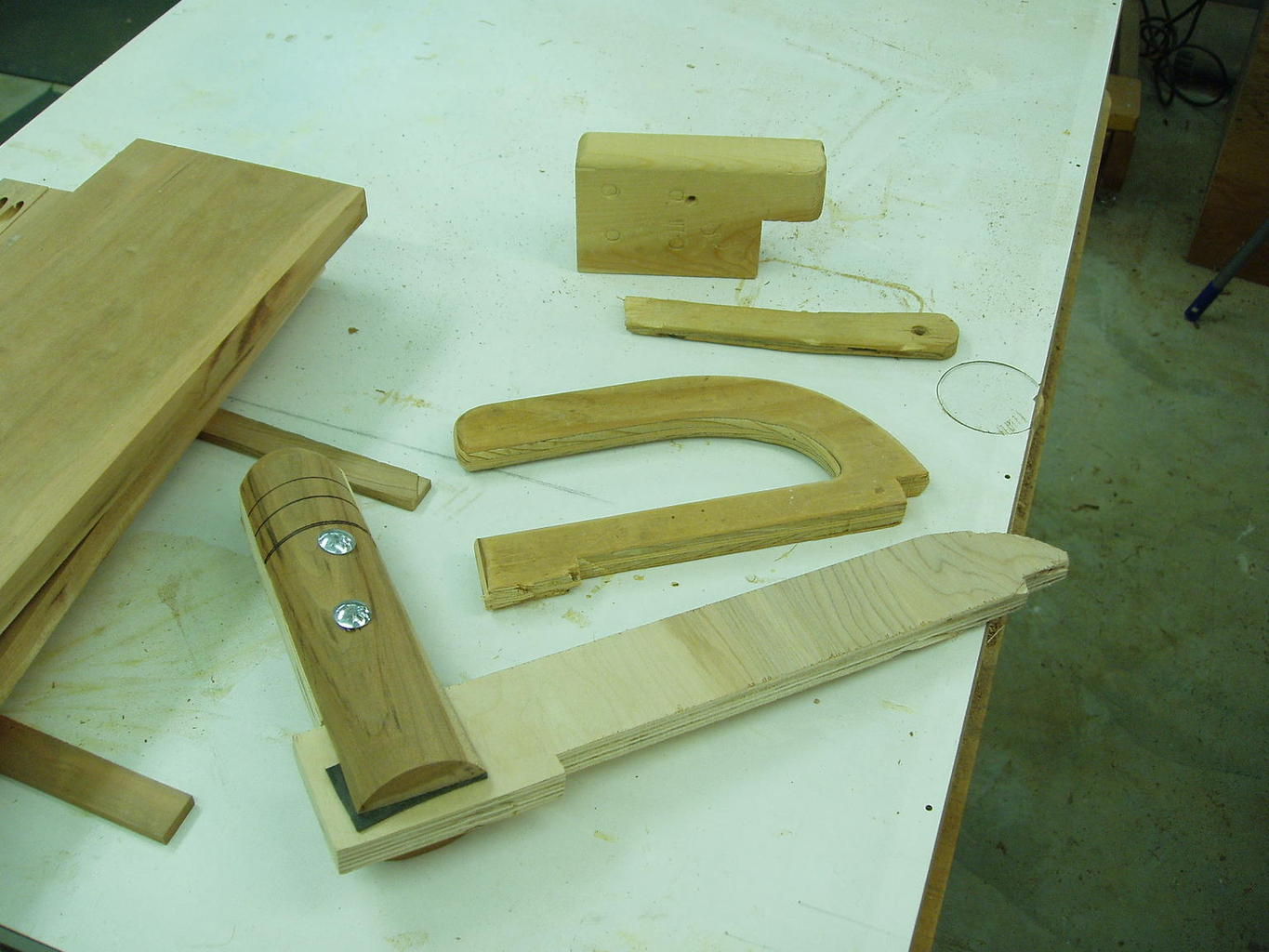

These are my push sticks (no I have not been pushing @Stick486 around). The First is a 2x4 with notch cut out and corners rounded over and is used on the router table. The second is a simple piece of ply with notch for pushing and I use it on the bandsaw. The third is my standard cut from ply and allows gluing a replacement push block to the rear. The monster allows me to keep my hand as far as possible from the blade as possible, but it is cumbersome to use.
-
Remote Caddie Found A home
lew posted a gallery image in Small Crafts, Boxes, Picture Frames, and Lighting
-
- 3 replies
-
- 1
-
-
- engine
- aircraft radial
- (and 1 more)
-
Here is a family of Easter Bunny banks that I made for a customer for her daughter. My customer is teaching her daughter to save so there are banks for Pennies, Nickles, Dimes, Quarters, Dollar Bills and Foreign Coins. The purple bunny is bigger than the rest it is 10 inches tall x 14 inches long x 5 inches wide. All the other are 8 inches high x 10 inches long x 3 3/4 inches wide. DW
-
have a friend who wants to give her husband a wooden 18 Wheeler,likeone w/all the details on it,so if anyone knows someone who does them,and now onto house.finally got all the windows framed,so now its onto the baseboards(OH my achein back),the do some framin in the Hallway,ay lest its small,when done w/that then its on to the shop got some installtionso will be puttin that up an the OSB for the walls(wife asked why didnt i use sheetrock)told her cant hang stuff on sheetrock like u can on OSB.so will takepics of everything an post them,now to soak in a HOT bath to relive back pain an legs.so yall have a GreatWeek
