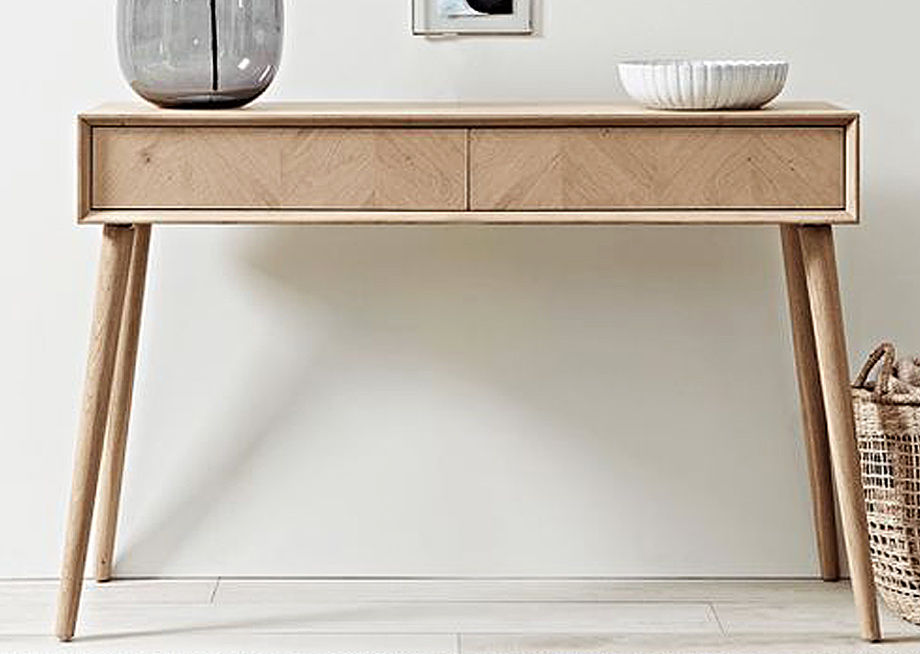

As a reminder, we are building a version of this table ...

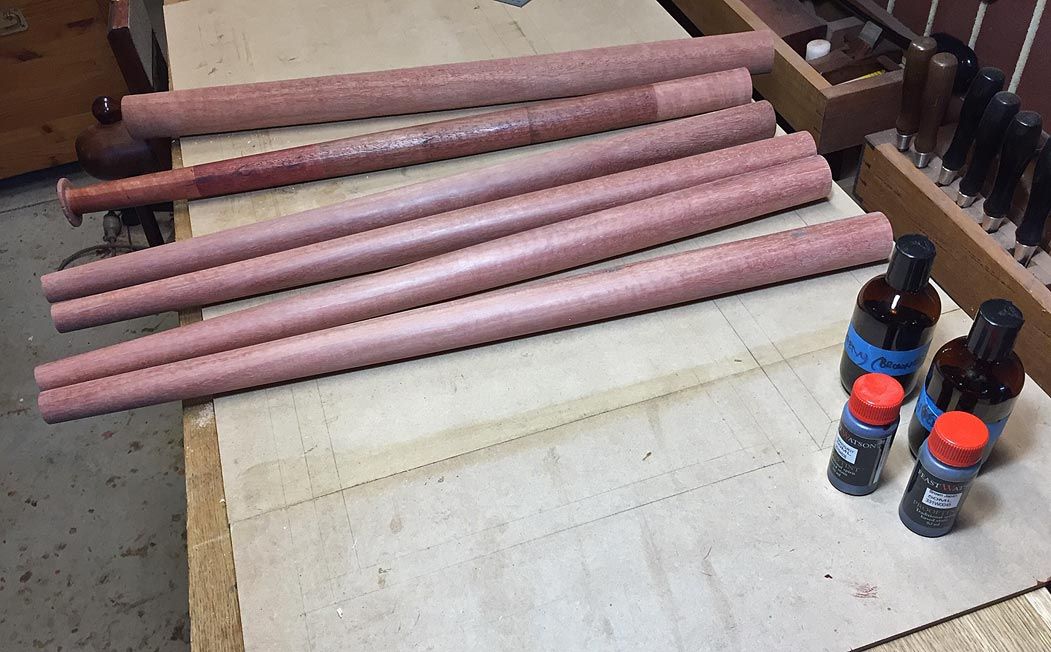

The plan is to attach the legs, which were made near the start of this project.





The attachment method is by inserting the legs into compound angle mortices in a base, which will be fixed to the carcase with a tapered sliding and stopped dovetail. We don't mess about here!



It will be necessary to do this over two articles, the first being the base for the legs, which will be dovetailed (tails). The second will be the socket (pins) for the base.

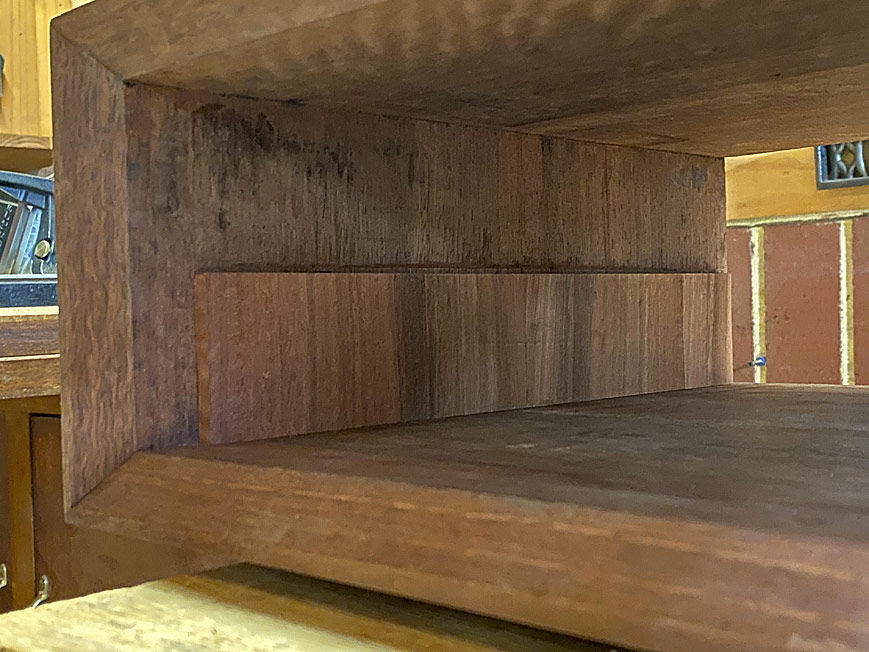

Before we begin, I want to mention what I did at the end of the last session. I had replaced the central drawer dividers as the grain ran in the wrong direction. The spacers at the ends also did so, and my response was to cut out half the spacer ...





Well, I fretted over the end spacers, and just could not leave them this way. Encouraged by the way the halves had come out cleanly, I removed the remainder and replaced the spacers with correctly grained versions ...





OK, onto the leg base ...

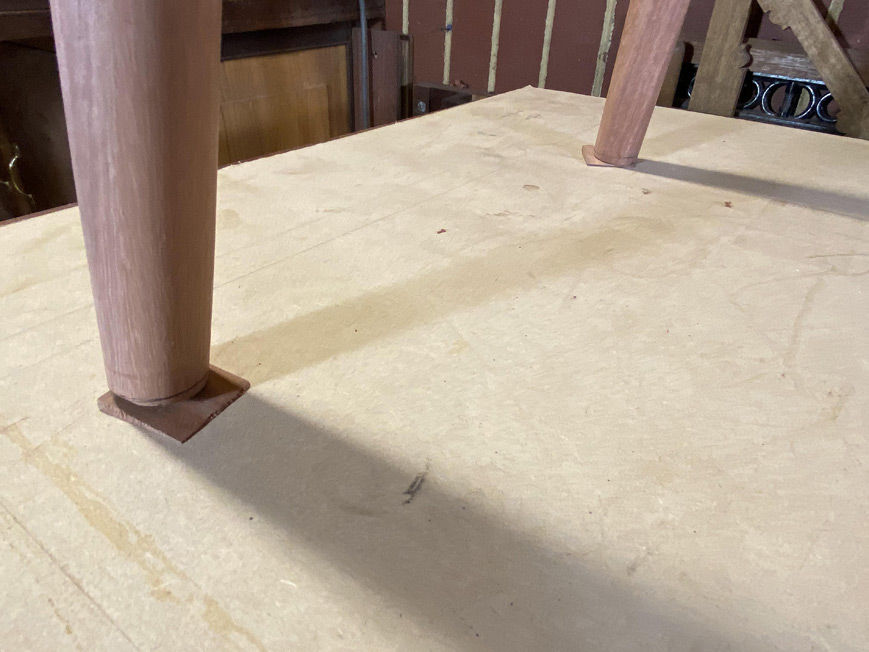

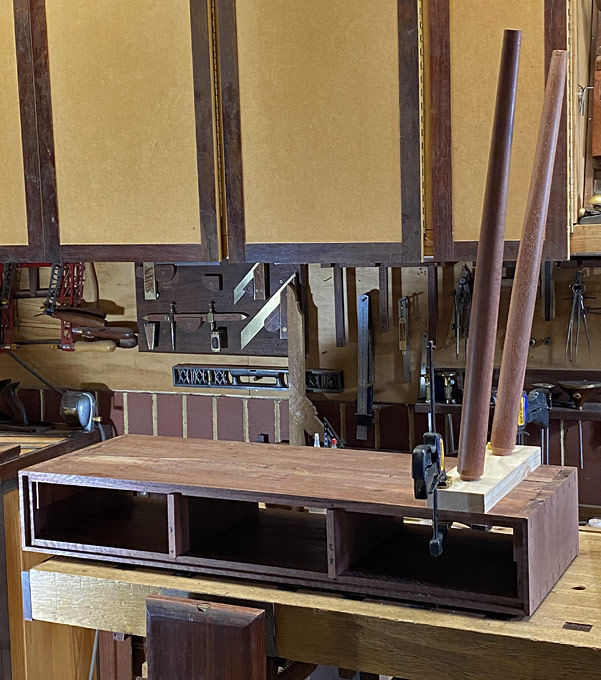

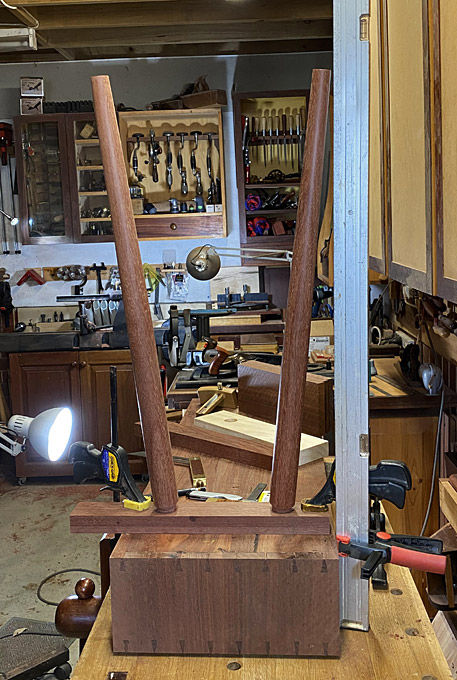

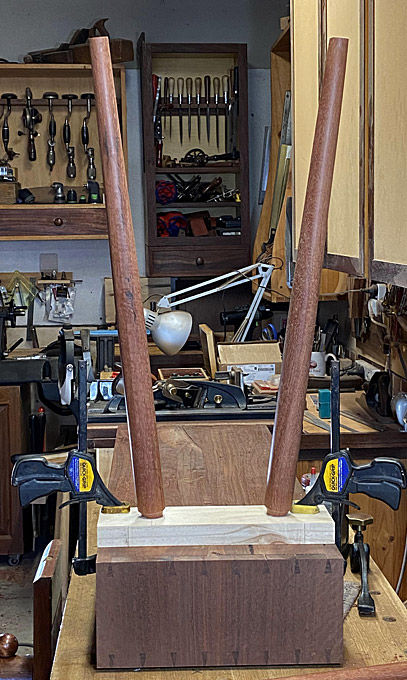

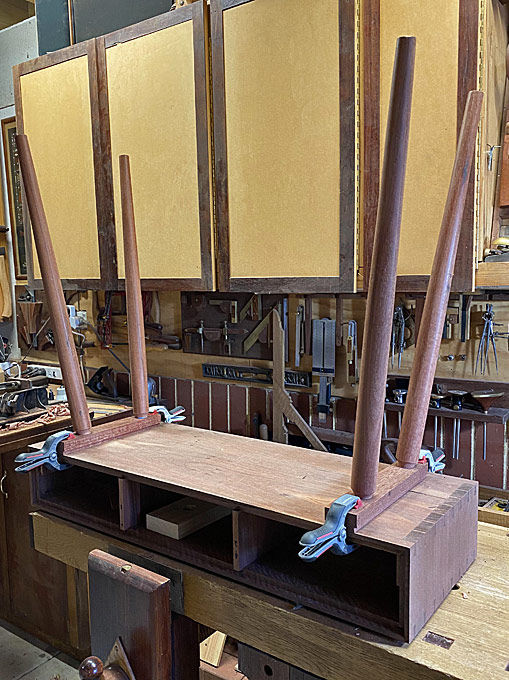

I spent a while playing with angles for the legs, and finally accepted this (mocked up base) ...

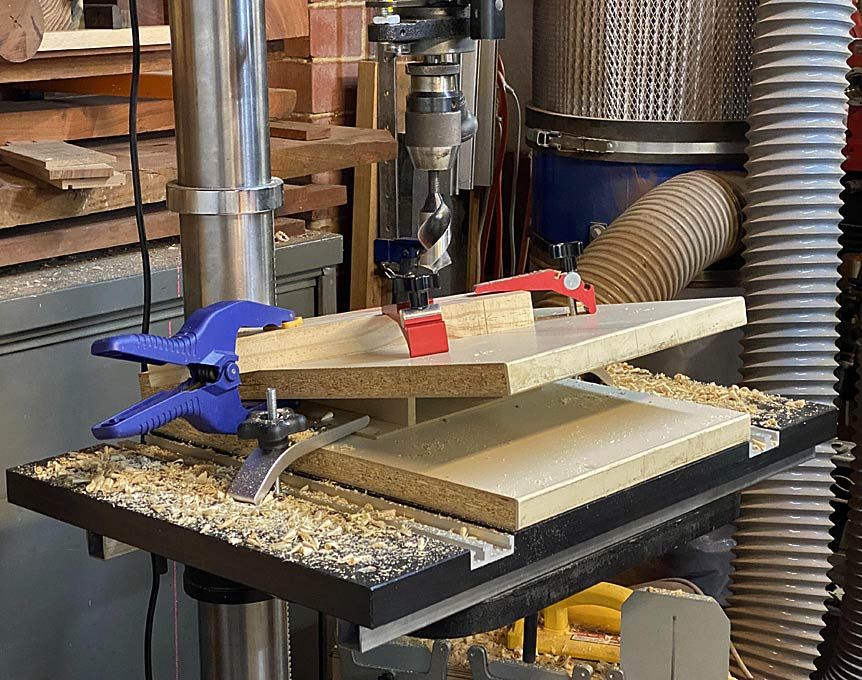

I have drilled angled mortices with a brace on a number of occasions. This time I decided to used a drill press and some Japanese Star-M augers, which are specially designed for this type of work (no lead screws). I built a 10 degree ramp for the resultant angle. The auger is 30mm ...





[

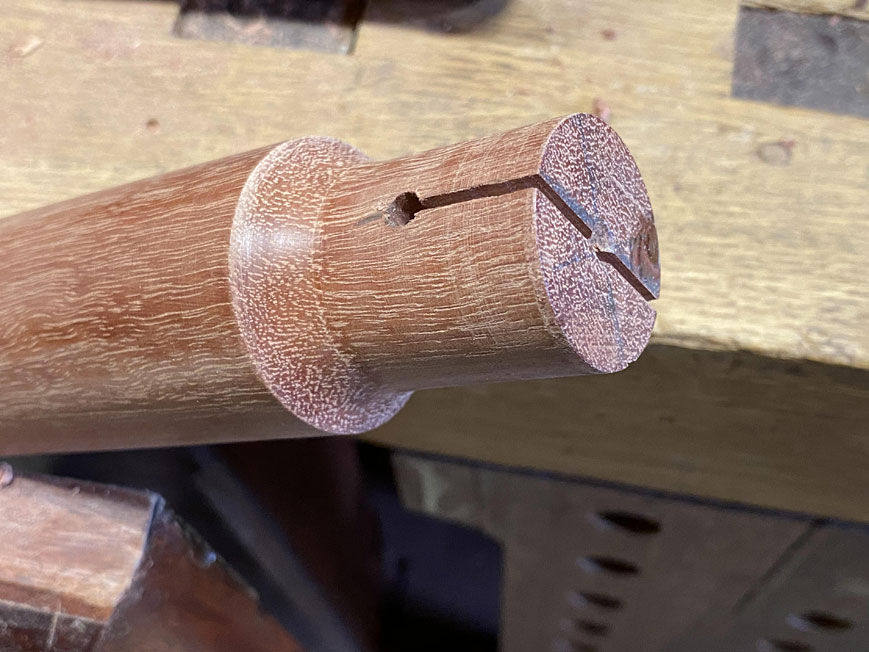

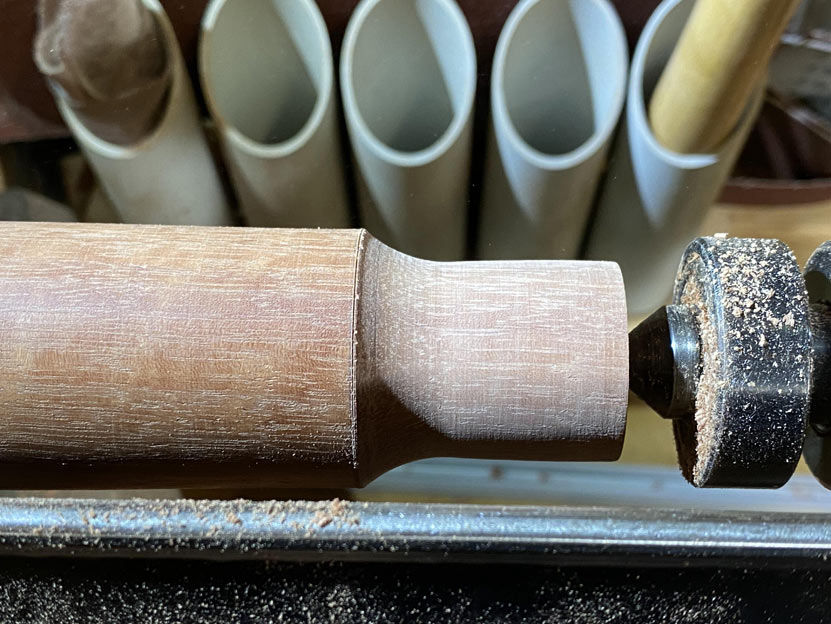

The tenon is straight, but the mortice will receive a slight reaming, and the tenon will be glued and wedged. This is probably overkill since the weight of the case rests on the legs.

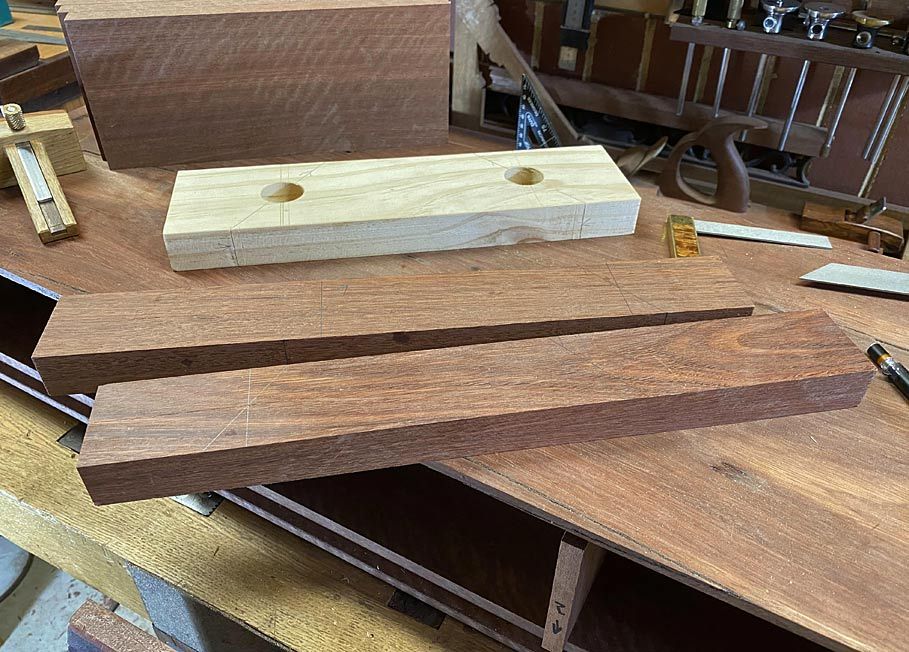

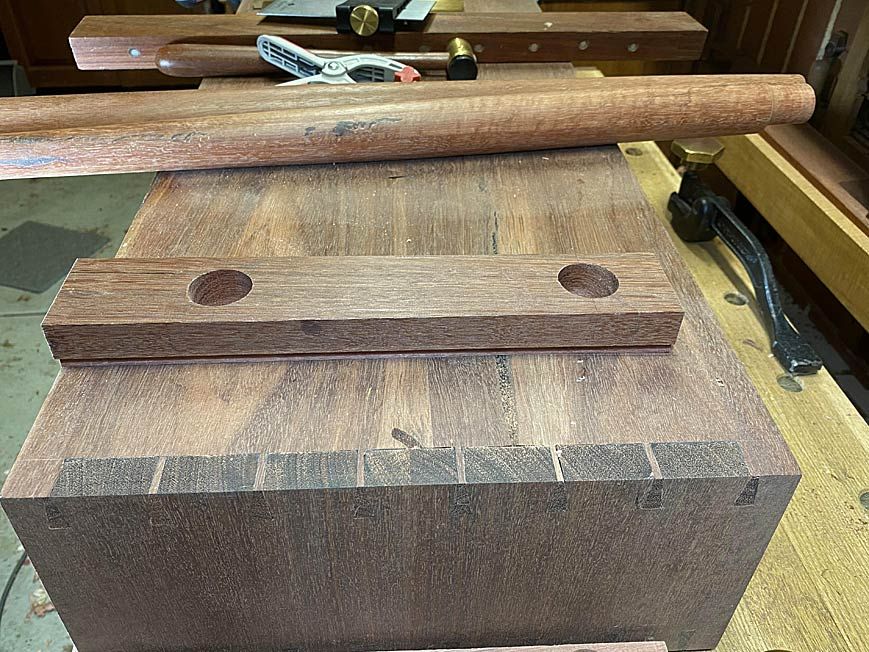

These are the bases for the legs. The final prototype is at the rear ...

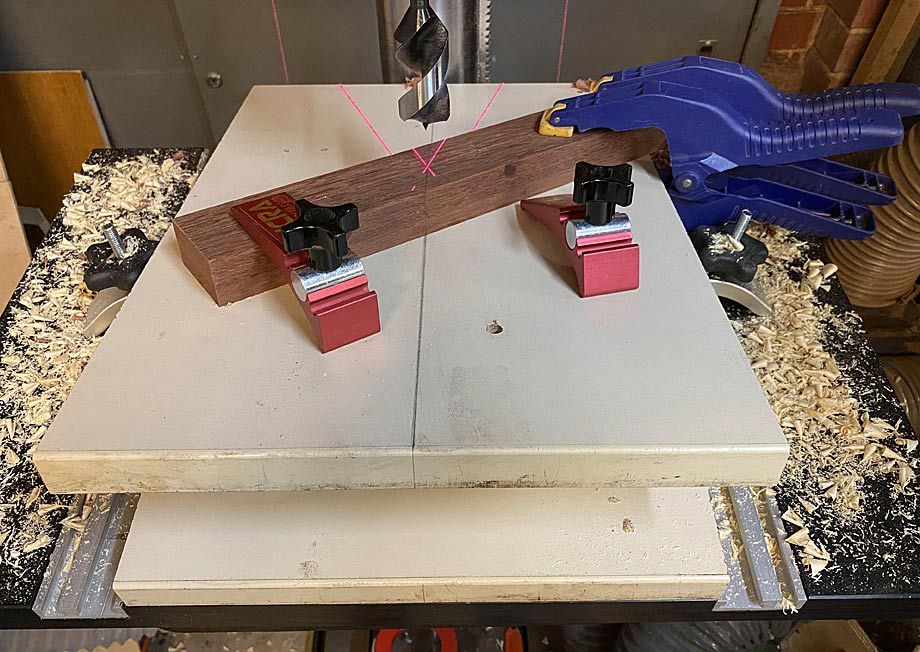

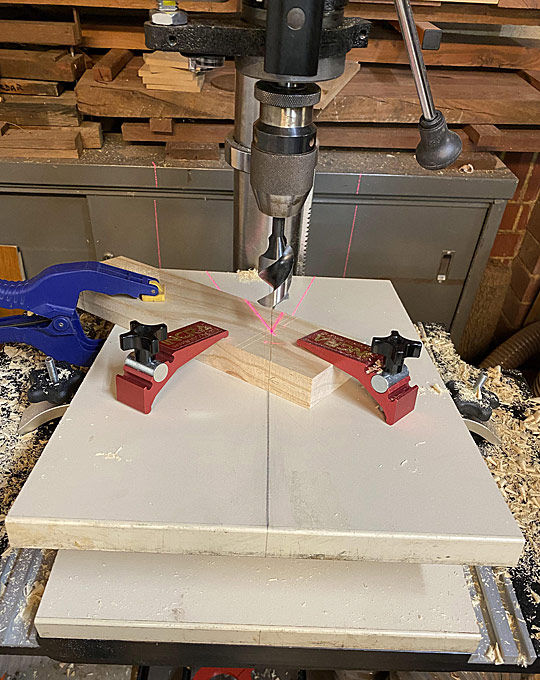

Drilling the bases ...

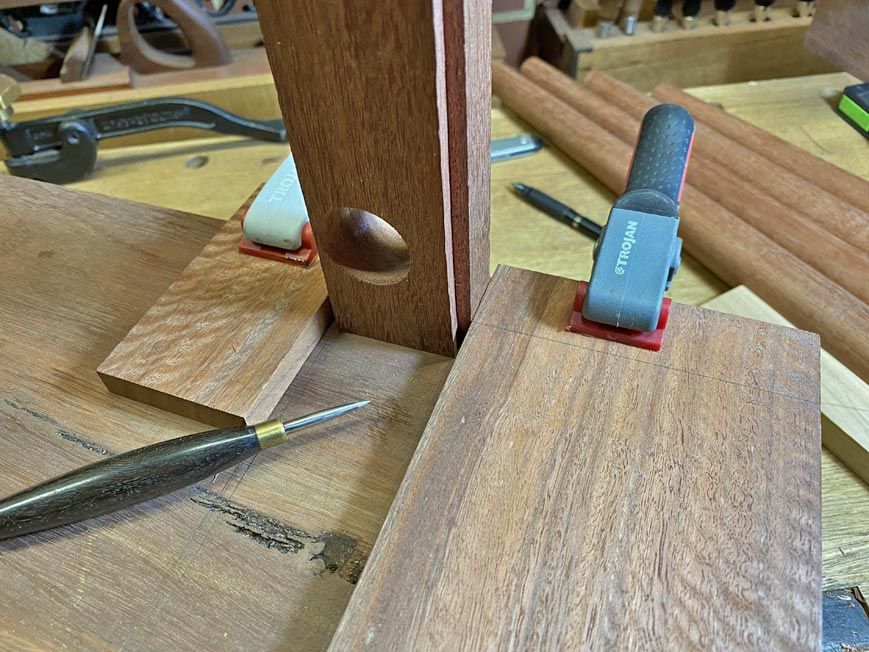

The design requires that the legs do not go over the boundary of the case (to avoid tripping over them) ...

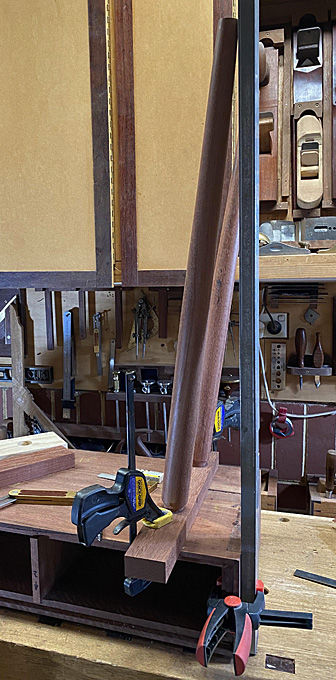

This is how they should be ...

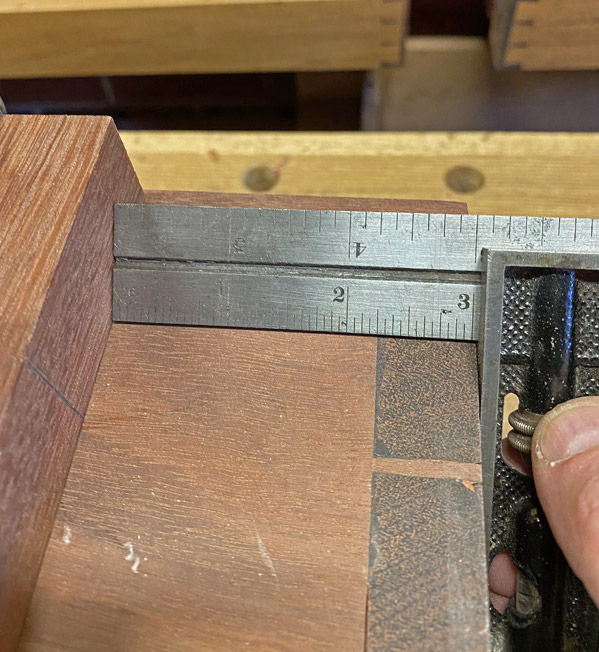

There was a small dilemma: The base at one side measures 3" from the end ...





... and the other side measures 1/4" further ...





I could not work out how this occurred. The angles are the same. In fact, I made another set of bases, and the same error showed up again - exactly the same!



So what to do? Actually, the decision was obvious after a little think - make the bases the same. What is more likely to be noticed is if the bases are different distances from the sides. No one will notice a 1/4" difference where the legs hit the ground. So be it.



This is one of the bases for dovetailing ...





First step is to remove a 2mm taper from one side. The taper will be on the inside of the base, with the outside parallel to the side of the case.



Taper line drawn ...

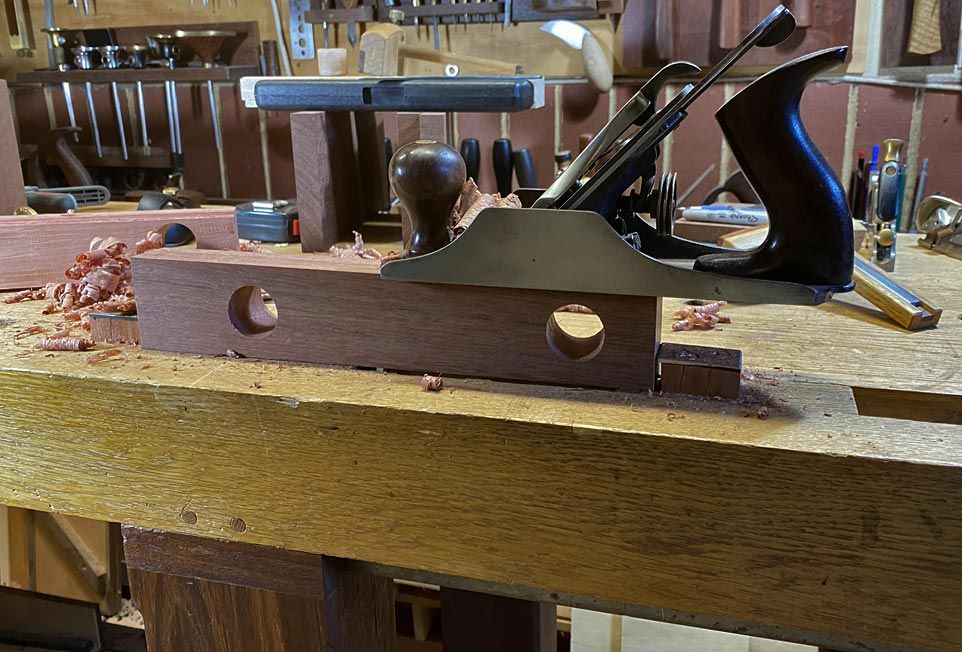

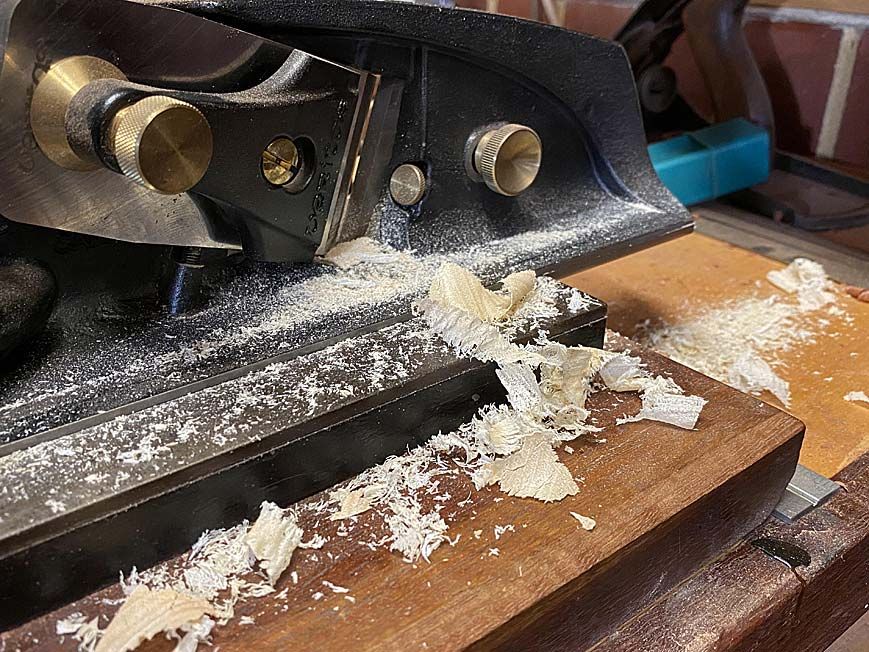

Easiest way to do this is with a #604 smoother ..

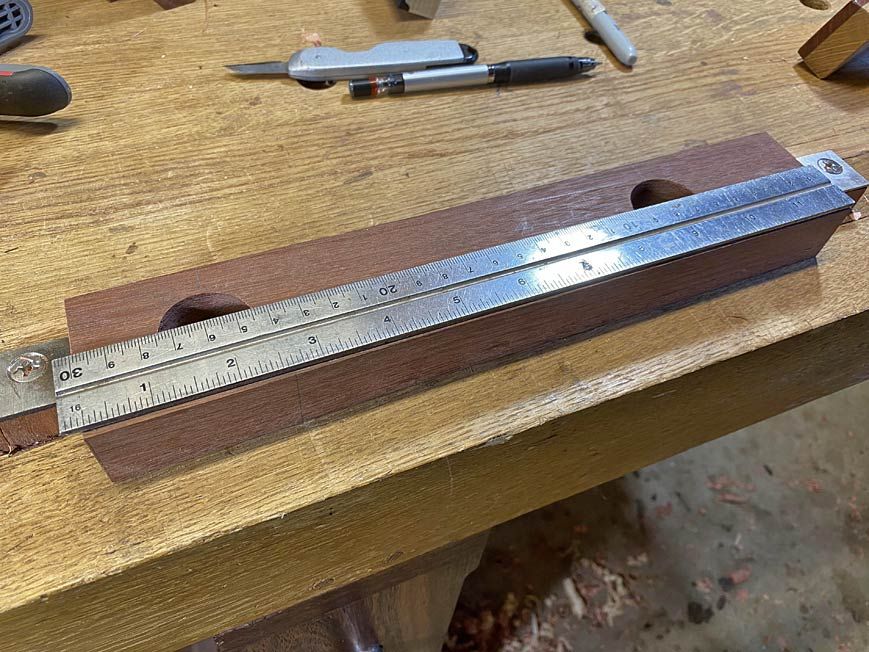

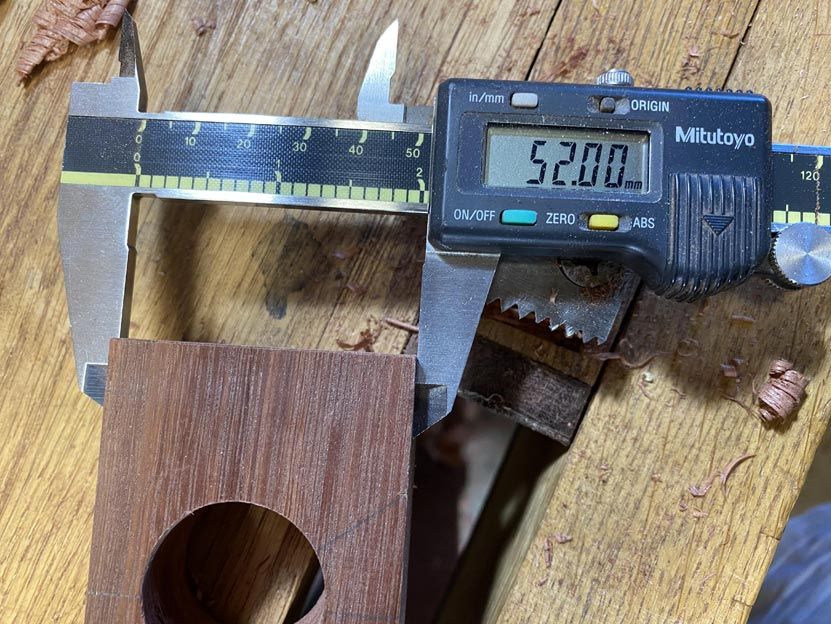

This is the one end of the base ...





.. and this is the other end ...

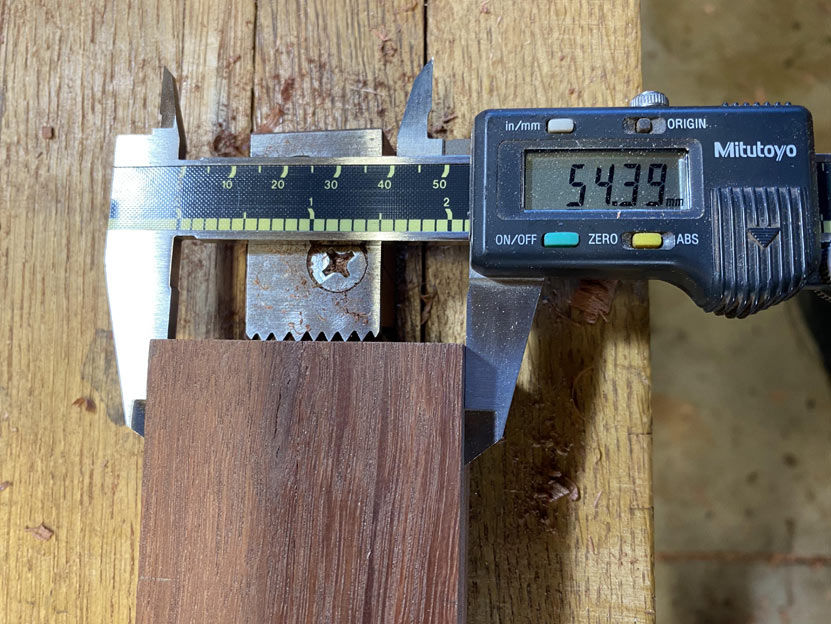

mmmm .... 0.39 mm oversize. What to do ...?    I'm kidding



The dovetails will be 7mm deep. A shoulder was planed with a rebate plane ...

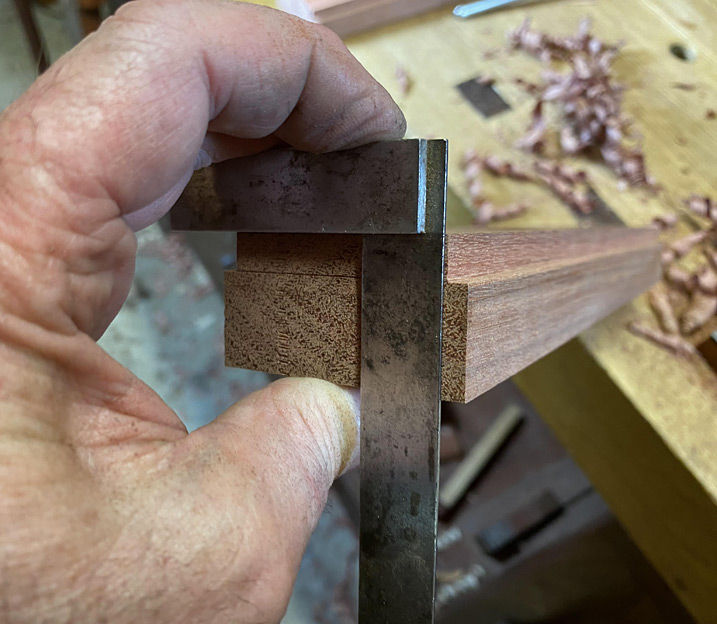

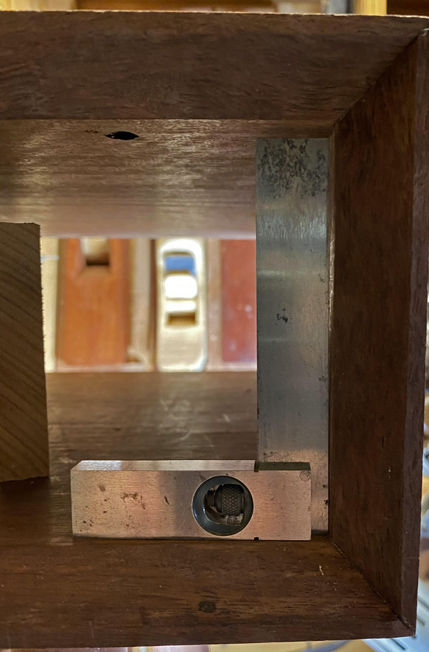

The squareness of this rebate is important, so check ...





The dovetail is now to be created, and the preparatory step is to colour the outer edge of the rebate with a sharpie. This will warn that the planing does not lower the external edge of the rebate.

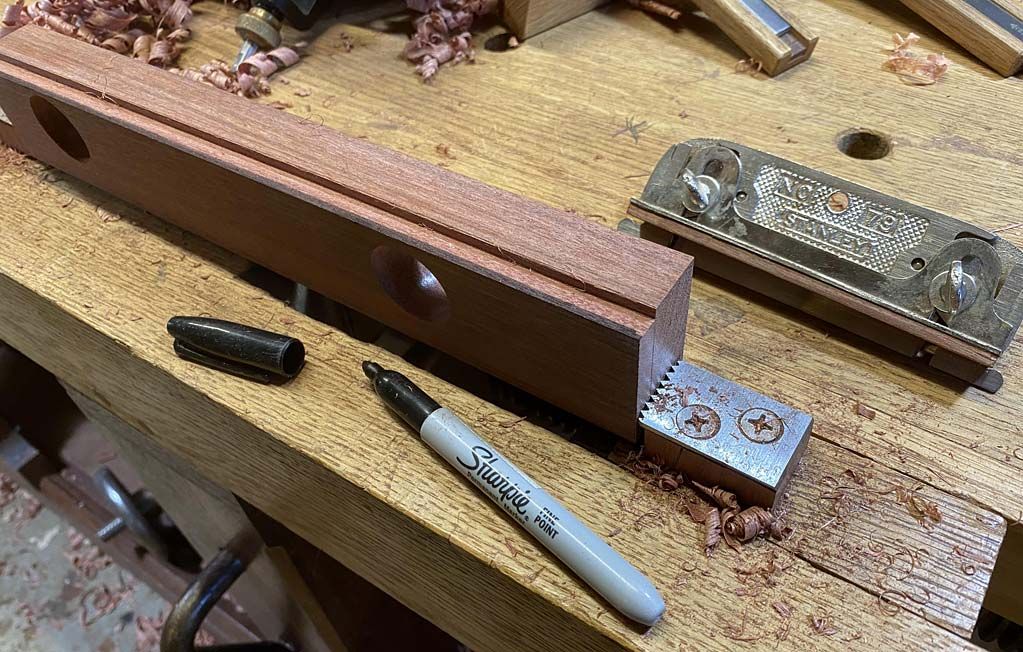

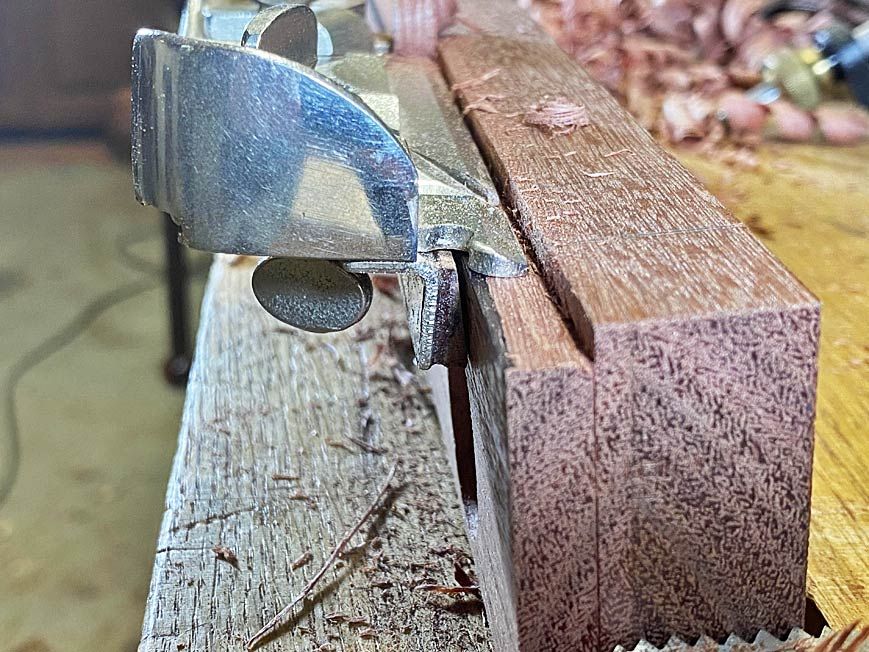

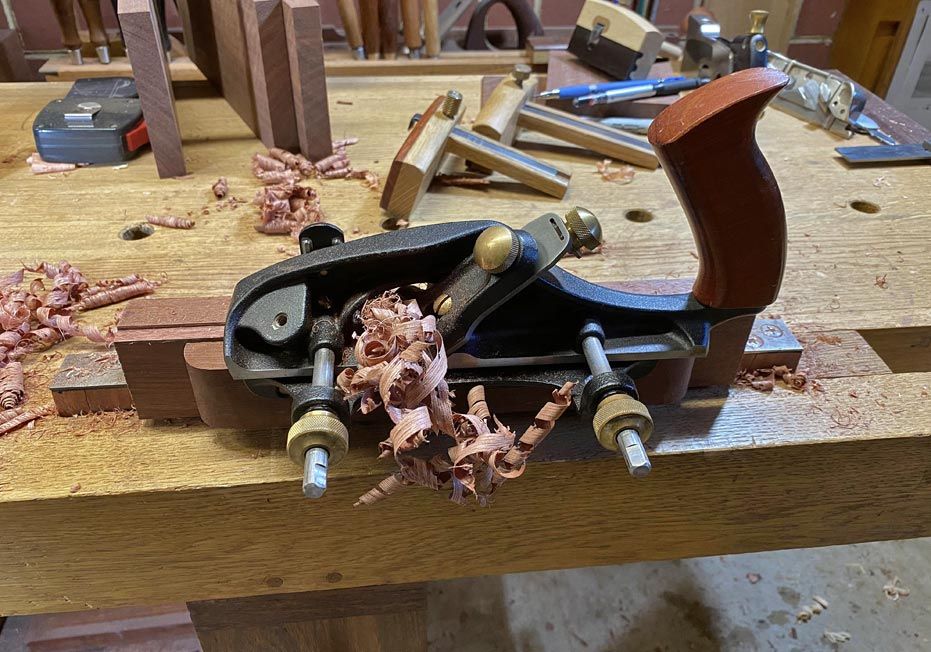

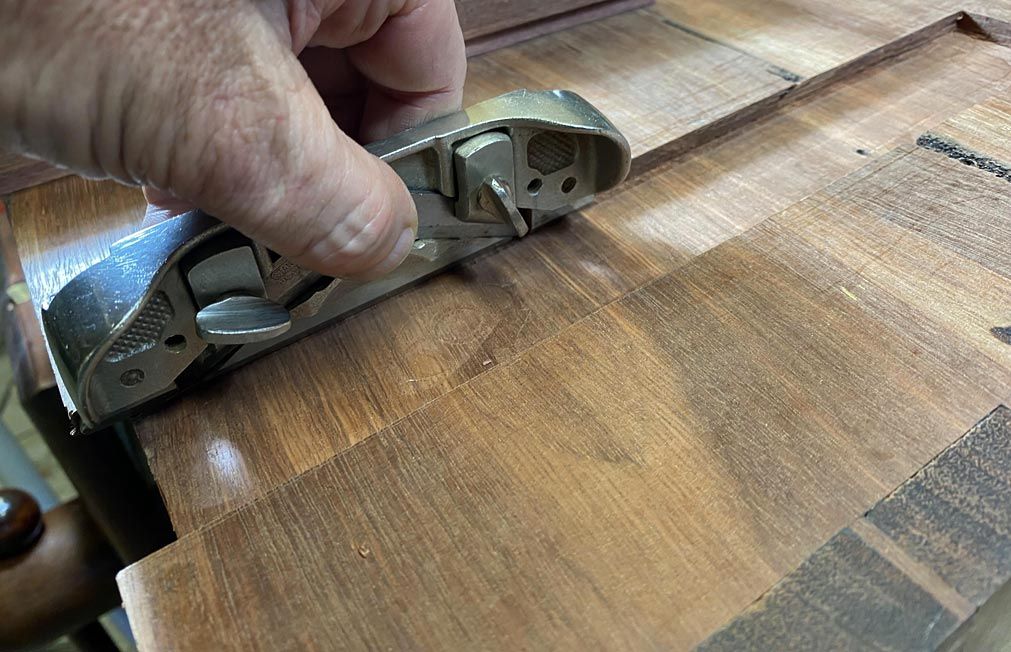

The dovetail is created with a modified Stanley #79 edge plane ...





The fence has a 1:6 ratio wedge ...





Details of this dovetail plane here: http://www.inthewoodshop.com/ShopMadeTools/SlidingDovetailsWithTheStanley79.html

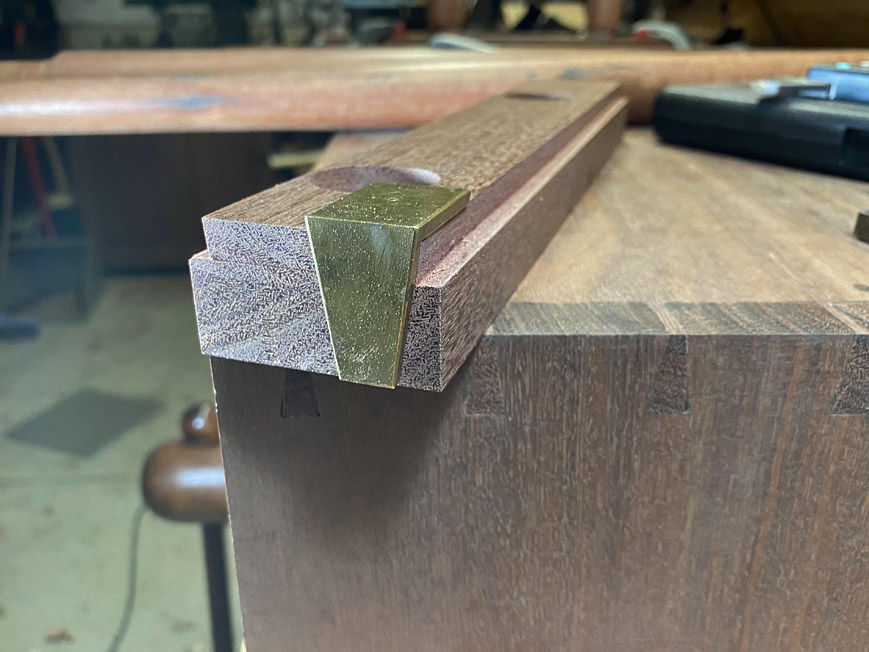

The result of planing. That is a 1:6 dovetail marker ...





So what are the numbers for the taper? This will give an indication of the accuracy of the joint.

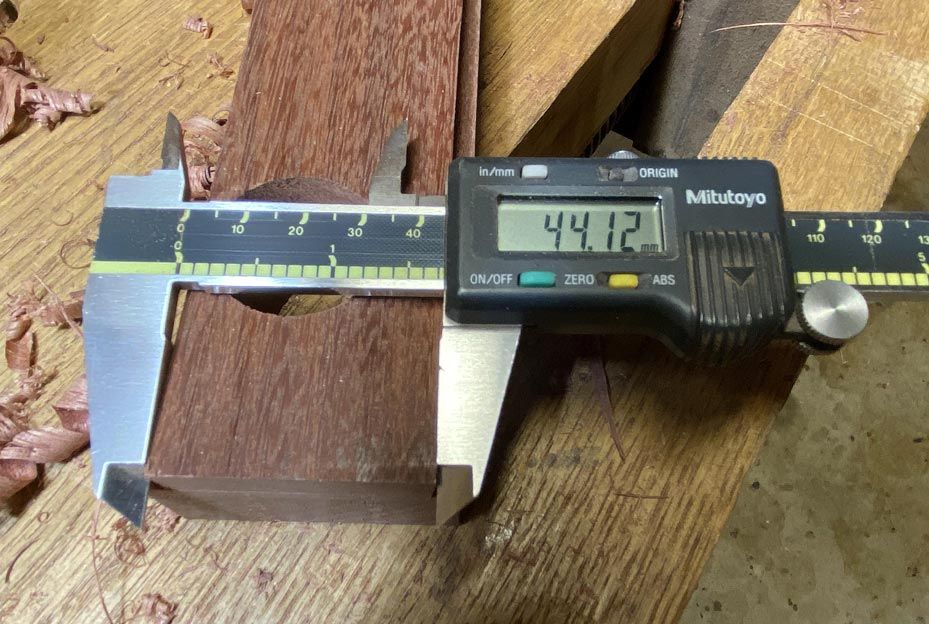

One end is 44.12mm ...

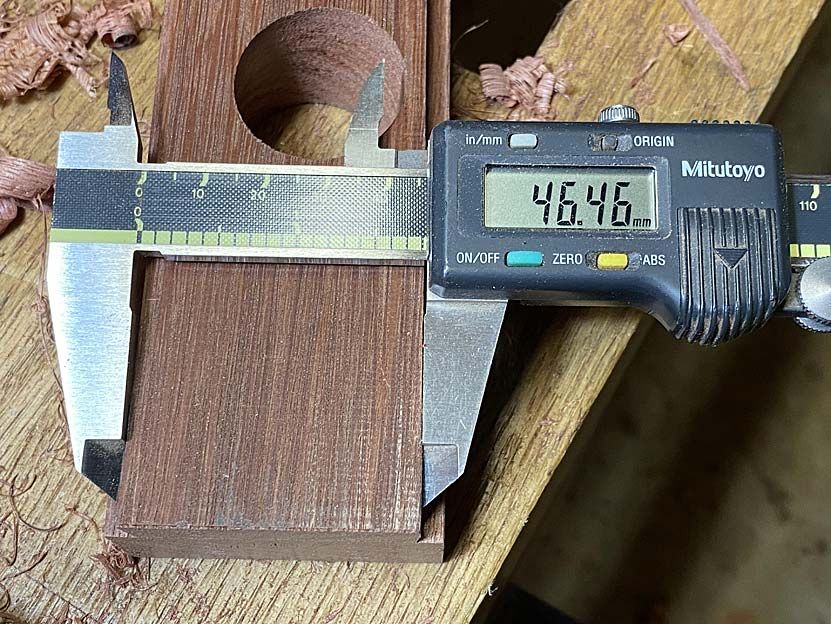

... and the other is 46.46mm, which is a difference of 2.34mm.





This will work - the pin socket is measured from this (in the same way as dovetails for a drawer.



The reason for the 7mm depth? The case is 20mm thick. the dovetail should be about 1/3 of this thickness. I decided to take it to the depth of the rebate for the rear panel ...

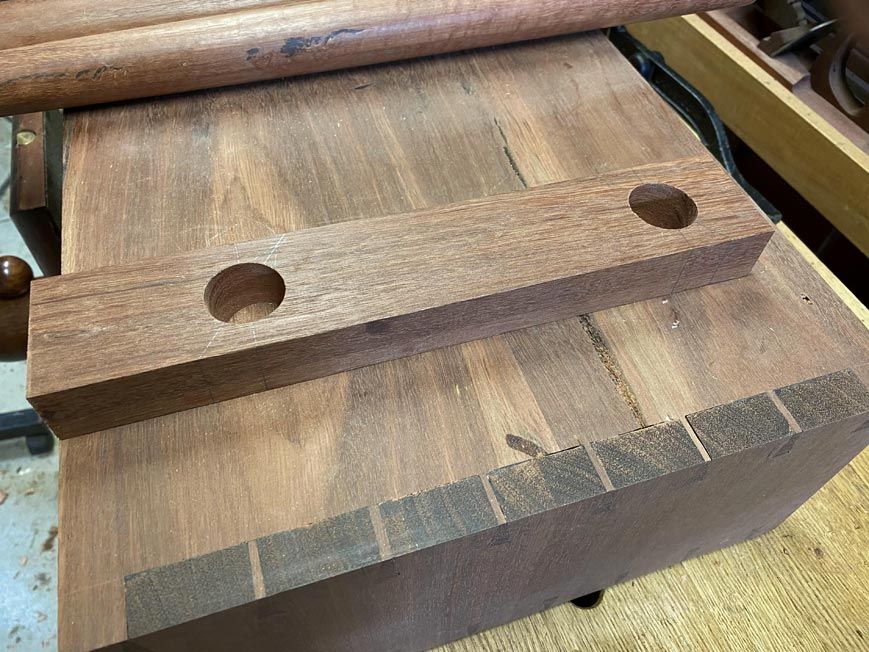

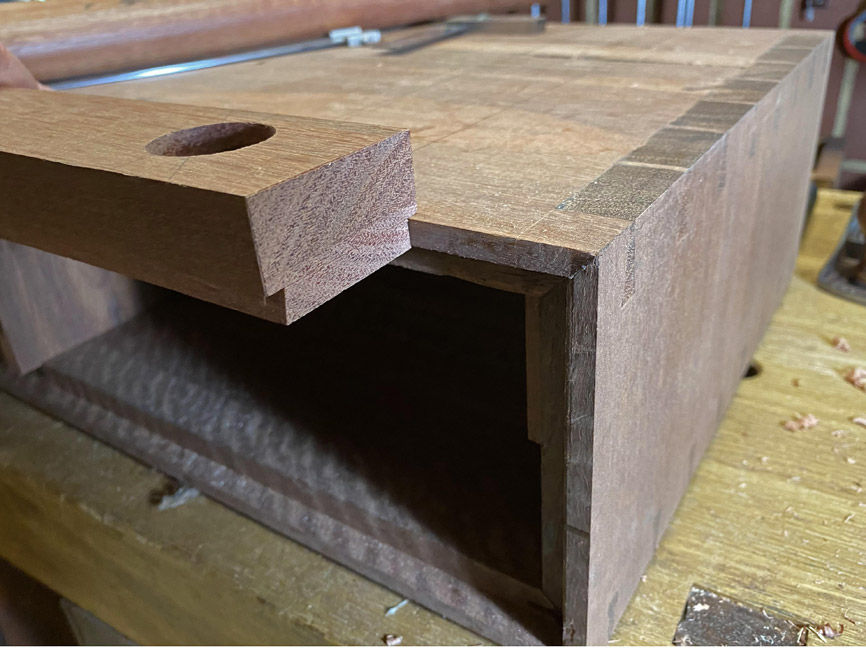

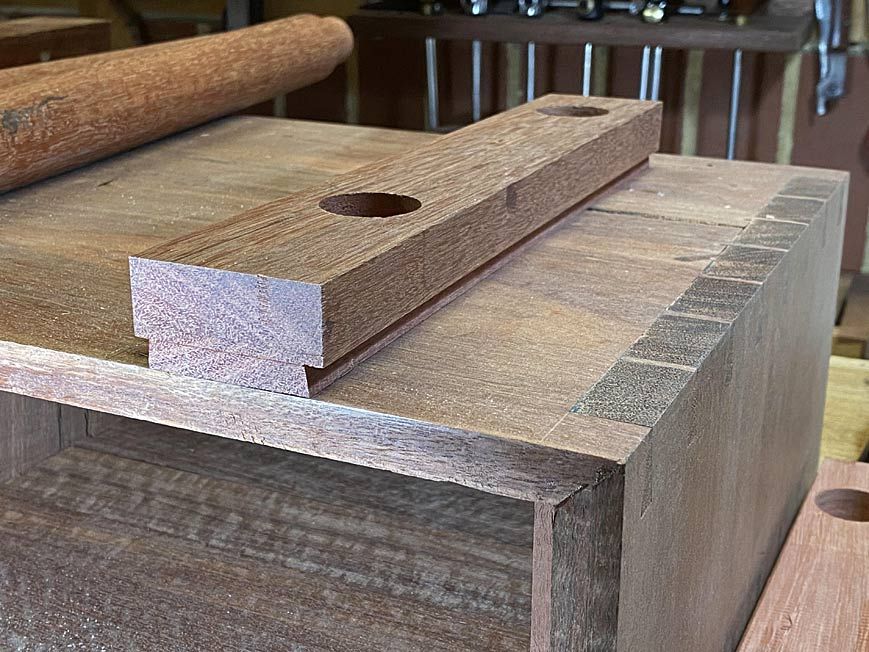

So, here is one of the completed bases ...

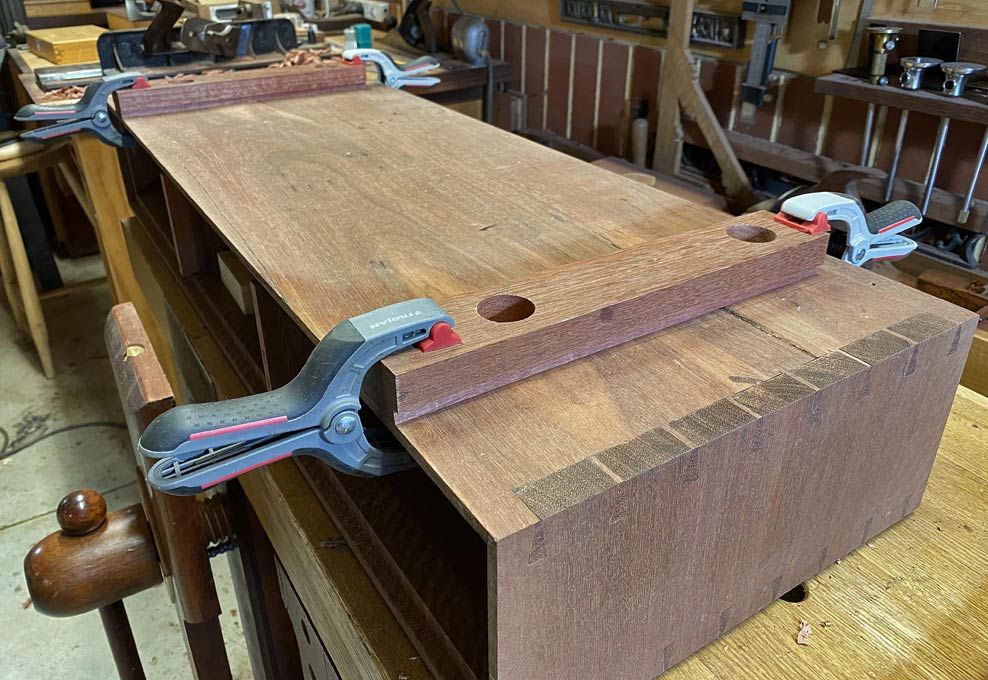

And this is where it will be fitted ...





Regards from Perth



Derek

Derek, loving this step by step build. Learning a ton, I'm not much of a hand tool woodworker but love to see how to do it. I can translate them to power tools.

I'm going to ask though since the exterior sides are long grain and the dividers run vertical won't that cause the guides to twist against each other? I saw you addressed it in a previous section but longitudinal and horizontal movement will never equalize?

Edited February 16, 20206 yr by Pat Meeuwissen
Grammar

That is a lot of details wot work out.  My head hurts..



Very nice work!!

6 hours ago, Pat Meeuwissen said:

Derek, loving this step by step build. Learning a ton, I'm not much of a hand tool woodworker but love to see how to do it. I can translate them to power tools.

I'm going to ask though since the exterior sides are long grain and the dividers run vertical won't that cause the guides to twist against each other? I saw you addressed it in a previous section but longitudinal and horizontal movement will never equalize?

Pat, the grain for the case and the dividers all run in the same direction. The grain runs around the case. At the sides it is verical. The grain for the drawer dividers is vertical.



Regards from Perth



Derek

I know why I'll never be a real craftsman. Never could I develope the patience to get such precision. Like woodbutcher, my head hurts. I hope the effort is appreciated to the fullest.

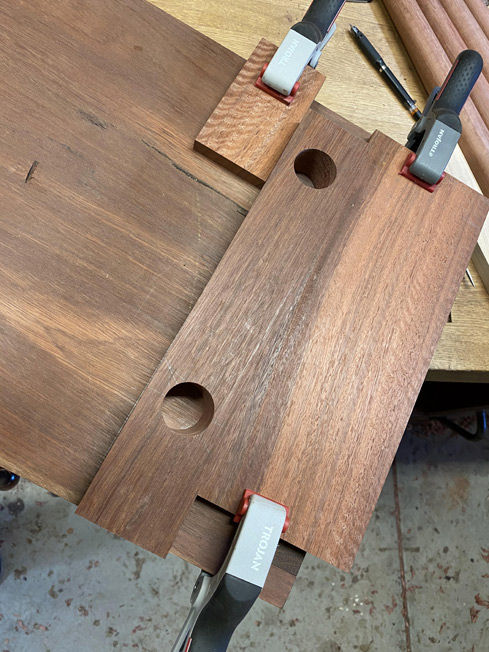

These are the bases. This post will focus on the socket for the one closest the camera.

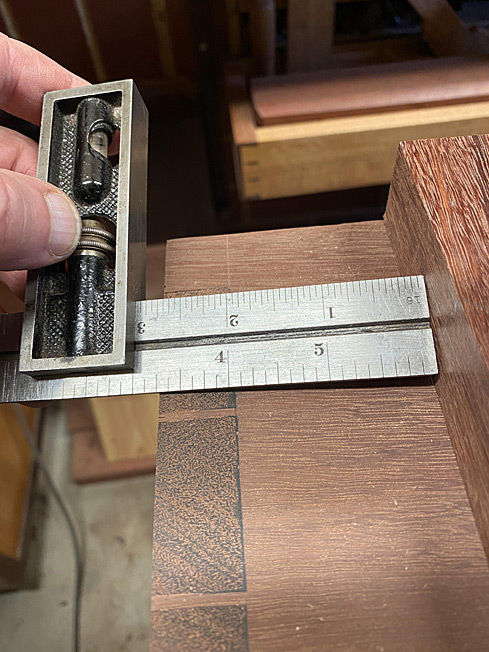

The base is positioned exactly 3 1/4" from the side. The tapered side is on the inside, with the outside face square to the front and rear of the case ...





This process is essentially the same as transferring marks from the tail- to the pin board with drawers.



The base tapers towards the toe, that is, the sliding dovetail will tighten up as the base is pushed into the socket.

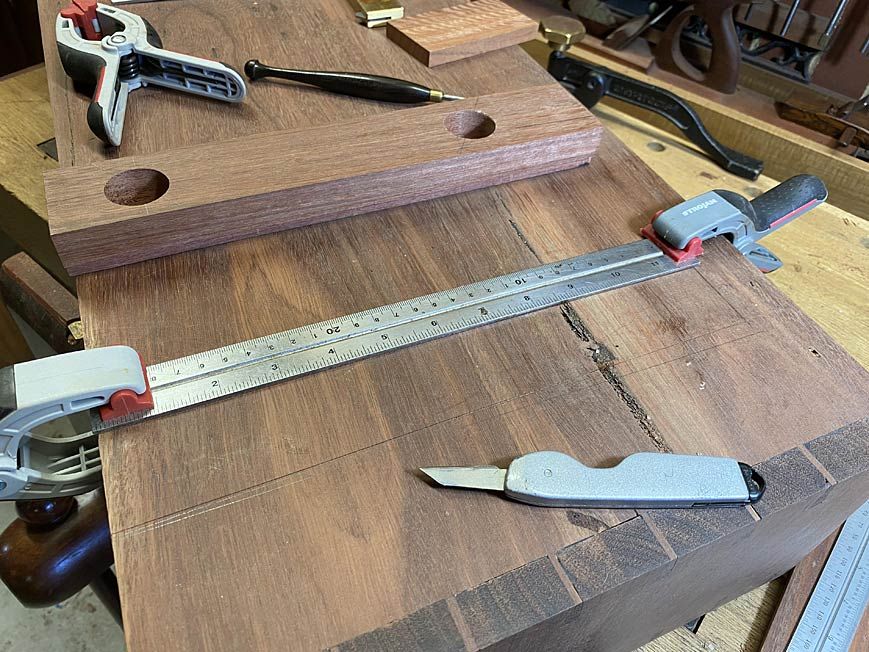

The first step is to register the far end of the base in such a way that the position is repeatable. This is done by placing a long board along the "square" side. The position for the end of the board is marked ...

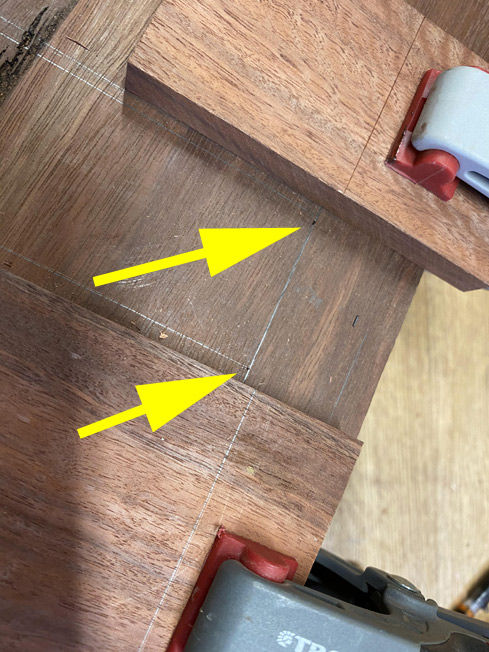

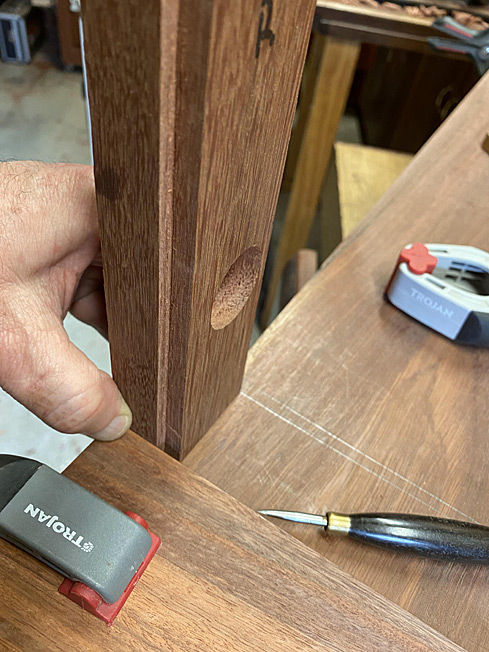

Now the base can be stood up to mark inside the tail with a scratch awl. You can make out the mark aligning the baseline of the tail ...





Look carefully for the dots.





This is repeated at the other end.





The dots are now joined up ...

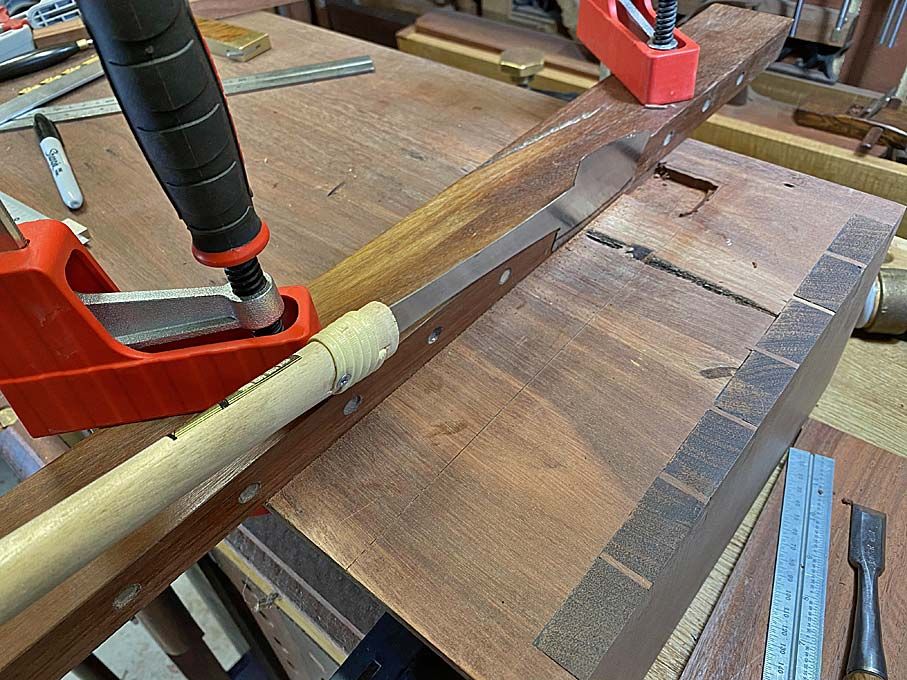

The plan is to saw the socket sides, as if sawing dovetails in a drawer. The angle ratio is 1:6, as it was with the base. Since the socket is blind or stopped, the saw needs to have space in which to begin the cut. An area at the toe is excavated with a router.

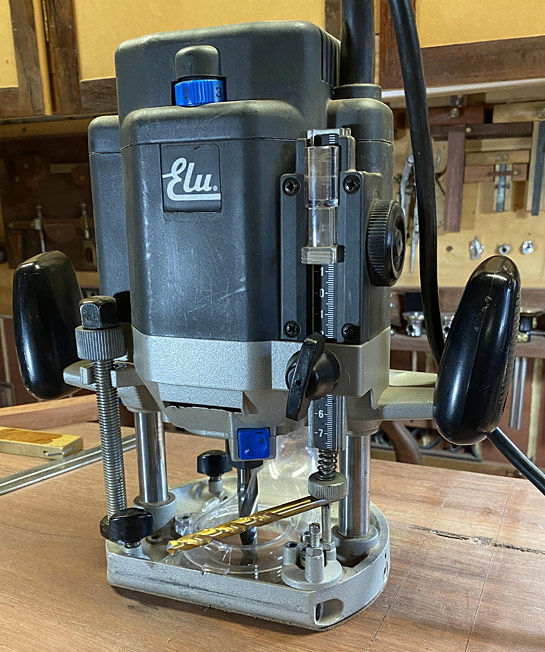

The depth of the cut is set using a 7.0mm drill bit. I am aware that the actual depth is 7.5mm, but this will be a second pass. I intend to clear the waste with the router - this Jarrah is bloody hard, and I am not a masochist!

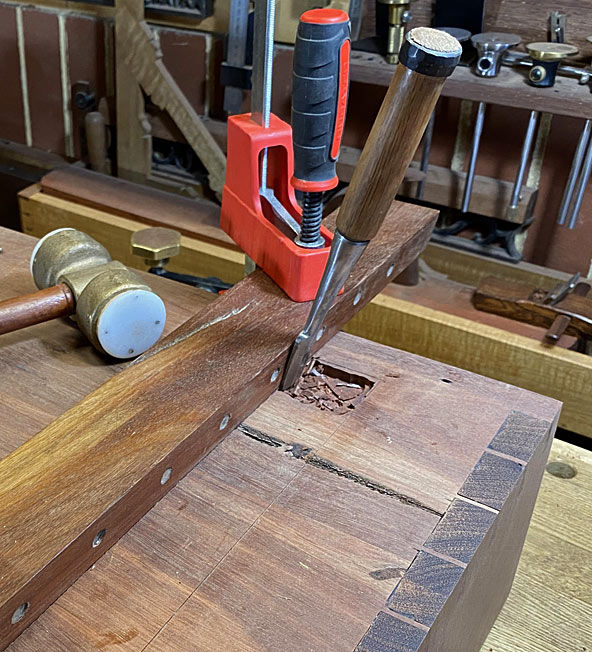

Using an angled saw guide, the end is chopped to the line ..

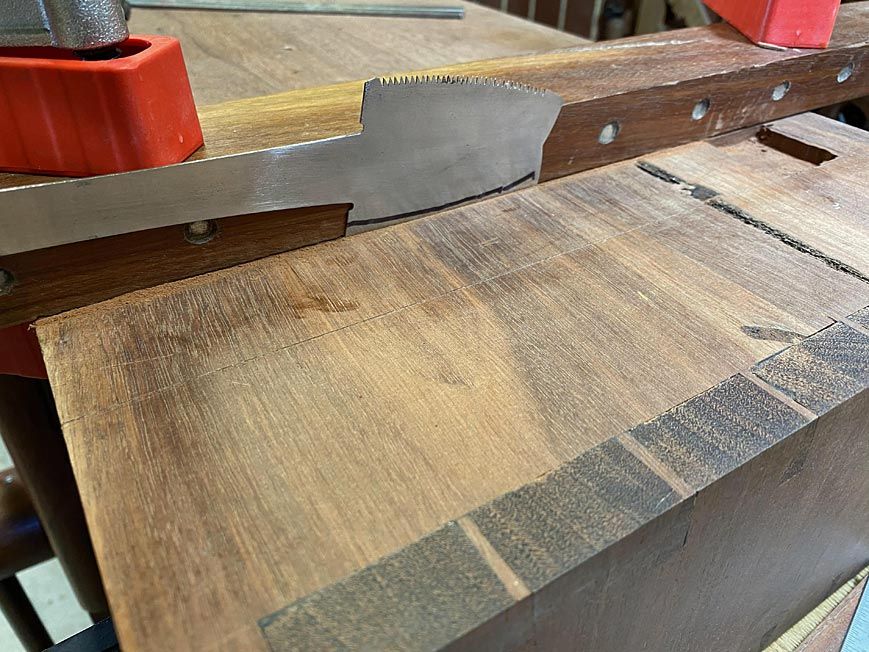

Now this is space to register the azebiki saw ...





I have roughly marked a depth to aim for ...

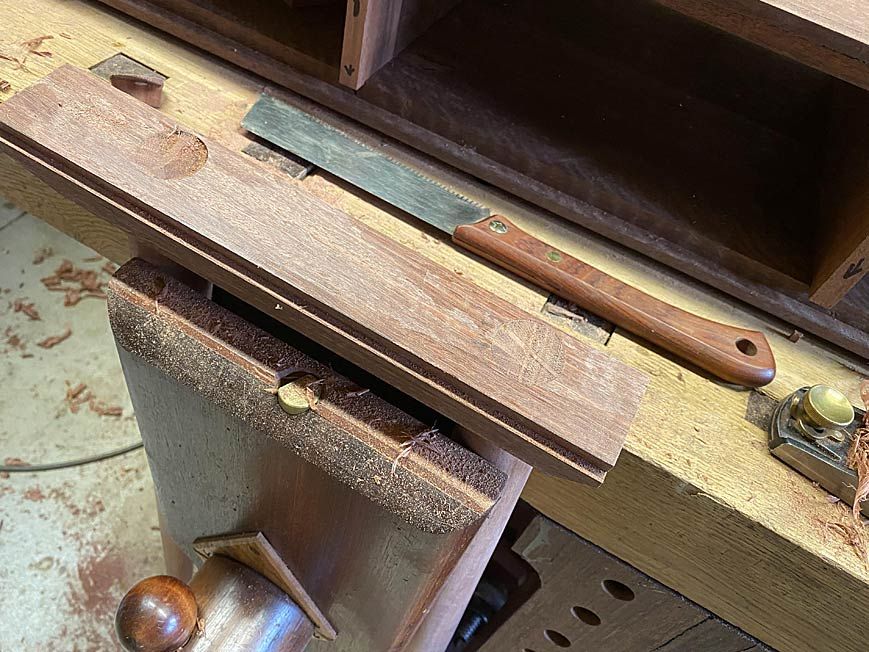

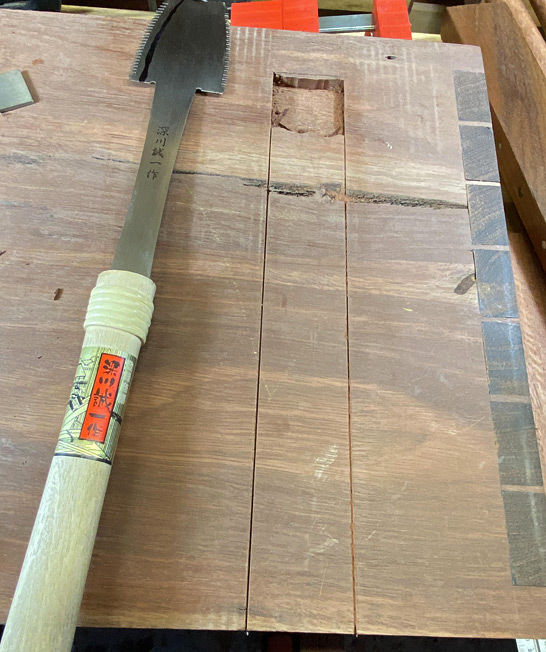

Both sides have been sawn ...

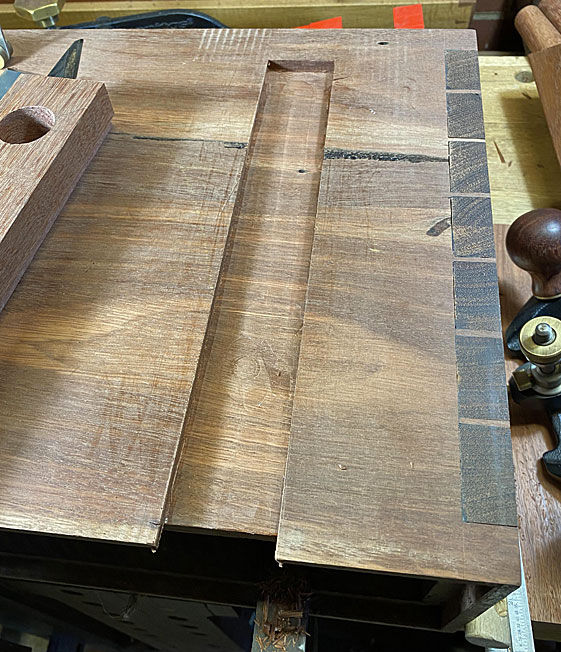

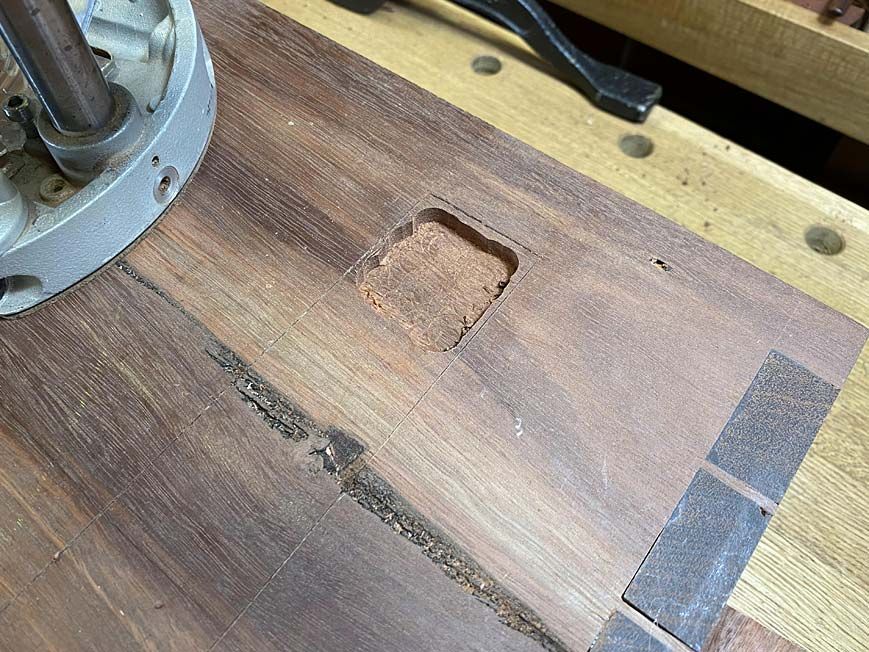

The waste is removed with the router, leaving a few mm close to the sides ...

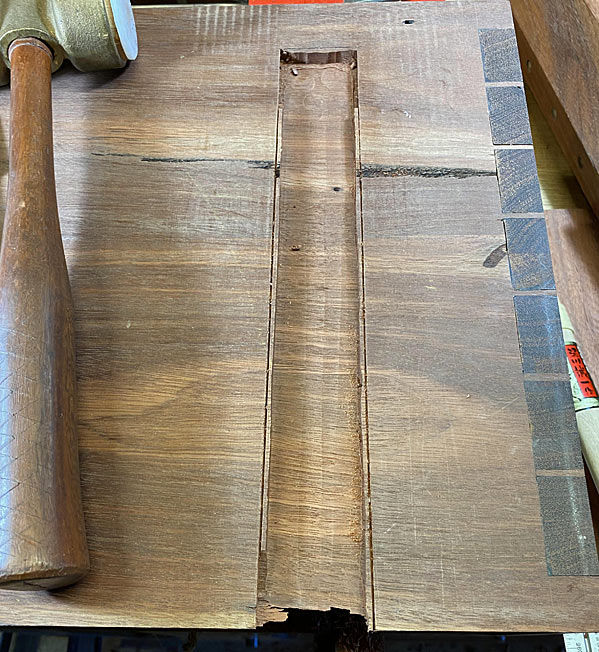

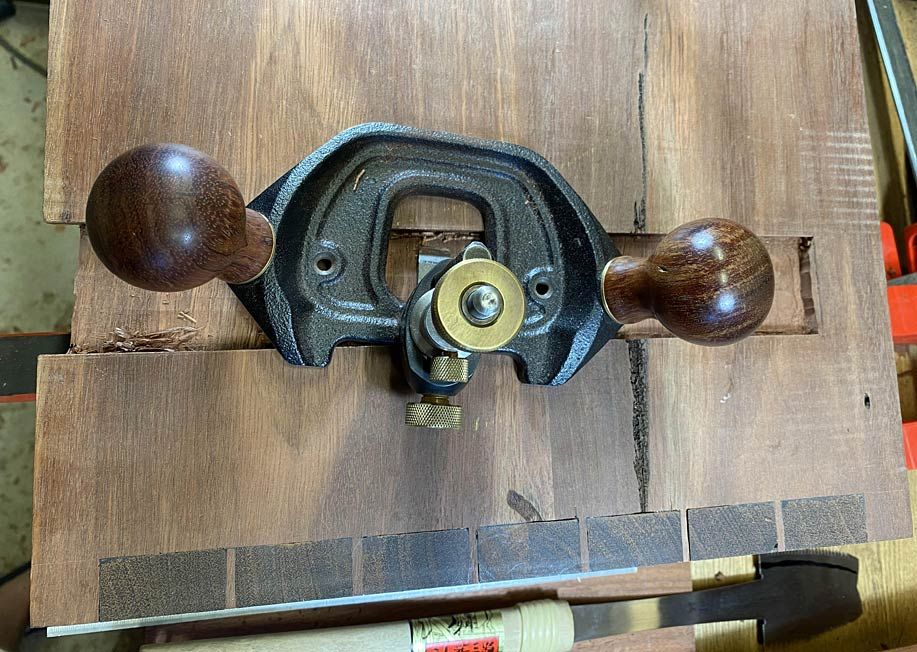

This is chopped away with a chisel in two passes, and then cleaned up with a hand router ...





The side rebate #79/dovetail plane is used to clean any rough sections ..





The power router drops a 0.5mm to 7.5mm and this is cleaned up ...





Amazingly, the base slides in and tightens up about 1/4" from the end. It will need a tap to be fully secure.





That's it for now.



Regards from Perth



Derek



Edited February 17, 20206 yr by derekcohen

Always great to use sliding dovetails

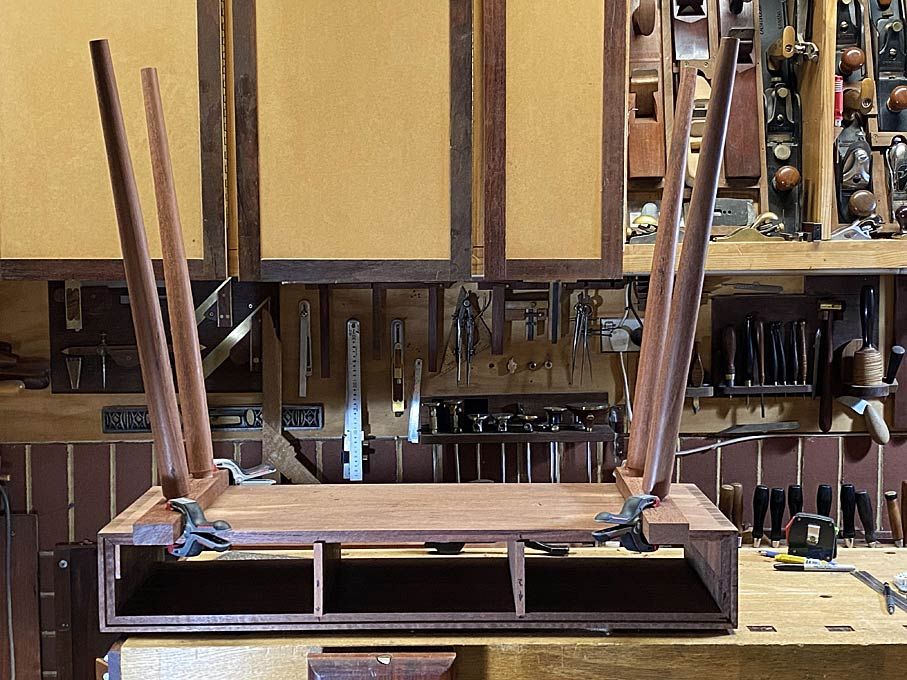

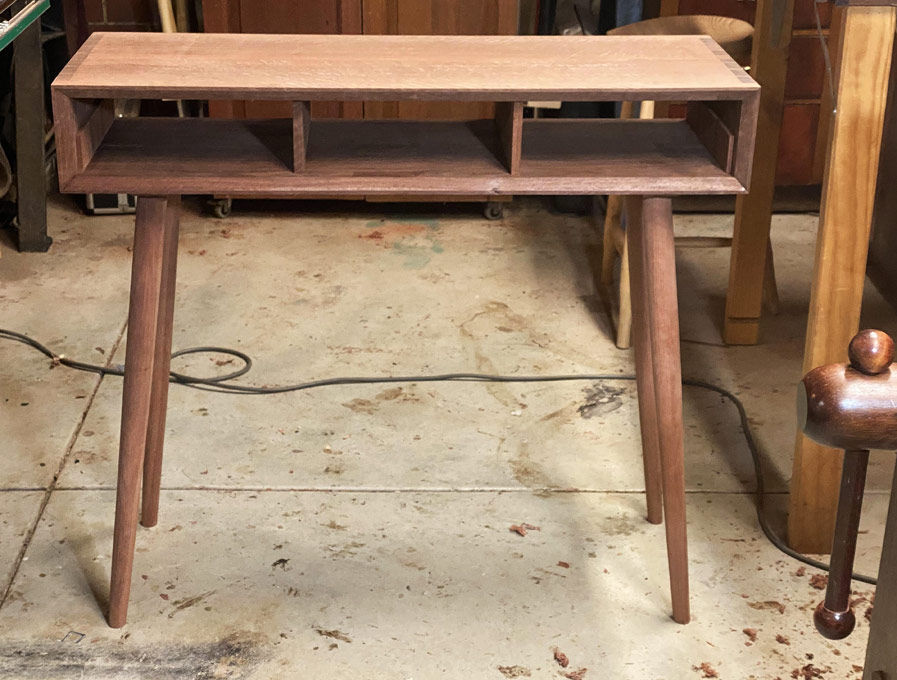

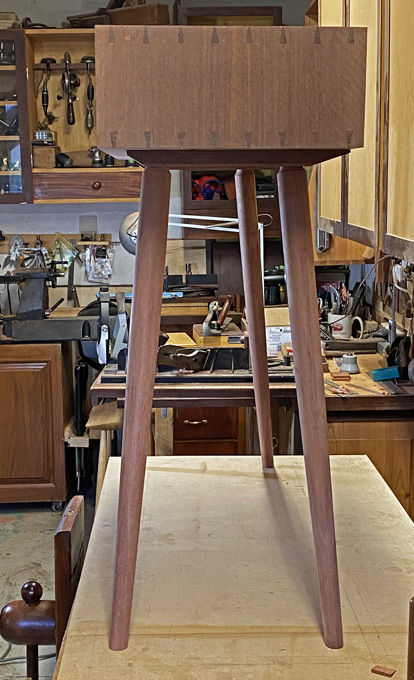

The legs are on. I must admit to mixed feelings at this stage. This is not my style of leg, but it is what my niece wants. Perhaps I will feel differently with a finish on the wood.







The tenons were kerfed for a wedge ...





Installed in the bases ...

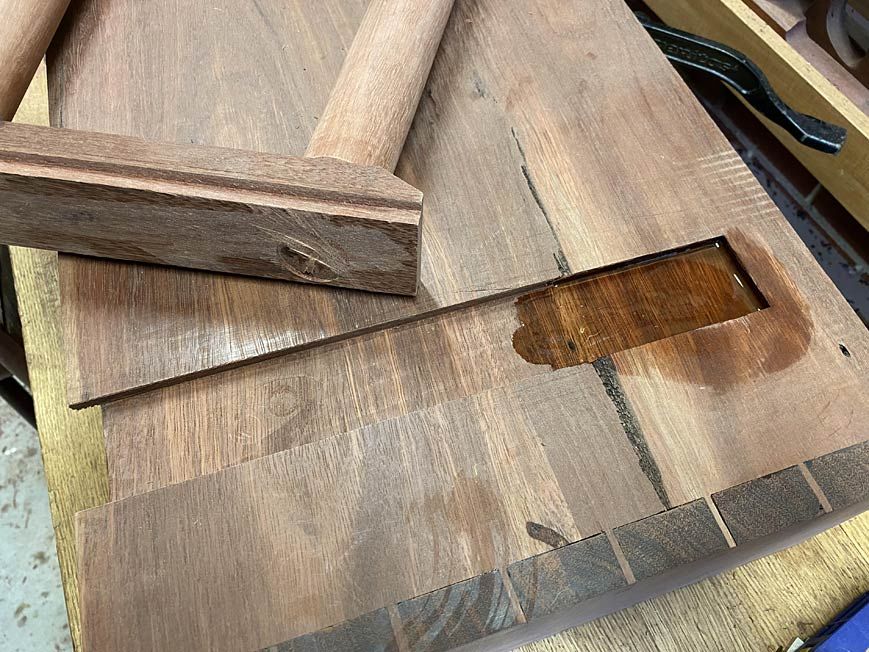

And glued into the socket. Note that only the first third is glued. The rear is free to move ...

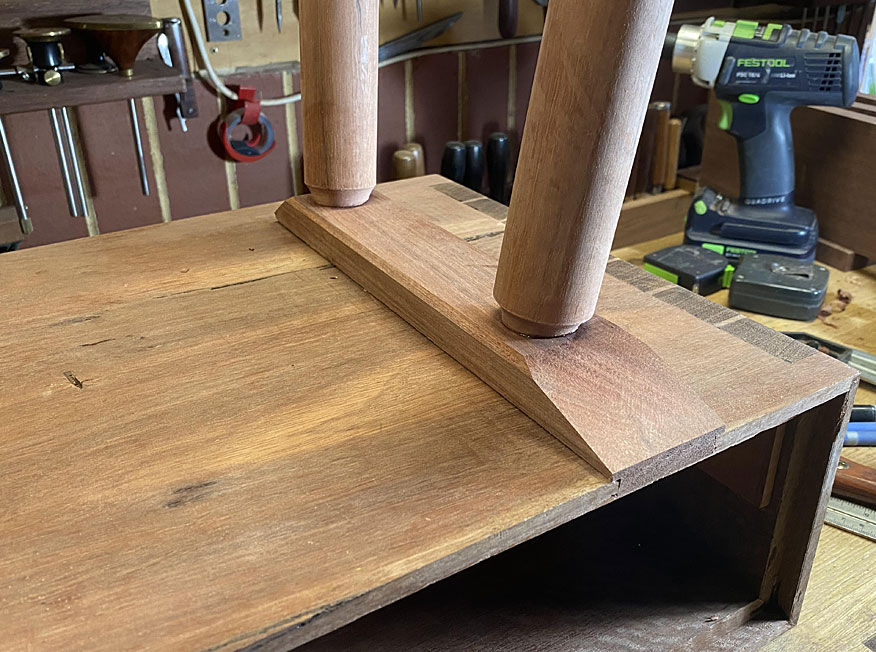

The bases have been shaped to reduce their impact ...







The legs were evened up ..

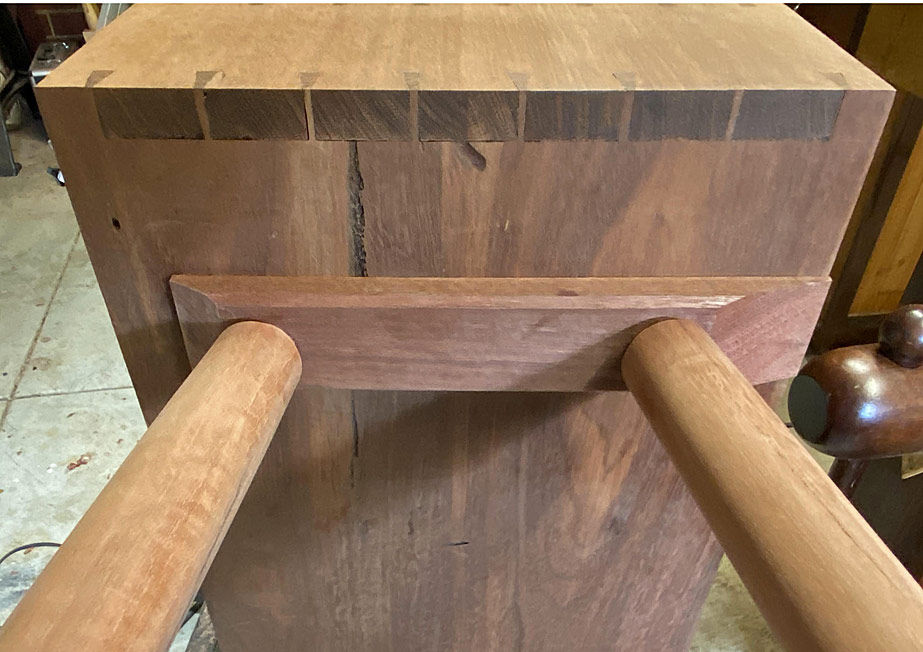

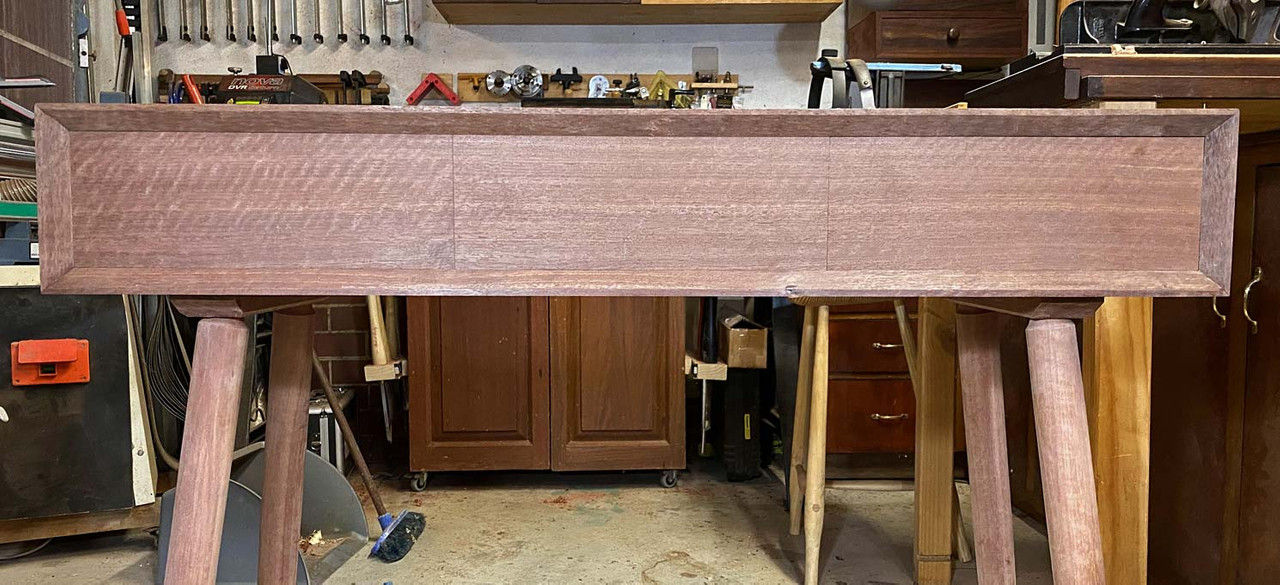

Side view from underneath (one does not see the base otherwise) ...





Regards from Perth



Derek

That is some craftsmanship, beautiful work!

Beautiful looking table. Thanks for the lessons.

Looking pretty sweet to me Derek.



It's time for the drawers. Once again there is a challenge. The design calls for drawer fronts that stretch across the front without being broken by drawer dividers. In other words, "lipped drawers".

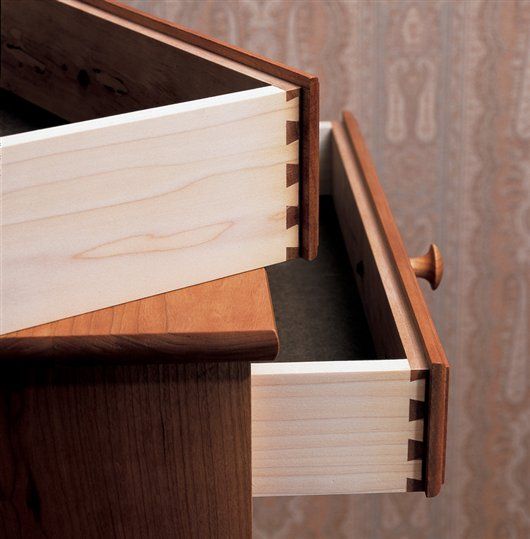

There are two ways to do this. The easy way is to used "planted fronts", that is, attached fronts to the front of a box ...

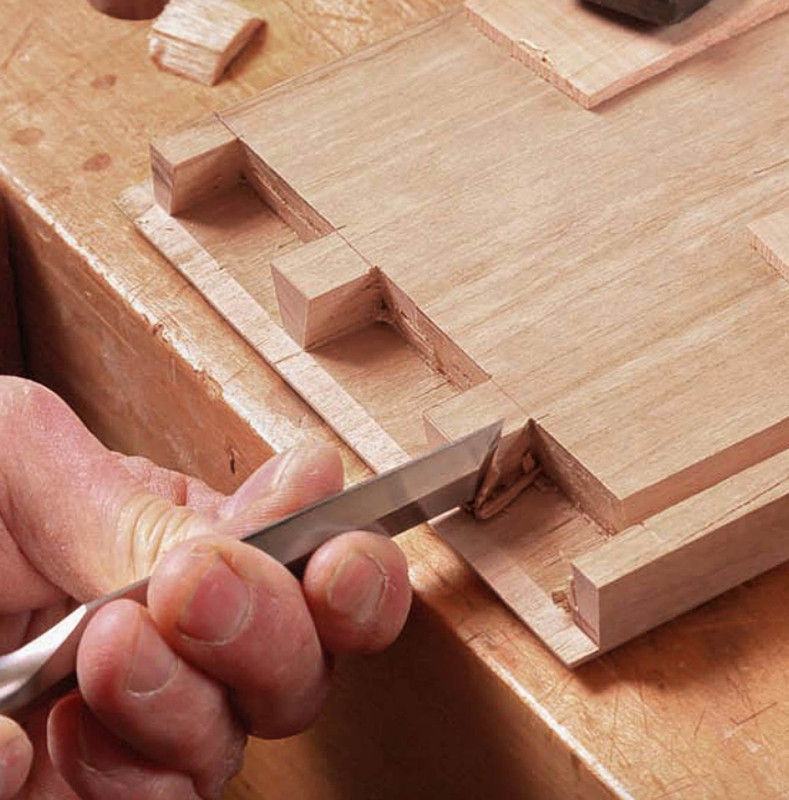

The hard way is to make the drawer front a single piece. This requires rebating the drawer front and forming a half blind dovetail in the side of the rebate. Courtesy of Christian Becksvoort ...





I've chosen the high road (sigh).



Today I spent my time preparing for three drawers. Why three and not two, as in the original design? Simply because I can build them narrower, and this will make them less likely to rack. They'll end up somewhere around 280mm wide and 290mm deep. I anticipated that 375mm wide and 290mm deep would be a disaster waiting to happen. The only way drawers that dimension could work is on runners, which I do not do.

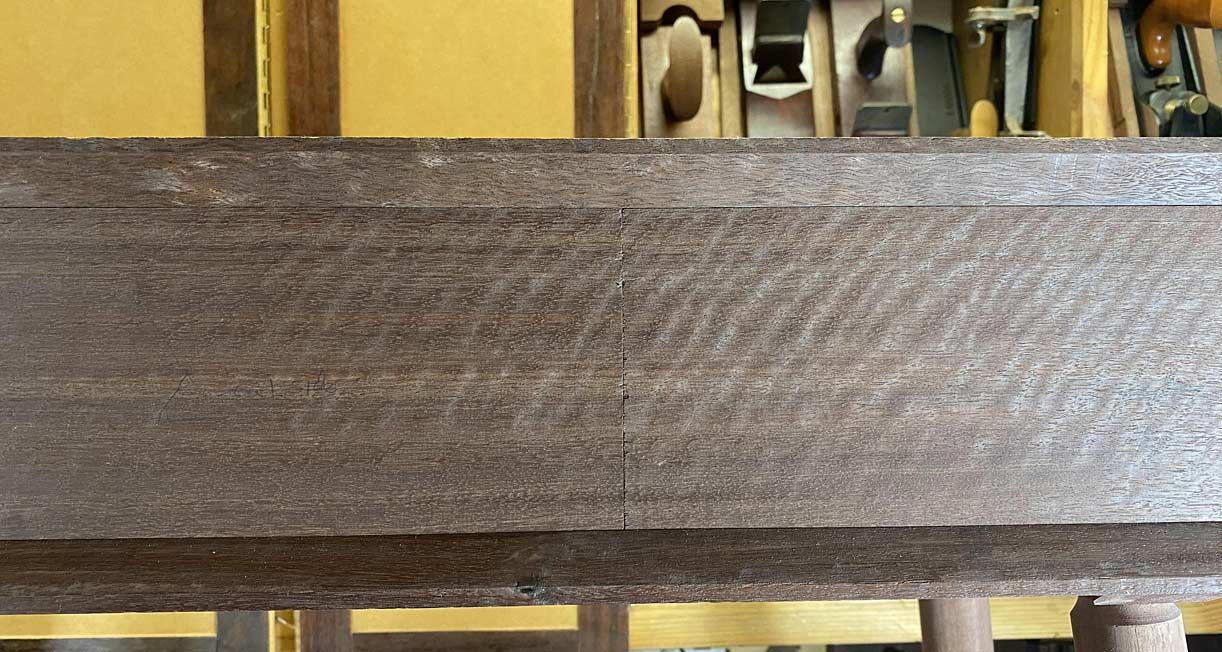

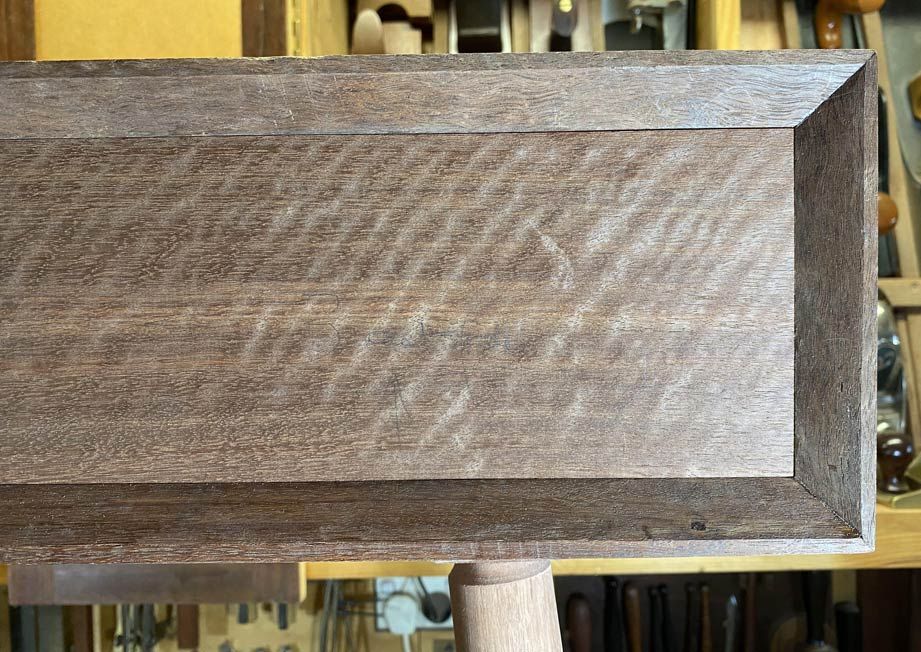

The wood for the drawer front is more Fiddleback Jarrah (by request), while the remainder of the drawer is quarter sawn Tasmanian Oak (which is actually a Eucalyptus, and is quite unstable unless quarter sawn. I keep a stock for drawers). It is a lot like US White Oak in appearance and hardness.

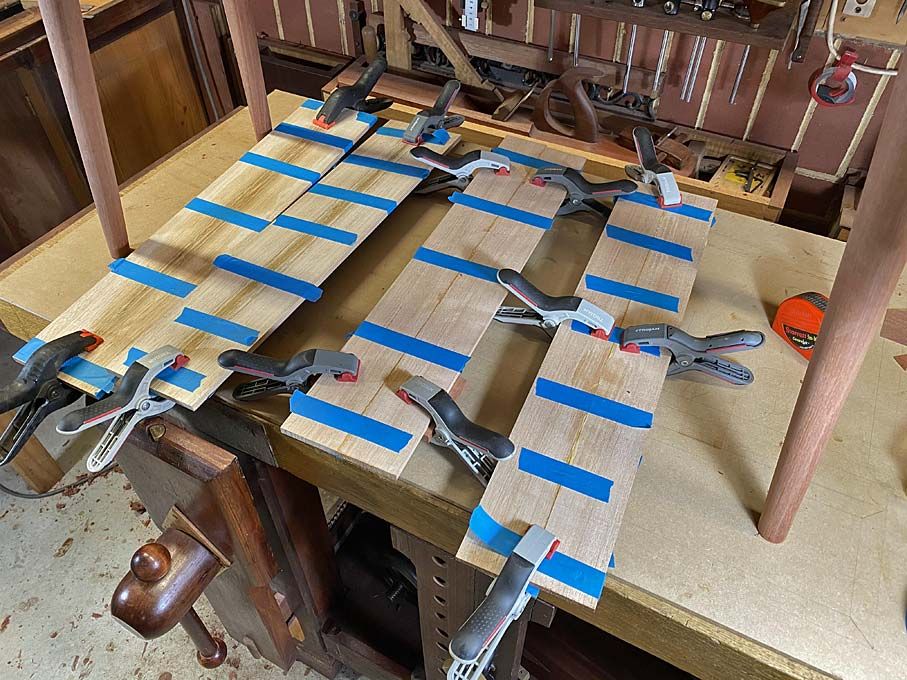

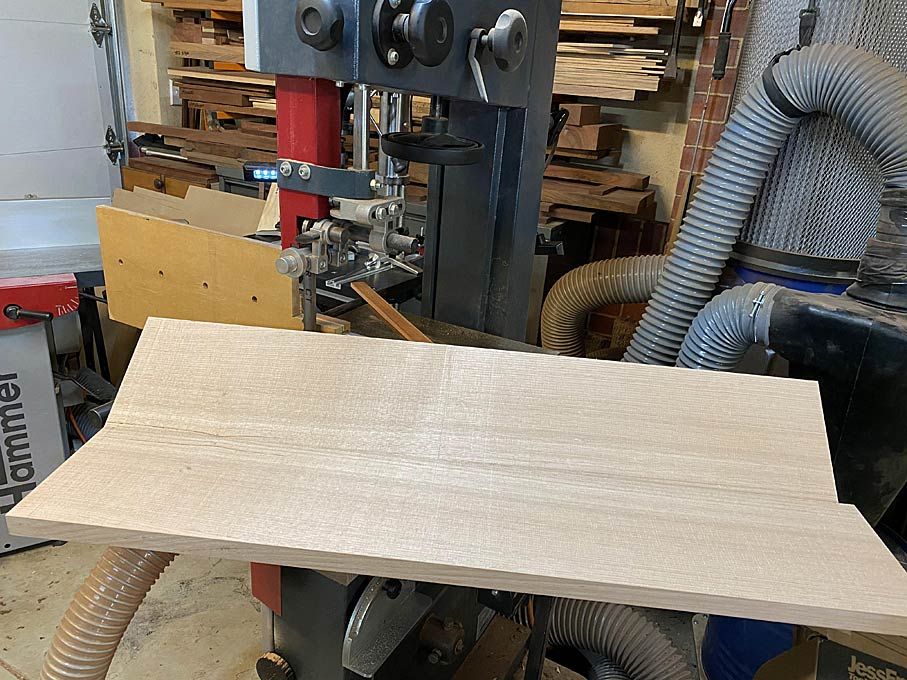

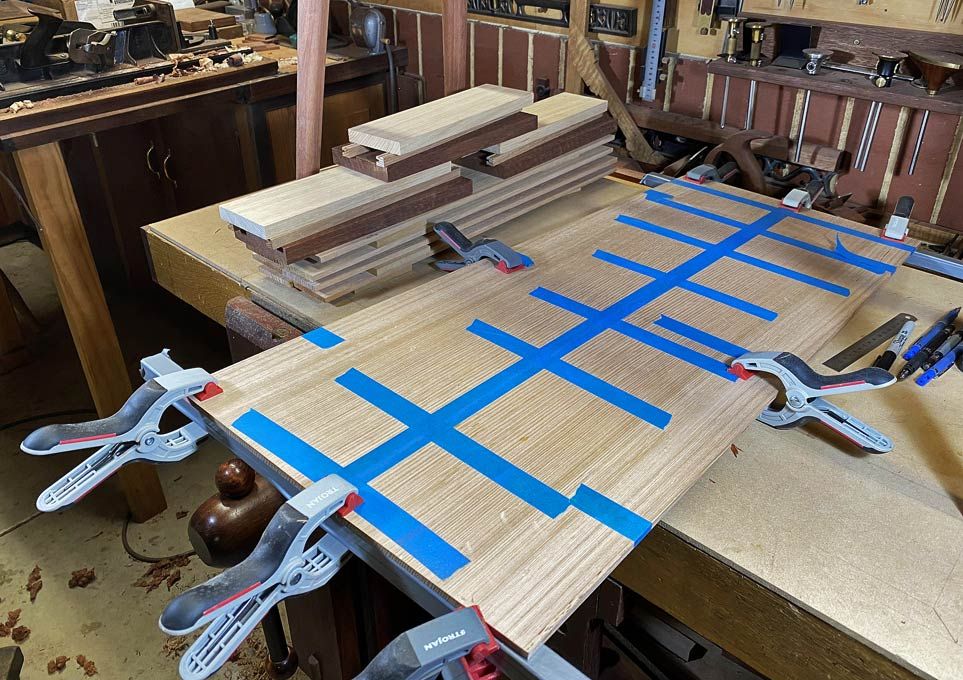

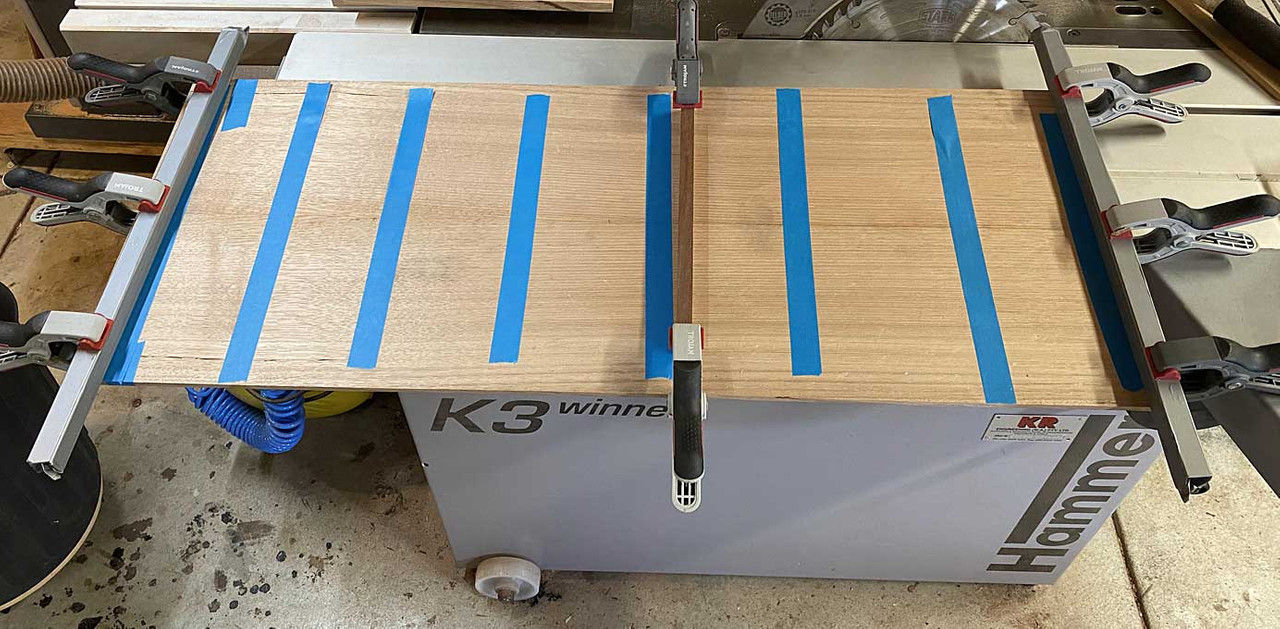

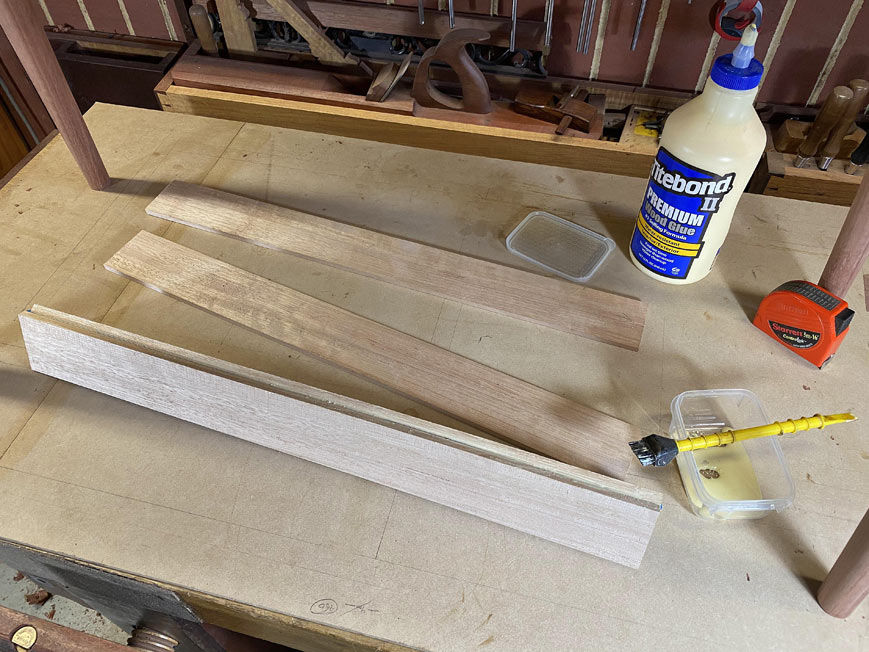

I have a bunch of narrower boards, which I re-sawed to make 7mm thick drawer sides, and glued together two to get the height needed ...

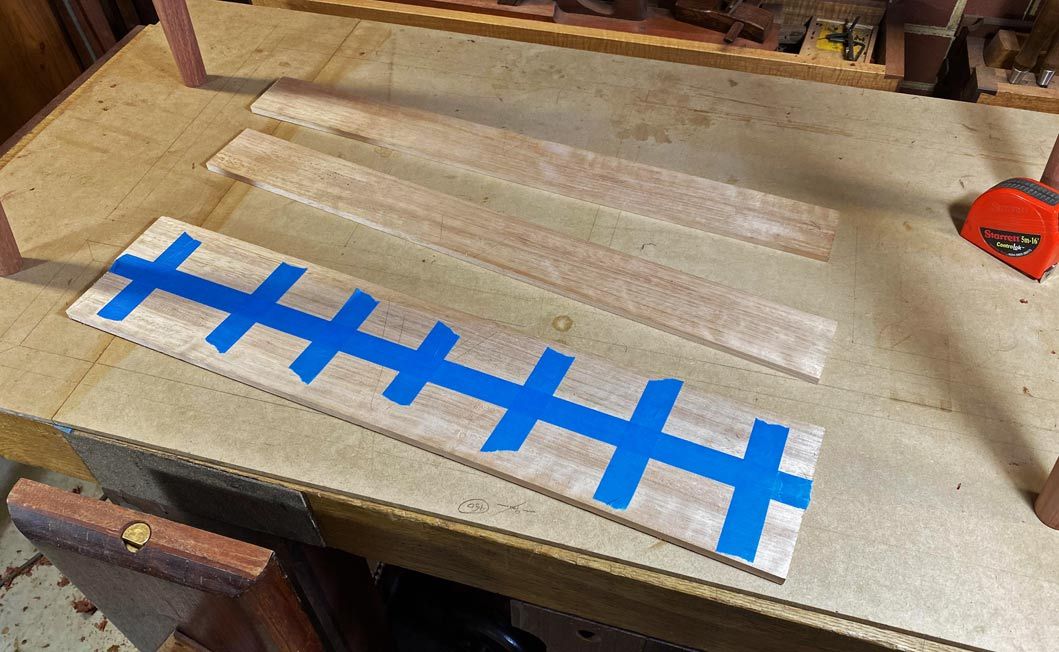

No clamps, just blue painter's tape, which is stretched across. It pulls the edges together.





This is enough for 4 drawer sides (one spare) ...





The drawer bottoms will be 1/4" (6.35mm) thick  ..... I cannot go metric here as my plough blade is imperial .... this is re-sawn from a wide board, which saves some effort as only two boards are needed for the bottoms (the grain runs across the drawer) ...





Same trick with the blue tape, and cauls are also added to keep it flat. This will be sawn up at the time it is needed, and the panel will remain in the cauls until thn.





The narrow drawer sides necessitate using drawer slips, which is a strip added to the sides with a groove for the drawer bottom. This also adds extra width as a runner.

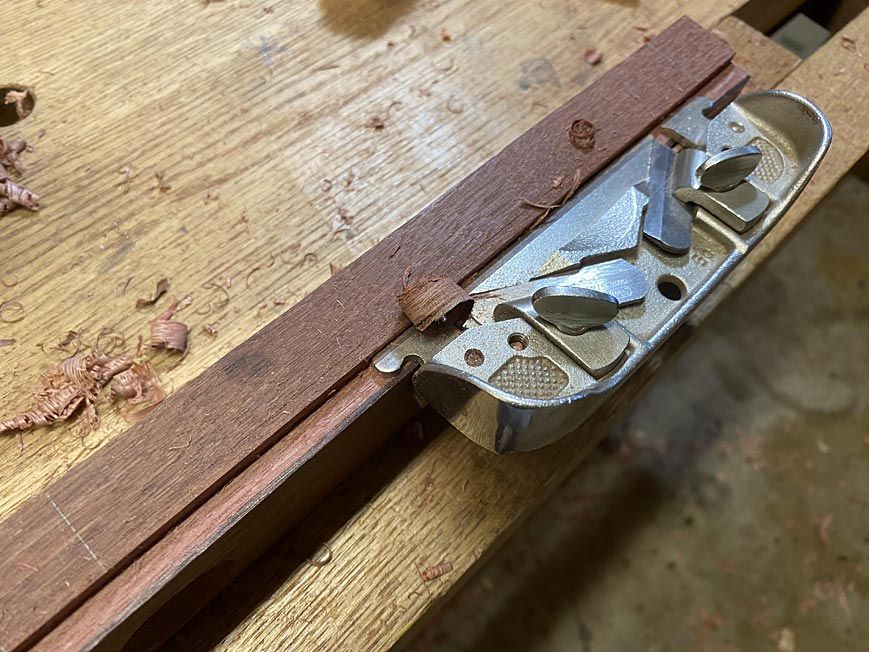

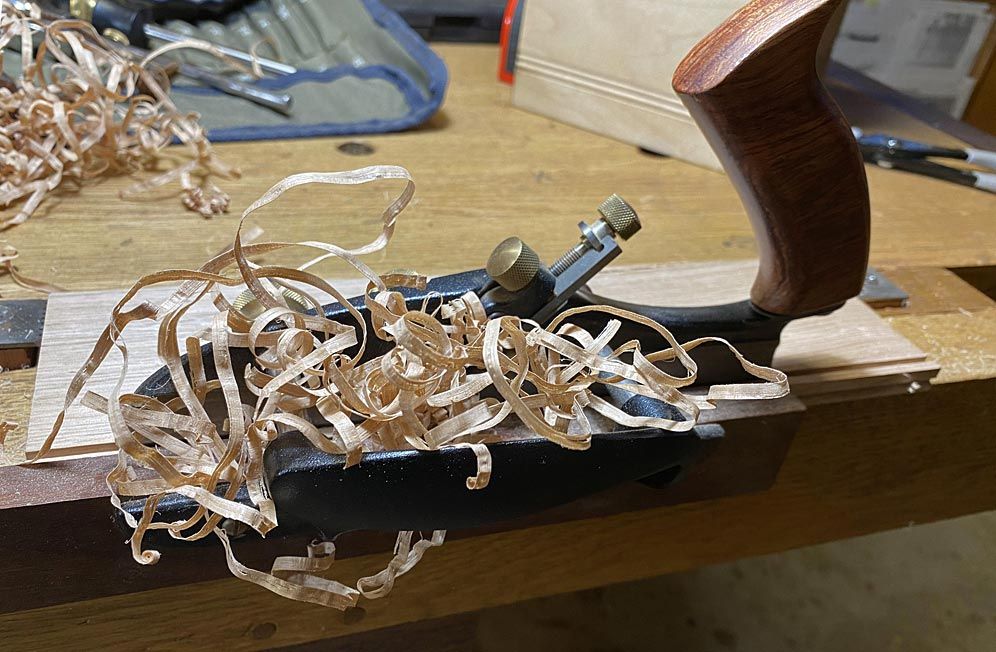

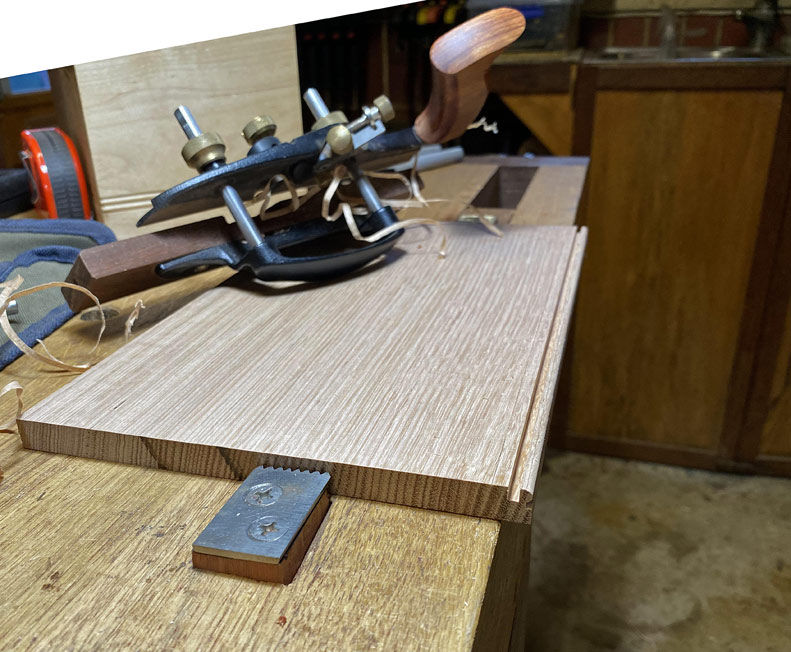

The slips are made with a plough plane. In this case, I used both a Veritas Small Plow (to plough the groove) and the Veritas Combination Plow (to plough a bead - the bead lies at the join of the slip and drawer bottom). Setting up both save time switching set ups back and forth, and once begun, making these slips was a quick process ...

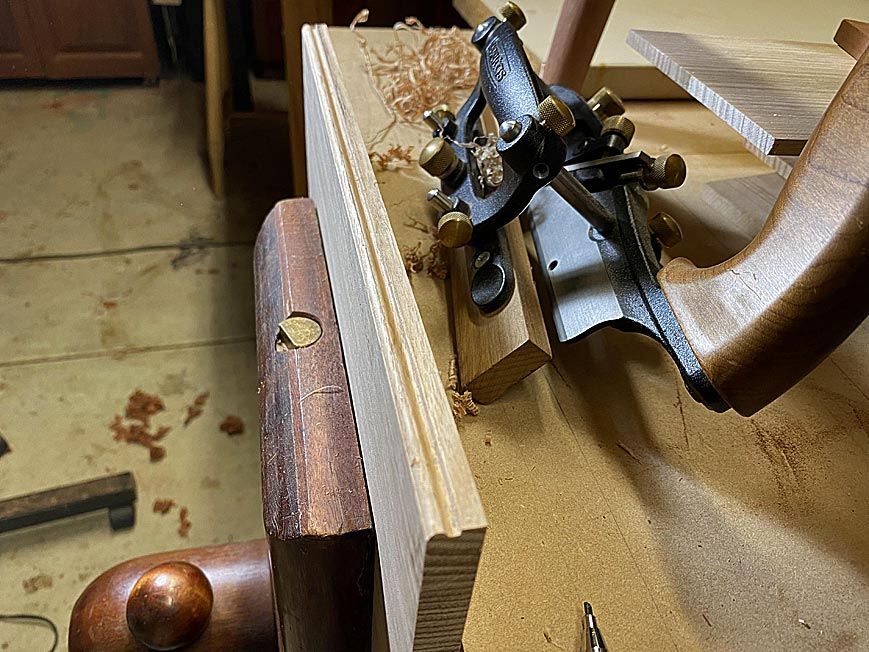

First plough the bead ...

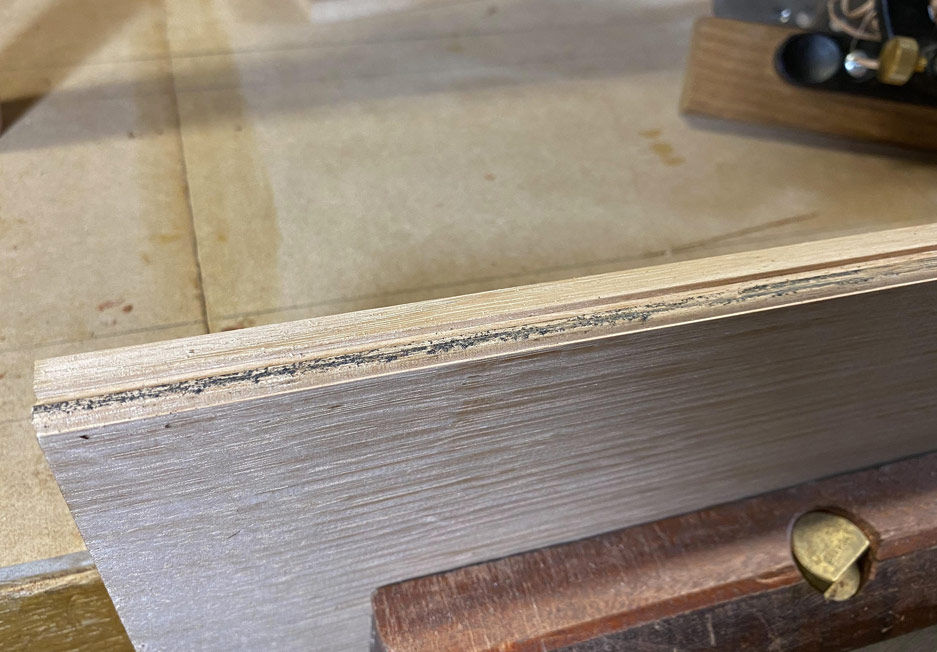

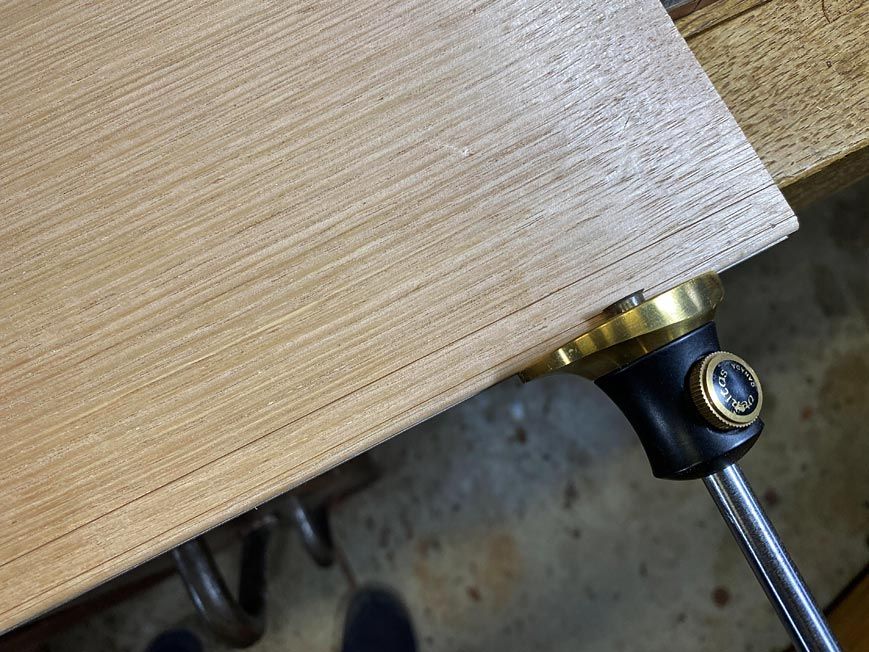

A tip on how to avoid over-planing the bead. This comes from David Charlesworth. Scribble pencil along the top of the bead, and when it is gone, the bead is complete ...





Now flip the board around to plane the groove ...



The first line is where the groove begins, which is 3mm below the bead. There will follow a 1/4" groove, and there will be 4mm below this to support the groove/drawer bottom. This makes the slip a smidgeon over 12mm high. It is 10mm deep, which allows for a 5mm deep groove.





As mentioned, once set up, no further marking is necessary. Just plane ...







... and then rip off the slip on the table saw.

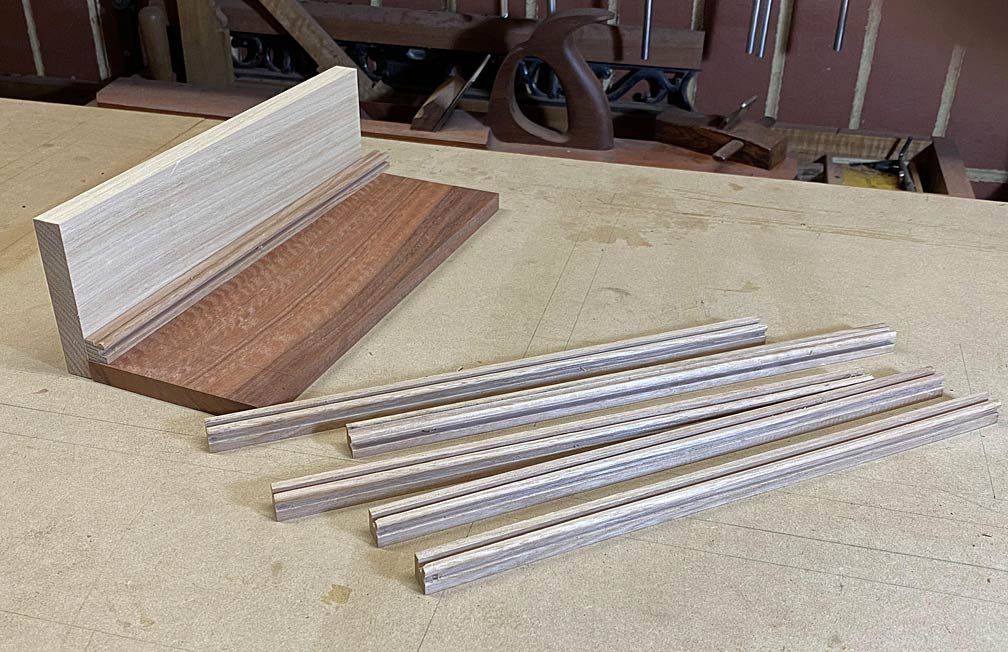

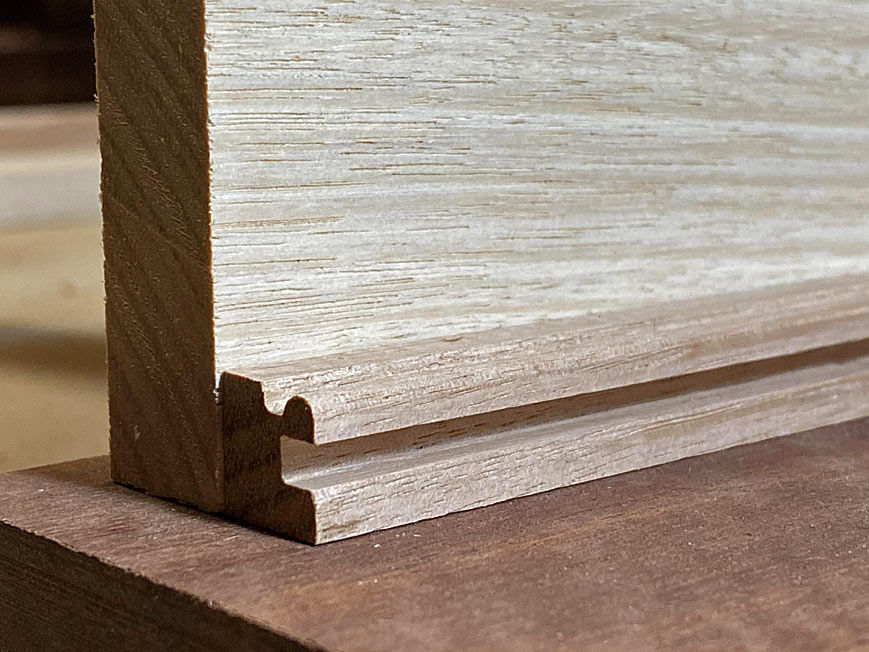

This is a mock up: the bead at the top and the groove on the side ...





I have a strategy to fit the drawer fronts, so that the edges align with each other. It is all about accurate marking out. This will hinge on getting the opening exact, and transferring the respective measurements to their drawer fronts.



First order of the day was to fit (what will become) drawer backs to the front between the drawer dividers. This is what the result looked like ...

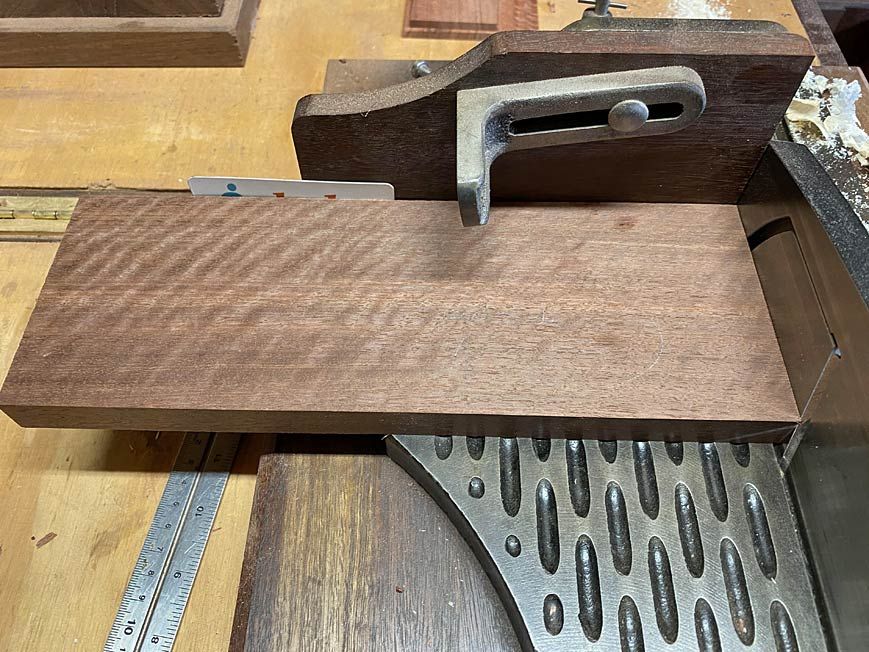

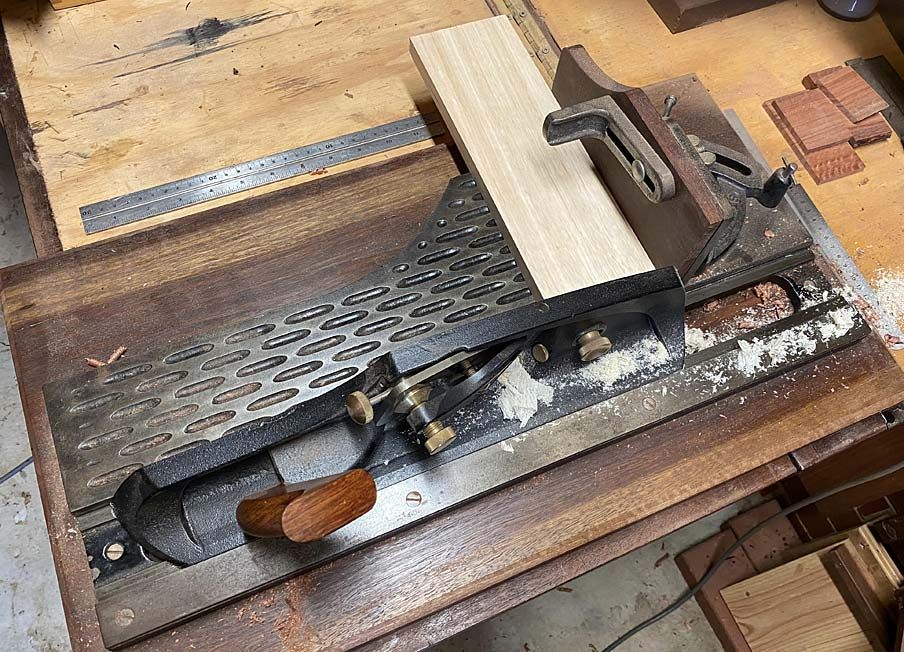

The table saw can cross cut really close, but only a shooting board will get the final dimension ...







On to the all-important drawer fronts!

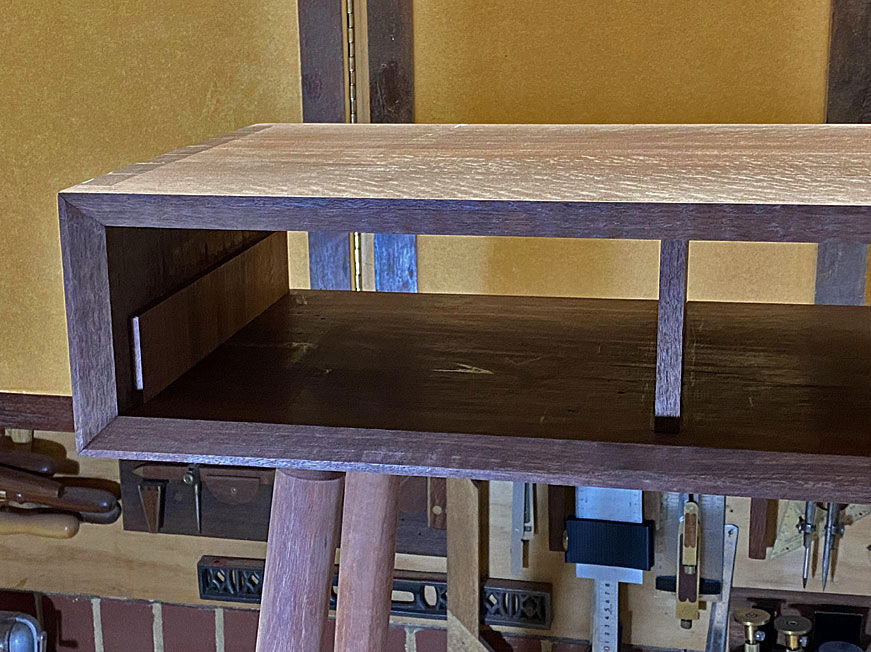

I was heartened that all the verticals were indeed vertical still ... well, except for one (if you look carefully, you will see light in the top half) ...





This meant a slight adjustment of that side .. again a job for the shooting board.

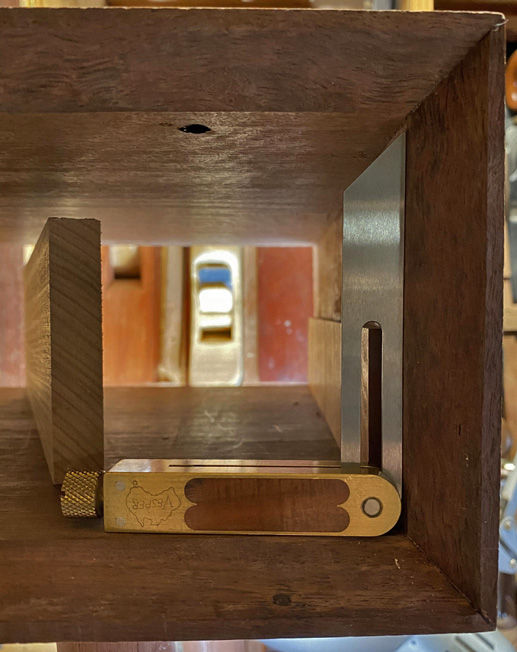

Set one, mark the angle with a small sliding bevel ...





... transfer this to the side of the board, and head for the shooting board. As the side is no longer square, a shim is used to create the needed angle ...





A good result ...





This is the join I need to manage ...





These are the fronts fitted in sequence ...

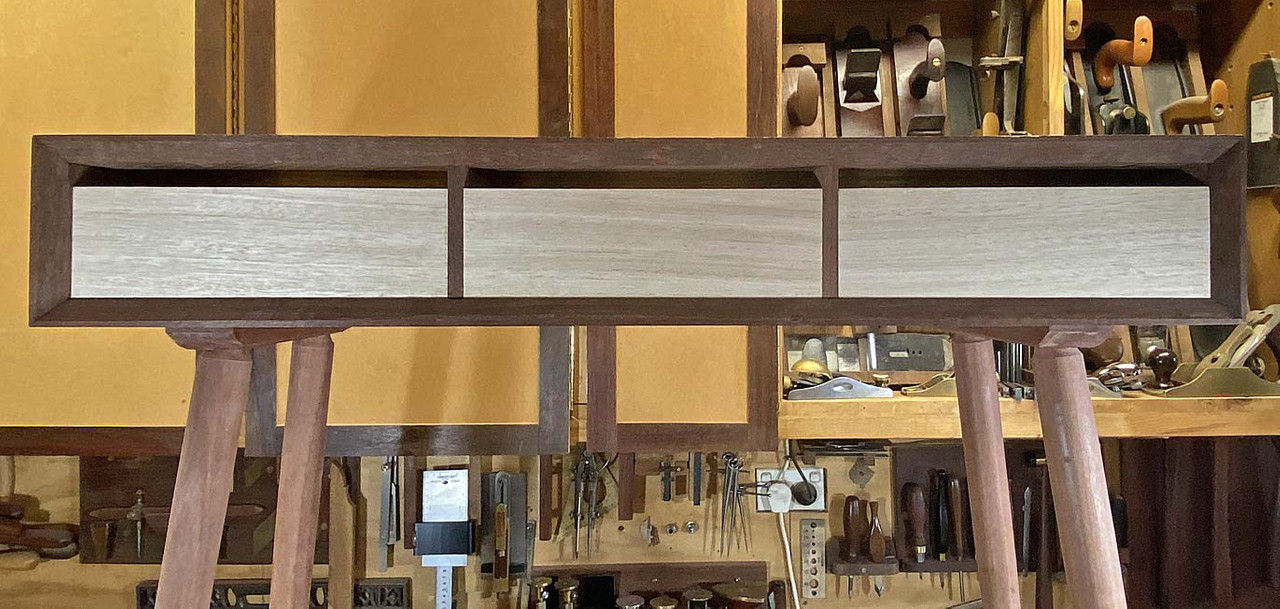

And here were are now, waiting for the next build day ...





Regards from Perth



Derek





Edited February 23, 20206 yr by derekcohen

That is a lot of work, it took me quite some time to look through all those pictures and the details entailed in them.  Excellent work and attention to the finest of details.  I aspire to be this skilled one day, but today my friend is NOT that day.

That is a very detailed post and I am just wondering if you write for a magazine? Thanks for all that

Hi Gerald



I have written several articles for magazines, such a Popular Woodworking and Australian Wood Review (which is one of the better mags), as well as having my tools featured in Fine Woodworking Magazine.



Regards from Perth



Derek

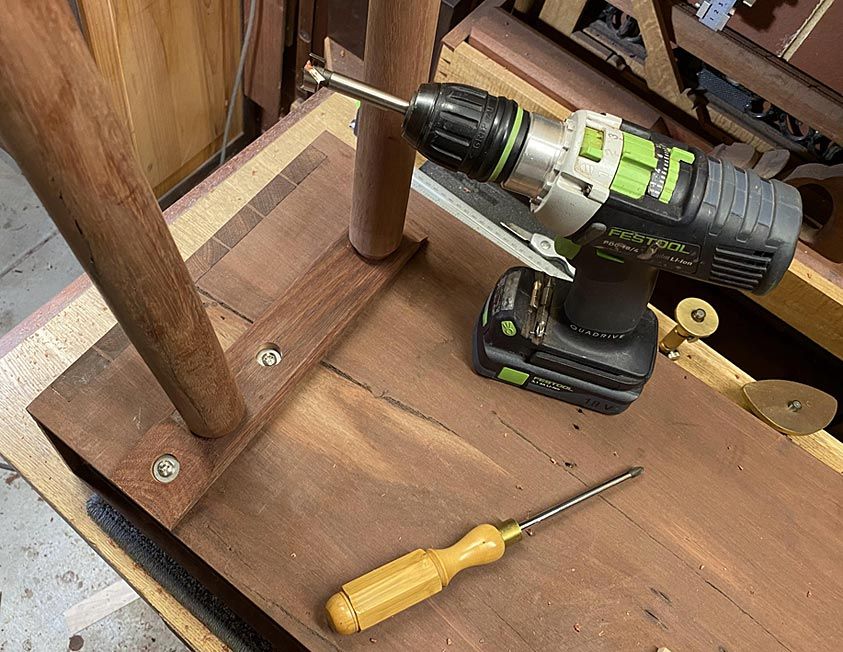

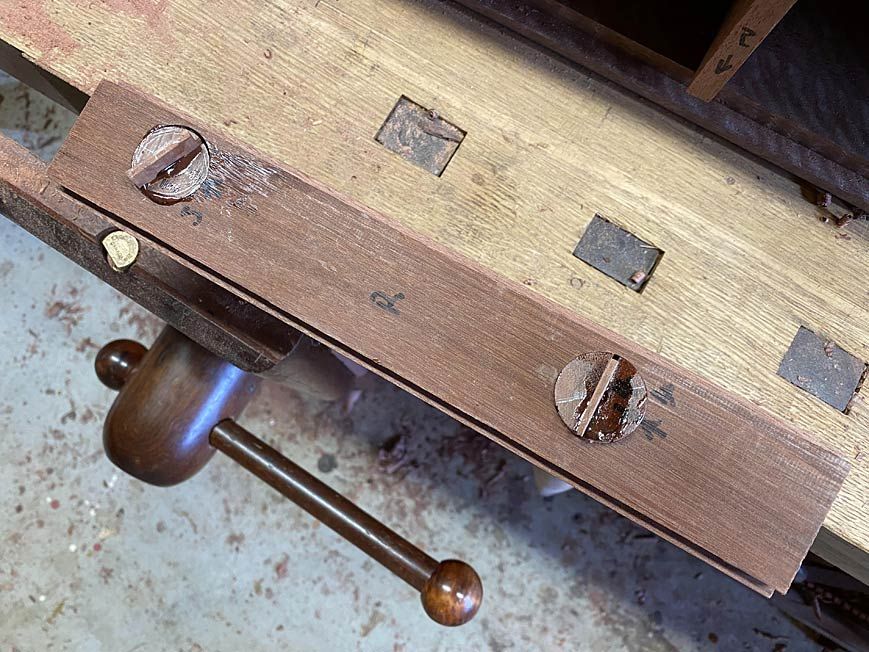

The process of attaching of the legs was completed by the addition of two screws in the sliding dovetail base.



Why add screws? The screws are not to prevent the base sliding back (an elongated hole actually encourages this). It is just to prevent the base twisting in, and breaking out of, the socket since there is no glue there to prevent any lateral movement.



The force comes from the splayed and angled legs. They will want to cant outward, and this becomes more so when the three drawers are filled and a vase of flowers is placed on the top of the table.



I thought that it is worth mentioning the screws used and how they were inserted.

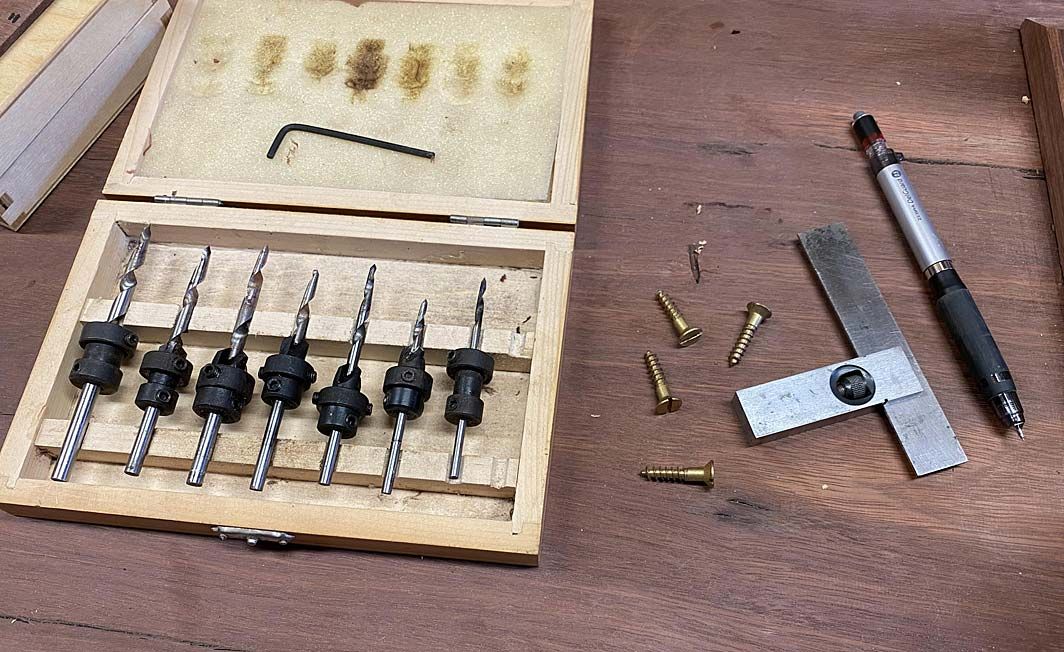

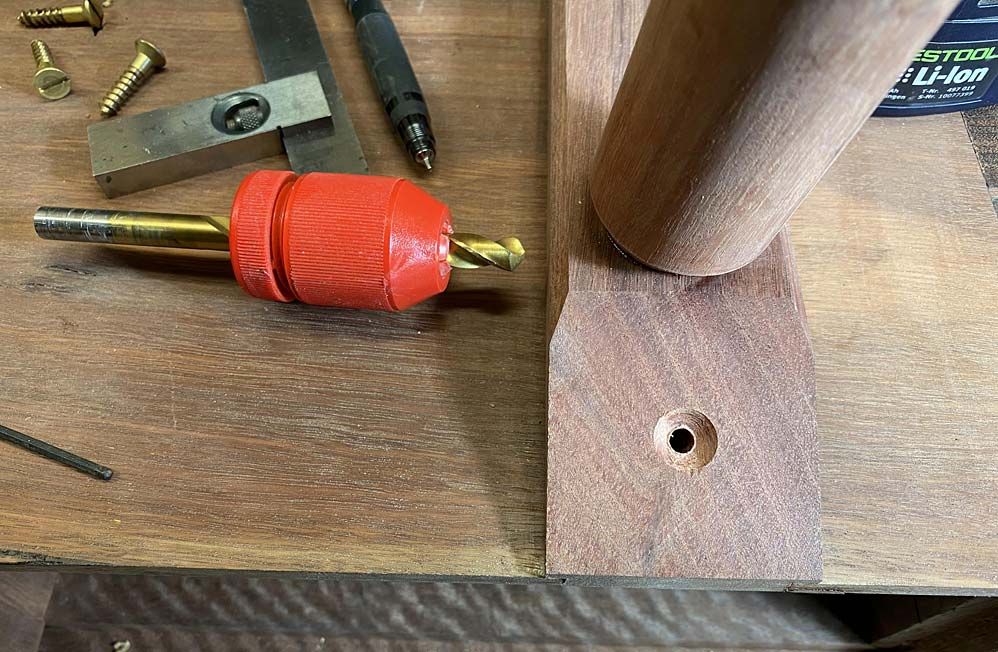

The screws are 1" long brass tapered wood screws. The drill bits are also tapered to match. These ones include a countersink and depth stop.





The plan is to drill the hole for the screw through the base and into the case, and then widen the hole in the base. This will permit the base to move with expansion and contraction. In this case 2mm each way.



A wider drill bit (and depth stop) ..

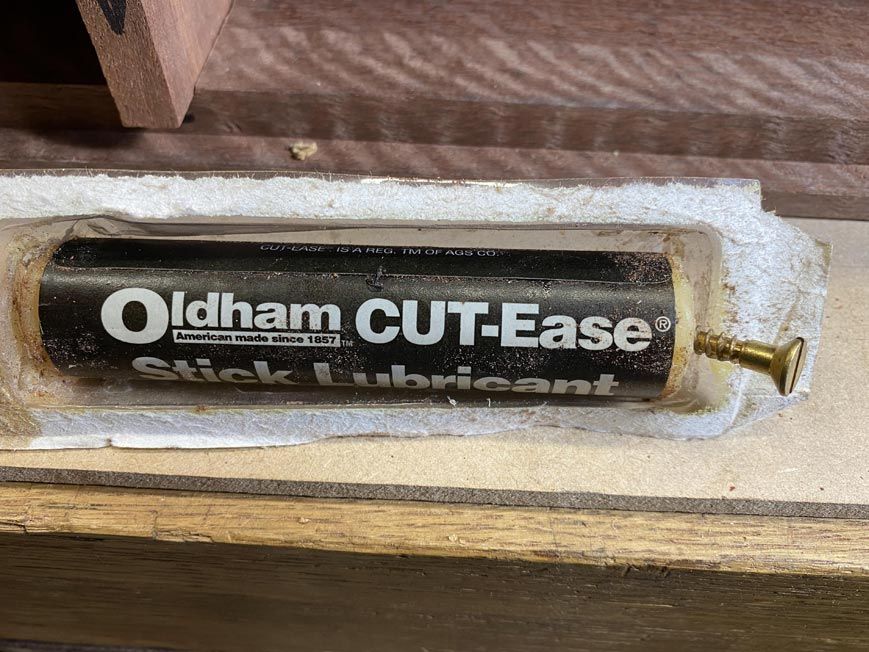

Before inserting a screw, especially brass screws, they are dipped in a little wax. This is wax for lubricating bandsaw blades ...

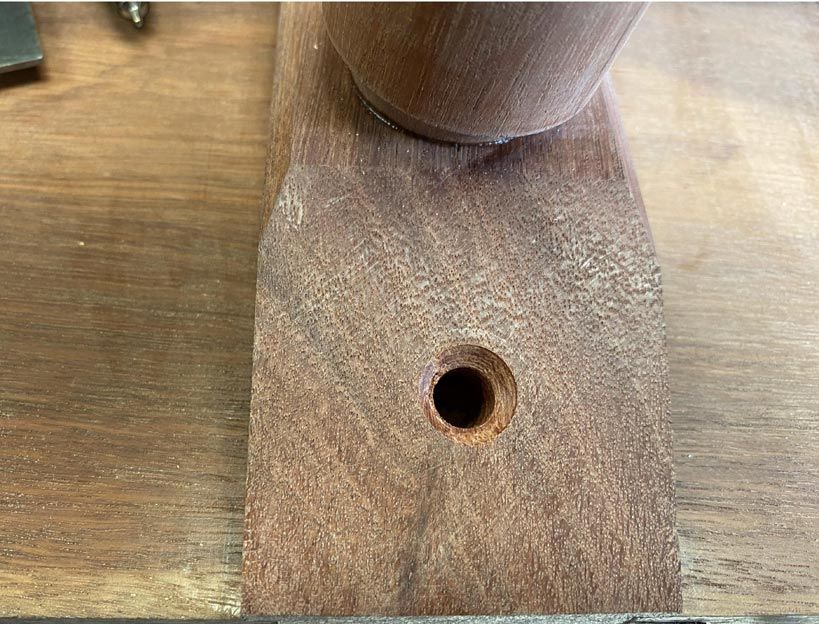

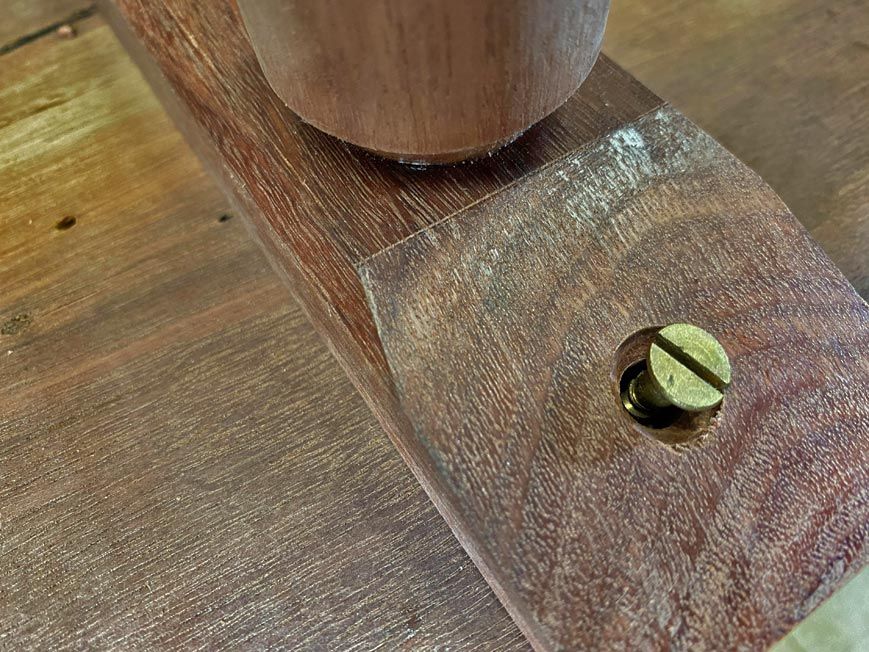

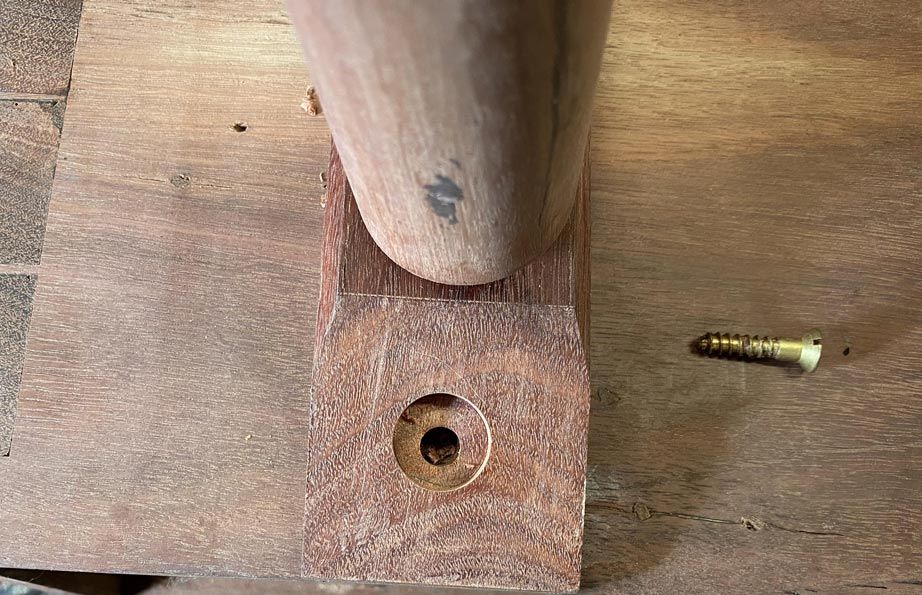

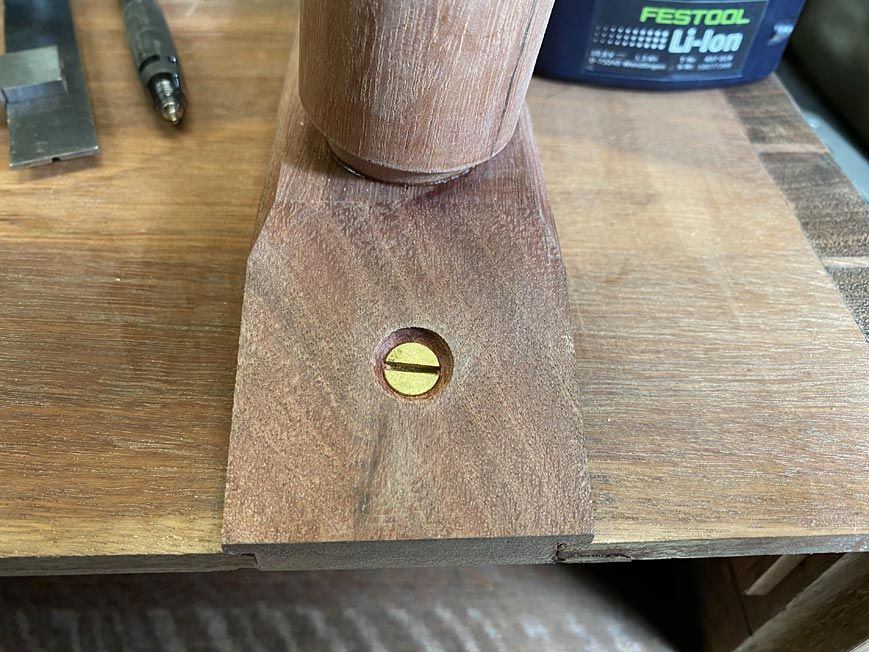

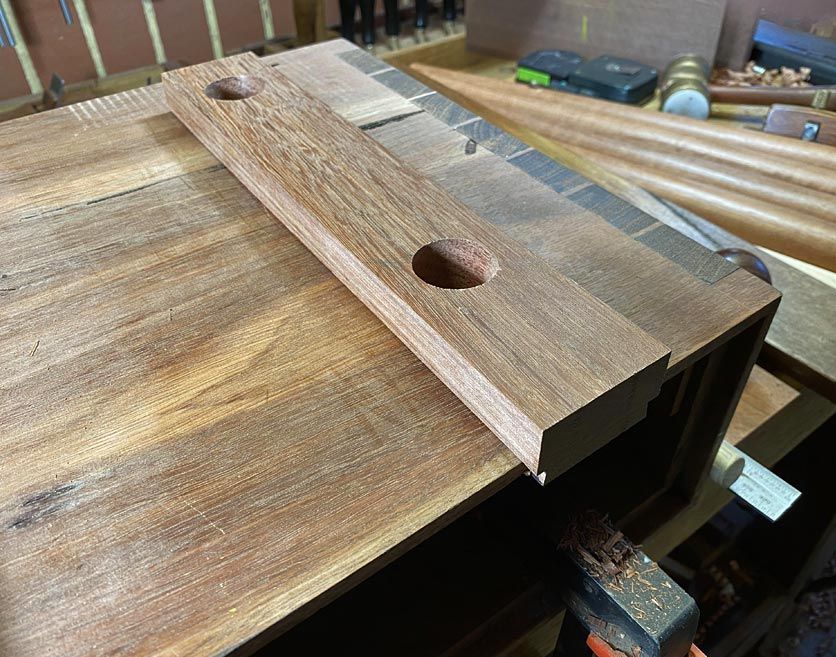

Here is the widened hole ...





The gap around the screw ...

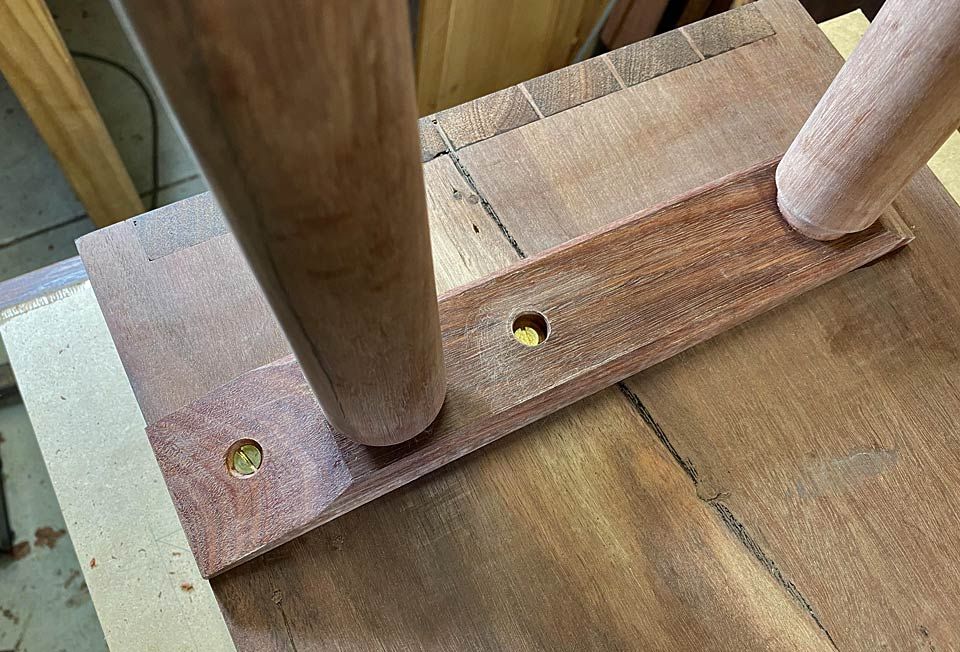

The second screw is on the other side of the leg. This is positioned about half way between the end screw and the glued toe.





Regards from Perth



Derek


You got me on this part Derek.  Do these screws not prevent the case from expansion/contraction?  You have taken great care to address this during the build...

20 minutes ago, Cal said:

You got me on this part Derek.  Do these screws not prevent the case from expansion/contraction?  You have taken great care to address this during the build...

Okay, so I decided that the wood screws were a mistake. They would prevent movement rather than permit it. So they had to go.

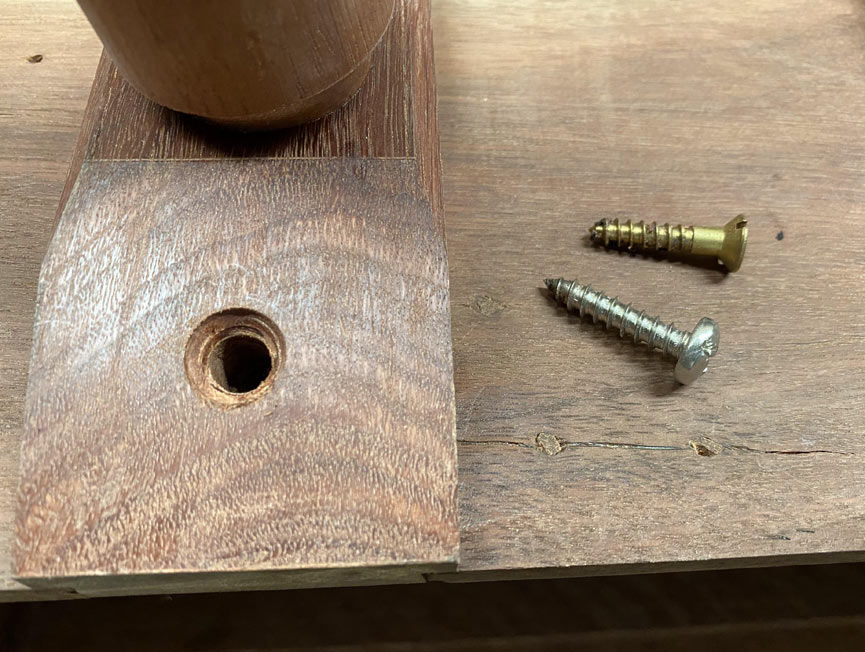

This is the exchange screw: a 12 gauge stainless steel wood/metal screw with an all-important flat/domed head.





The plan was to use a 3/4" forstner bit. This would leave a wide, flat area for the screw head to move along. The range of movement would be the same as before, about 2mm each side of the screw.

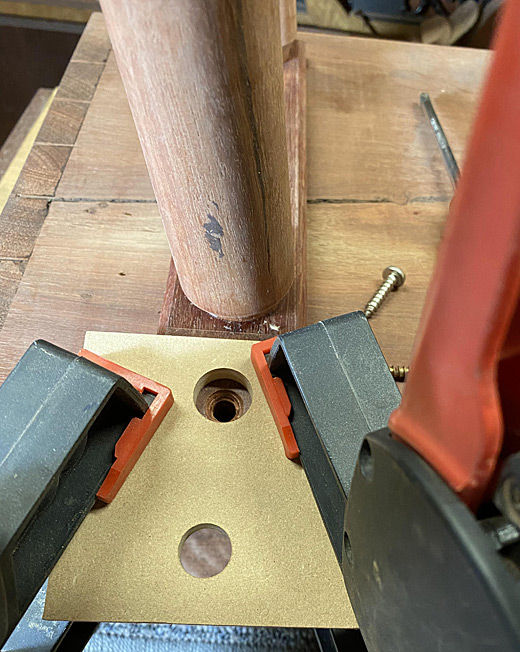

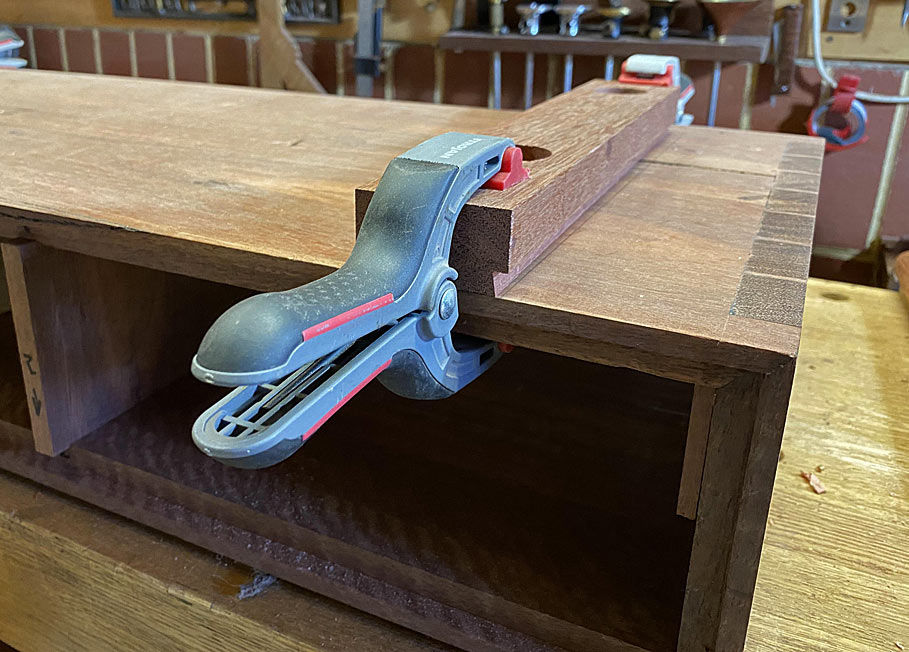

A MDF template was made to guide the forstner bit, as it had no support in view of the existing hole ...





Drilled to depth ...

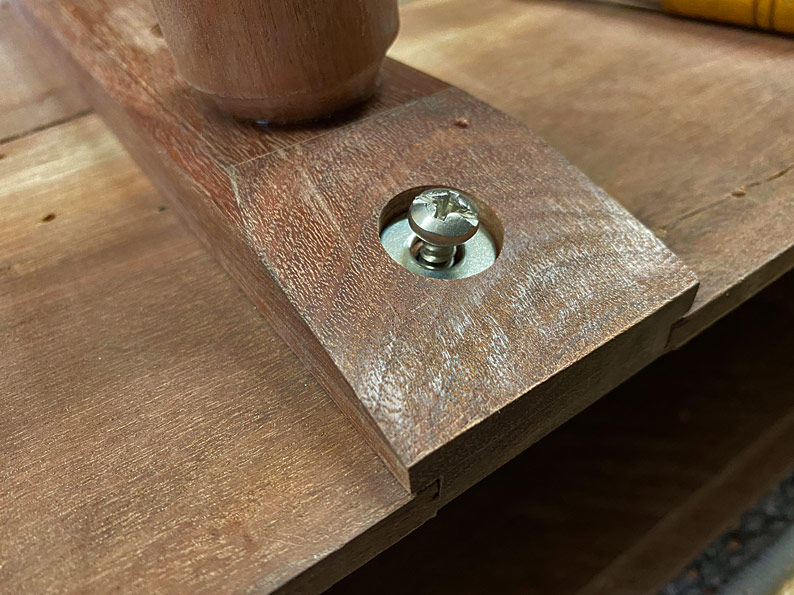

A steel washer added ...





Done ...





I had only 15 minutes after work today, but on the weekend, when I get back to this build, I plan to add a third screw behind the front leg.



Regards from Perth



Derek

Nice work with the jug. Worked right around that issue.

It may be only a matter of viewing perspective, but that wood screw seems to have a nice deep slot in it and most of them i see now (even new old stock) don't seem to be as nicely made.
