March 4, 20188 yr I think you are on the right track, it looks like it is for SCREWING caps on bottles as opposed to crimping. Herb
March 4, 20188 yr 1 hour ago, PostalTom said: My first guess would be an antique bottle capper, to do four bottle at a time. I believe you are right..
March 5, 20188 yr Author If I may jump in, I am not seeing the bottle thing happening, only because if you look at it closely, you'll see that the mechanisms provide for the turning ends to go up and down in opposing actions. So with one ram of the lever, two ends are going down, and two ends are riding up, see my red boxes for the areas I am talking about. Do you all see it? And if that is the case, why would a bottle capper or screw device have opposing actions, instead of all the bottles done in the same action?
March 5, 20188 yr Thats because it is a Corking machine,John, one puts the cork in the other pulls it out. Herb Good eye ,John. Edited March 5, 20188 yr by Dadio
March 5, 20188 yr Author 57 minutes ago, Dadio said: Thats because it is a Corking machine,John, one puts the cork in the other pulls it out.. I can see how it may be able to push a cork in, but how does it pull the cork out?
March 5, 20188 yr load two bottles... move lever and cork them... as two plungers plunge two retract ... load two bottles in the retracted positions.. move lever in opposite direction... those two bottles get corked and the two that were just done are released... remove the two that are done and refill the position w/ two needing corking... two positions... two hands.. work ambidextrously... repeat till cross eyed or migraine sets in..... Edited March 5, 20188 yr by Stick486
March 5, 20188 yr so Ed (job super) tells me to go cork the 250 vanity tops... are you sue ED... yup... no joke... nope... but Ed... just go get it done... so Bill and I go and pull, trim, replace and cork the tops... Ed goes nuts about what we did.. everyone on the job swore ED said corking... funny thing was his corking is spelt caulking.. and that had already been done... ED was from the deepest south side of south.. Edited March 5, 20188 yr by Stick486

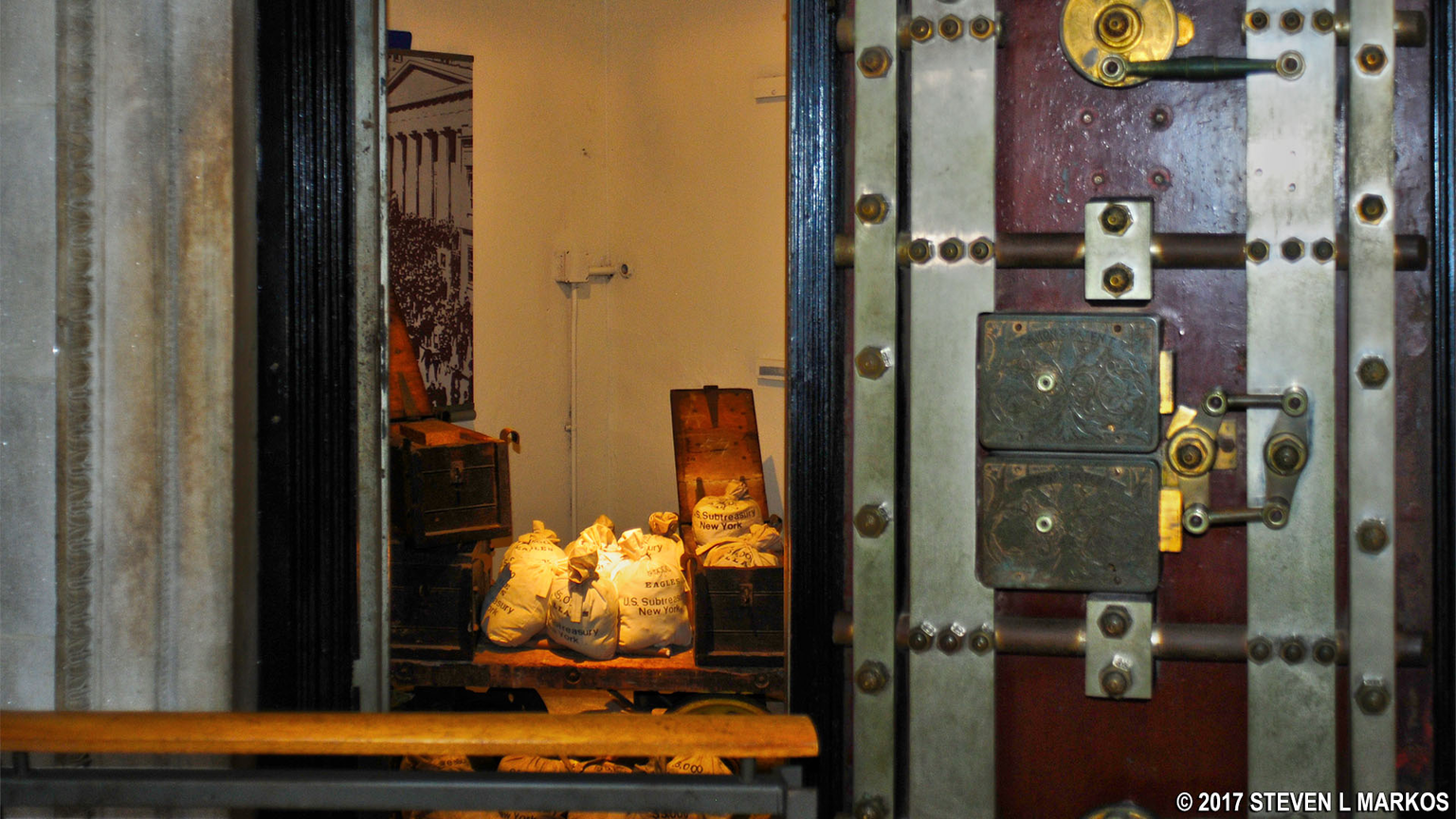

March 5, 20188 yr I saw it when I looked at it too. I was going to suggest that it is a part to a bank vault lock mechanism and this part moves some tumblers. Edited March 5, 20188 yr by HandyDan
March 5, 20188 yr Author I do not think this is a corking machine either, my question regarding how does the machine pull corks out, look at the pads that make contact with the cork if this is what we say it is, a corking machine, those pads have no way of grabbing a cork and pulling it out.
March 5, 20188 yr 6 minutes ago, John Morris said: those pads have no way of grabbing a cork and pulling it out. no pulling... inserting only...

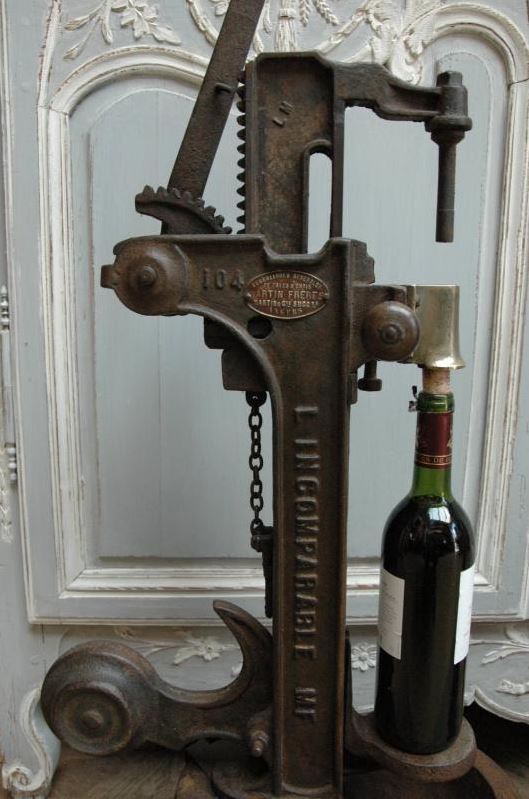

March 5, 20188 yr Author 4 minutes ago, Stick486 said: no pulling... inserting only... aint buying it. Those pads that make contact with the cork are not sufficient to prevent the cork from slipping side to side or breaking in half, see old cork machine below, see the cup that fits over the cork to prevent the cork from slipping side to side? And why would a cork machine need to spin?

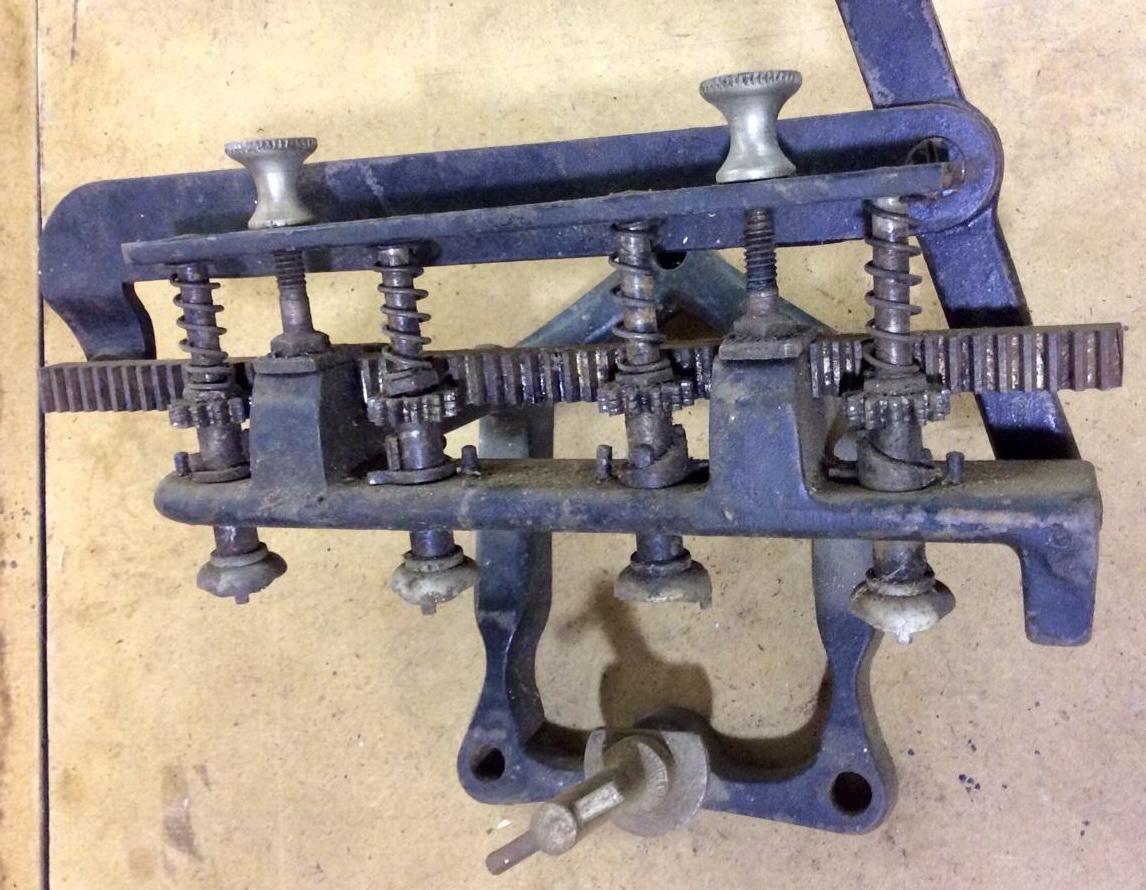

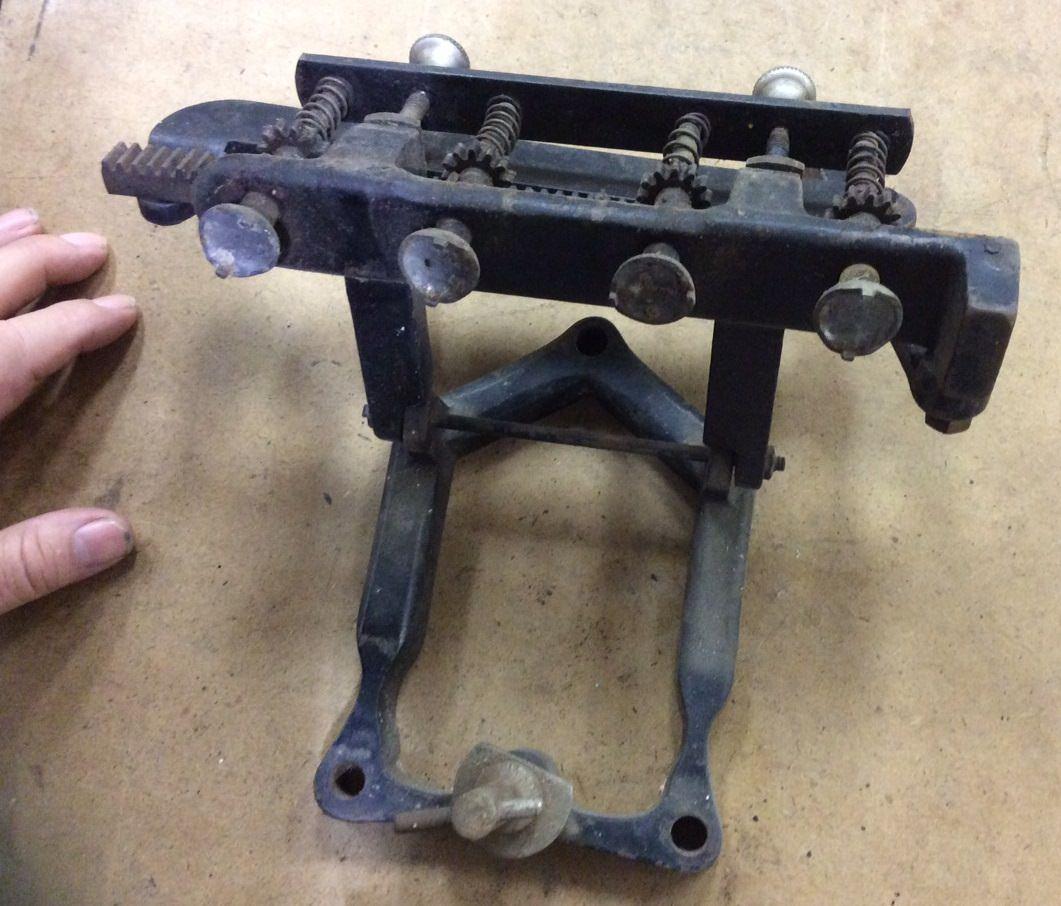

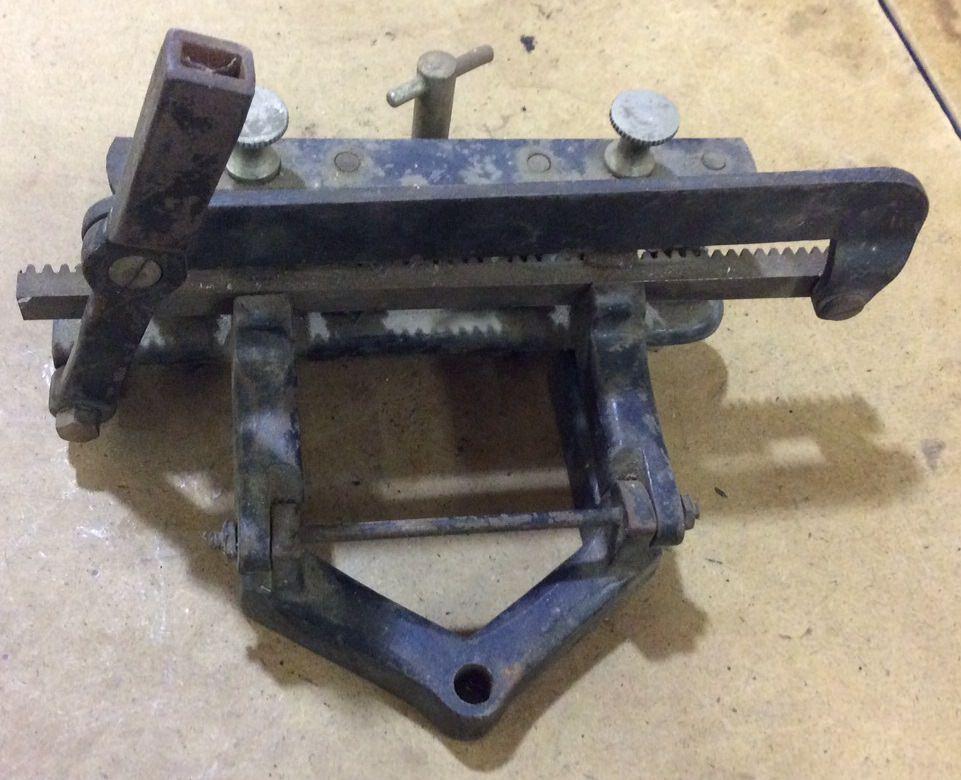

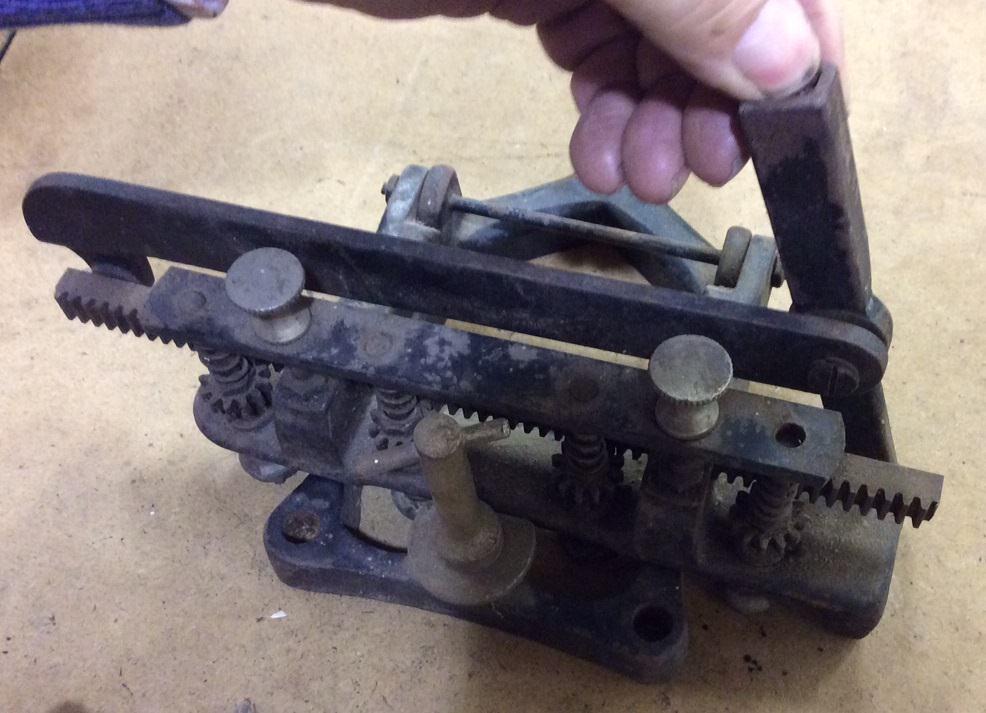

March 5, 20188 yr Well we eliminated that one. So when the handle is pulled back #1 and #3 go down in a turning motion and #2 and #4 go up , rotating the same direction. When the handle is pushed forward then #2 and #4 go down in an opposite twisting motion, and #1 and #3 come up all rotating in the same direction . When you look at the second picture down you see a second rack gear on the back of the carriage with all the spindles on it. so the lever moves the whole carriage and the upper rack gear is stationary. This means that the whole carridge is moving back and forth while the spindles are going up and down.
March 5, 20188 yr I'm not exactly sure what it is but look at a couple of features. First, there is a taper on the cylinder of each unit with a stop pin. Second, there are tangs or drivers on the face of each one. The older valves in a combustion engine had recessed slots in them. If it wasn't found in a cabinet makers chest I'd say it was a device to lap valves.
March 5, 20188 yr 9 hours ago, John Morris said: And why would a cork machine need to spin? twist the cork in while pushing,,, easier...
March 5, 20188 yr 4 hours ago, Ron Dudelston said: I'm not exactly sure what it is but look at a couple of features. First, there is a taper on the cylinder of each unit with a stop pin. Second, there are tangs or drivers on the face of each one. The older valves in a combustion engine had recessed slots in them. If it wasn't found in a cabinet makers chest I'd say it was a device to lap valves. I saw that too, Ron and the same thing came to mind about the indents in engine valve tops to lap them. The firing order of this machine must be 1,3,2,4. Maybe a control for reversing a steam engine ? Herb
