August 1, 201510 yr just a teaser for starters, ive been collecting restoring and using old machinery in my shop for several years these are my two oldest, 100 yr old crescent 20 and an old compressor nicknamed the "titanic", age unknown most of my "oldies" are from the 40's and 50's, Canadian beavers, craftmaster(not craftsman!), deltas and some others
August 1, 201510 yr Two cool pieces! I love the compressor because it screams, "I can take anything you throw at me." I have to ask about its weight. How heavy is it Steve?
August 1, 201510 yr Those are two awesome pieces. I have a couple that need to be restored, just can't get the time to get started.
August 1, 201510 yr Welcome to the Forums Steve! Great to have you here and thanks so much for sharing a glimpse of your work with us. Love it!
August 2, 201510 yr Author Two cool pieces! I love the compressor because it screams, "I can take anything you throw at me." I have to ask about its weight. How heavy is it Steve?no idea as to the weight, has to 200 ponds plus, the steel tank 1/4 inch thick, those rivets are over an inch in diameter since this pictre was taken ive replaced the motor with a much older ge and redid the plumbing the bandsaw is my favourite, Babbitt bearings, stepped wheels with no tyres, 1930's delta RI 1 hp motor, it needs couple of new pictures taken too
August 2, 201510 yr Author Hi Steve, Glad to see you finally made it here. hey larry, surprise surprise!!! think I should post some beaver pics?
August 2, 201510 yr just a teaser for starters, ive been collecting restoring and using old machinery in my shop for several years these are my two oldest, 100 yr old crescent 20 and an old compressor nicknamed the "titanic", age unknown most of my "oldies" are from the 40's and 50's, Canadian beavers, craftmaster(not craftsman!), deltas and some others Love both pieces but more so the Band Saw which could still be used easily. I'd be a little concerned about the pressure vessel on the air compressor. I'd be wanting to have it get a "Hydro" before using it. Older rivetted pressure vessels can (and sometimes DO) leak. In any case both are GREAT pieces.

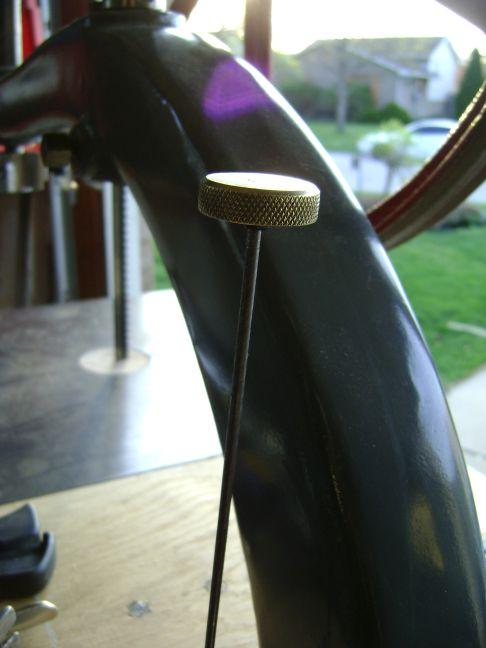

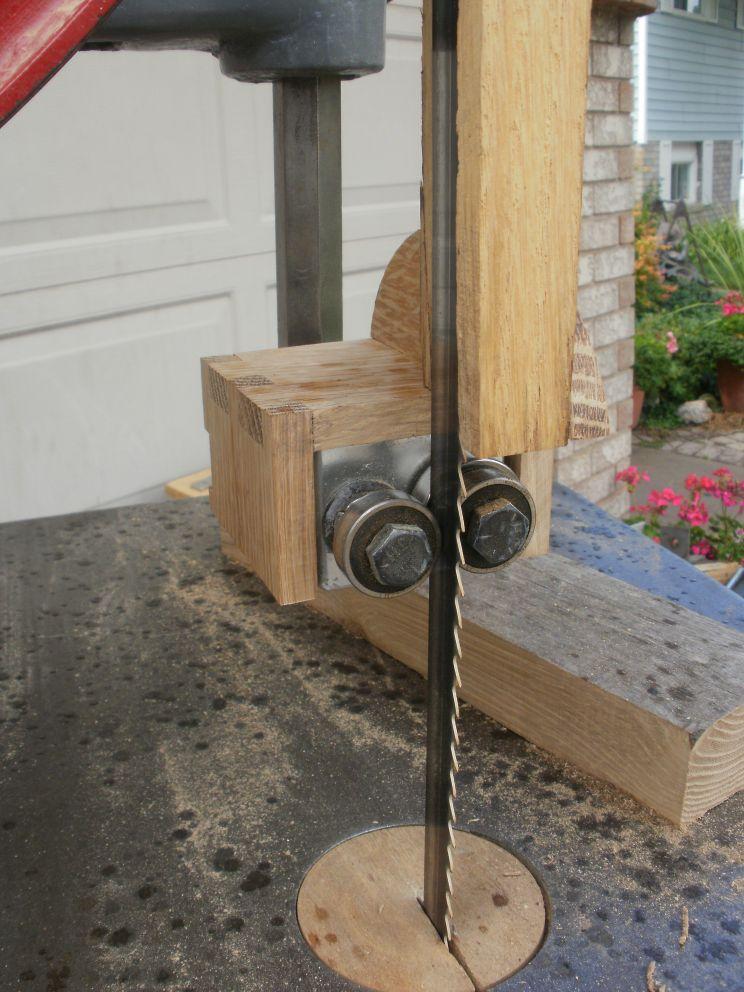

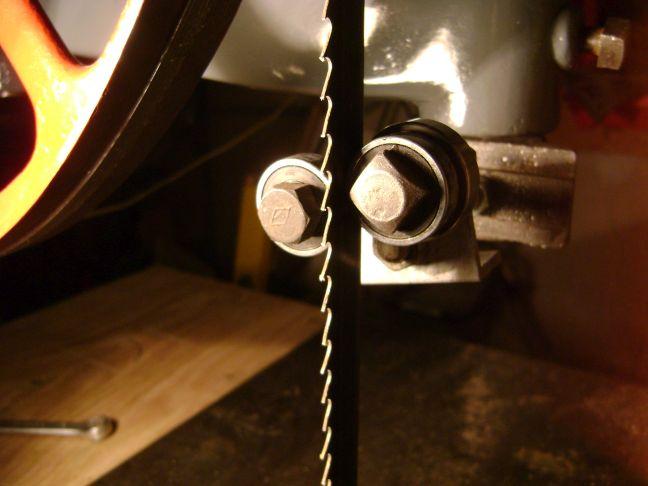

August 2, 201510 yr Author there have been some changes to both machines since the pics were taken like I said the motor is now a much older ge, the entire system has been reversed, manifold on the front, belt drive on the back. the old riveted tank has been taken out of the system(still there of course but not plumbed in. the titanic now charges up an 8 gallon portable compressor but im going to hook it up to a modern 20 gallon tank remotely mounted. the old pump will put out around 150 psi, air flow unknown yet. very quiet running, warm but not hot. still needs a drain in the water/oil separator, check valve and a new pressure release valve(not the safety valve, its there and works). the crappy wiring is gone(nmd 90 and an appliance cord!!). had to reset the pressure switch and adjust the old guage. the bandsaw has also seen some changes. added an auxiliary table, blade guard for the offside, and a mechanical remote for the motor mounted switch(steel rod and brass knob). the single upper guide has been replaced with a much smaller version and the big ugly one is now under the table I have lots of other pics, here's just a few, the guide shown was a prototype, a more elegant one is now installed
August 2, 201510 yr hey larry, surprise surprise!!! think I should post some beaver pics? Steve, Post away, after all you have "The Beaver Lodge"

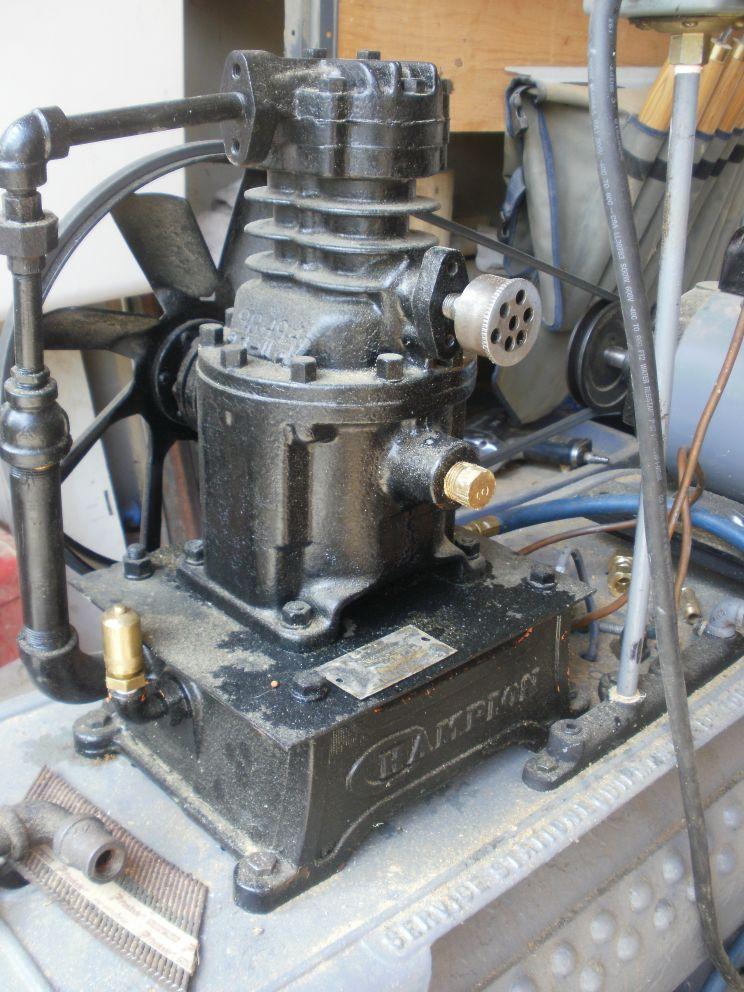

August 3, 201510 yr Author a new pic of the titanic, new old motor(ge cap start 1/2 hp), still some plumbing to do, pump and motor have been turned around, neat old guage repaired the blue hose runs to the 8 gal portable screamer
August 3, 201510 yr a new pic of the titanic, new old motor(ge cap start 1/2 hp), still some plumbing to do, pump and motor have been turned around, neat old guage repaired the blue hose runs to the 8 gal portable screamer Love the Cast Iron base on the Compressor. More detail on this side of the compressor than the other side which the original posting picture showed. Glad you're not taking a chance on the pressure vessel Neat to keep it as part of the compressor It IS neat.
August 3, 201510 yr I admit that compressor is really neat, but that bandsaw is fantastic! How long are the blades for it?
August 3, 201510 yr Author I agree, I'm a woodworker as well as a old tool guy, upgrades and finishing touches are underway with the bandsaw I do have some more pics from during the rebuild process, I will post them if there's interest here's the pic from the ad on kijiji(Canadian version of cl) see the big bolt under the lower wheel? that connected the crappy motormount to the saw, he had a 1/2 hp running the saw at 800 fpm so filled the holes, filed a ton of cast at the main joint between the casting halves, fillers and paint and it looks better than new I will post more pics of what im doing to it to make it safer but still keep the 1900's feel btw, this is a lightweight, I figure about 300 pounds without the motor, my motor is a 1 hp delta ri, gotta be 60 lbs and im running the saw at around 3000 fpm, blade length is 10 ft 2 inches(122 inches) Edited August 3, 201510 yr by stevem

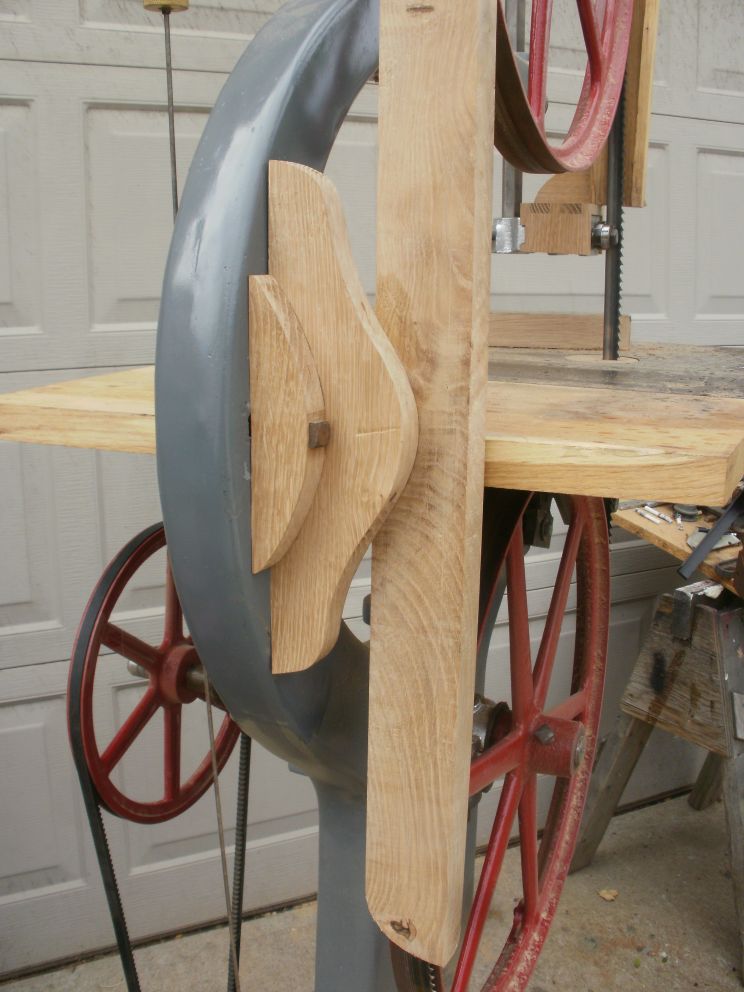

August 3, 201510 yr Author the latest up grades, nothing serious, just a couple of guards in the last pic you can see the steel rod from the motor mounted switch, this rod ends with the brass knob shown earlier it was a long restoration/rehab. I brought this home last September, of course then winter arrived so no bondo/sanding inside for three months. no mechanical problems to speak of, babbit was in good shape everywhere, fabbing the upper guide was easy, just lots of filing, filling and sanding Edited August 3, 201510 yr by stevem
August 3, 201510 yr Steve, Half the fun of the old machines is figuring out what we can adapt to replace the broken/missing parts.
August 3, 201510 yr Author I know that too well, ive made parts from all kinds of stuff and im not a machinist!!I would have taken more pics, but as you can in the last couple of pics it started to rain
