2 hours ago, John Morris said:

Not at all Larry, it belonged here from the first post. The first post was about Old Woodworking Machinery.

Well then in that case, I've got work to do!

Let's see now, where did I stash that Line-Shaft, etc.

Somebody beat me to it.

https://www.practicalmachinist.com/vb/antique-machinery-and-history/display-trailer-brilliant-316642/

This topic reminds me of AMT Tools that used to be advertised in the magazines back when I started woodworking.   As I recall, they were sub-$100 items that were sort of "kits"  -- you had to supply the bases and maybe even the motors (at additional $29.95 :-)  )   It appears they are out of the woodworking tool business and now a subsidiary making pumps.

http://vintagemachinery.org/mfgindex/detail.aspx?id=29

Just to think, at one time AMT owned Harley Davidson, Brunswick, and a few other companies.

1 hour ago, Larry Buskirk said:

Just to think, at one time AMT owned Harley Davidson, Brunswick, and a few other companies.

That was AMF.

2 minutes ago, John Morris said:

That was AMF.

......

41 minutes ago, Larry Buskirk said:

......

AMF was the dark days for Harley.

50 minutes ago, John Morris said:

That was AMF.

Details, details.

13 hours ago, John Morris said:

That was AMF.

Now that I've got past my brain fart

I'm still thinking about that trailer I posted the link to.



Let's see now,...

I've got a few old machines...

I might have enough line shaft, and hangers...

The BIL has a couple of small old boat trailers...

13 hours ago, Larry Buskirk said:

I've got a few old machines...

I might have enough line shaft, and hangers...

The BIL has a couple of small old boat trailers...

I'll get the Popcorn.  @steven newman is laid up for a few days we can watch this on his new computer desk.

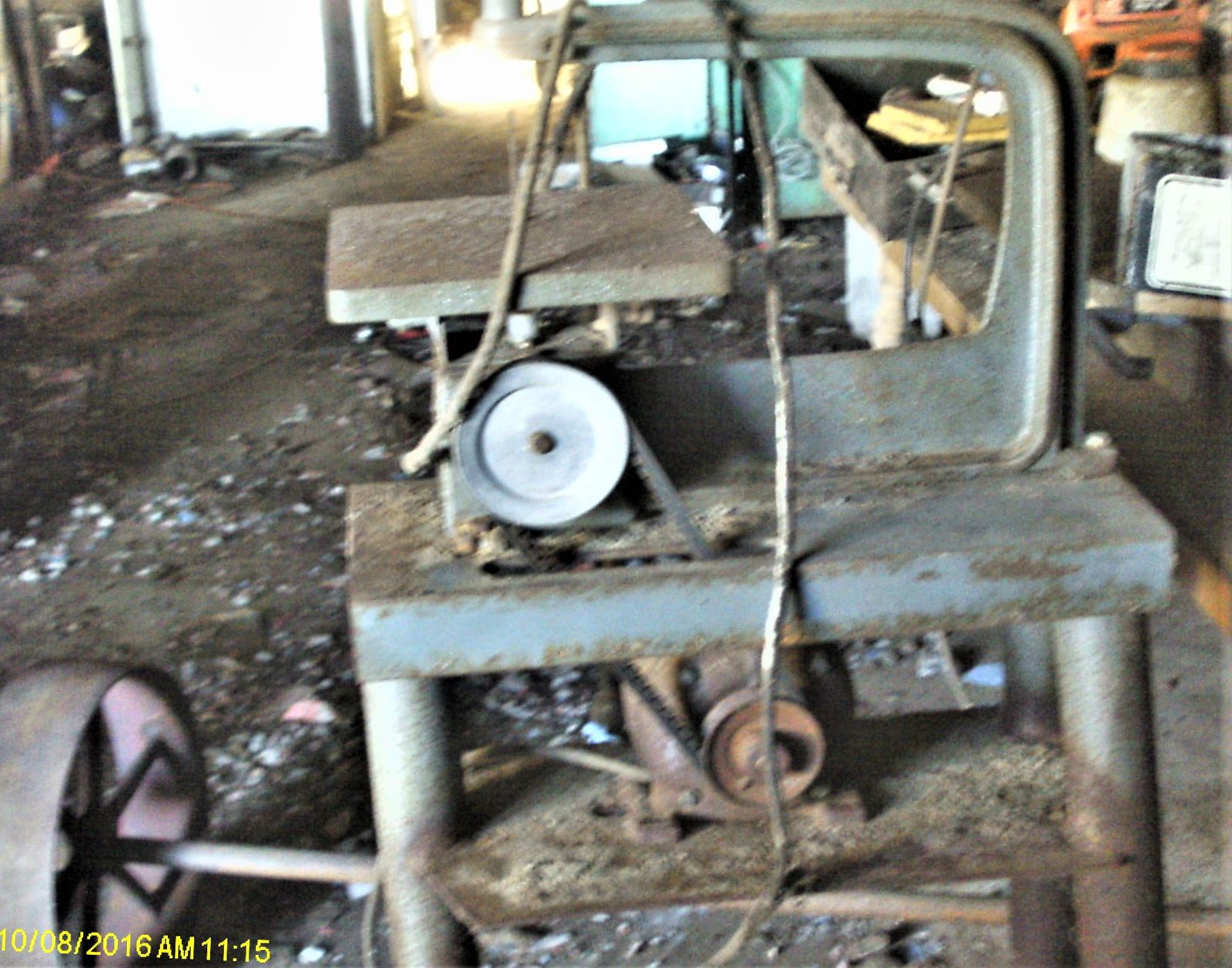

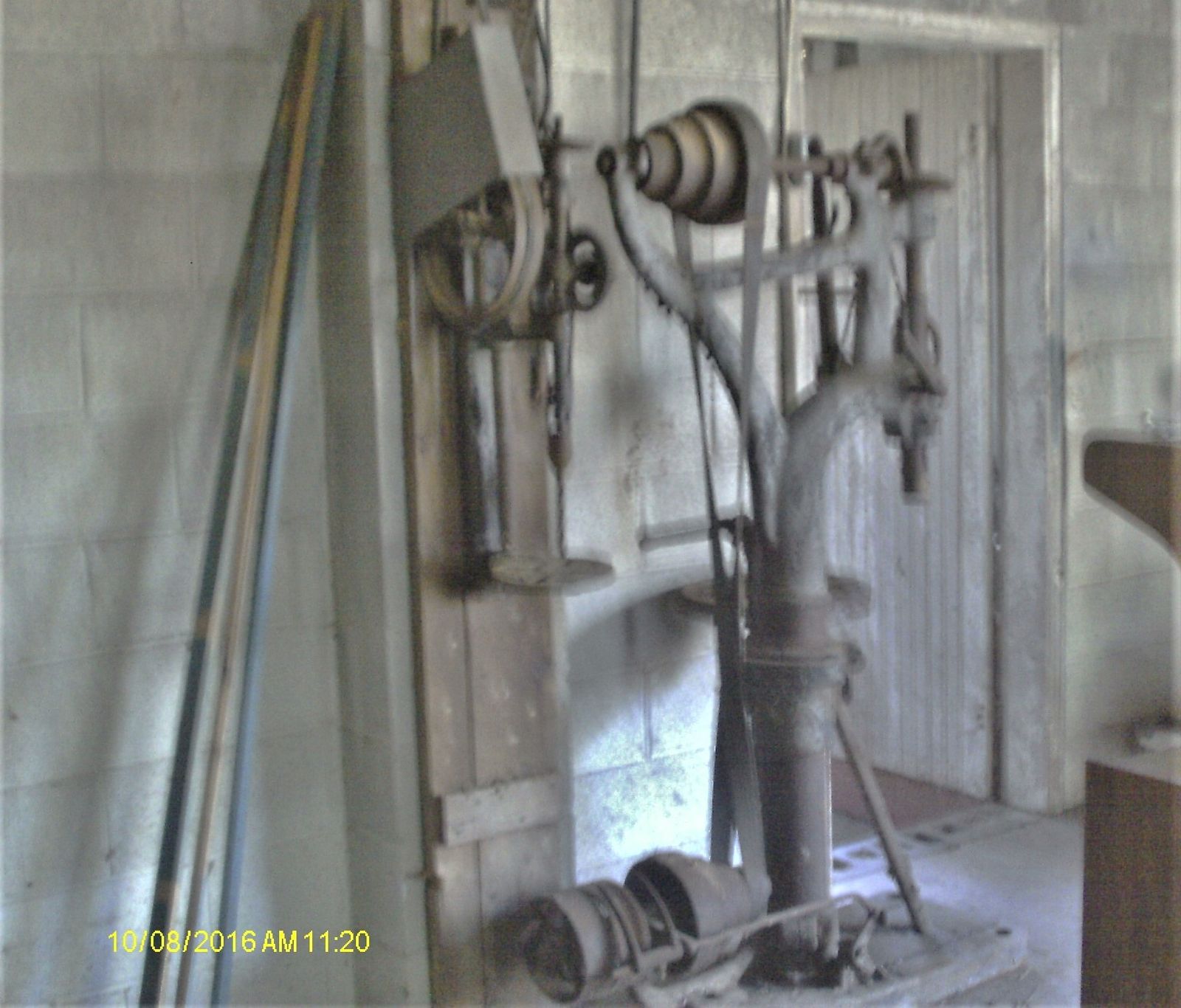

Didn't have the room for either of these..

There was an estate sale, one year...( when another fellow was having trouble getting the air compressor to fit in his pickup truck's 8' bed)

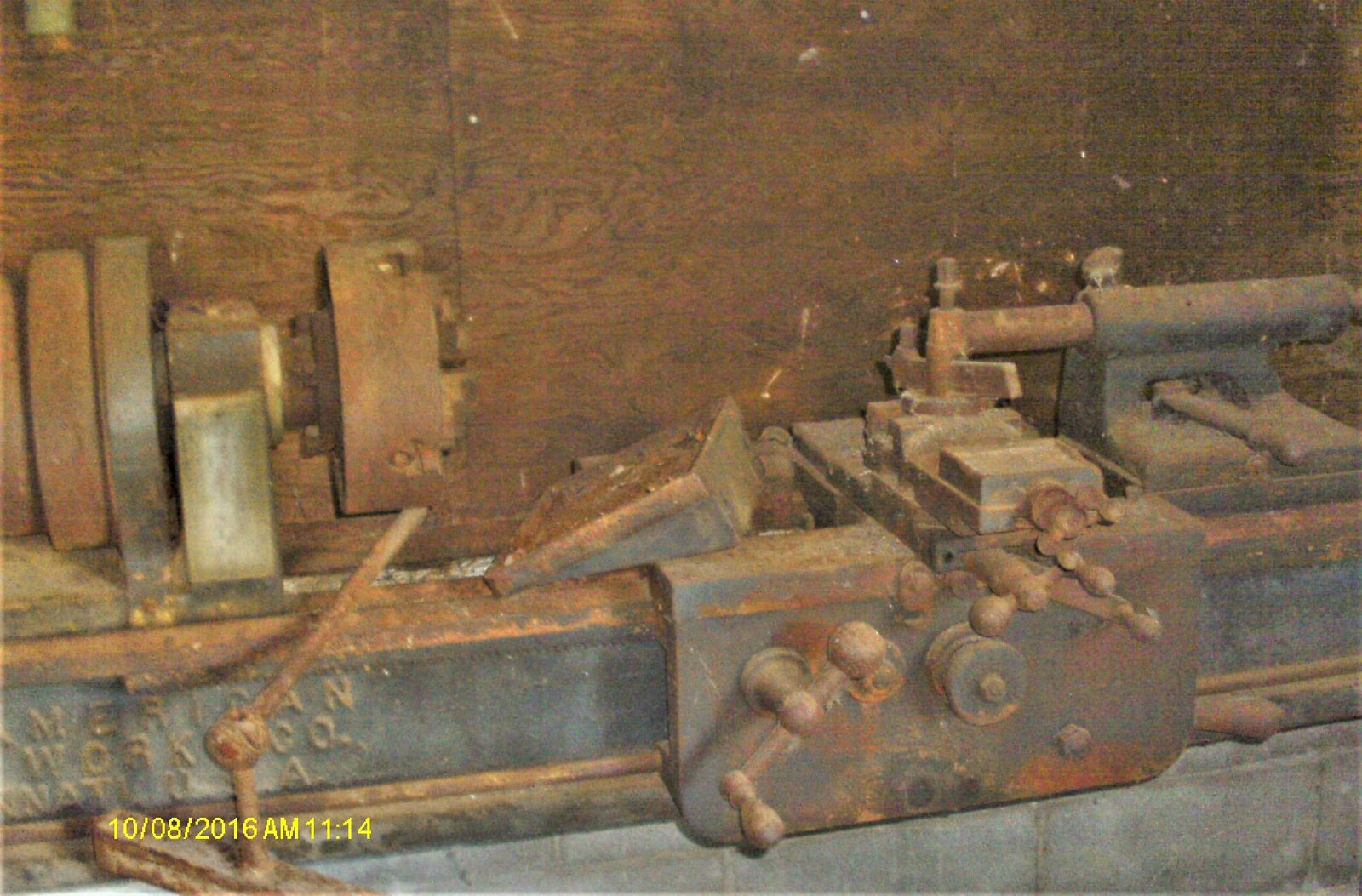

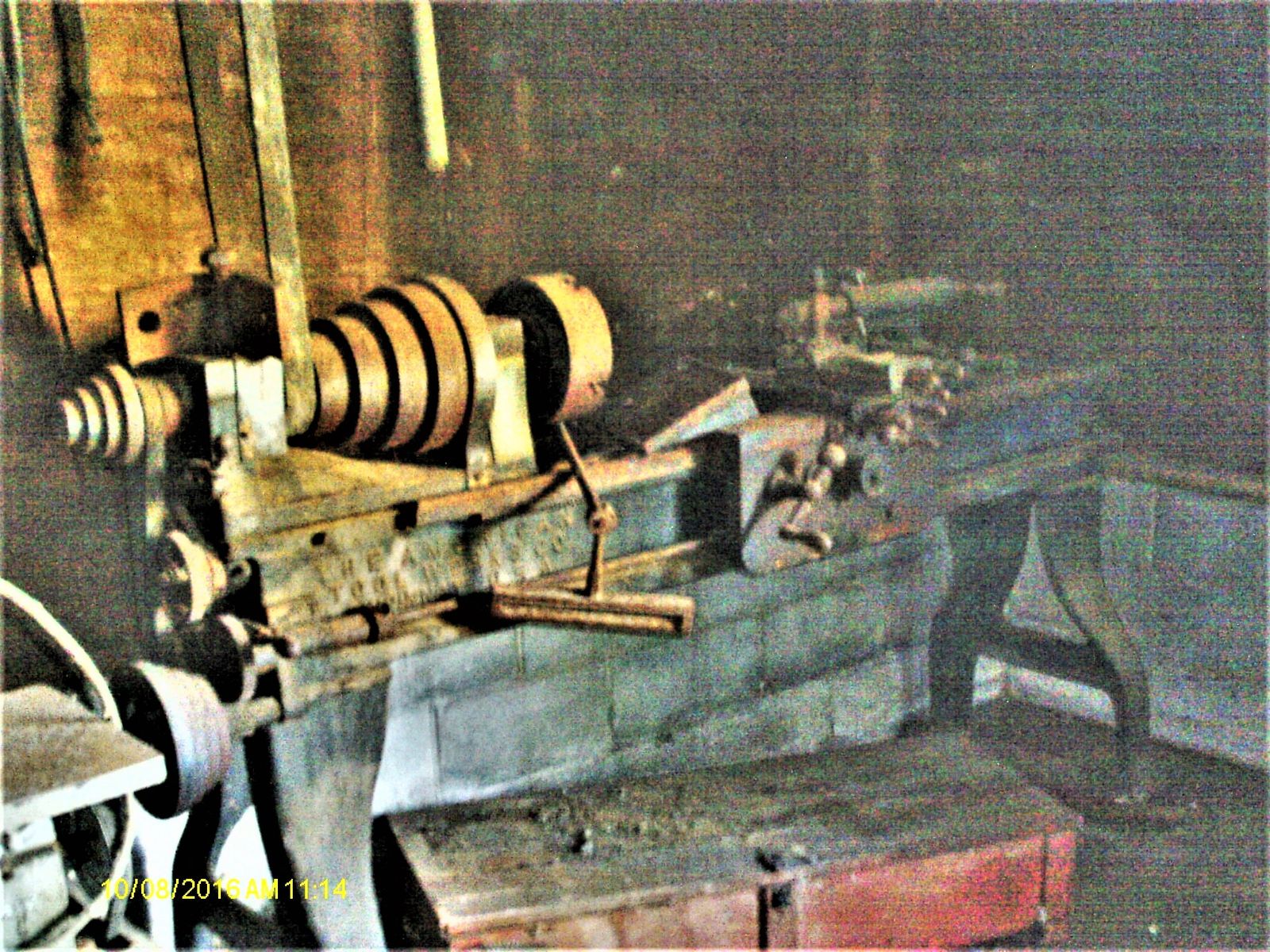

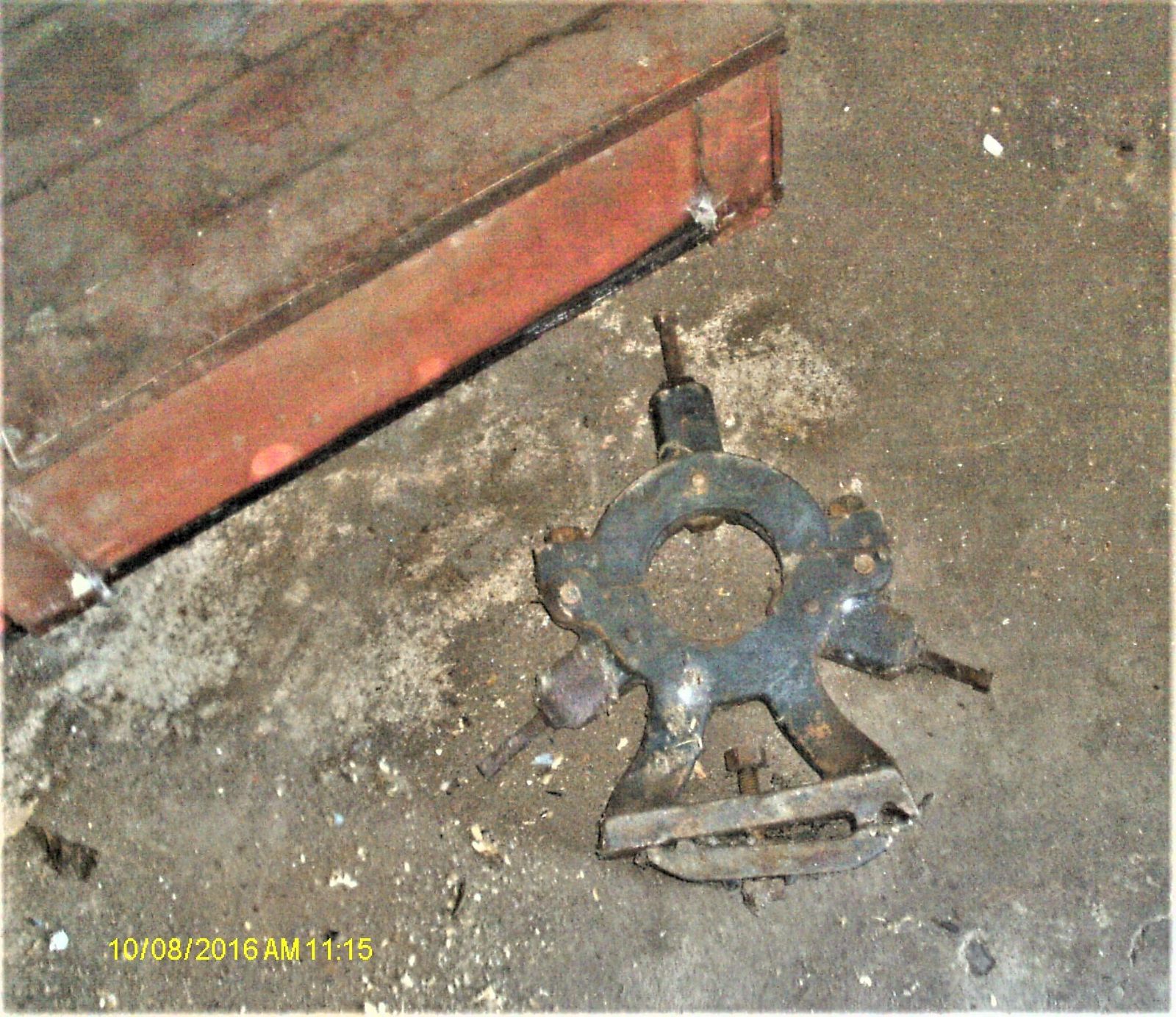

Can you imagine the lathe this came off of?

Just a hint....?

The American Tool Works Co.,  from down by Kmealy....

I doubt IF I could get this in the Dungeon Shop....

@steven newman

I helped get one of those old compressors out of a barn, we had to roll it on pipes across a slop trench.

The hard part was getting it up into a one ton Chevy van using a floor jack to raise it, and a ratchet strap attached to the seat frame to pull it in.    Most of those machines are a bit older,  and bigger than what I'll be using!

8 hours ago, steven newman said:

I doubt IF I could get this in the Dungeon Shop....

One piece at a time...

11 hours ago, Woodbutcherbynight said:

I'll get the Popcorn, we can watch this on his new computer desk.

 Don't forget the peanuts...

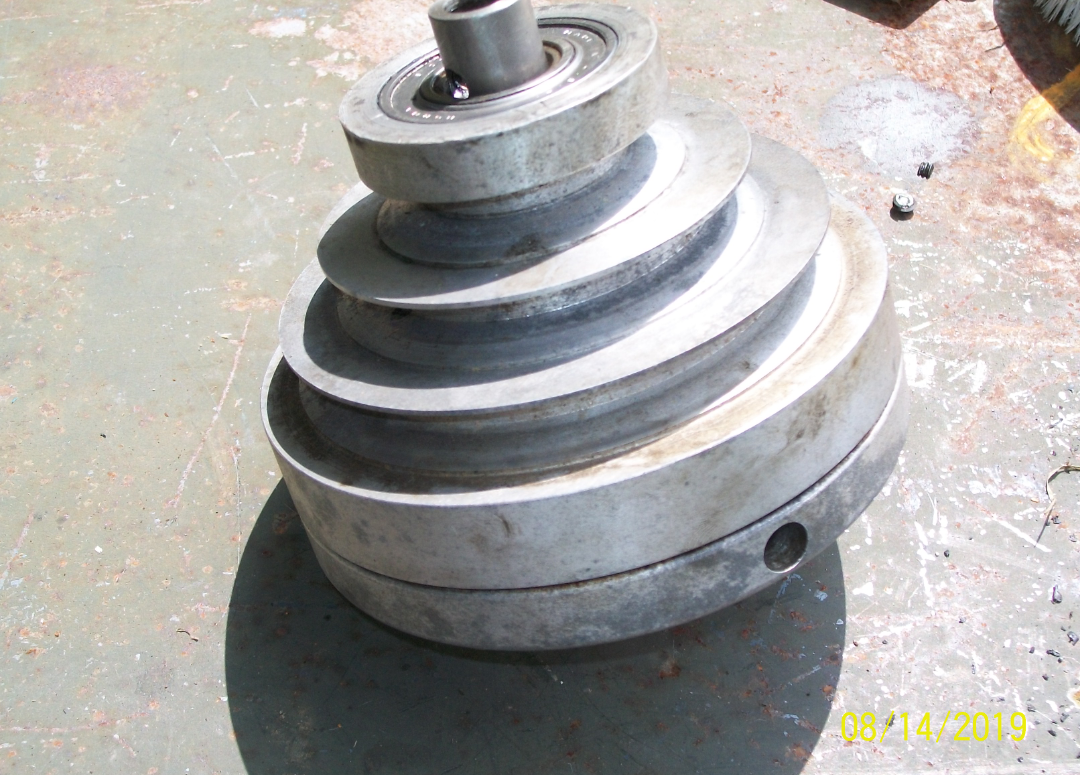

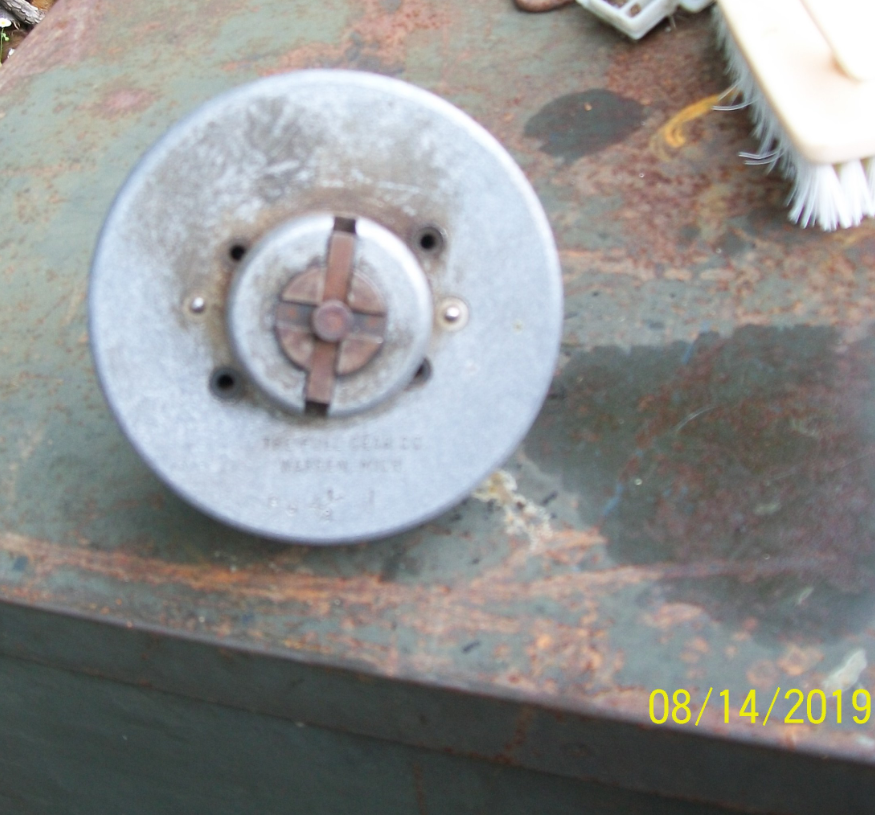

Spent a couple hours getting this off one of my old Delta motors between the sprinkles.

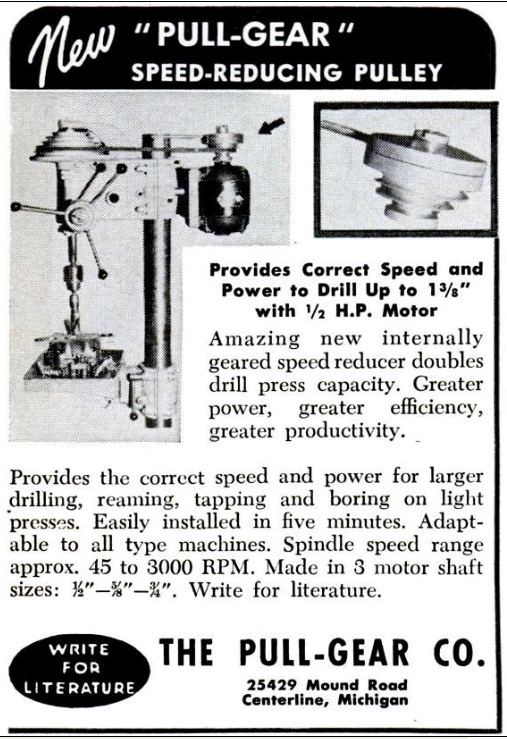

Here's an ad from around 1954

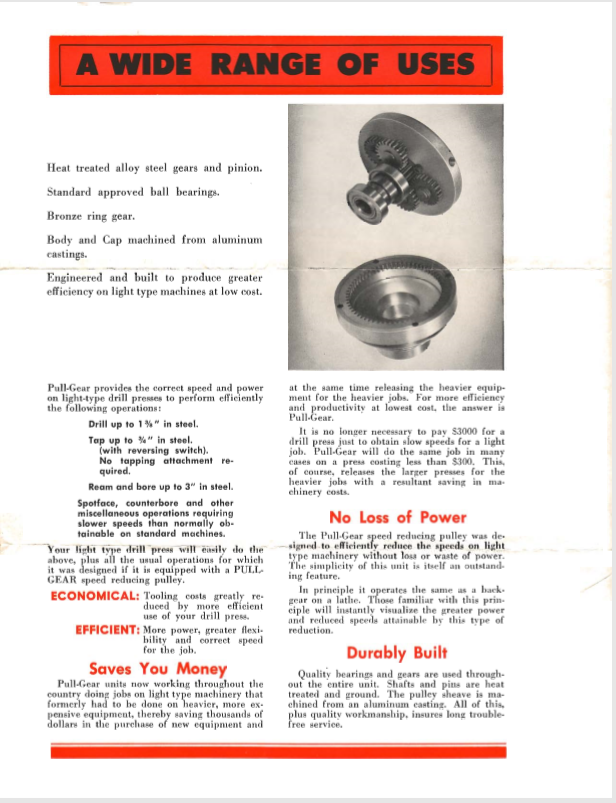

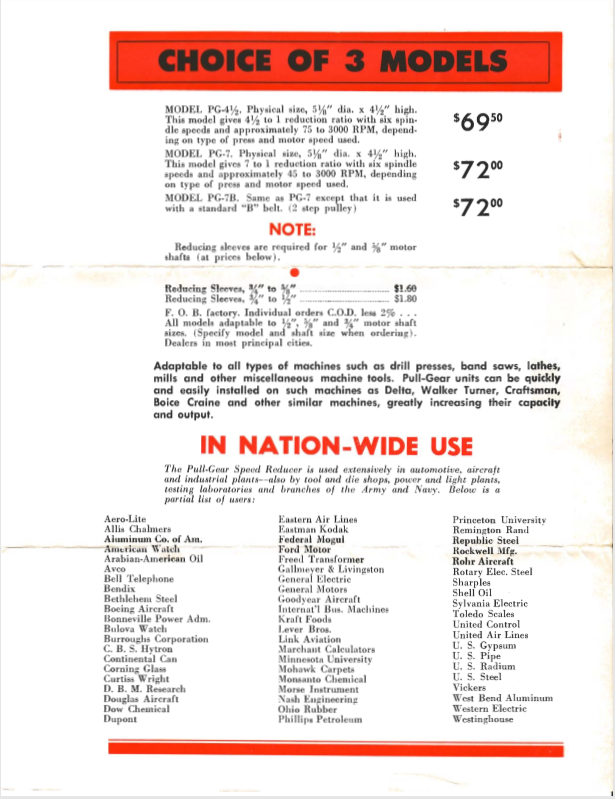

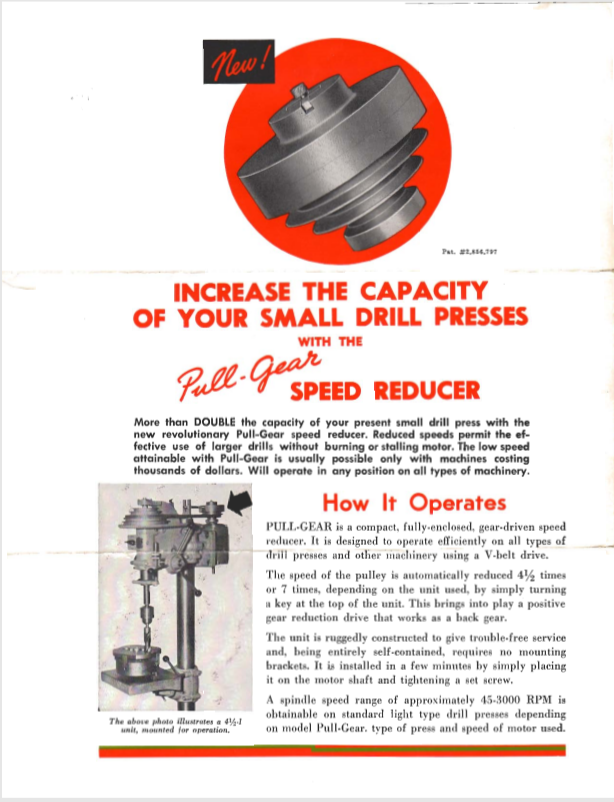

And some documentation.

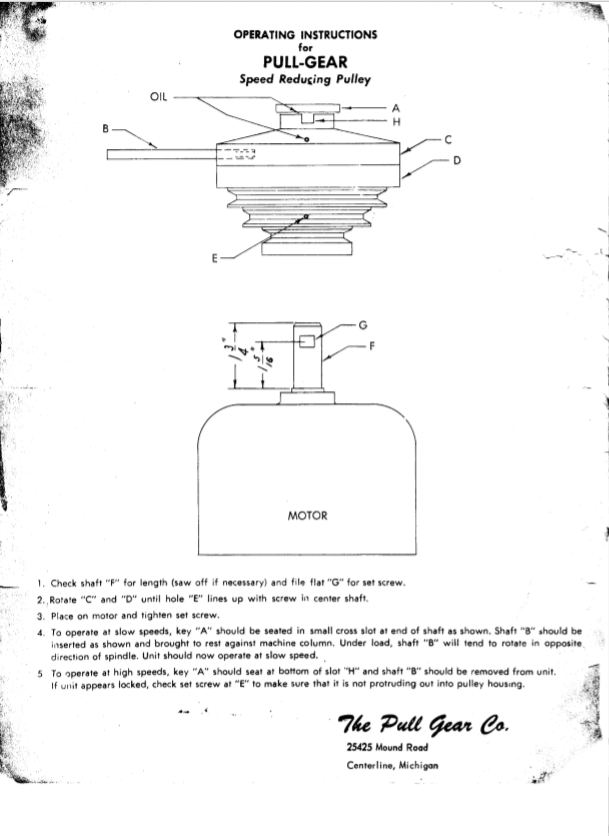

And the instructions.

It's advertised as being adaptable to most machines.

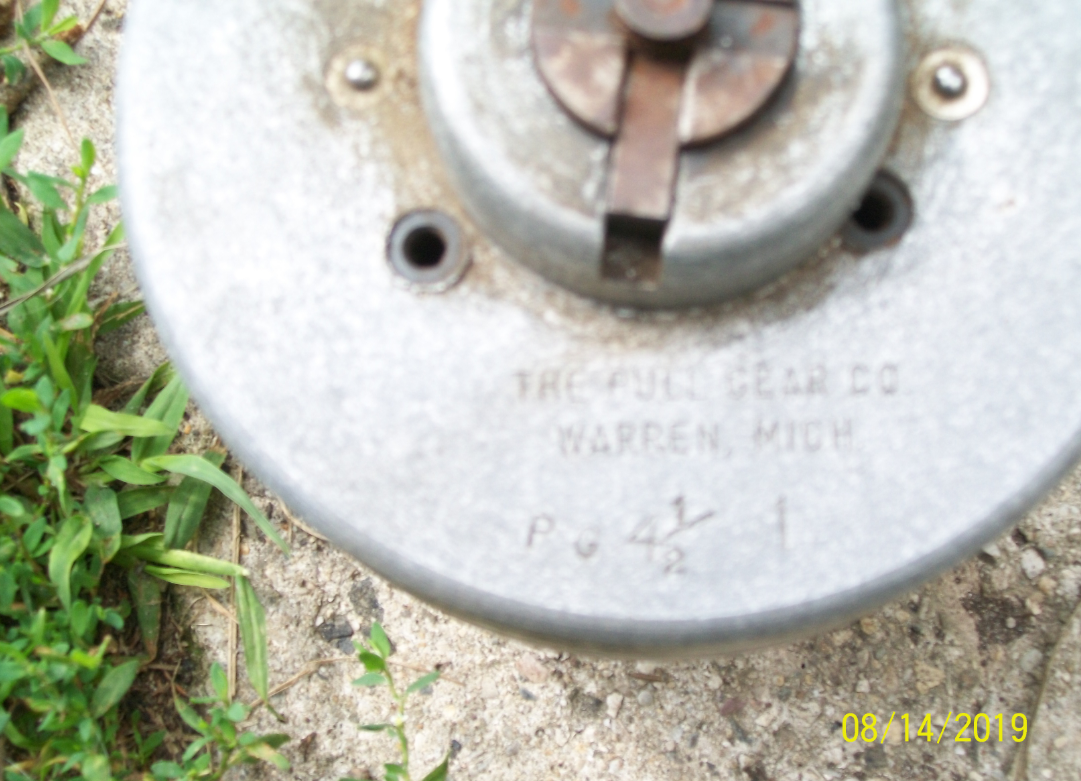

The one I have is the 4 1/2:1 ratio drive.

....This might just come in handy...

45 to 3000 rpm.  Now for a machinist that low rpm would be very helpful.  Most machines today start at 500.

The 4 1/2:1 ratio unit does 75-3000 R.P.M..

As the documents state "Will operate in any position on all types of machinery"

I can see this being very useful running a line shaft with step pulleys powering not only a drill press but also a lathe, band saw, etc.

Quite a few of the manufacturers offered metal turning attachments for their wood lathes.

Most of the wood/metal band saws used a gear/step pulley setup for blade speed changes.



Yes, this might just come in handy.









Excellent speed ranges.  This makes me wonder if this is where Shopsmith got their idea about making a speed reducer adapter and a speed increaser.  https://www.shopsmith.com/ownersite/catalog/speedincreaser.htm



Just a question.

@FlGatorwood,

Shopsmith doesn't state how they're doing the speed increaser, but the speed reducer states (Double Poly-V belt drive system is positive in its action and designed to last). If they are doing the speed increaser with gears they would have to be beveled gears to make the 90° turn.

I've been watching some YouTube videos about old line shaft driven shops looking for ideas. In one of the videos done by the Vintage Machinery's Keith Rucker showed a friction disc drive assembly, and mentioned that it is very like the friction disc drive used in Snapper lawn mowers. That comment peaked my interest because this type of drive allows for speed adjustment as well as FWD/REV capability.



Of course the line shafts used in the old line driven shops was much heavier, and now days way out of my budget.



But the mention of those Snapper friction drives got me to thinking just maybe I could adapt something to my 3/4" line shaft equipment.



Well you know I had to take a look on ebay to see if these type of parts could be adapted to suit my purpose.

I looked at the Snapper drive assembly, and determined the drive disc from the rider should fit the bill, but adapting the friction wheel would prove a challenge.



I mentioned this to my neighbor, and he stated the same type drive is used in quite a few snow blowers, and he's got a Snapper rider that he'll be scrapping, along with a few snow blowers.



So back to looking on ebay, and low and behold things began to look a bit more promising.

The friction wheel assemblies used on the snow blowers would be much easier to adapt!



So,... it's off to the neighbors I go!!!





I got my grandfathers line shaft tools that he bought in 1935 from

Montgomery wards.
