Tool box Project Post, opened lid.JPG
steven newman posted a gallery image in Small Crafts, Boxes, Picture Frames, and Lighting
From the album: Pipe Thread Tap & Die Box
-
Tool box Project Post, full set.JPG
steven newman posted a gallery image in Small Crafts, Boxes, Picture Frames, and Lighting
From the album: Pipe Thread Tap & Die Box
-

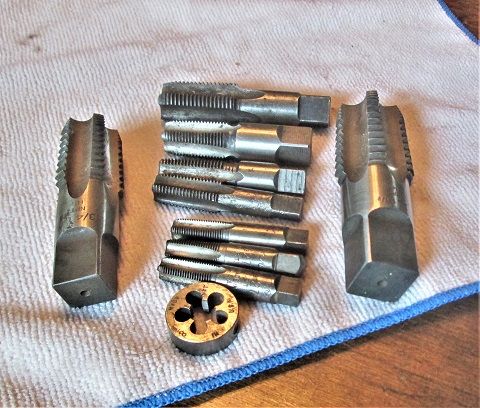

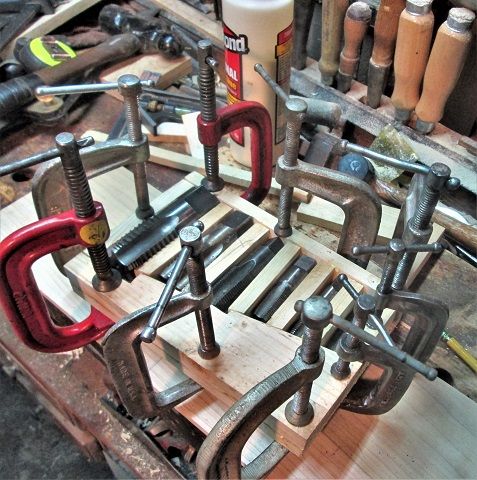

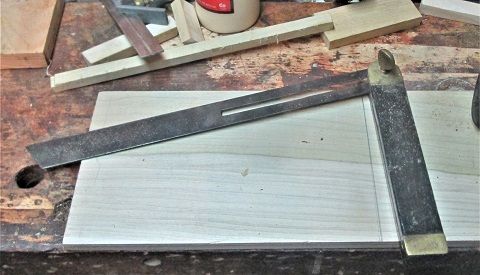

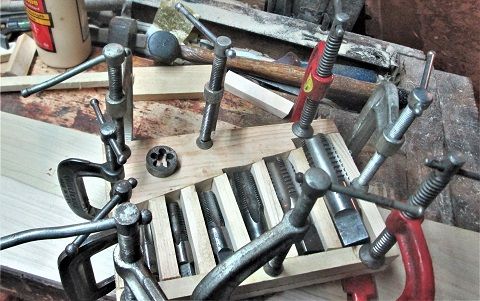

So....I still have a set of Pipe Thread Taps..and a single Die...that also would like a box to call their own.. . Will select the best out of the "extras"...and go with a 6 pc set of taps....1/8", 1/4", 3/8", 1/2", 3/4" and 1".....and hauled those to the shop....extras went into a drawer in the Small Tool tool chest. Set them out onto a backer board, and arrange things a bit....kind of stair-stepped them out.....needed to find a good angle to set things up at....so... Needed to reach a ways...Then ripped apart a pine 1 x 4 scrap....lots of cuttin-n-fittin going on....couple pieces were recycled because the size cuts were a tad...off..a Monday thing Finally about to glue and clamp a holder of sorts, using the taps as spacers to get things close...almost... Glued to the Poplar backer board. There is still a spot for the pipe die to sit in... Drill a 1" hole for that....still room for any other Dies that might show up. Let this mess sit a day, then start building a small box around it...won't be quite as big as the main set... Stay tuned...
-
Tool box Project Post, hinge details.JPG
steven newman posted a gallery image in Small Crafts, Boxes, Picture Frames, and Lighting
From the album: Pipe Thread Tap & Die Box
-
Tool box Project Post, end details.JPG
steven newman posted a gallery image in Small Crafts, Boxes, Picture Frames, and Lighting
From the album: Pipe Thread Tap & Die Box
-
Tool box Project Post, corner view.JPG
steven newman posted a gallery image in Small Crafts, Boxes, Picture Frames, and Lighting
From the album: Pipe Thread Tap & Die Box
-
Tool box Project Post, Front view.JPG
steven newman posted a gallery image in Small Crafts, Boxes, Picture Frames, and Lighting
From the album: Pipe Thread Tap & Die Box
