Pipe clamp pads

[Gene Howe]

This need very little explanation.



Here's my version.



[lew]

Cool!



I did the same thing only used discarded HDPE cutting board material from a friends restaurant. Glue doesn't stick to the plastic.

[Smallpatch]

Gene I like that and so much so I have been using this type for a very long time...

  I like the clamps in the first picture best especially when edge gluing boards. It keeps the clamping area high enough so I can get my long vise grips with special home made pads to keep the boards in line while the glue sets up... The long boards are 8" long with two small screw in them and the clamps  to keep things together..

 I then put special long pads on the ends of the V18sp vise grips to keep the boards lined up better so not as much drum sanding later.

[Gene Howe]

Jesse, those longer legs and, the vice grips for the alignment boards are great ideas.

[Smallpatch]

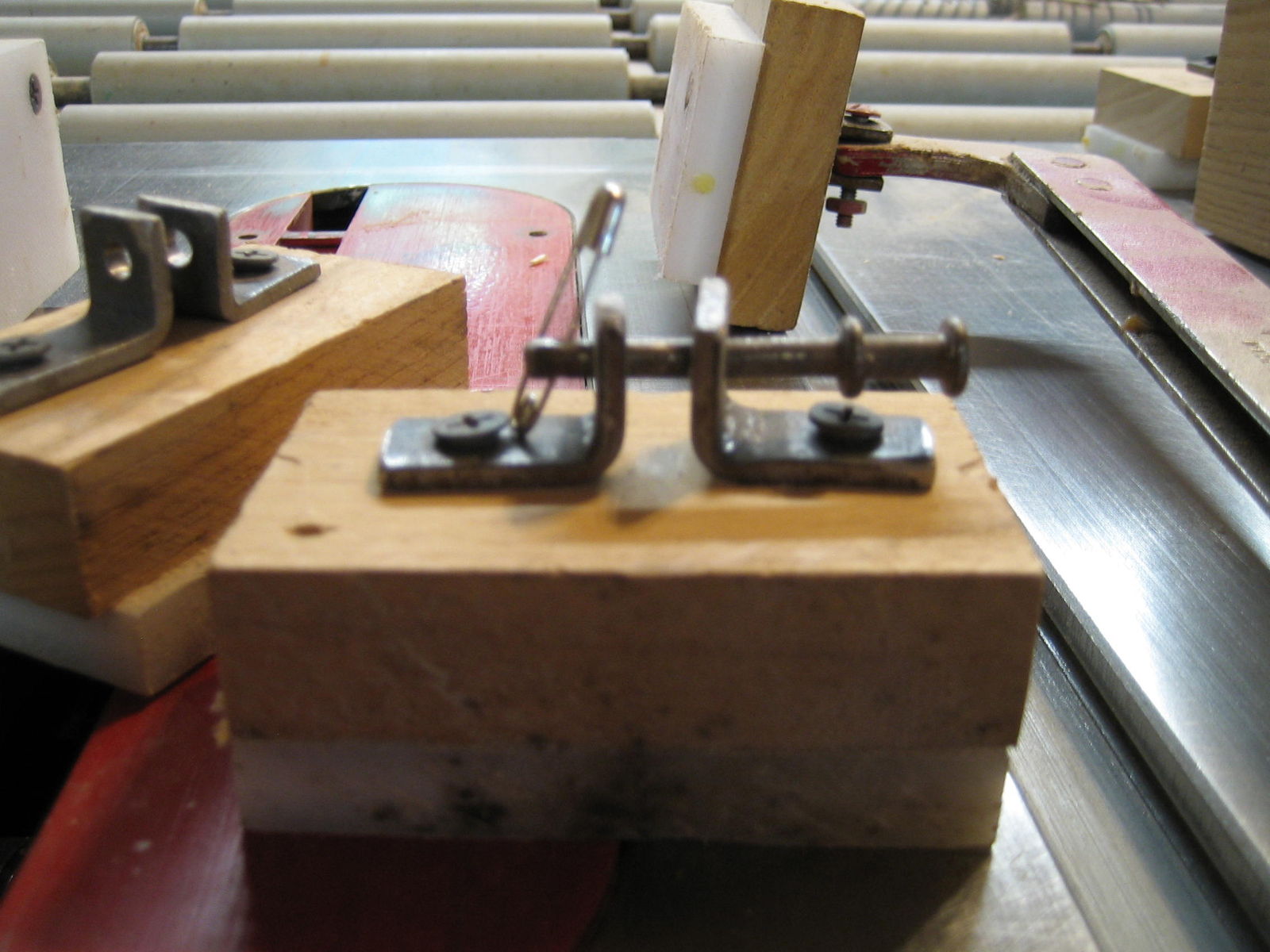

Gene I bought the strap 3/8" wide x 1/8" thick from Muller Metal building supply and a regular vise and a hammer is all you need.. and the pin is a double headed nail I use in concrete forming.

  The long pads  work good keeping three narrow boards in line and the slickum material came from Walmart.

[Gunny]

9 hours ago, lew said:

I did the same thing only used discarded HDPE

Same here, used Formica scraps on the wooden blanks.  Same result, glue won't stick.



Do like the idea of having some taller for access for other clamps.  Nice @Gene Howe

[Gerald]

Mine is a little different but same idea.

[lew]

@Gerald Like the idea of no drilling thru the clamp metal ends.



Love how your clamp storage is over the work area. Very handy!

[kmealy]

Mine are Masonite cut out for the pipe and hot-glued to the clamp (or maybe carpet tape--can't remember it's been so long)
