Part 6- Mounting The Table

lew

216 views

The final major part of the assembly is the table. The piece of ¾” Melamine is from the scrap box at the local Vocational School and the piano hinges are pieces left from a project made for my brother in law. The top is reinforced with a frame of ¾” plywood on three sides and a 1” piece of oak on the hinge side.

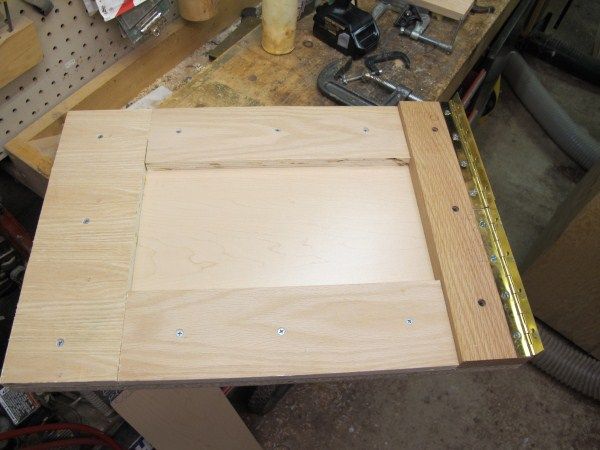

(top and bottom w hinge)









The hinge is then screwed to a mounting/adjusting bracket that fits between the two sides of the frame. A slotted hole in each side of the bracket allows for vertical adjustments to assure the table is parallel to the drum. Although not shown, the backs of the slotted piece are covered with PSA sand paper to help prevent slipping during adjustment. The bolts are tightened securely once the table/drum alignment is achieved.

(table mount, bracket top, mounting bolt)










The opposite end of the table (front of the sander) in screwed to the top of the lift mechanism with countersunk screws

Had to buy 2 carriage bolts and nuts.
