Smaller tool

Lew had some great videos. I found some with more instruction on tool orientation.











Not manufacturer sponsored but a different tool.

Wow... Ask and you shall receive...

Thanks...

Now I need to build another tool...



2 hours ago, Kevin Beitz said:

Wow... Ask and you shall receive...

Thanks...

Now I need to build another tool...



You can actually buy wheels for the Sorby separately , don't know about the wagner but it is not near as costly as the Sorby.

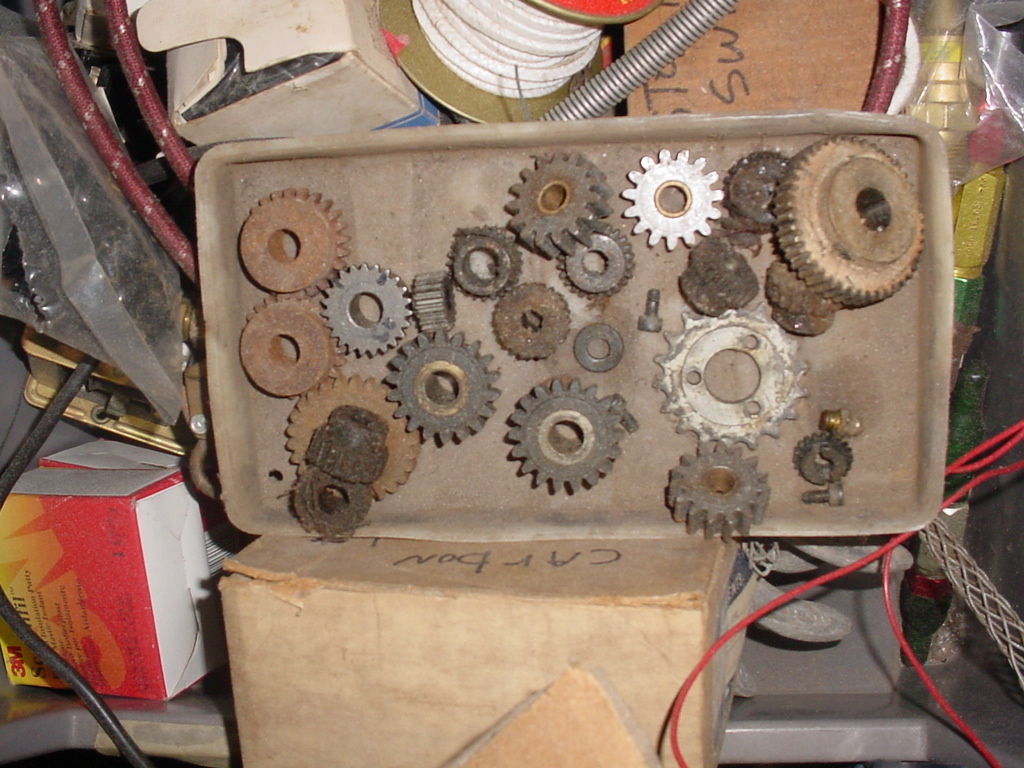

I don't see a problem making the wheels. I have hundreds of small gears.

I'll just grind them to a point... Here is just a few.





14 hours ago, Kevin Beitz said:

I don't see a problem making the wheels. I have hundreds of small gears.

I'll just grind them to a point... Here is just a few.





That could work. Just remember only one side is beveled and that is the side that does the design.

1 hour ago, Gerald said:

That could work. Just remember only one side is beveled and that is the side that does the design.

Would that matter?

7 hours ago, Kevin Beitz said:

Would that matter?

I don't think it matters which side but having a bevel, as opposed to 2 bevels coming to a point, will affect the "look" of the texturing.



36 minutes ago, lew said:

I don't think it matters which side but having a bevel, as opposed to 2 bevels coming to a point, will affect the "look" of the texturing.



I'll be making different kinds of wheels... Small sprockets might work...

14 hours ago, Kevin Beitz said:

Would that matter?

The significant part is that the bevel side does the decoration and the long bolt is on the other side because it will interfere with the process. Yes I tried it that way just not good.
