It is an indicating inside caliper.  Here is a link to the best explanation I could find.



https://www.practicalmachinist.com/vb/antique-machinery-and-history/interesting-indicating-inside-calipers-148205/



Here is a modern version.



Finally something I knew what it was.

You can still buy a very similar caliper from Harbor Freight (where's Herb, @Dadio? )

But maybe they were wondering about the extra what looks like a pivoting pointer on the one leg?







Edited September 7, 20196 yr by Cal

59 minutes ago, Cal said:

But maybe they were wondering about the extra what looks like a pivoting pointer on the one leg?

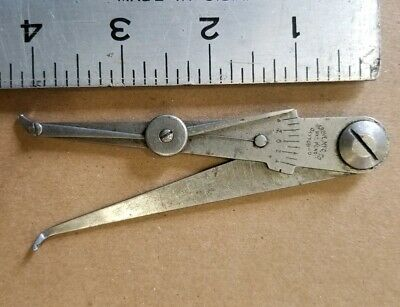

Exactly, the inside caliper function is well known, but what is the extra fold out piece of steel for? What is the purpose of this caliper, and what is it called?

Looks to me like an inside caliper with a micro adjustment. That’s what I’m assuming the extra leg is for anyway.

Inside caliper with a longer leg allowing for wider measurement. Such as a 4 inch caliper can extend to six with the leg added.

I'm thinking it was used for measuring a hole being bored.  Set it to the hole size, reduce the caliper with that leg,  Once it fits in the hole small cuts can be taken until it reaches the set diameter.



Could also be used to measure a groove cut inside a bored hole maybe for an O-ring seat.
