Thanks Stick...had to C&P the link...maybe one of the Admins can hyperize it.

Share this post


Link to post
Share on other sites
1 hour ago, Grandpadave52 said:

Thanks Stick...had to C&P the link...maybe one of the Admins can hyperize it.

try this one...

https://www.familyhandyman.com/woodworking/quick-and-easy-cabinet-doors/view-all/

Share this post


Link to post
Share on other sites
1 minute ago, Gerald said:

why in creation would you need two mitre gauges to do a crosscut?



less deflection...

instant sled...

Share this post


Link to post
Share on other sites

Exactly the way I do it, except for cutting the tenons on the router table - cleaner cheek cuts, plus I can leave the TS set up for cutting the grooves (just in case). And, I glue the plywood panels in as there's no concern if wood movement unlike with a solid wood panel.

Share this post


Link to post
Share on other sites
1 hour ago, Cal said:

I thought glueing the panel in place was a no-no.

plywood panels is fine...

solid wood.. no...

Share this post


Link to post
Share on other sites
2 hours ago, tomp said:

Exactly the way I do it, except for cutting the tenons on the router table - cleaner cheek cuts, plus I can leave the TS set up for cutting the grooves (just in case). And, I glue the plywood panels in as there's no concern if wood movement unlike with a solid wood panel.

The use of an ATB blade on the stub tenons was my only concern.  Does not leave a lot of good surfaces for glue.  Gluing in the plywood will help.   Q&D - quick & dirty accurately describes this.



I rarely use a miter gauge -- usually a sliding cross-cut table.

Share this post


Link to post
Share on other sites

If making loose panels from ply or solid, space balls or rubberized glass sealing rope will do the trick. No rattles.

Share this post


Link to post
Share on other sites

Thank you Stick

I'll keep that for further reference.

I have built doors like that but always looking for better ways to build.

Might have to give it a try. I have also never glued the plywood in the doors.

Share this post


Link to post
Share on other sites
7 minutes ago, Gene Howe said:

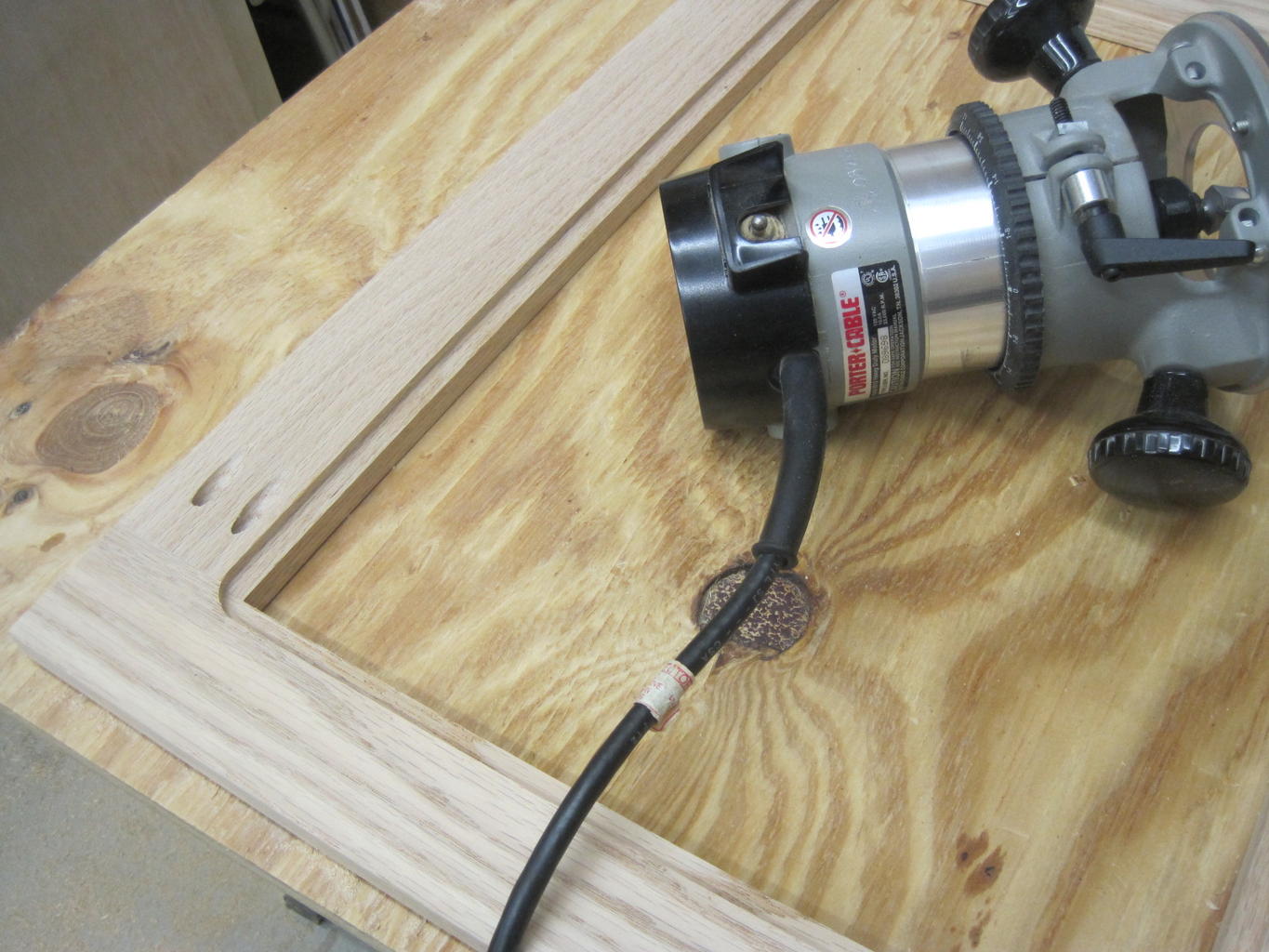

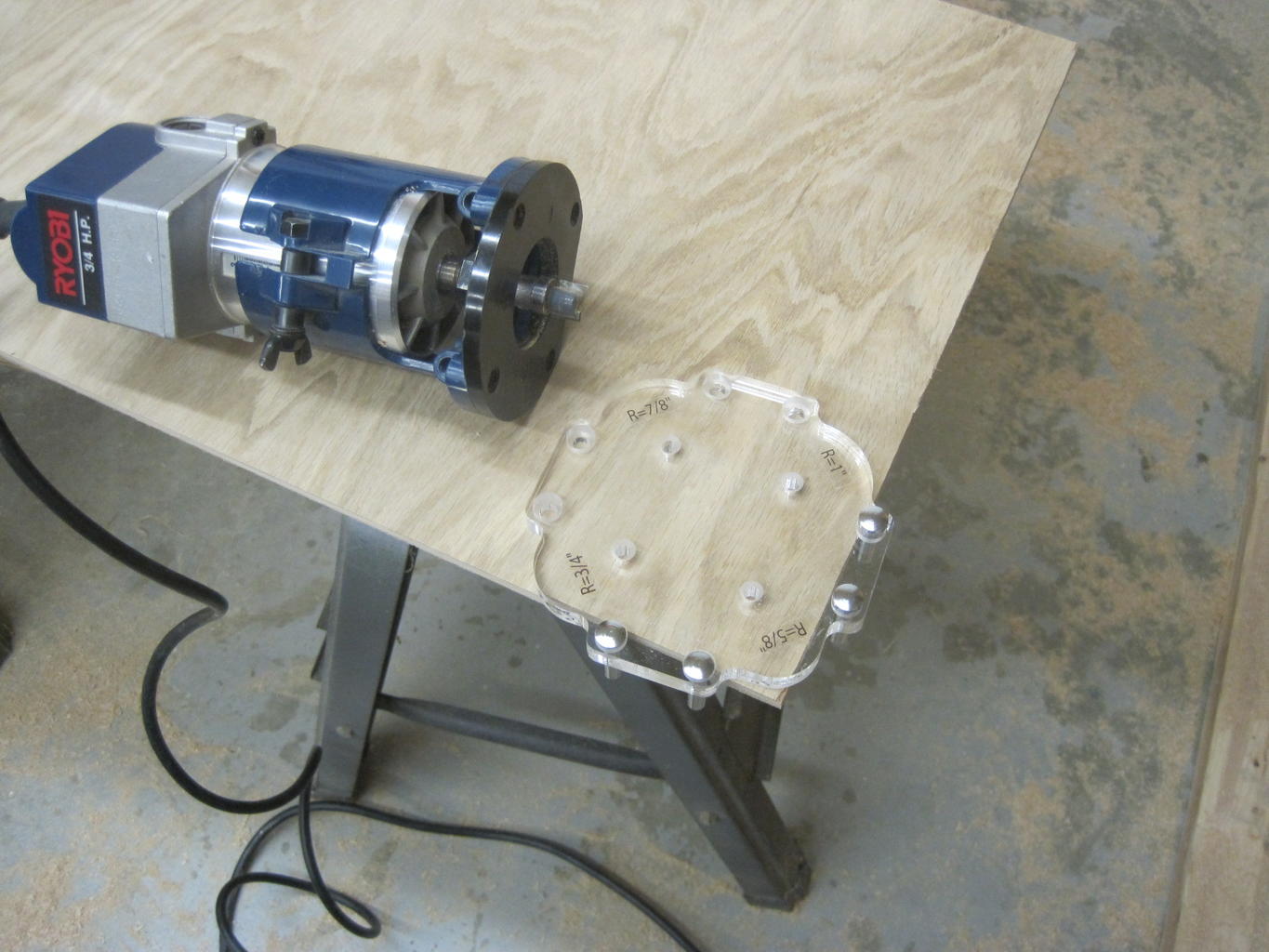

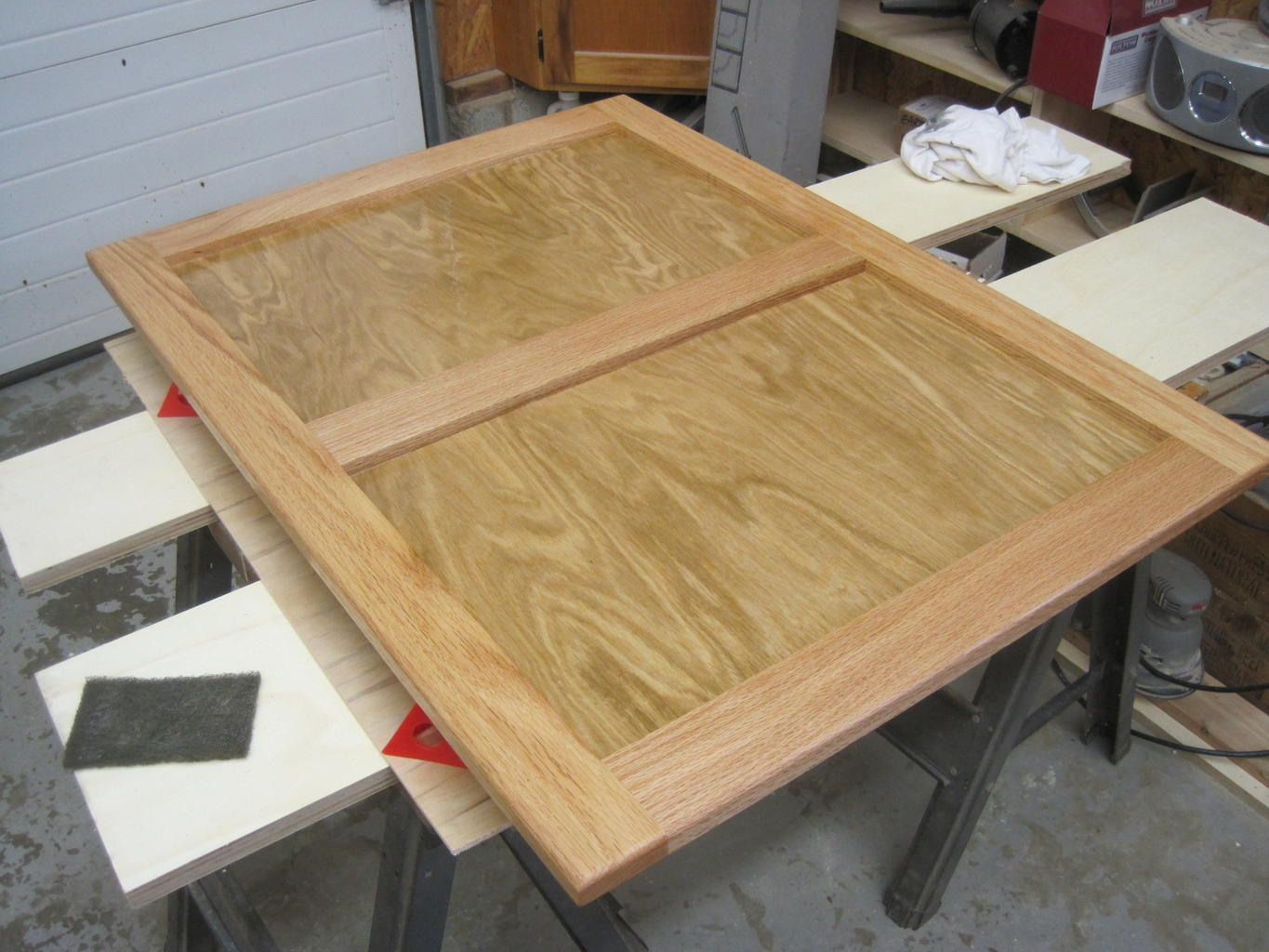

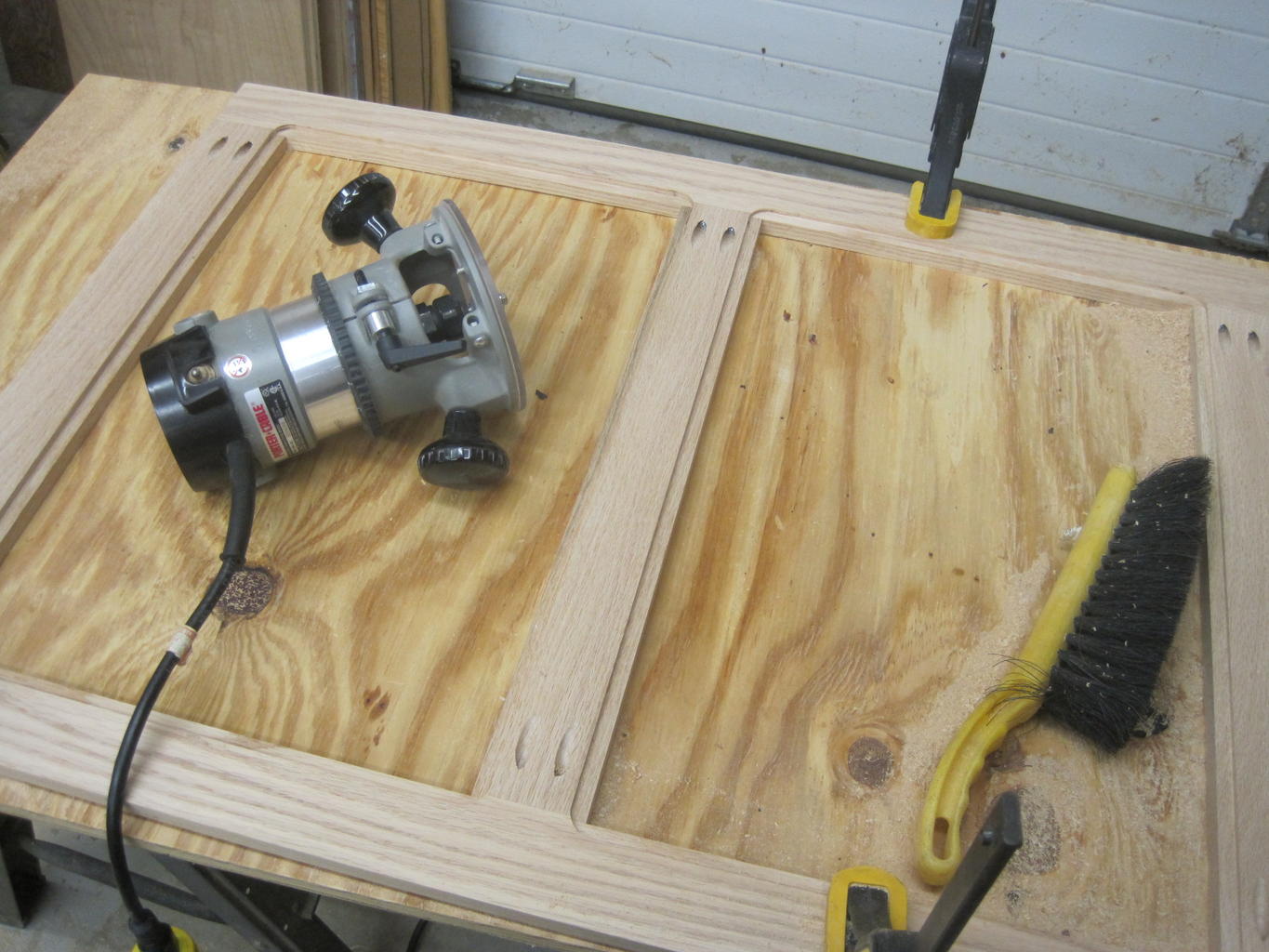

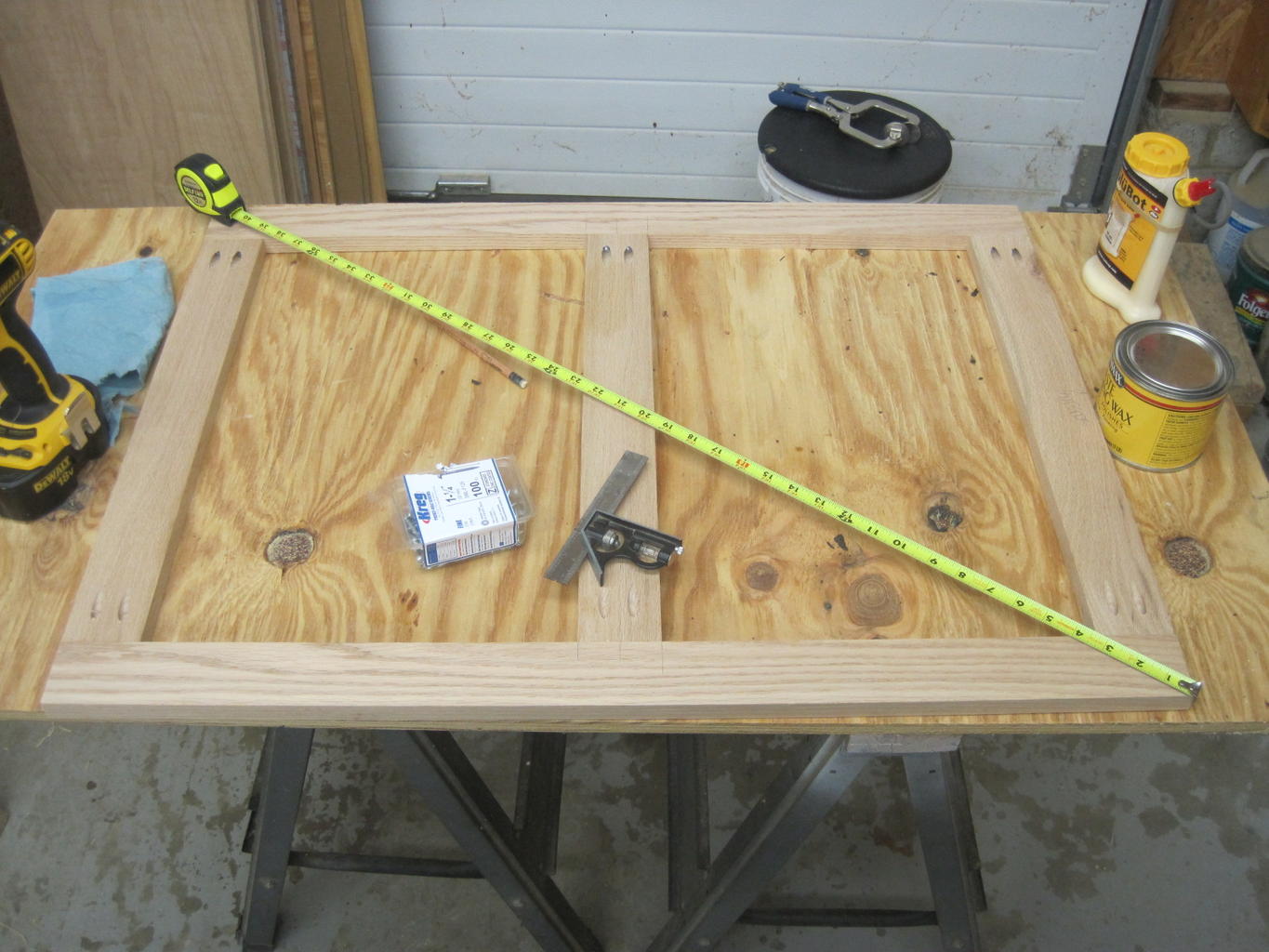

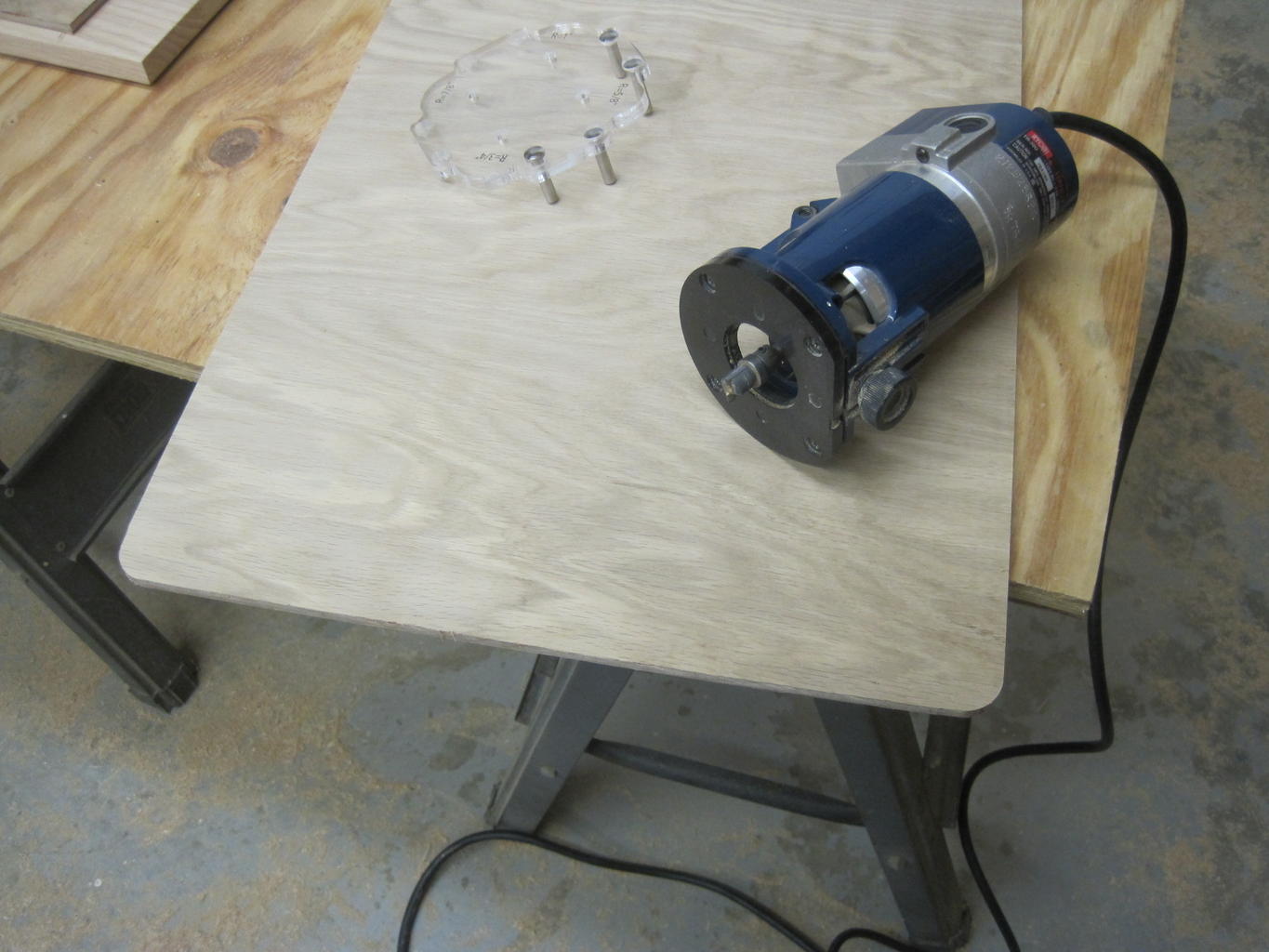

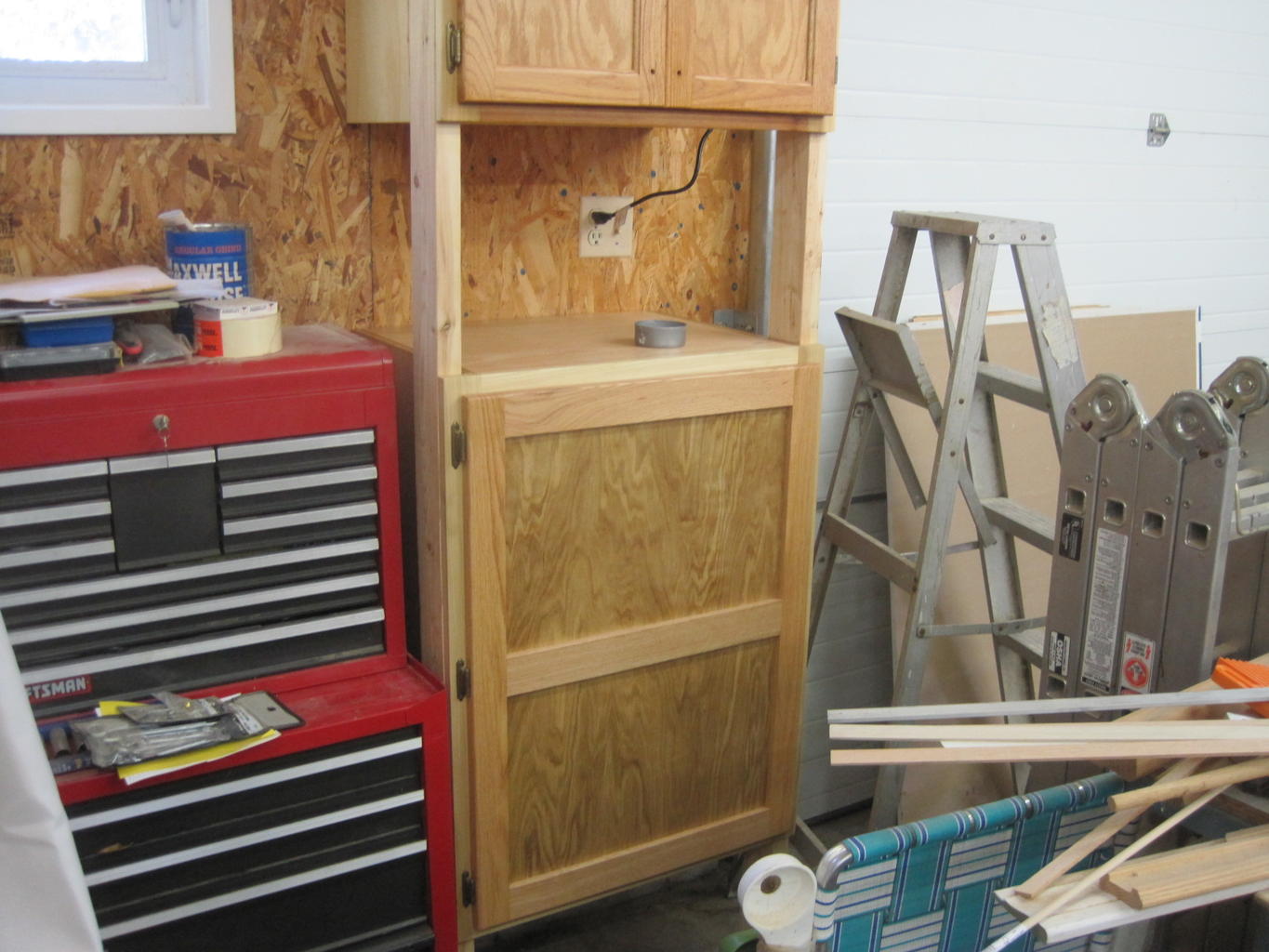

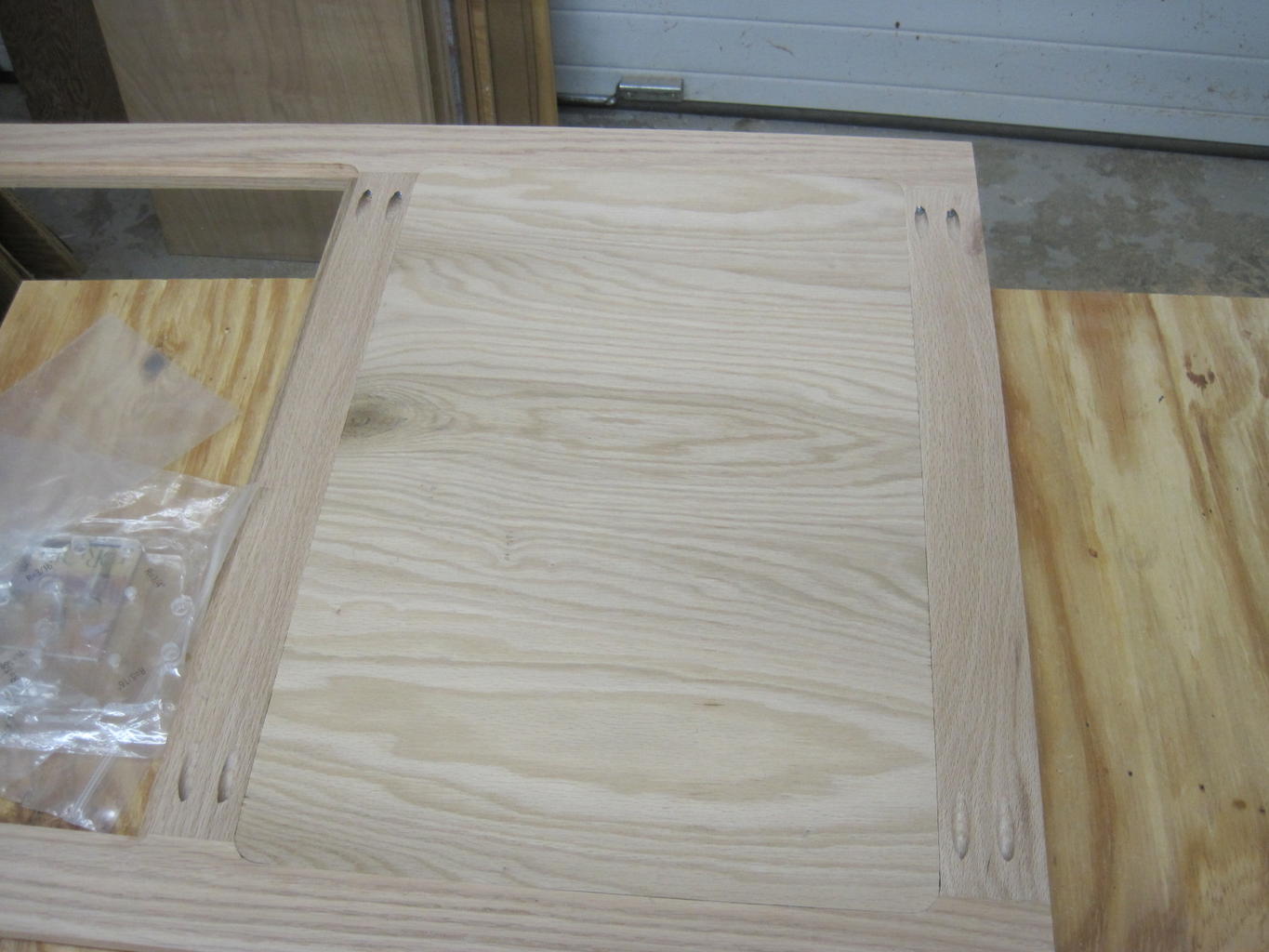

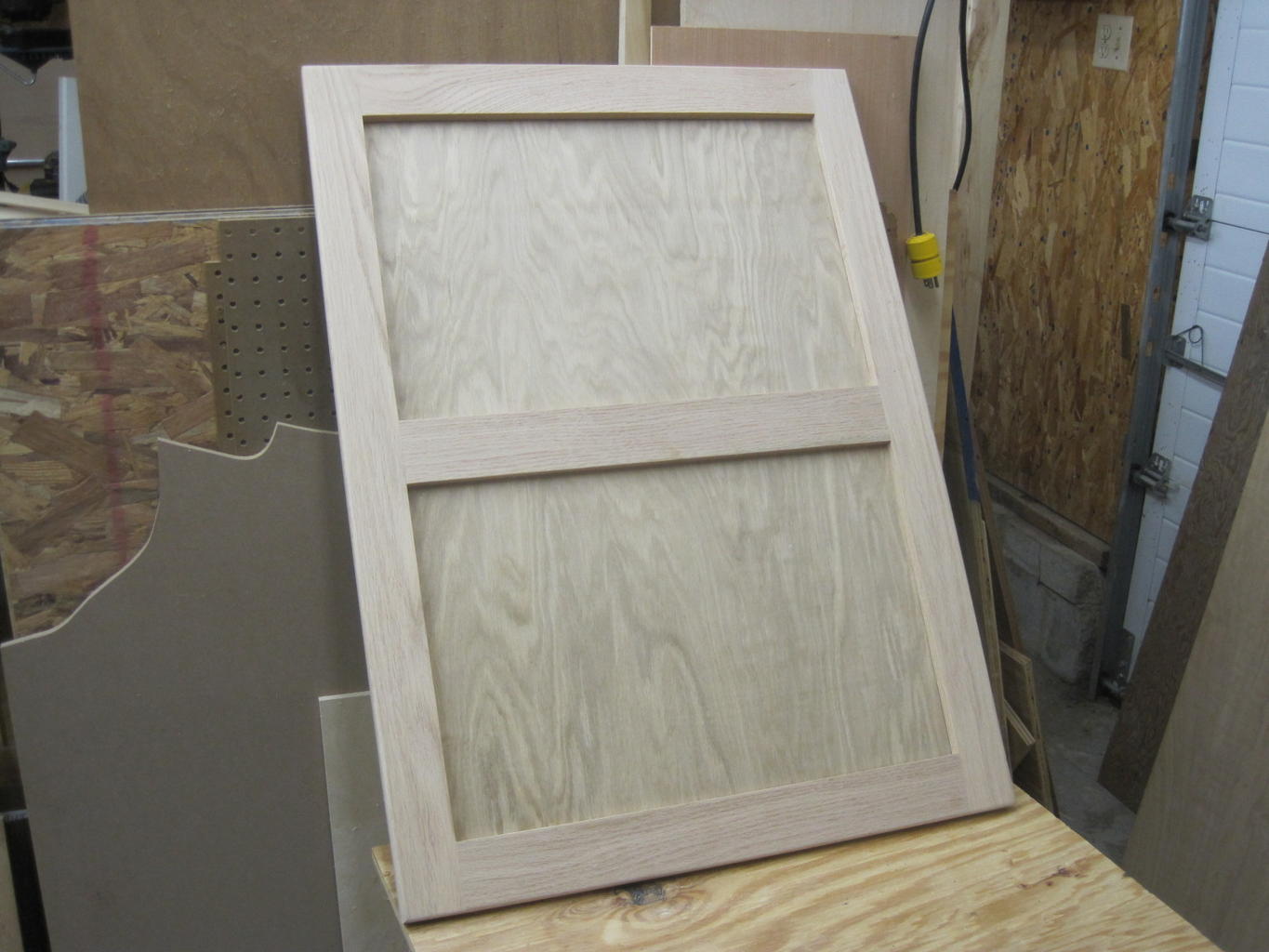

Good looking doors, Tom. Fast and easy. Thanks for the pics.

and then some...

Share this post


Link to post
Share on other sites
1 hour ago, Gene Howe said:

If making loose panels from ply or solid, space balls or rubberized glass sealing rope will do the trick. No rattles.

add screen spline to the mix...

Share this post


Link to post
