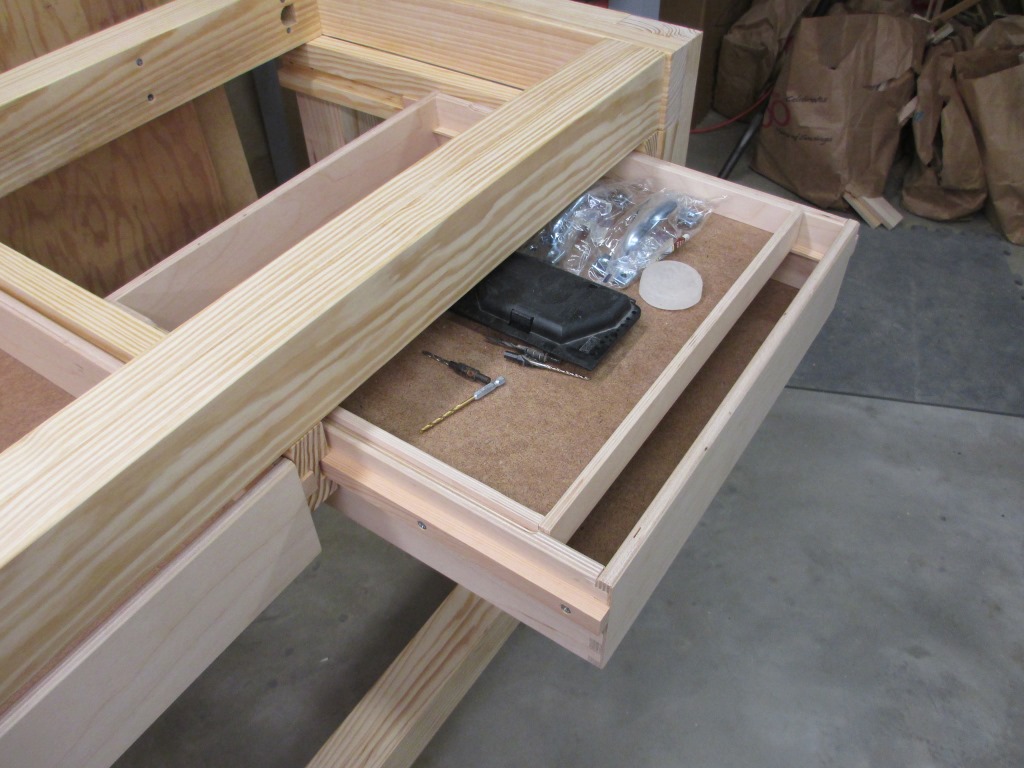

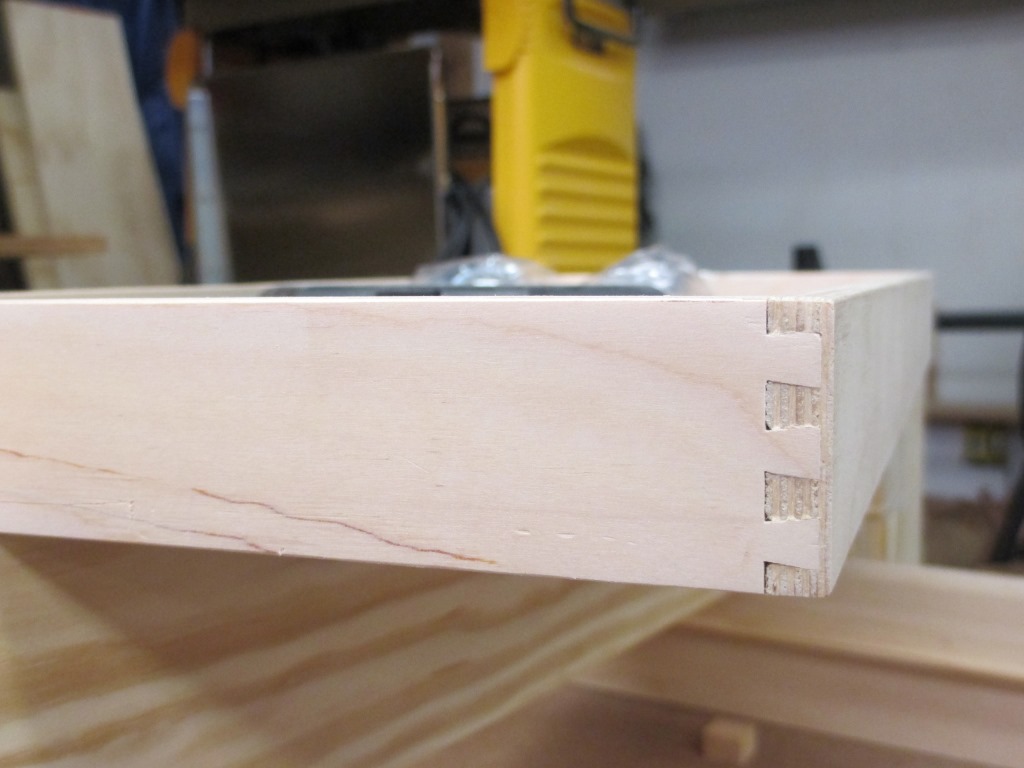

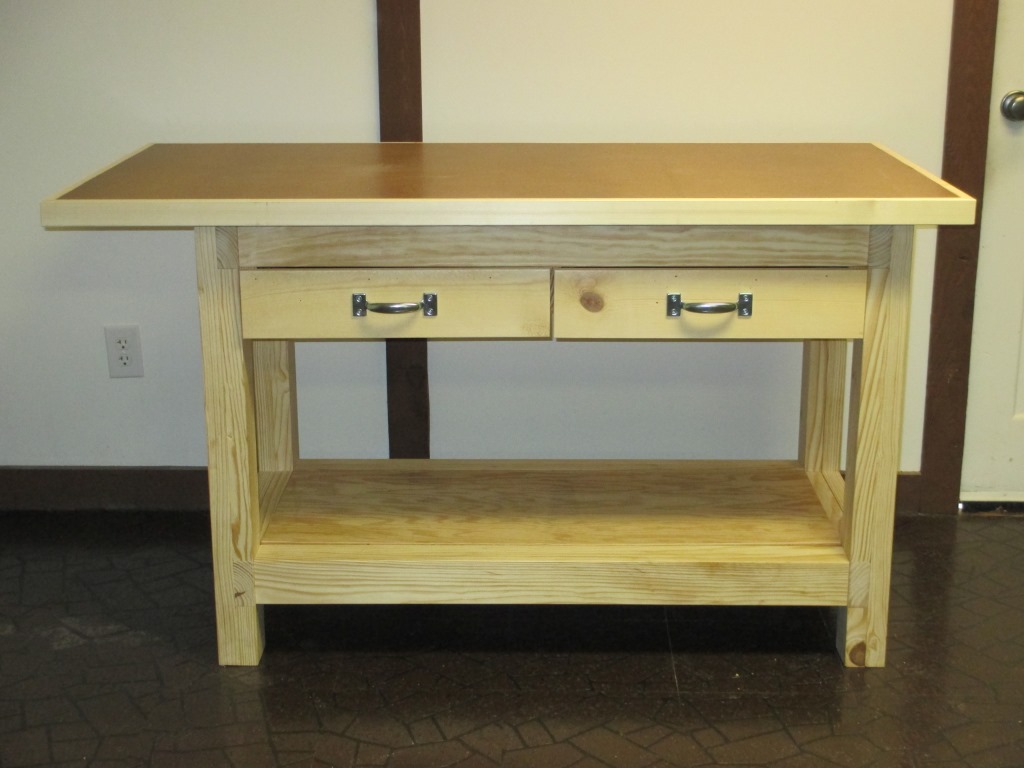

I made this shop workbench for my oldest son.  The structure is southern yellow pine (SYP) ripper from 2” x 8” dimensional lumber and is fabricated so that it can be disassembled.  The horizontal members are attached to the side frames with 3/8” dia. bolts.  The drawers sides are made from ½” birch plywood.  The drawer bottoms are 1/8” hardboard.  The right drawer is a double drawer.  All  three drawers have dovetails joints.   The drawer slides are made from SYP.  The bottom shelf is  ½” birch plywood.  The top is made from 2 pieces of ¾” MDF and 1 piece of 1/8” hardboard banded with ¾” pine.  The Craftsman vise (made in USA) attachment will be such that it can be located on any corner of the top.

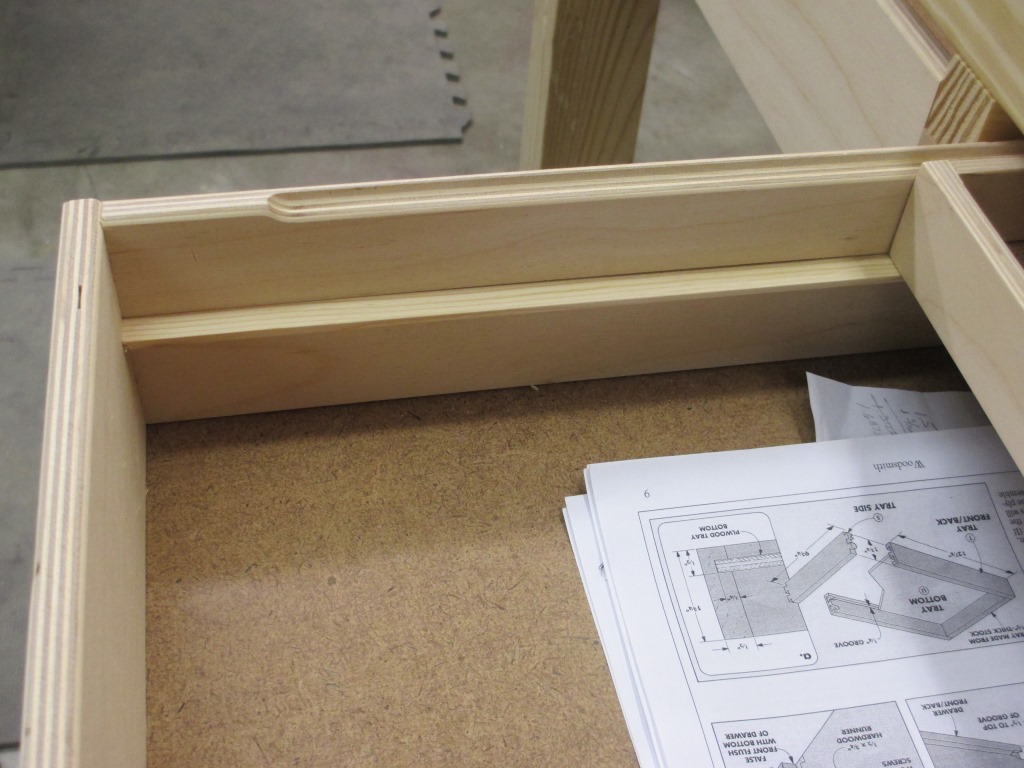

The plans for the workbench is inspired from Shopsmith magazine issue 66, December 1989.



Edited November 17, 20178 yr by Ron Dudelston
tags added

Looks good.  I am sure he will enjoy this and use it for a long, long, time



I have something similar to this in mind for an assembly table.   But due to other projects, away on the warming burner.

Edited November 12, 20178 yr by kmealy

you did a premium job on that Dan...

your son can't help but have an affair w/ it...

Nice bench Dan.  I really like the drawer in a drawer detail.

Sweet bench Dan. I really like the heft of it.

Double drawer is a great touch along with adding the finger rail.

What was your finish?

Great job . Really like the half drawer like Dan said. One suggestion when you do your own drawer slides they should be made of 2 different woods as this reduces the wear cause by use.

Very nice work. Good and sturdy. Your son will get lots of use out of it. As others have commented, the drawers in drawers is neat.

Spectacular! I'm sure he'll make lots of great projects on this bench!

Works for me.........

Thanks for all of the comments.



Grandpadave52 – The bench currently does not have a finish.  I thought I would wait and let my son see it and be a part of selecting the finish.  I was thinking of applying a home-brew wipe-on of BLO/MS/Poly.  My son may want to leave it raw.



Gerald- thanks for the advice on using different materials for the slides.

Danl

3 hours ago, kmealy said:

Looks good.  I am sure he will enjoy this and use it for a long, long, time



I have something similar to this in mind for an assembly table.   But due to other projects, away on the warming burner.

NEAT JOB.

Nice! Gives me some ideas for MY new workbench.

John

Well, especially like the part about being able to disassemble.

A great bench Danl.  Bet your son will really like and get a lot of use from it.

Cal

You could have shipped it to me and called me son!



Looks like a good tight fit on the nut . That nut must have been the turnee and the other end of the bolt was the turner!!!

Your trees sure grow and assortment of different woods! A fine looking project.

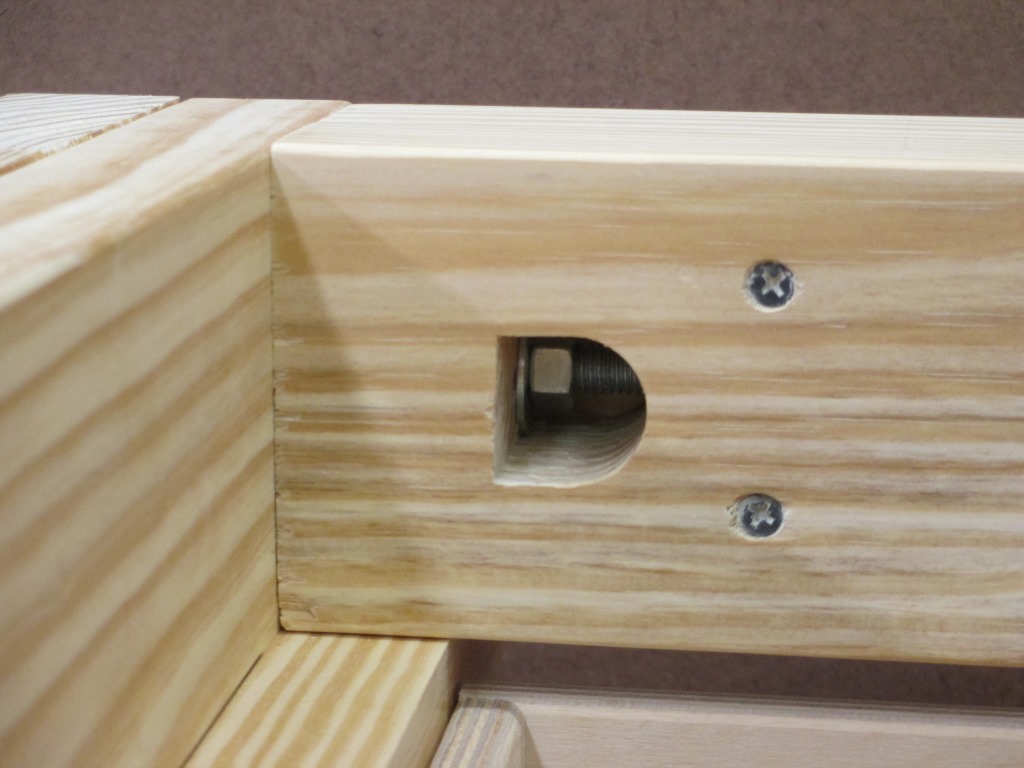

Smallpatch, tightening the nut took a little shade tree ingenuity.  I could only turn the bolt, not the nut.  I held the nut in a box end wrench with painter's tape. Then turned the bolt until the bolt fully engaged the nut.  Then I had to pull the bolt so that I could remove the wrench from the hole.  I then inserted a #4 flat blade screw driver into the hole and wedged it against the inner hole and one of the flats on the nut.  This took a little time but was doable.  A better approach would be to have drilled the counter bore hole a little deeper and then use a bolt which would be 1/2" shorter.  This would of allowed me to use the box end wrench until the nut was tight and still remove it from the hole.  Next summer drive your RV North and we can load one up to haul back South.  This will give you a chance to get out of the heat.
