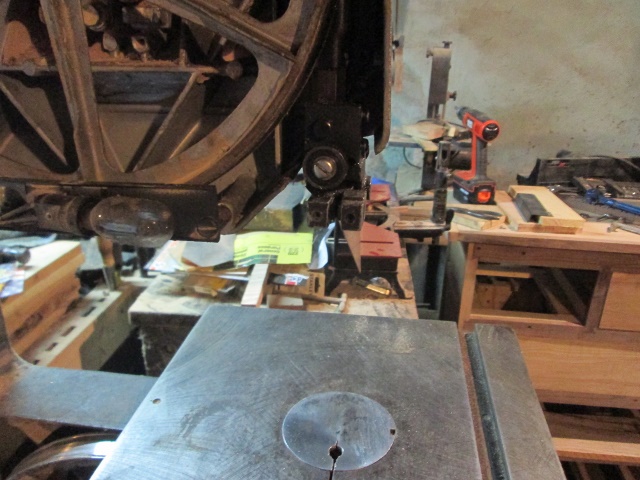

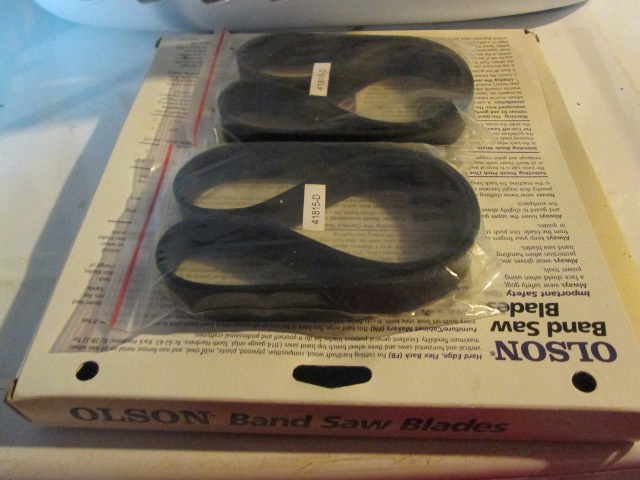

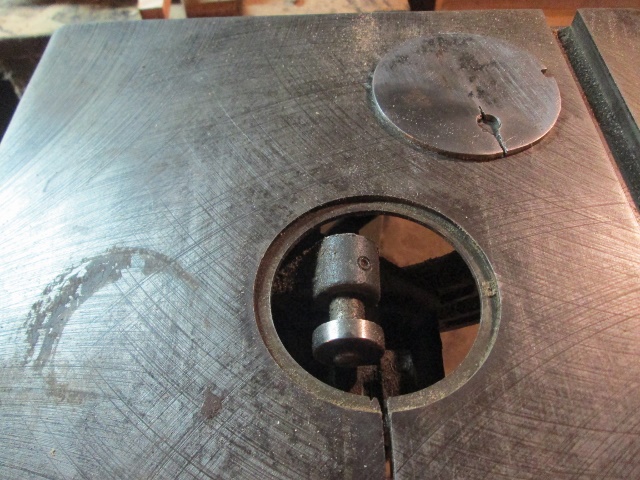

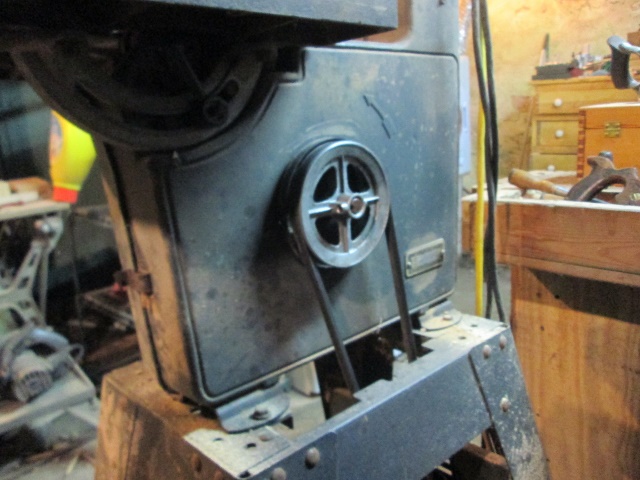

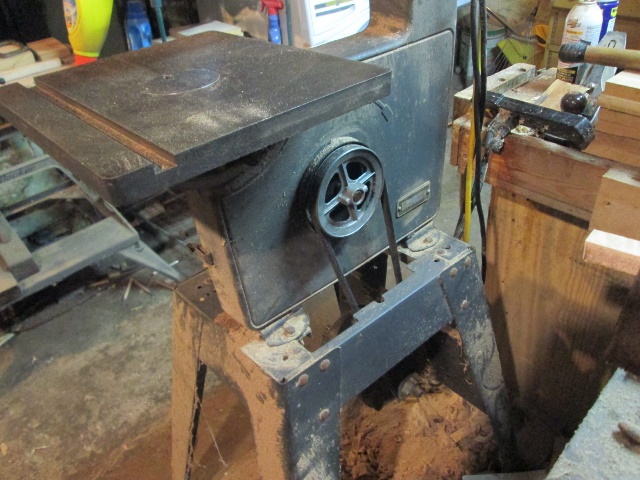

August 13, 20178 yr The old Craftsman let me down tonight.. Motor stalled out....even under NO LOAD!..... Motor is a double-ended one, has a plastic cover over the un-used shaft.....always filled up with dirt...got rid of that. Thrust bearings were worked over....since I was tearing the saw down, anyway Yep, nasty looking. There IS a trash bag back there...will be full tomorrow...Drive wheel lost the tire a while back... Might as well install these, as well. IF I hand spin the drive wheel to start the saw up......it will run at normal speed....if I don't, it barely turns, and hums.....air compressor Sunday to blow out the motor...hoping it is just dirty contacts... Grabbed an old file, once I had the drive wheel spinning..and cleaned the crud off the surface.....a bit of vibration in the system....Did a little "balancing" with the file, taking out most of the wobbles.. even on this little pulley.. Acts like there is too much tension going on...yet the belt does flop around a bit.... This thing was frozen in place....hammerdrill and PBlaster to even move the bolt....bearing was stuck....wasn't in the mood for "Stuck" Visegrips to hold the center ring...wire wheel and normal wheel on the grinder to get it spinning again..freely. repeat with the upper one.. Gave up for the night. Need to boil some water Sunday, and get the tires to STRETCH enough to go on the lower wheel...wonder IF I should change out the upper tire... Looks like Sunday has been planned out.... Was trying to rip two drawer sides to width......didn't happen.
August 13, 20178 yr Author Will see what happens today.....I do have a "Back-up" bandsaw handy.....IF needed. Won't need any BIG cuts done...for a while.. Dirty contacts? How long do you soak those new tires in HOT water, before you try to install them?
August 13, 20178 yr 10 minutes ago, steven newman said: Will see what happens today.....I do have a "Back-up" bandsaw handy.....IF needed. Won't need any BIG cuts done...for a while.. Dirty contacts? How long do you soak those new tires in HOT water, before you try to install them? I think I soaked mine for about 15 minutes and then stretched them by hand before trying to put them on. Does the motor turn at all when you apply power? I had a Craftsman radial arm that would get dust in the motor starter contacts. It would just hum when turned on. The contacts were pretty easy to get to after taking off the plastic motor cover. I'd pry them open and blast with air. You can run some emory cloth between the contacts to clean them, too.
August 13, 20178 yr Author Took two people to get that tire onto the wheel...unless the other tire falls off, I am not changing it. Will put things back together, and go from there...
August 13, 20178 yr Popular Post A simple tip I saw years ago that I used and it worked well , 1.was to take the wheel off, 2.lay it on a piece of plywood draw the perimeter onto the plywood, 3.take small finish nails and drive them into the plywood about 1/4 from the perimeter circle all way around, 4.stretch the belt around the nails, 5.lay the wheel in the center 5.and pull the nails as you work around the wheel 6.until the belt is on the wheel. I have done it several times alone and believe it is the easiest way for these old hands. Herb
August 13, 20178 yr 6 hours ago, lew said: I think I soaked mine for about 15 minutes and then stretched them by hand before trying to put them on. Per the Carter urethane skins instructions, that's exactly what I did, soaked in hot water for 10 to 15 minutes, they went on with no issues, once dried they shrunk on really nice and tight.

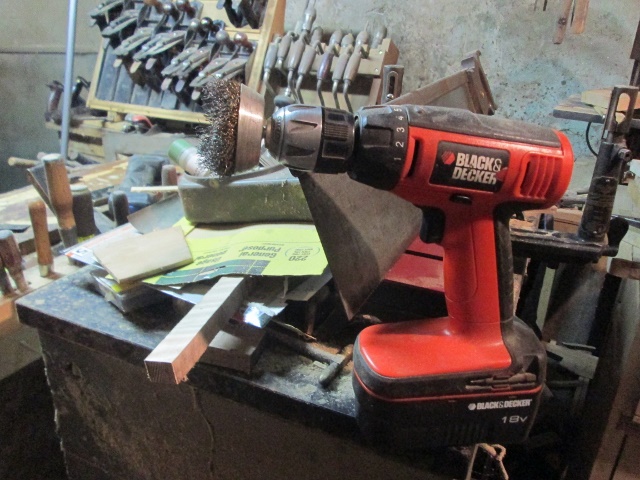

August 14, 20178 yr Author Update: tire is on. New blade, too. I now have a "starter" for the saw.. Junky old wire cup. drill is set in reverse. I place the cup over a pulley.. And spin this up to speed....then turn the motor on....saw runs fine. then. Acts like there is a bind going on that shaft.....hard to turn. No wobble, either. Have no idea IF there is a way to lube any bearings in there...
August 14, 20178 yr Where there's a will , there's a way! Edited August 14, 20178 yr by Fred W. Hargis Jr
August 14, 20178 yr 4 hours ago, Fred W. Hargis Jr said: Where there's a will , there's a way! Kind of like pushing the car down the hill to start. Herb
August 14, 20178 yr Author As soon as I find out what size Starting Capacitor the motor needs...I will see about replacing it. Need to find enough time, and a few extra hands, to do the replacement..
August 14, 20178 yr 14 minutes ago, steven newman said: As soon as I find out what size Starting Capacitor the motor needs...I will see about replacing it. Need to find enough time, and a few extra hands, to do the replacement.. I think You came up with a good work around to keep things going, Steven, til you get time to fix the motor. I do the same thing at times. When it comes to electrical problems I am a complete dud. Herb Edited August 14, 20178 yr by Dadio
August 14, 20178 yr 20 minutes ago, Dadio said: When it comes to electrical problems I am a complete dud. Herb To expand on that , I have burned up more than one electrical tester probing the wrong wires while set on the wrong function. Even when they read out, I don't know significance of the reading. Continuity is the only thing I understand, that there is no broken circuit. As far mas motors go I know the Capacitor sits on top, some have 2 ,but thats all I know about capacitors. Herb
August 14, 20178 yr You sure it doesn't have starter contacts? I used to wrap a string around the radial arm shaft and pull it like starting a lawn mower
August 14, 20178 yr Author There is the "box" for the capacitor......doen't look burnt up, no paint has peeled from heat. Maybe after I get these drawers made..I can dig around and replace it....
August 14, 20178 yr 2 hours ago, steven newman said: There is the "box" for the capacitor......doen't look burnt up, no paint has peeled from heat. Maybe after I get these drawers made..I can dig around and replace it.... OBTW, I learned to unplug it first,VOE Herb Edited August 14, 20178 yr by Dadio
August 19, 20178 yr Author Popular Post Update: Seems the bandsaw got tired of being "Jump-started" each time it took less spins to got it moving...yesterday..I flipped the switch on, without doing the helper...saw started right up! Has been working fine ever since....must have done something right? Will see how long this lasts.....fixed, for now.
August 19, 20178 yr 4 hours ago, Gene Howe said: Steve, I've known some women like that. Hey, Hey! This is a family-oriented site, remember? John
