I was going  back and forth over scrapers.   I thought maybe I really liked a Glenn Lucas negative rake scraper.  Then I saw a Kelton tool.  It's got a little pivot.  I had a Sorby scraper blade. so I made a Kelton  type  drop edge tool



here it is going slowly



The Kelton model is built with a  7/8" bar the milled flats on the Kelton model are superfluous I think. But the heavier bar is helpful and I plan on upgrading to a 1" bar.

I can say that if you were on the fence about the Kelton unit that it is probably worth the money because the design works

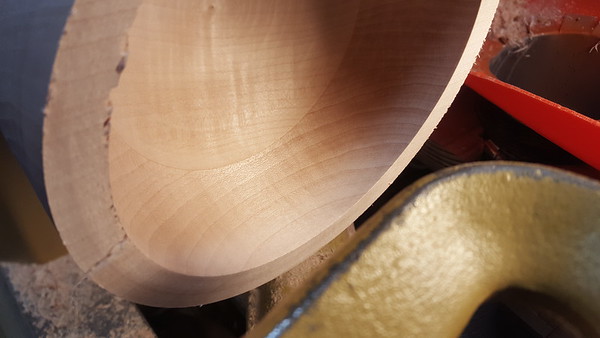

Here's the  unsanded Maple surface it leaves behind.







Edited January 25, 20179 yr by Cliff

That looks pretty good - great job!

Now that's smooth!!

Never heard of the Kelton.  Looks good Cliff.  Thanks for sharing.

2 hours ago, Cliff said:

here it is going slowly



So what's a Plugin?

30 minutes ago, HARO50 said:

So what's a Plugin?

???

1 hour ago, HARO50 said:

So what's a Plugin?



It's a codec of a sort that allows your browser to play some kind of content.  I'm using SmugMug.  I got sick and tired of the plethora of bad things from you tube and photobucket  and figured that if I'm paying $40 a year for hosting that they can be sued if they screw me up.  A little harder to do with photobucket where the one time I used their bulk uploading tool I got a ton of malware and voruses.

Its' looking for adobe flash according to my browser...

54 minutes ago, p_toad said:

Its' looking for adobe flash according to my browser...

VLC will play it...

Got it! Thanks, y'all.

John

Switched to Google Chrome and it works! FireFox needs an add-on.

John

You need to raise the scraper about a half inch so that you aren't scraping below center.  That rough grinding sound is the scraper digging into end grain because of self feeding when the scraper is below center.  It also looks like the tool is being used with too much pressure.  The scraper is primarily for taking feather light clean-up cuts before final sanding.

On 1/30/2017 at 2:20 PM, Billy B said:

You need to raise the scraper about a half inch so that you aren't scraping below center.  That rough grinding sound is the scraper digging into end grain because of self feeding when the scraper is below center.  It also looks like the tool is being used with too much pressure.  The scraper is primarily for taking feather light clean-up cuts before final sanding.



thanks for that.
