Here is the second batch of tissue boxes for presents. Last spring I acquired a Mathias Wandel pantograph. ,and have been teying to get proficient enough to make a project. This then is the first try at a finished project.

These are done freehand off a pattern. The pantograph is set at 50%smaller than the pattern.

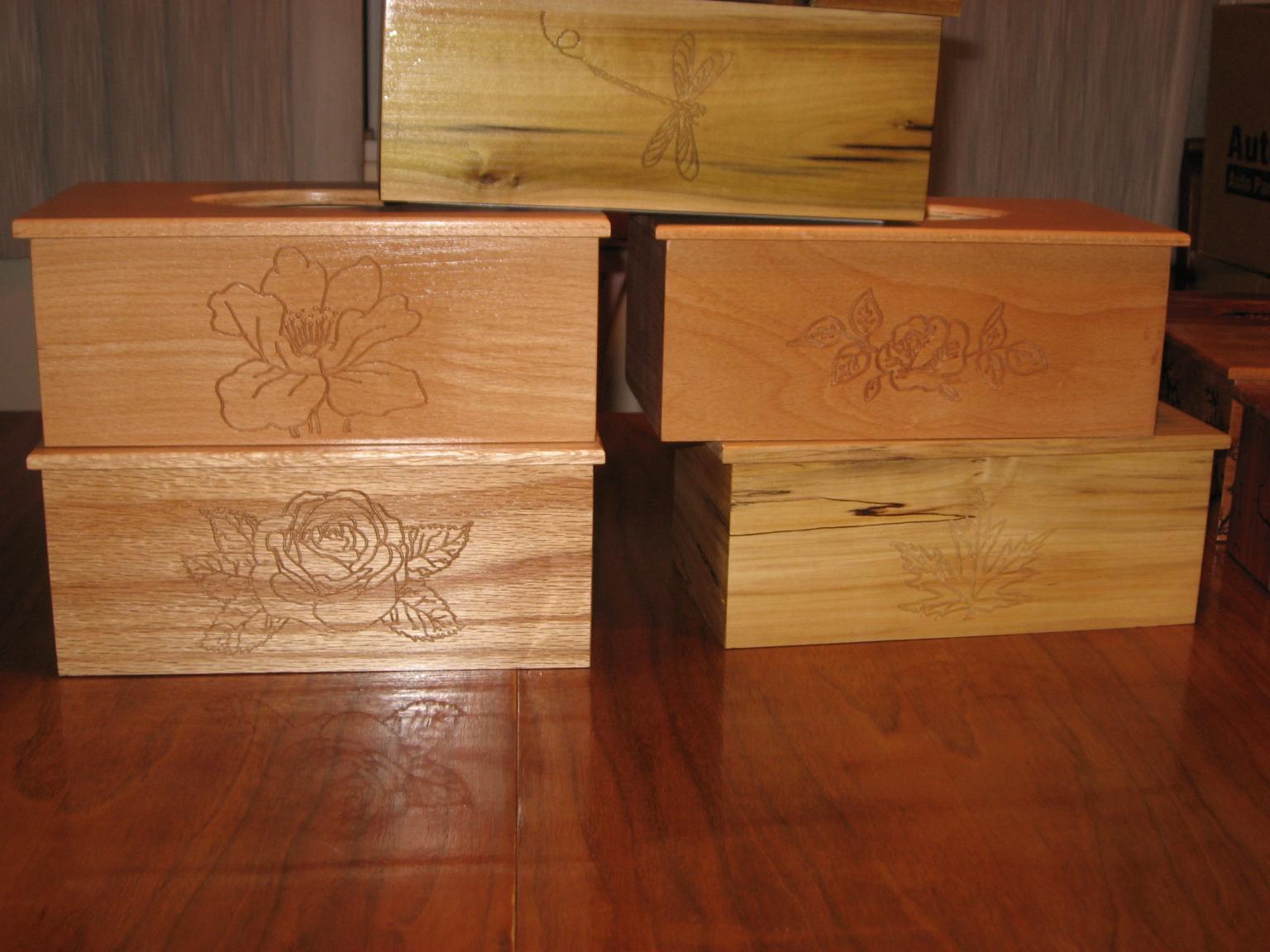

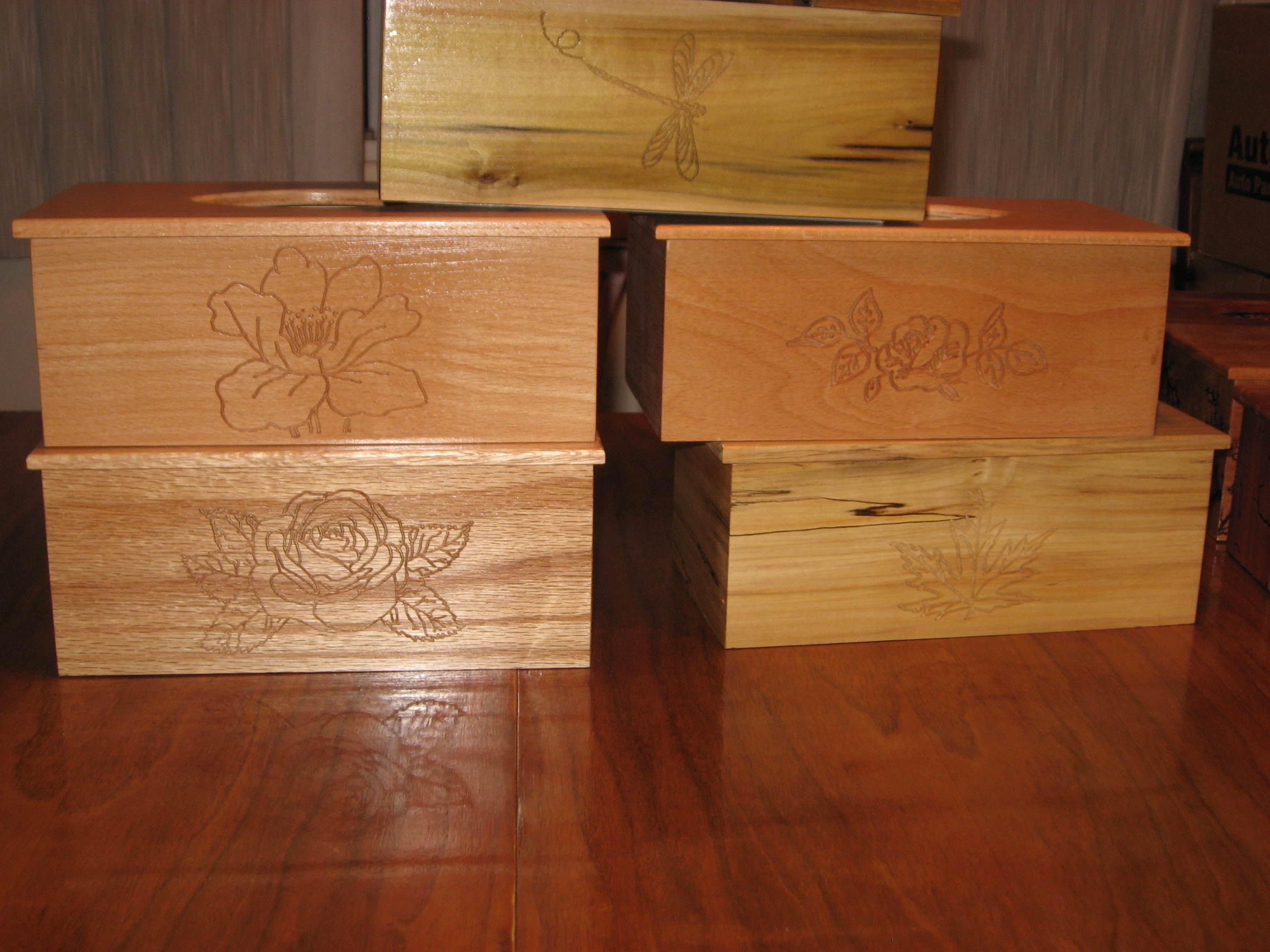

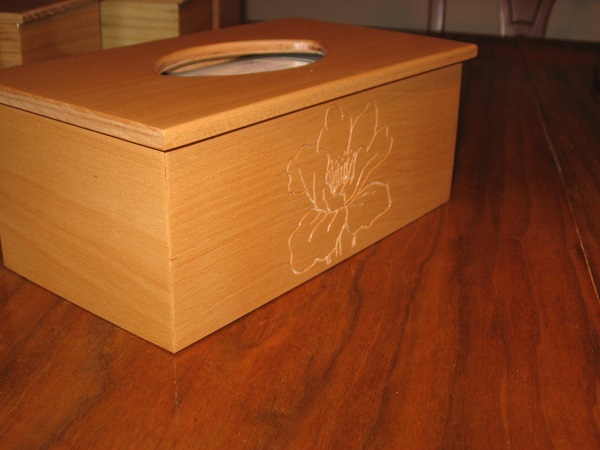

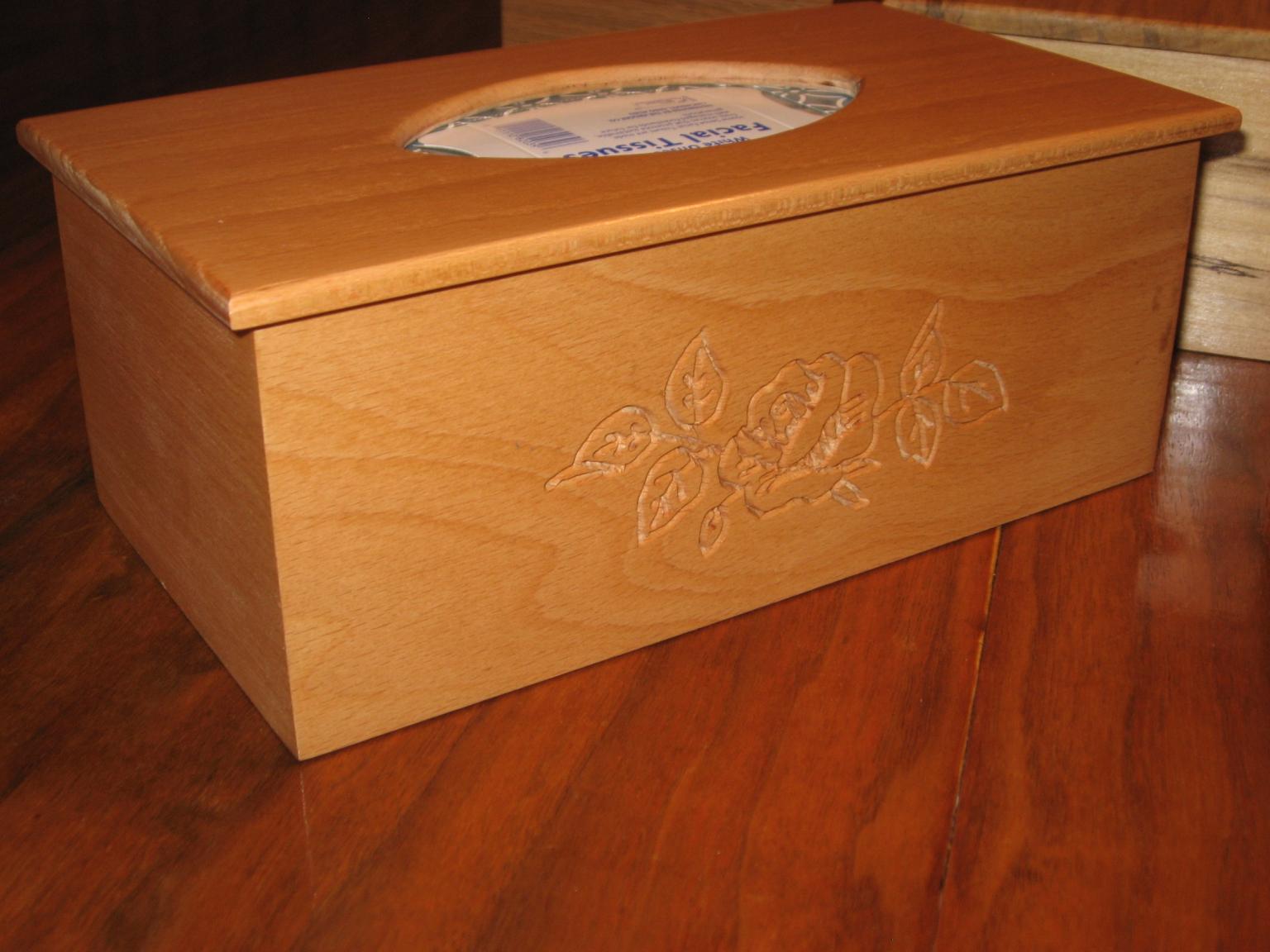

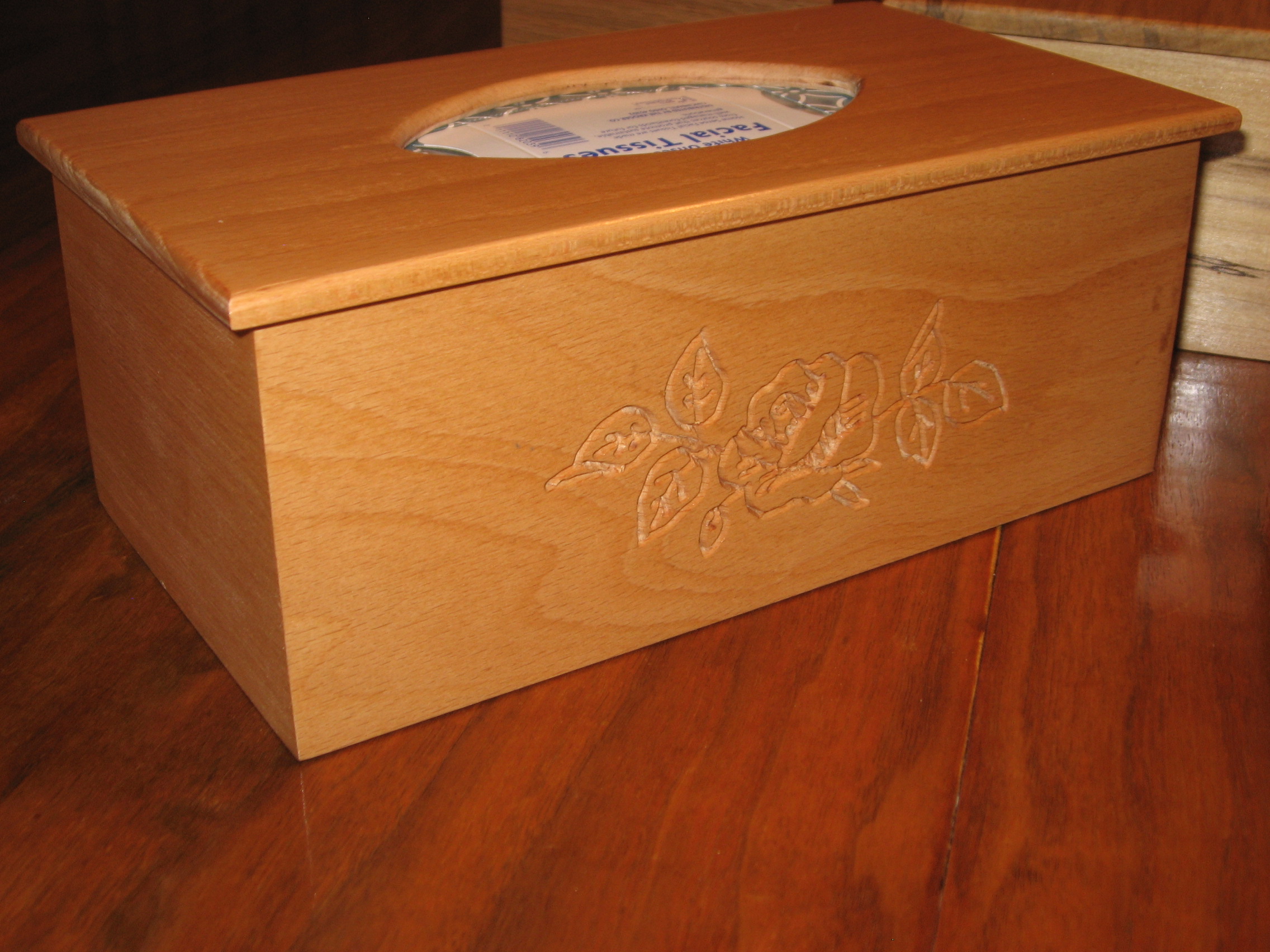

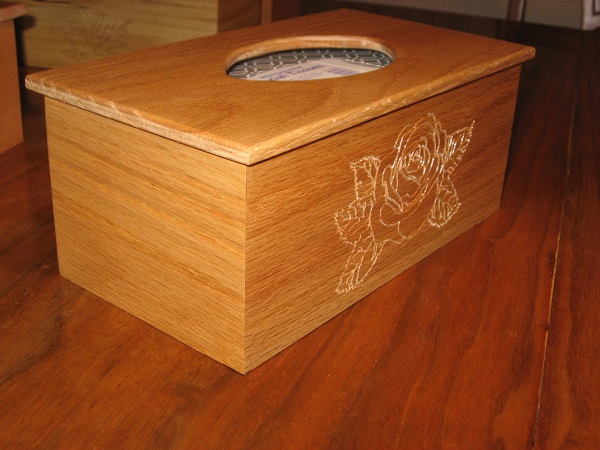

Here are the pictures.

Herb

WONDERFUL!

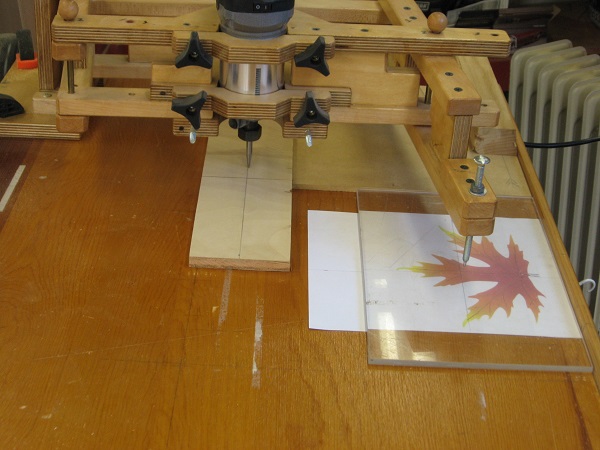

That is a cool pantograph

very nicely done...

but...

now we need to see more on the pantograph...

Nice work and very interesting pantograph. Like Stick says can we see more about it.

 Great job Herb.



7 hours ago, Dadio said:

I acquired a Mathias Wandel pantograph



   Acquired or made?



Nice work Herb, beautiful boxes.

Cal

Wonderful job. Are you going to try some inlay into those patterns? There is a product we turners use called Inlace, which is an epoxy system and comes in several colors. You should give it a look.

5 hours ago, Stick486 said:



now we need to see more on the pantograph...



2nd the motion, all in favor?

2 hours ago, DuckSoup said:

 Great job Herb.





   Acquired or made?



My cousin Paul was making one for himself and I asked him to cut out 2 while he was at it, so he came over with one all made and assembled for me. He even made adapters for my dremel. What a deal .huh?

Herb

Maybe I should do a thread on the pantograph.

Edited December 23, 20169 yr by Dadio

1 minute ago, Dadio said:

My cousin Paul was making one for himself and I asked him to cut out 2 while he was at it, so he came over with one all made and assembled for me. He even made adapters for my dremel. What a deal .huh?

Herb

Yeah, quite a deal alright. Is he in to making more?

33 minutes ago, Dadio said:



Maybe I should do a thread on the pantograph.



Great Idea, Herb!!

Nice!



I've seen his videos of the pantograph and wondered what could be done with it. Thanks for showing your finished engravings.

11 minutes ago, lew said:

Nice!



I've seen his videos of the pantograph and wondered what could be done with it. Thanks for showing your finished engravings.



Ditto!  The engravings looked great.

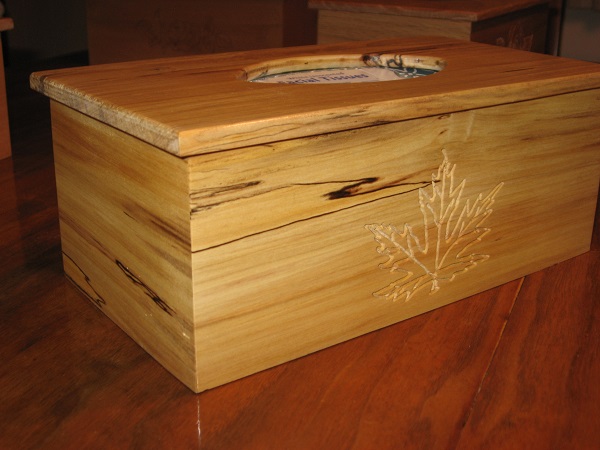

Beautiful boxes, Herb! Love the wood on the dragonfly one. And the maple leaf.... are you shipping that to someone in CANADA?

BTW, that pantograph looks MUCH safer than your electrocutional setup!

John

1 hour ago, HARO50 said:

Beautiful boxes, Herb! Love the wood on the dragonfly one. And the maple leaf.... are you shipping that to someone in CANADA?

BTW, that pantograph looks MUCH safer than your electrocutional setup!

John

No just one of the relatives here, I like maple leaves, except to rake. Maples are my favorite wood,along with oak.

I was thinking the same thing about the pantograph too John. not as many volts. and it only takes a couple of minutes the do a pattern and there is no mess or smell.

I just posted a thread on better pics of the engravings and wood burning of all 4 side of the boxes.

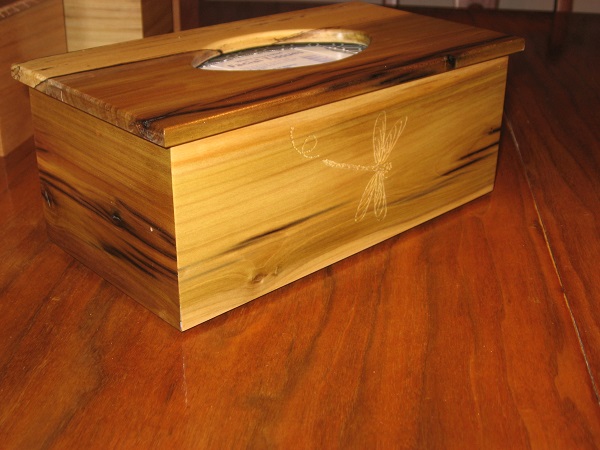

The wood for the dragon fly and maple leaves is spalted poplar.

Herb

Edited December 23, 20169 yr by Dadio

3 hours ago, Dadio said:

Maybe I should do a thread on the pantograph.



 Absolutely.

3 hours ago, Dadio said:

Maybe I should do a thread on the pantograph.

I hope so....

Nice boxes Herb.  Looks like something my wife might appreciate. That pantograph sure makes my Craftsman version look skimpy.

38 minutes ago, It Was Al B said:

Nice boxes Herb.  Looks like something my wife might appreciate. That pantograph sure makes my Craftsman version look skimpy.

I have the Craftsman too, bought it used ,never got around to using it. It is for making Larger engravings than the pattern. It came with a lot of patterns and letters. I liked this one as all my work is small and this takes up less room in my shop.

Herb

I like the tissue boxes !!!

Great job !!

I like your pantograph. I also have the Craftsman pantograph also but really haven't gotten into using it.

I tried it one time but didn't really have it set up right to use it. I think?

What router do you use with yours? Do you use a plunge router ?
