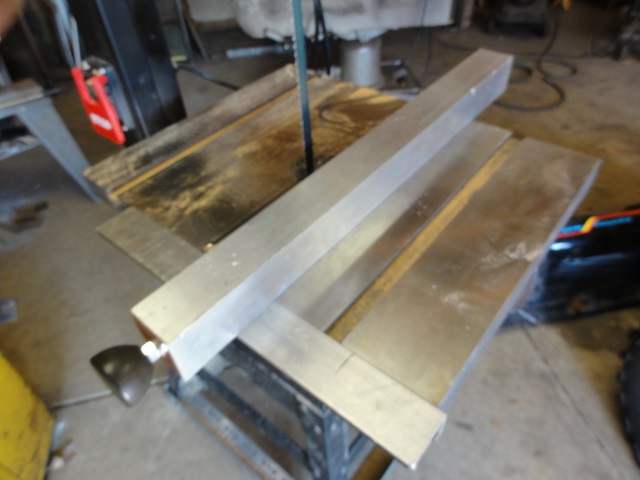

After I made the band saw fence I thought I should make an easier way to keep it in place instead of using a welding clamp.  After thinking it over for a while I came up with this.  I found a couple pieces of UHMW I had come across and saved.  To my delight they fit perfectly into  the square aluminum tube.

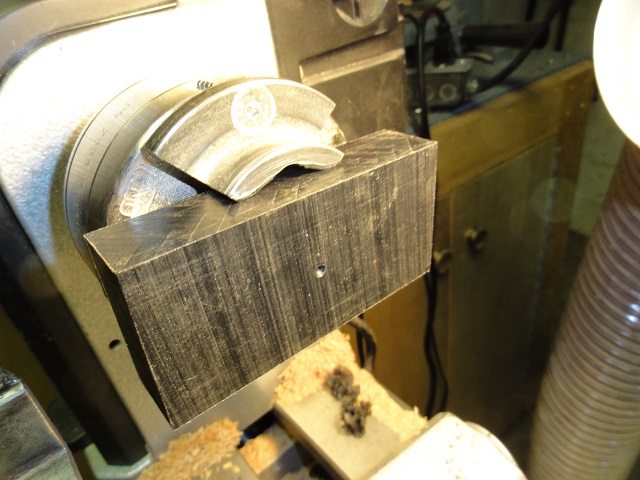

I drilled and threaded a couple holes in a 3/4 inch steel rod.  One hole for the lock screw and one hole for a lock bolt to hold on the table edge.  I drilled a hole in the center of the two blocks for the rod at the wood lathe and cut a dado in the two blocks at the table saw for the locking screw.

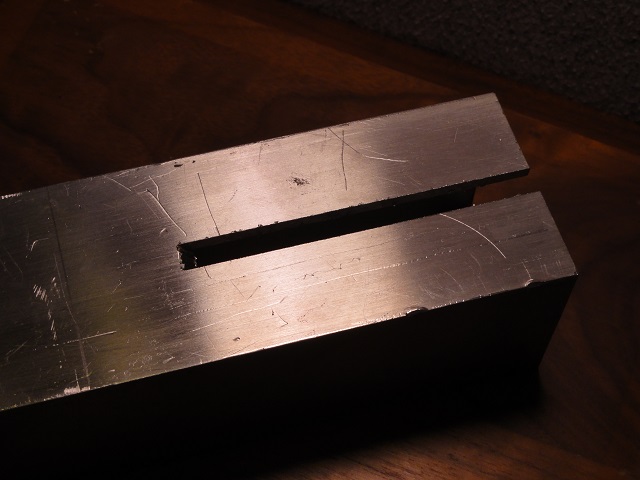

I then had to cut a slot  in the fence to accommodate the lock rod.  I did that at the table saw.

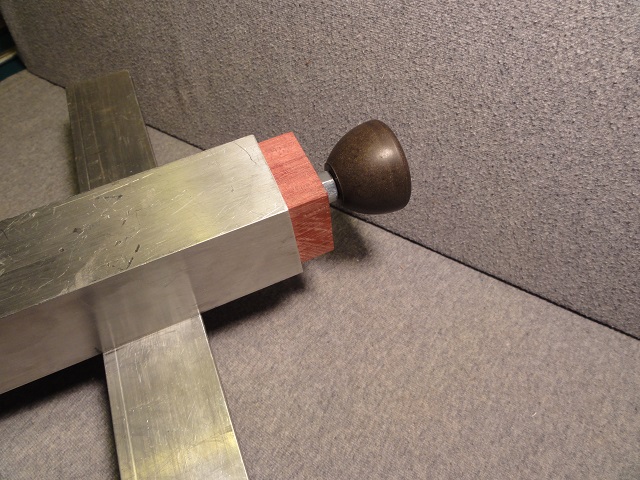

I found a short piece of Purple Heart and sized it to fit the front of the tube.  I locked two nuts on the all thread for the inside edge of the block and a nut and a knob locked together on the outside set to let the knob and all thread spin freely.





Inserted the black sliding block assemble,  turned the knob to get the thread started and all worked well.









I am thinking I might yet weld a tab to the lock bolt head for a little extra purchase on the table edge.
