Tailstock support for delicate turnings

Featured Replies

Gerald and I have discussed a tailstock support for delicate turning, such as tree ornaments. Your tailstock must have bearings to do this.

I found some very stiff foam at Micheals  that is 1" in dia and about inch long. I  fashioned a holder made of oak, pressed the foam in and drilled a tapered hole to accommodate the piece. I have not tried it yet, but will report when I  do.

exp tailstock.jpg

exp tailstock2.jpg

Cool idea, Ron!

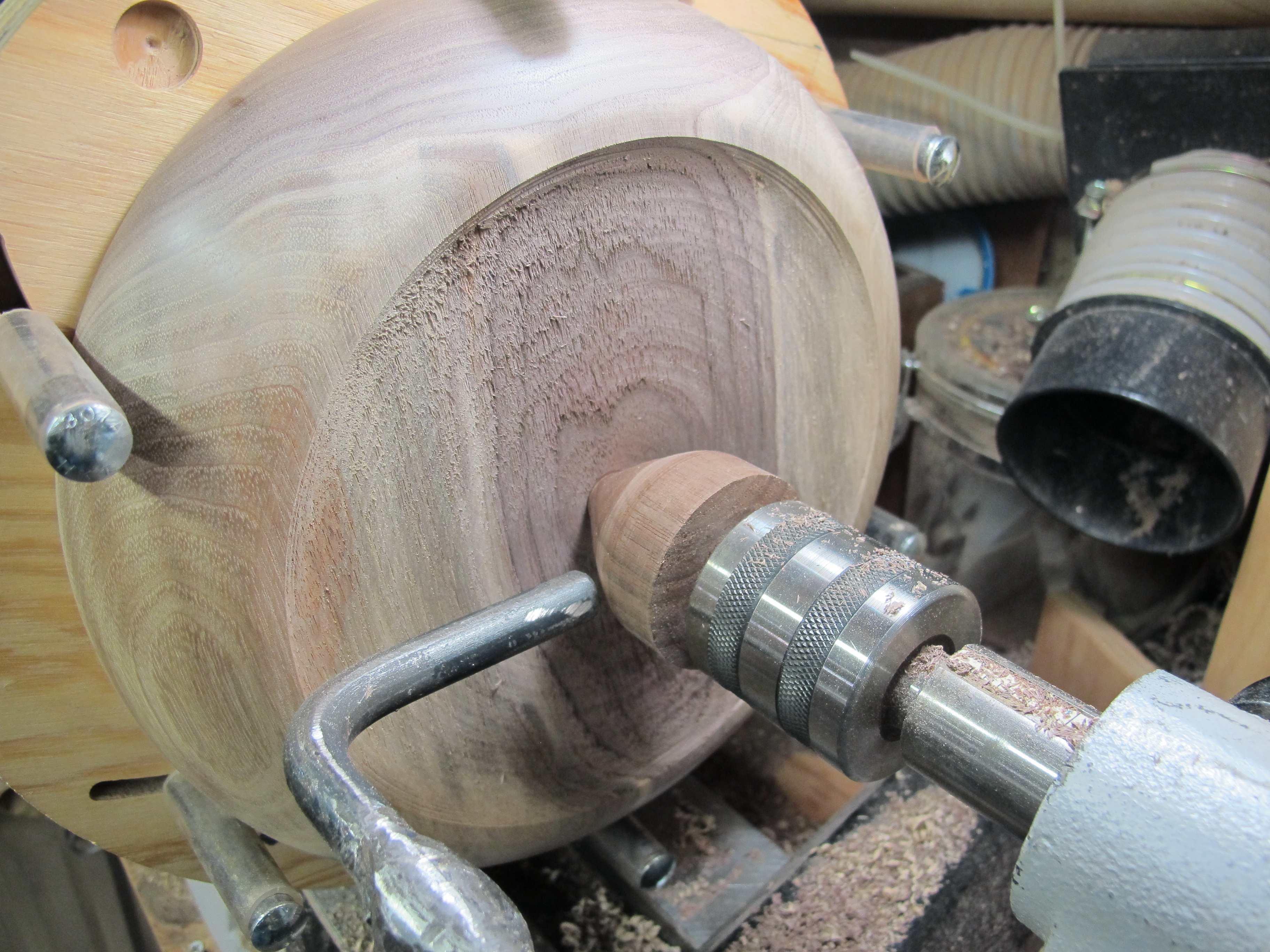

My tailstock center is the bearing type but the point is not removable. I make a "cover" end to protect the turnings.




I'm going to modify mine to look more like yours for some applications.

  • Author

The  one I have I got because there are 5 centers of different types that fit in. There is a strong magnet that keeps them there.

Ron I like your idea and I could see it being very useful.

2 hours ago, Ron Altier said:

The  one I have I got because there are 5 centers of different types that fit in. There is a strong magnet that keeps them there.

I looked at that one. Some of the reviews said the tolerances between the different centers and the hole wasn't very good and there was some wobble. Did you find this to be true??

Looks like a good idea.  What section was it in at Michael's and what was the name/description on the package?

  • Author

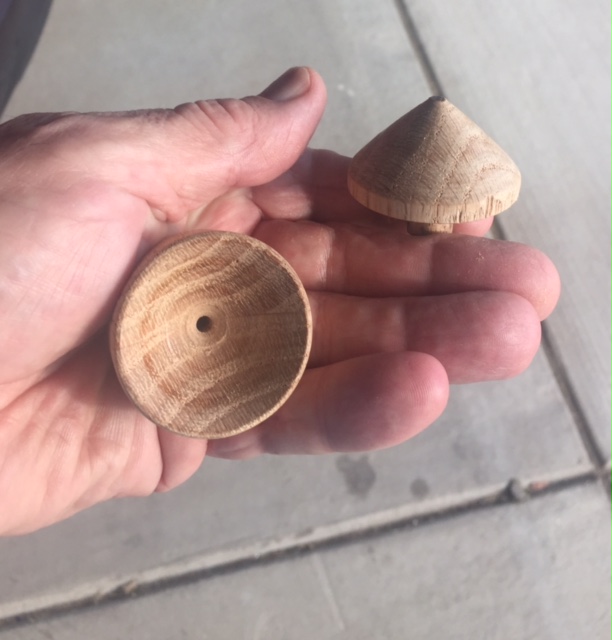

I did find that a couple of the tips were looser than others. However I only use a couple of them most of the time. There a couple that I have no idea what they are used for. I turned a couple of large ones out of Oak that work well, mostly in  centering. The main tip holder with the bearings is true and tight.


  • Author

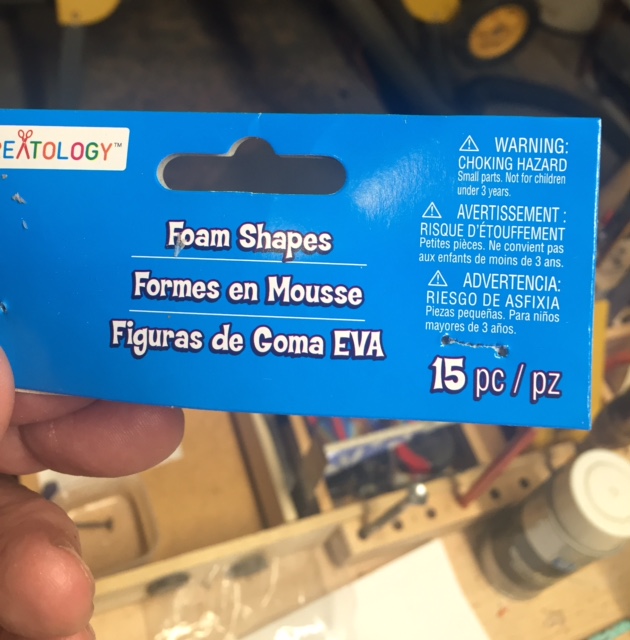

Dan, they came in a package of 15 and cost maybe 3 bucks. I can't tell you the section, but here is the label. I did try it out just for a test and it did seem to work, however it was a short test and I can't tell you much.


Thanks Ron.  I will know what I am looking for now.
