Pine Rocking Chair, posts are getting done

Featured Replies

Well getting close, anyway.



Chopped and fitted the stretchers to a front post..

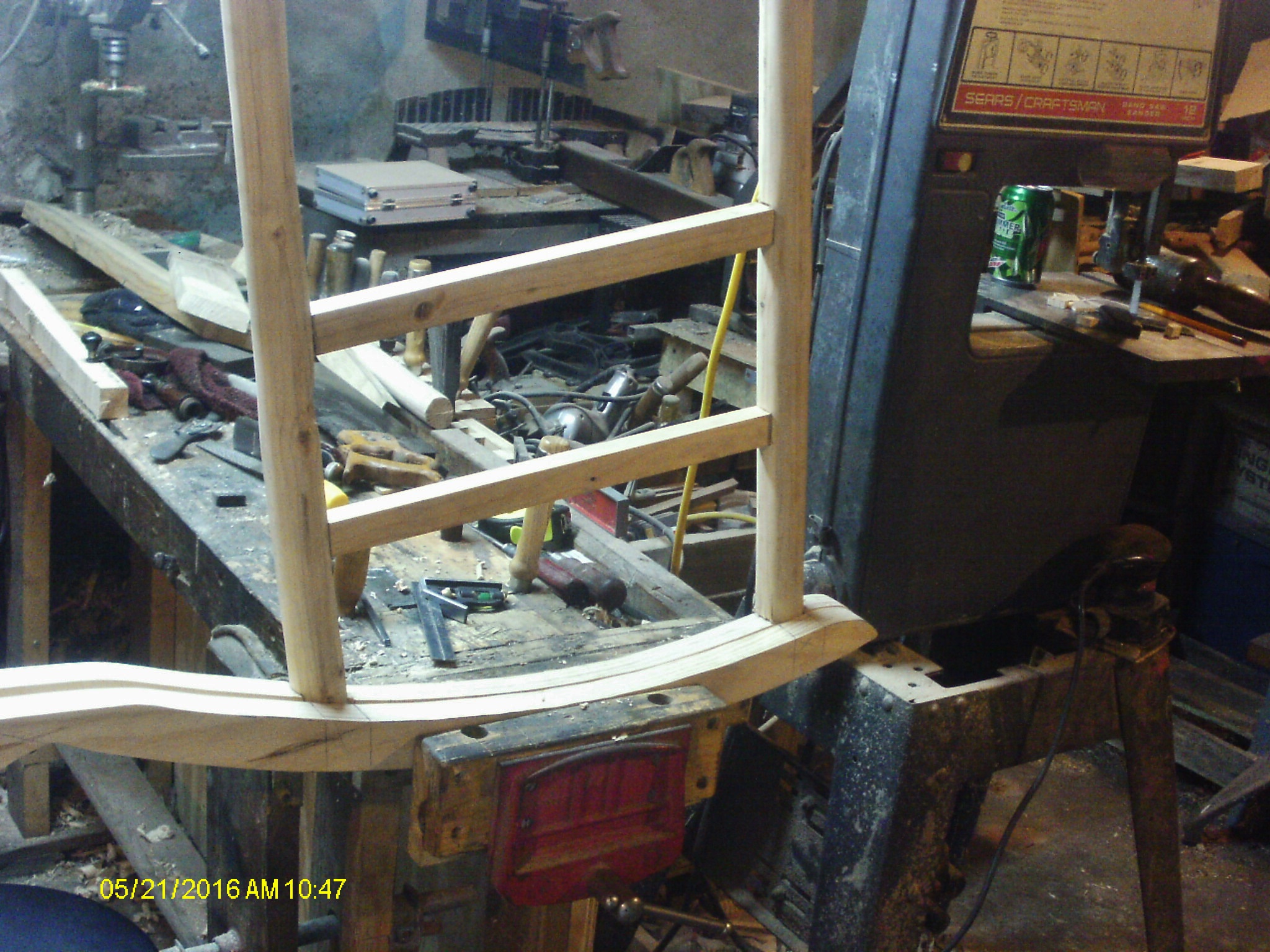

stretchers installed.JPG

Tenons  go into housed mortises.  Saw down a hair, chisel away until the stretcher fits flush to the post

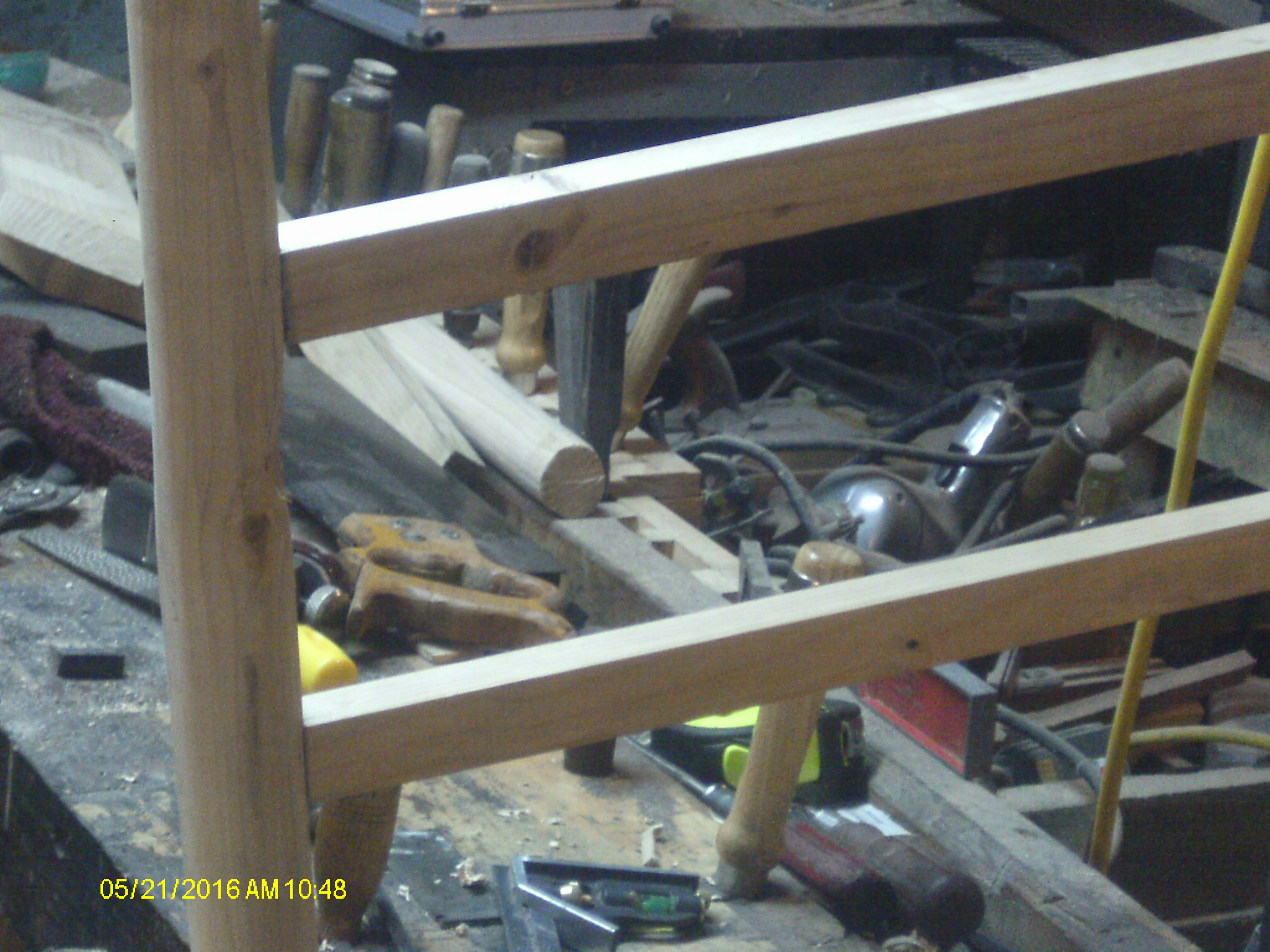

housed tenons.JPG

Shape, sand fill, sand some more...after it is all glued up.  Laid out for the rocker that goes into the other set of posts..

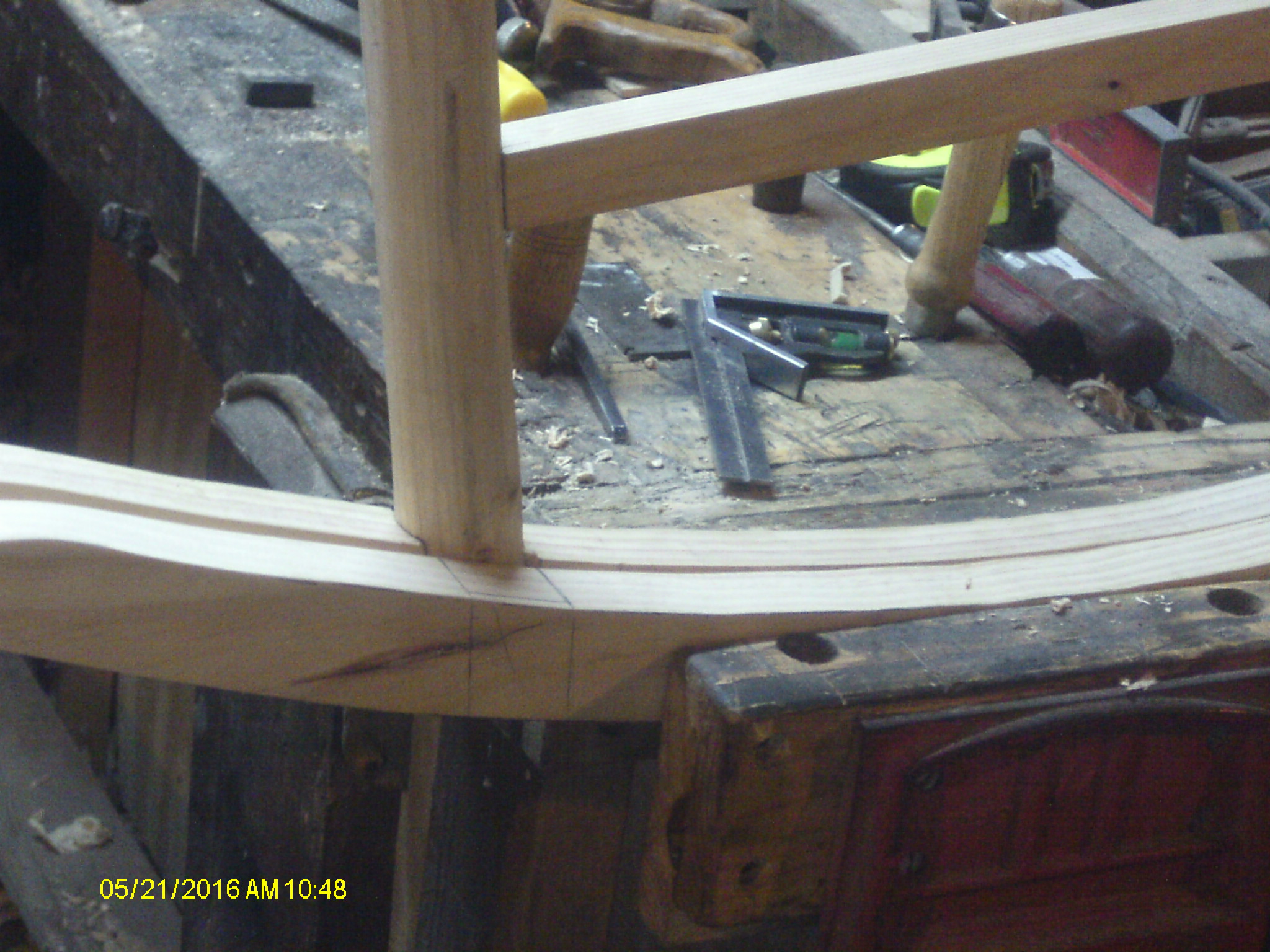

post layouts.JPG

Clamp the rockers together, transfer where the posts go.    Set the square to mark for an 1/8" deep bridle joint recess.

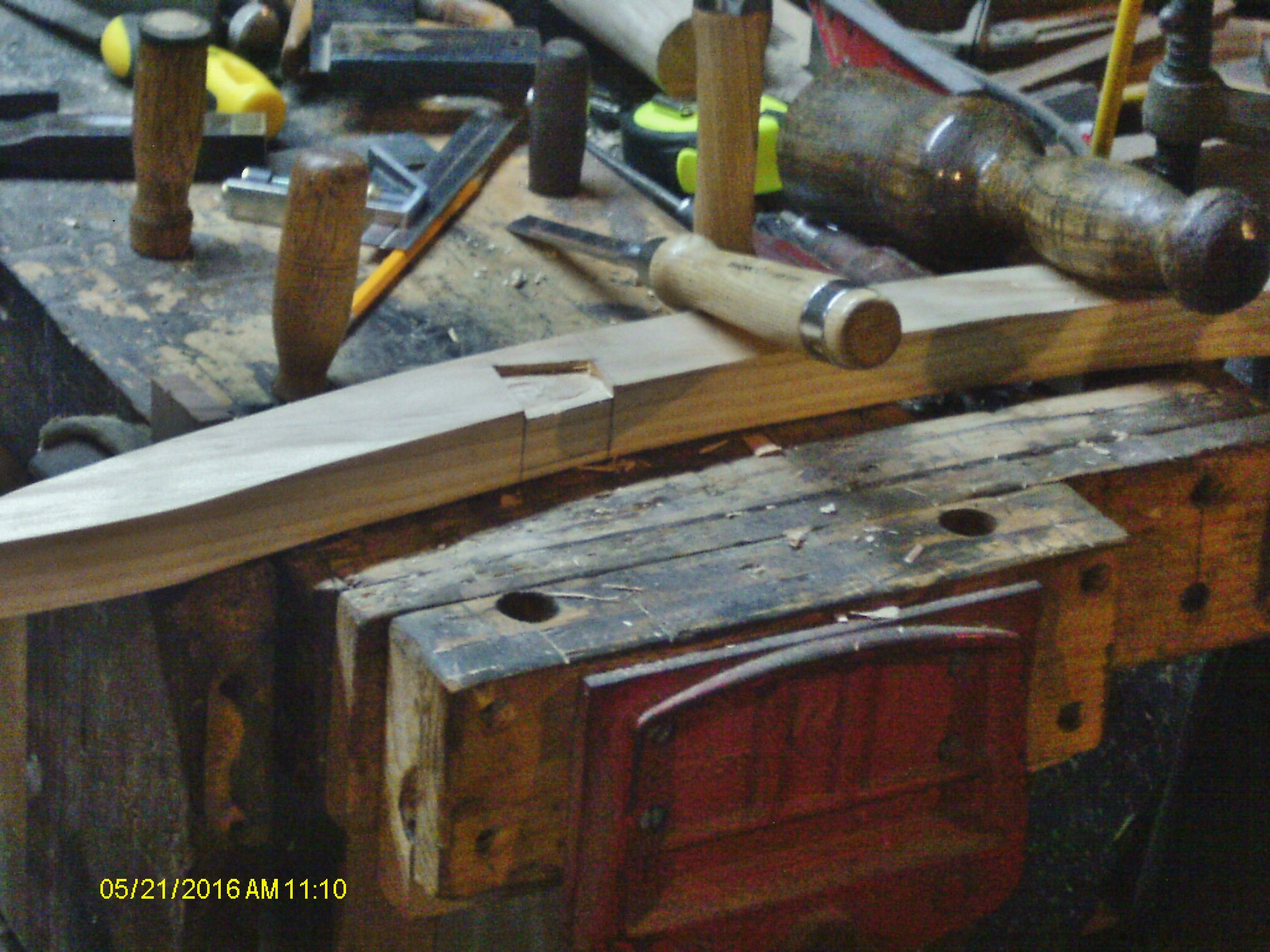

chopping out.JPG

One done, do the other three, and layout the other half of the joints, the notched ends of the posts

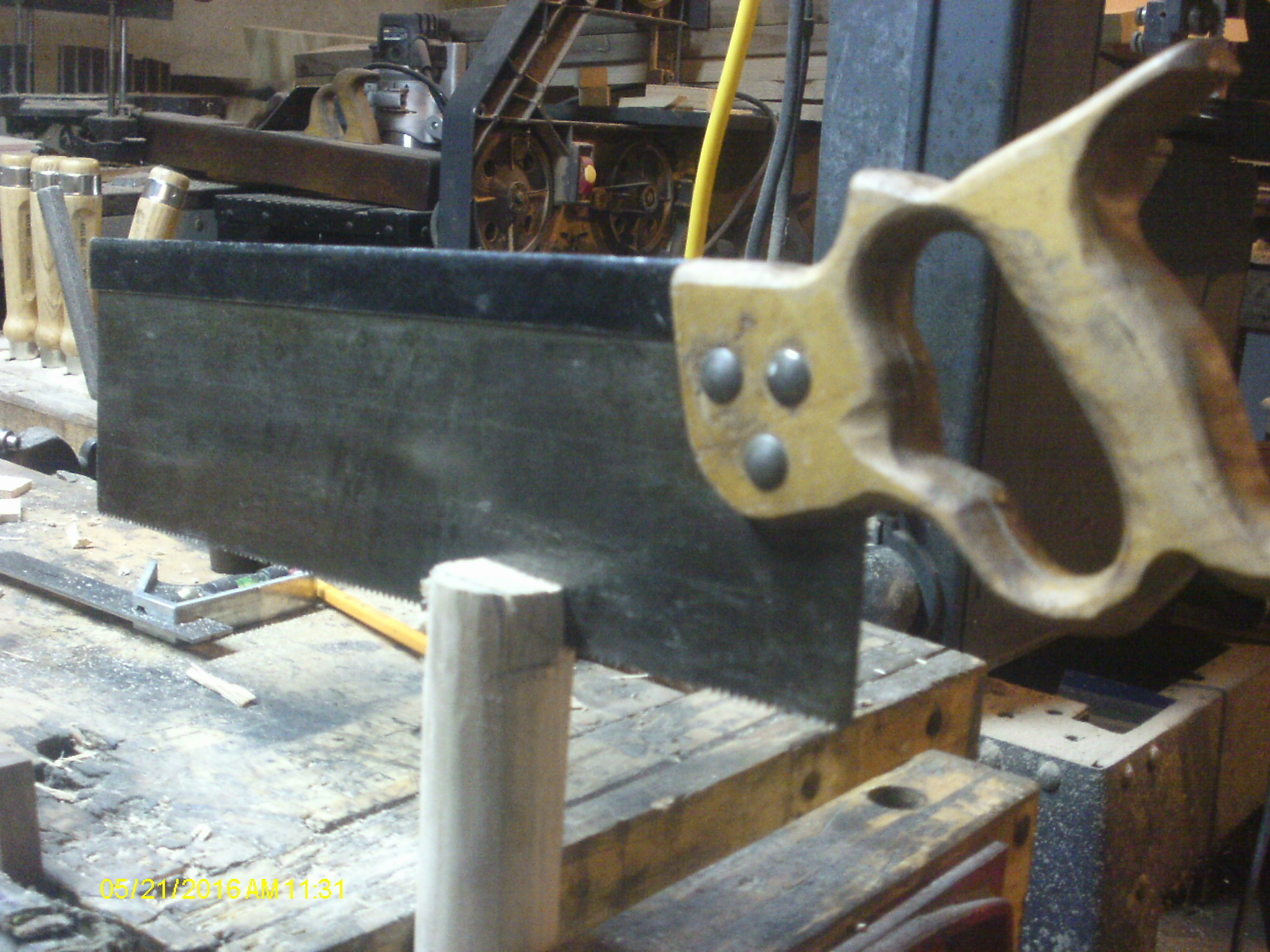

saw works.JPG

Saw a few lines, so I can chop and file, and coping saw away the waste..

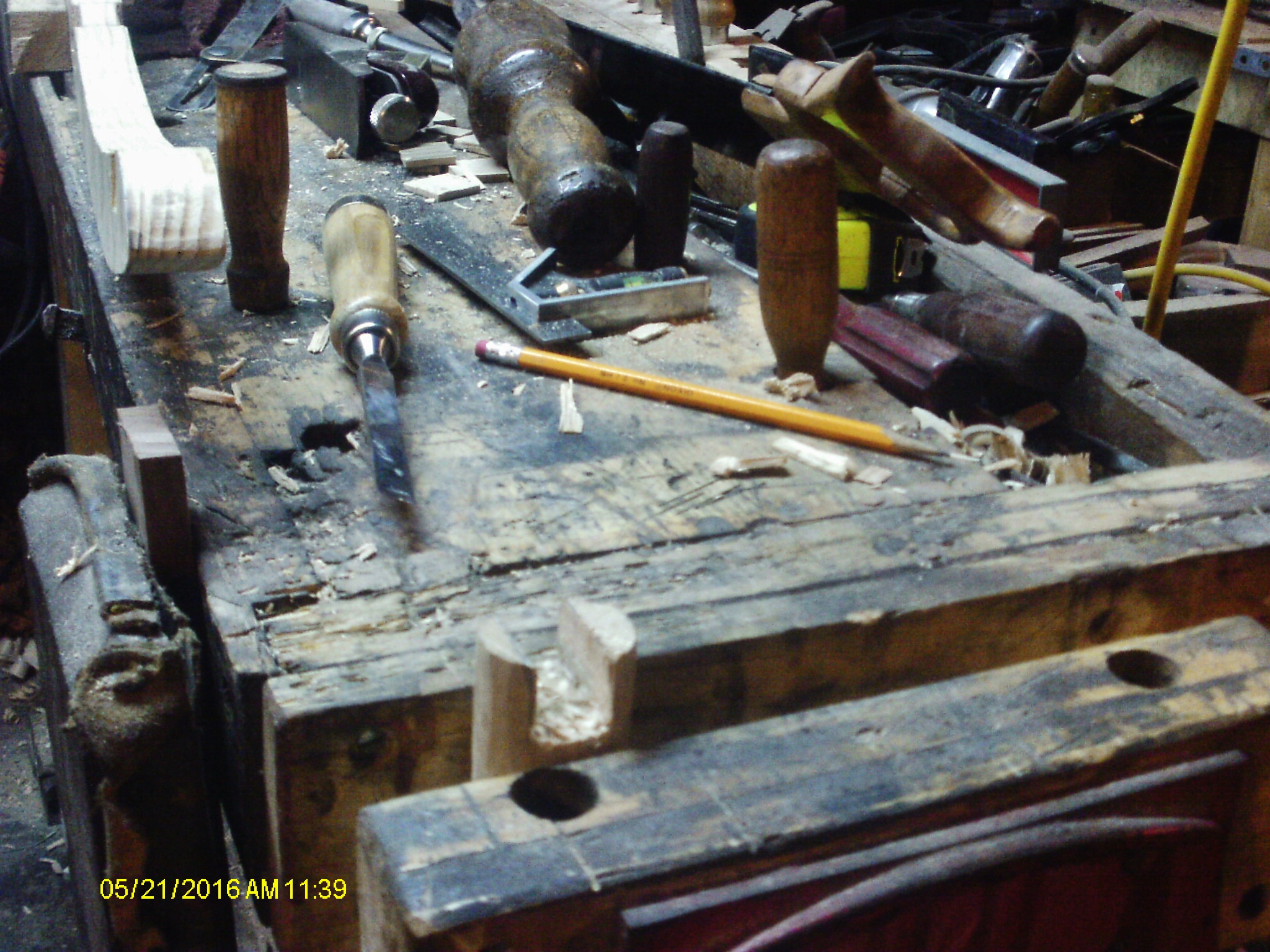

waste removal.JPG



Short post is almost flat across, the rear one? Not so flat.

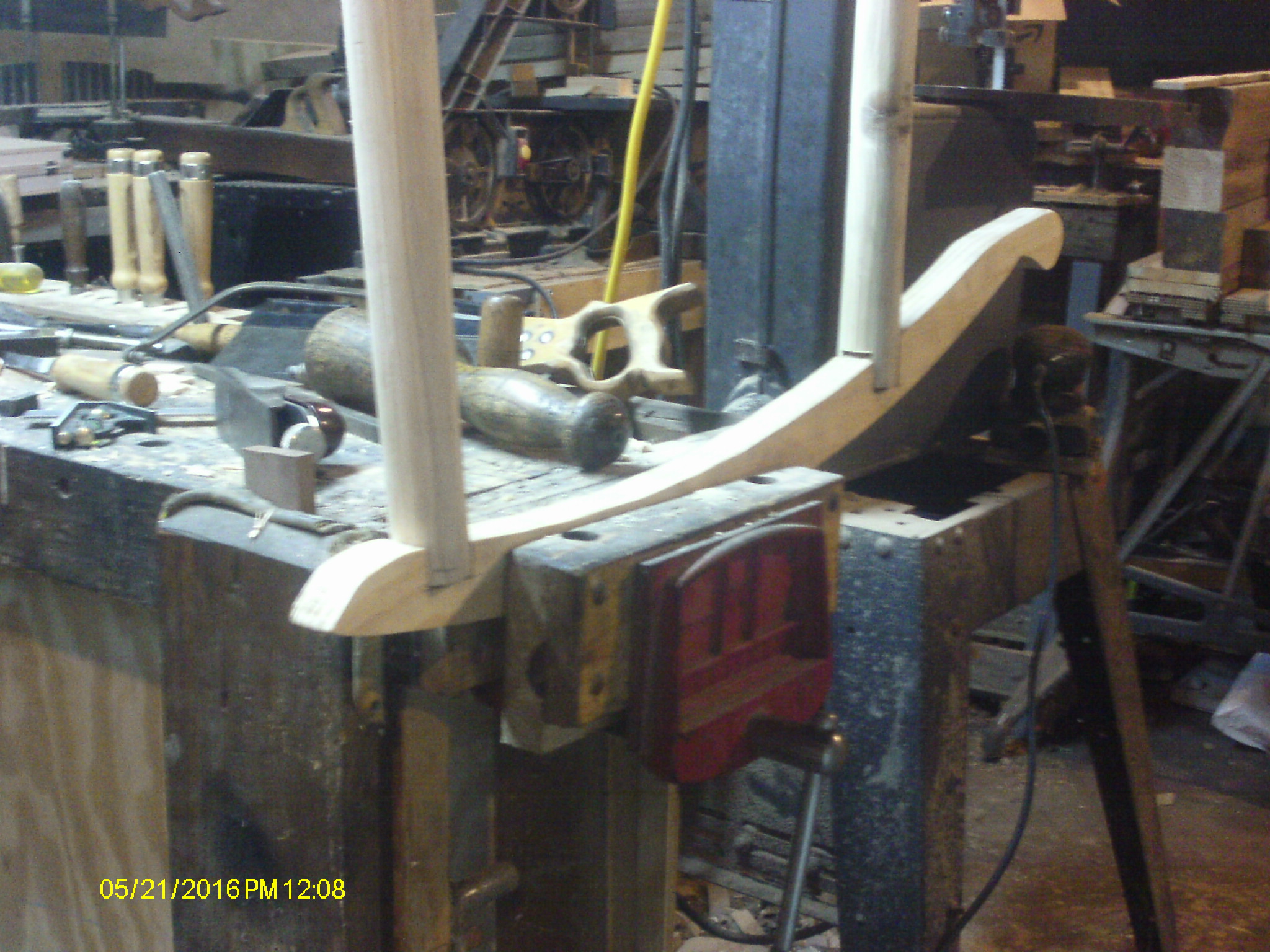

posts set.JPG



Test fits.   need to settle each down a bit.   Back one IS leaning a bit to the rear, though.    Fun part was clamping BOTH sides into the vise....needed to mark where the stretchers will go.    Then..BANDSAW two new stretchers, as I forgot to cut both sets.   Will need to joint those with a plane..later.   For some reason, just a little tuckered out.....whew...

  • Author

that is the plan...

way cool
