Hand cut dovetails & invisible hinge

MrRick
MrRick
in General Woodworking

Featured Replies

  • Popular Post

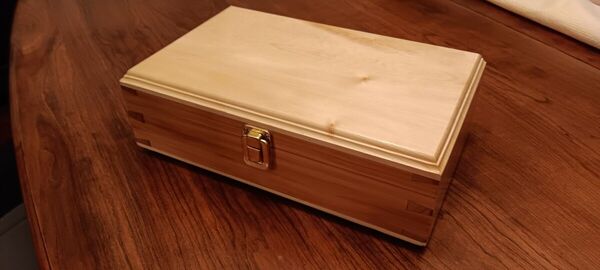

I made this box out of Pine. Everything is wood except this brass snap clasp on the front.

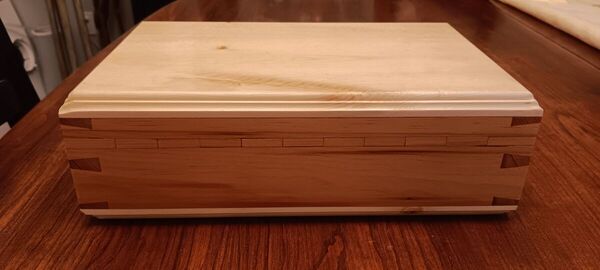

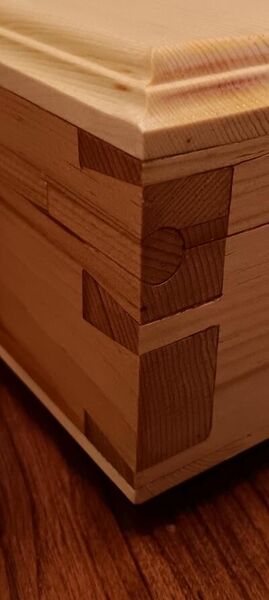

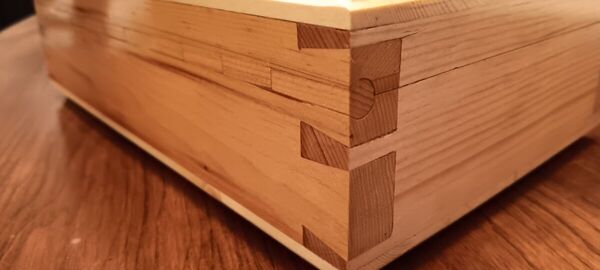

I made it with handcut dovetail work and a flush invisible hinge.



I also hand cut a Classic Ogee profile around the lid perimeter using the moulding planes that I made.


Thanks for looking!

Cheers!

MrRick

Edited by MrRick

  • Quote
    • Like 4
    • Love 1
    • Amazing 1

    That is one beautiful pine box Rick. Praise

  • Quote
    • Like 3
    • Author

    Thank you @Grandpadave52 !!

  • Quote
    • Like 2

    How did you construct the invisible hinge? Neat design feature.

    (Was just thinking how often I've struggled with regular visible hinges 😬😁)

  • Quote
    • Like 4
