36-714 reassembly

Old Dude
Old Dude
in Machinery, Tools, Research, Reviews and Safety

Featured Replies

i have a modle 36-714 delta saw.  it had been compleatly taken apart and scattered in the garage of the previous owner.  the table incsert was not to be found.  will delta's standard insert work?  i see on ereplacement parts schematic there are 7 shims.  i am guessing they go under the trunion mounts.  what are they for and do they all go in the one place shown in the schematic?

  • Quote
    • Like 1

    Old Dude, you got a schematic to attach?

  • Quote
    • Like 1

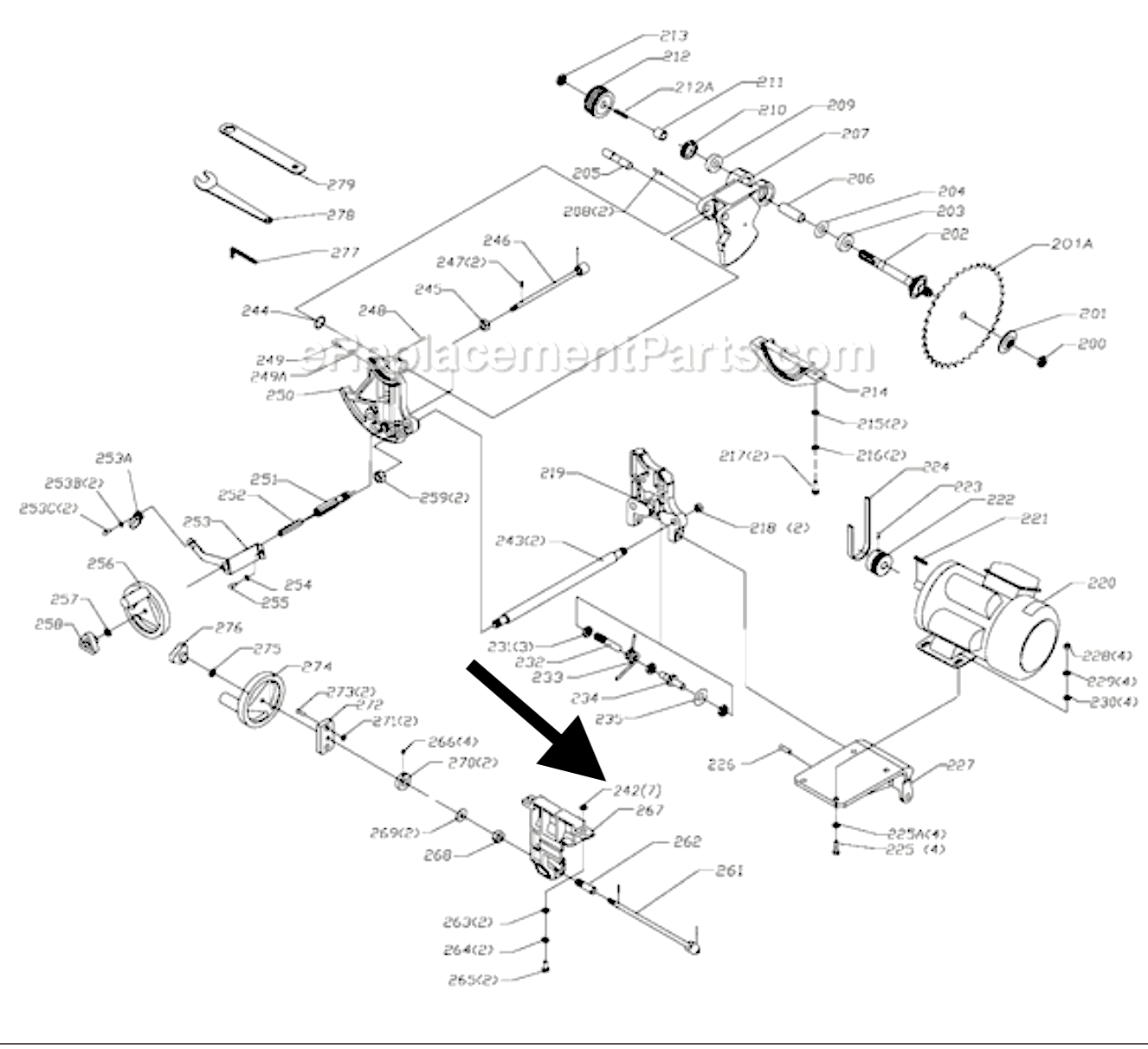

    I would imagine those shims are under each trunnion bolt as needed. It's curious they call for seven however.

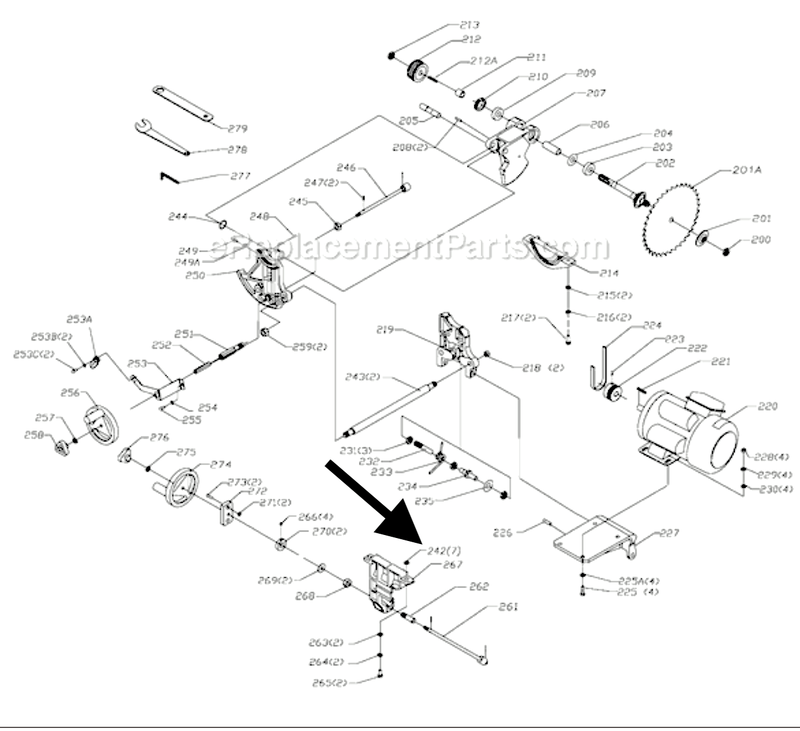

    Screenshot 2025-12-27 at 5.56.24 AM.png

  • Quote
    • Thanks 1

    Welcome @Old Dudeto The Patriot Woodowrker. Glad you found us and came aboard. Nice score on the saw. Hopefully we can help get your questions answered.
