Show Me Your Clamp Storage

[Ron Dudelston]

Gang, I am officially out of room in my shop so I need to get creative.  My pipe clamp storage consists of a peg board with the pipe clamps hanging on hooks.  I have about 25 1/2” and 3/4” clamps of varying lengths (2 feet to 6 feet) hanging and I need ideas to consolidate them.  So, whatcha got folks?

[lew]

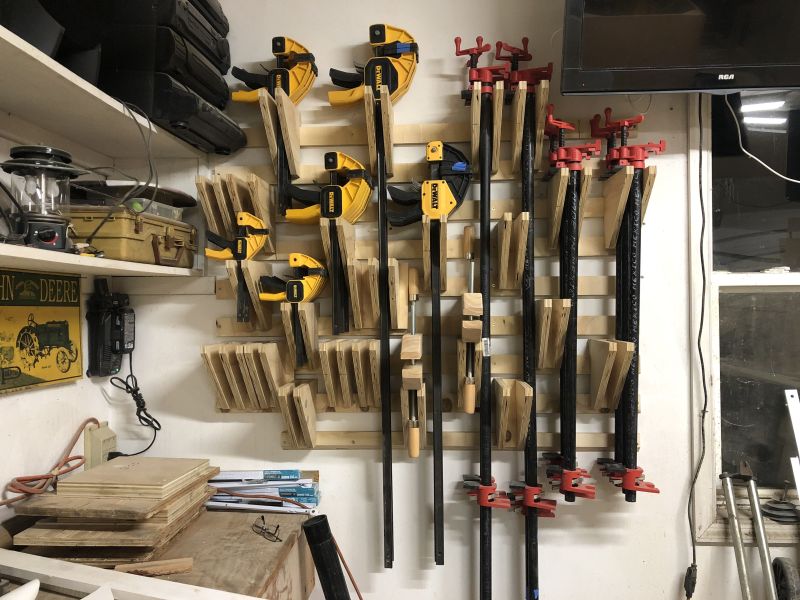

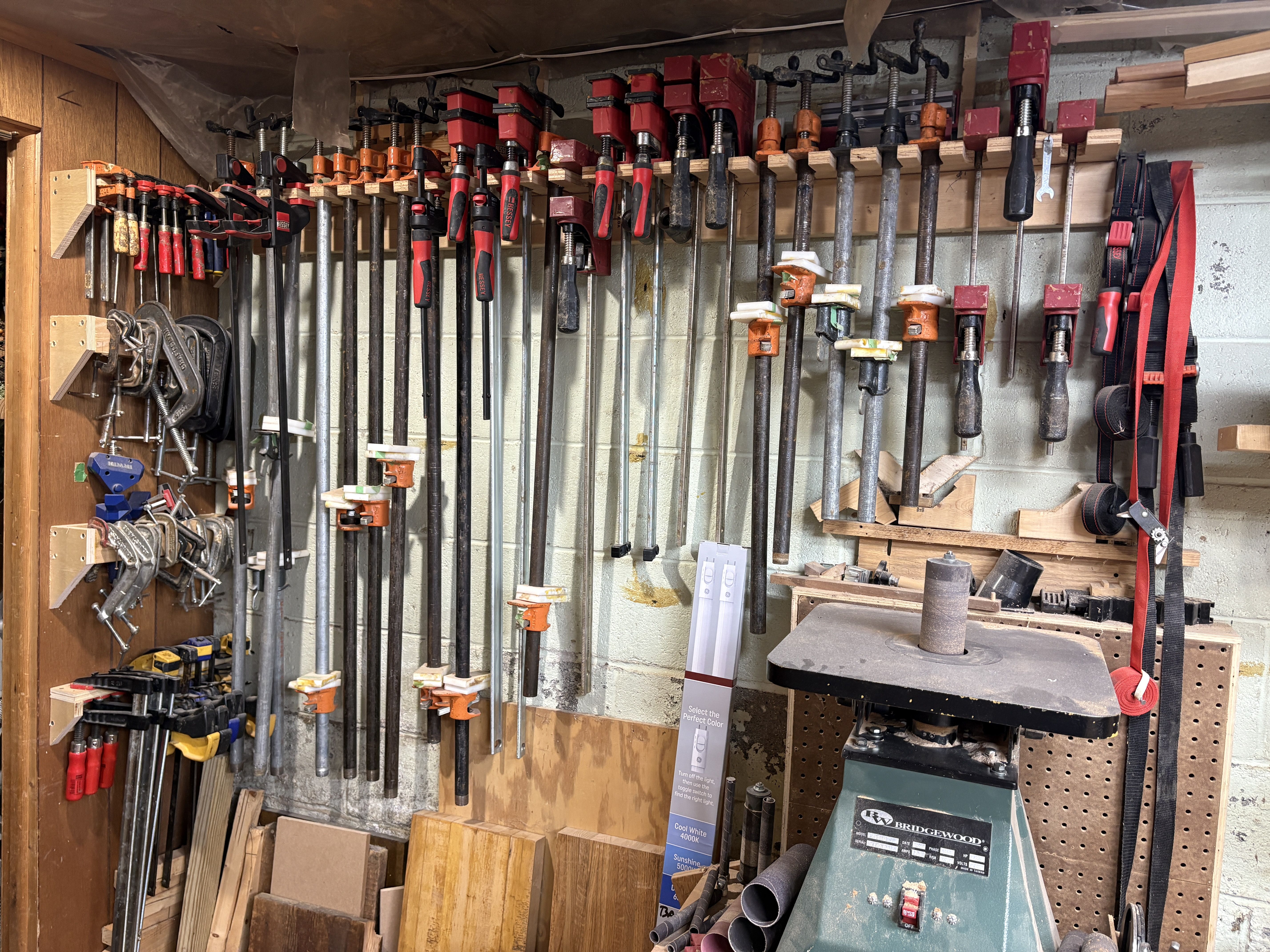

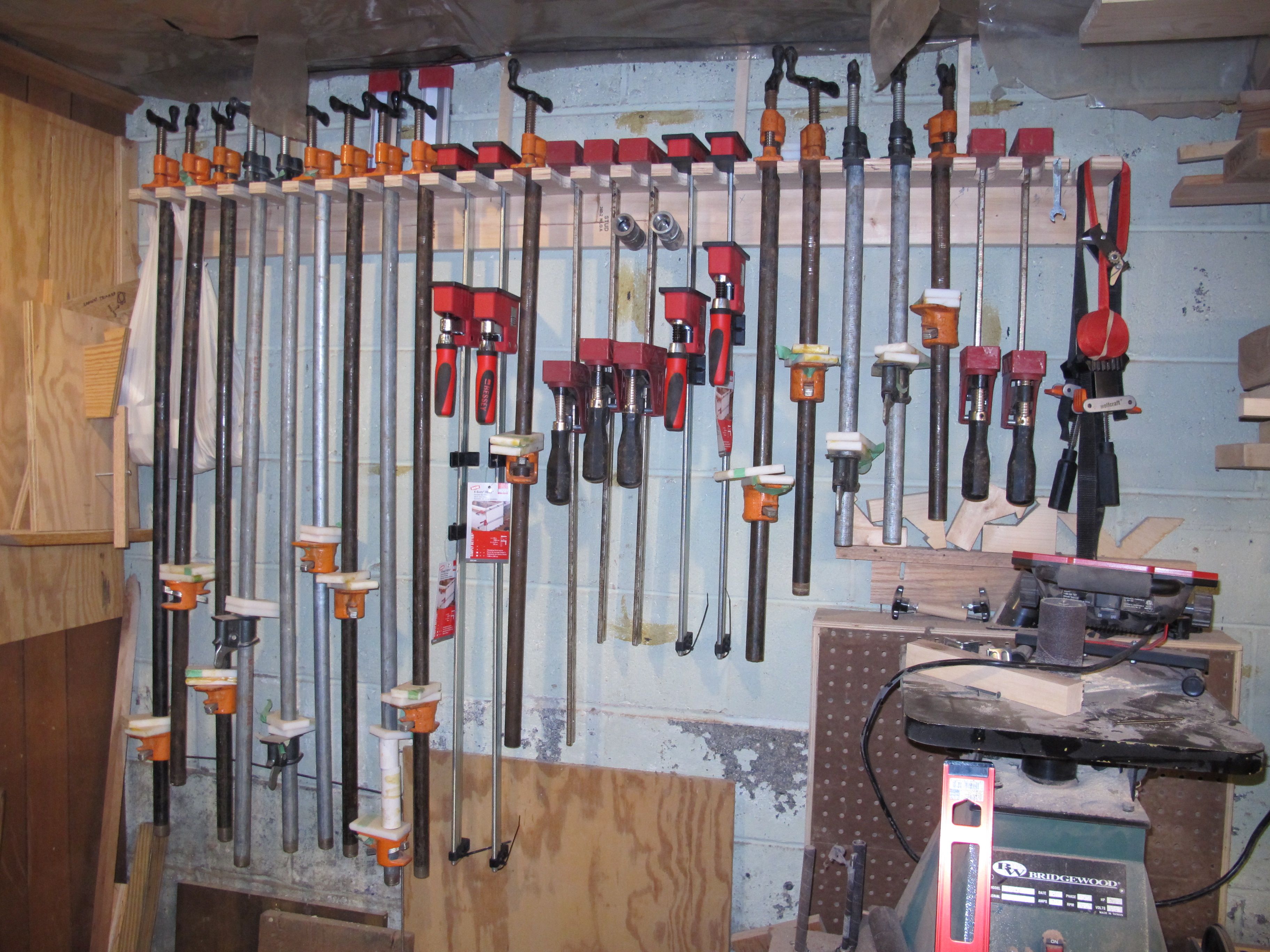

Since that one was made, I've added a smaller one on the wall to the left. Have to see if I have a pix of that. This one has a few more trigger clamps stows between the pipe clamps

left wall

[Larry Buskirk]

I've got a pile here, a pile there, and a pile somewhere else.

[Ron Dudelston]

11 minutes ago, Larry Buskirk said:

I've got a pile here, a pile there, and a pile somewhere else.

I feel your pain, Larry.

[John Morris]

Mine are hanging off the main beam in my garage. Haven't had one fall in the 24 years I've been keeping them there!

[lew]

1 minute ago, John Morris said:

Mine are hanging off the main beam in my garage. Haven't had one fall in the 24 years I've been keeping them there!

Cool idea!

[Ron Dudelston]

Lew, I like the rack for the hand clamps.

[Fred W. Hargis Jr]

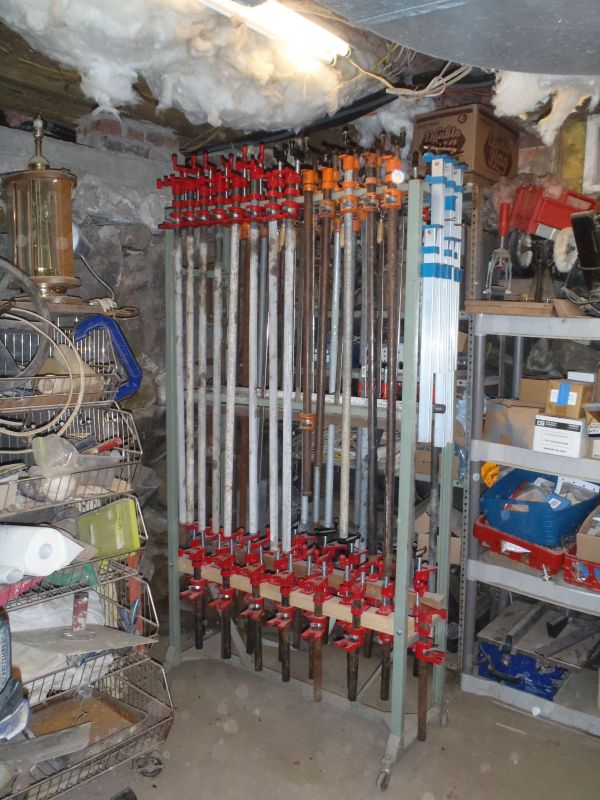

Most of  mine are on wheels, then I can put them out of the way. I do have a few hanging on the wall next to the bench and the assembly table tfor when i need one quickly. This was copied from Norm's design.





Edited March 30 by Fred W. Hargis Jr

[Ron Dudelston]

You can never have enough clamps, Fred.

[Larry Buskirk]

21 minutes ago, Ron Dudelston said:

You can never have enough clamps, Fred.



That's when I go next door and borrow some more!

[kmealy]

[Grandpadave52]

Wish I could help Ron, but first, I don't have a dedicated shop space and second I bought into the McDonald storage system...a clamp, clamp here, a clamp, clamp there, here a clamp, there a clamp every where a clamp, clamp, 'ole McDonald had a clamp, now where did they go.

[Larry Buskirk]

16 minutes ago, Grandpadave52 said:

Wish I could help Ron, but first, I don't have a dedicated shop space and second I bought into the McDonald storage system...a clamp, clamp here, a clamp, clamp there, here a clamp, there a clamp every where a clamp, clamp, 'ole McDonald had a clamp, now where did they go.

 Looks like I'm not alone!

[frenchwwr]

A repurposed hanging rack works for my pipe clamps

My DeWalt Bar Trigger Clamps are hung anywhere I have hooks in either of my shops

[Gerald]

I plan for somethike Fred has in my new shop but for now a repurposed wall shelf bracket.

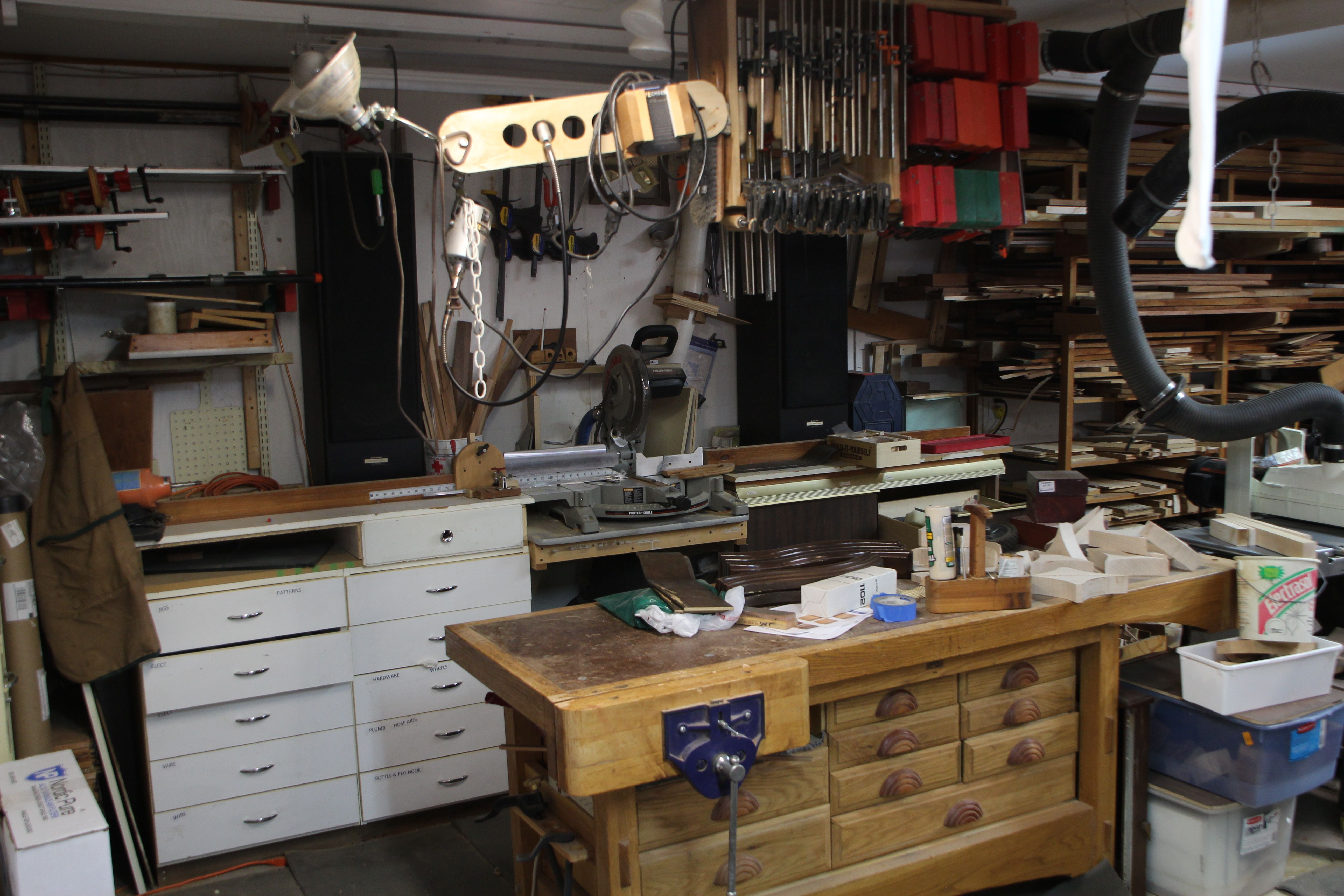

To he left on the wall you will see my long clamps . Over the bench are all F style and parallel clamps.

[Fred W. Hargis Jr]

Keith, is your rack on casters???

[kmealy]

On 3/31/2025 at 5:23 AM, Fred W. Hargis Jr said:

Keith, is your rack on casters???

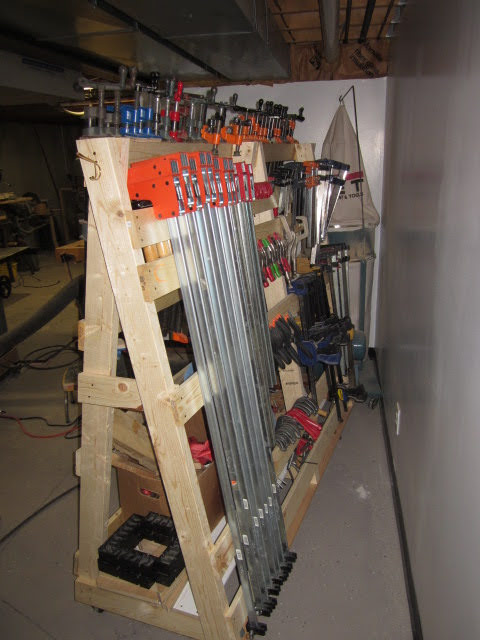

Yes.  Casters on the corners



I also have a small assortment of F-clamps, Quick-Clamps, and two Matchfit clamps in a drawer in my assembly table.



I got about 100 misc. clamps a few years ago from a guy that was moving out of country in about 48 hours from that point.  Prior to that, I put some 1x2 across the ceiling joists in my basement shop. and hung bar clamps from there.





[Zack]

I use french cleats screwed to the wall

Edited April 3 by Zack

[DuckSoup]

Mine are similar to Zacks but 4 on a rack. Vice grips I just used an angle iron.



[4DThinker]

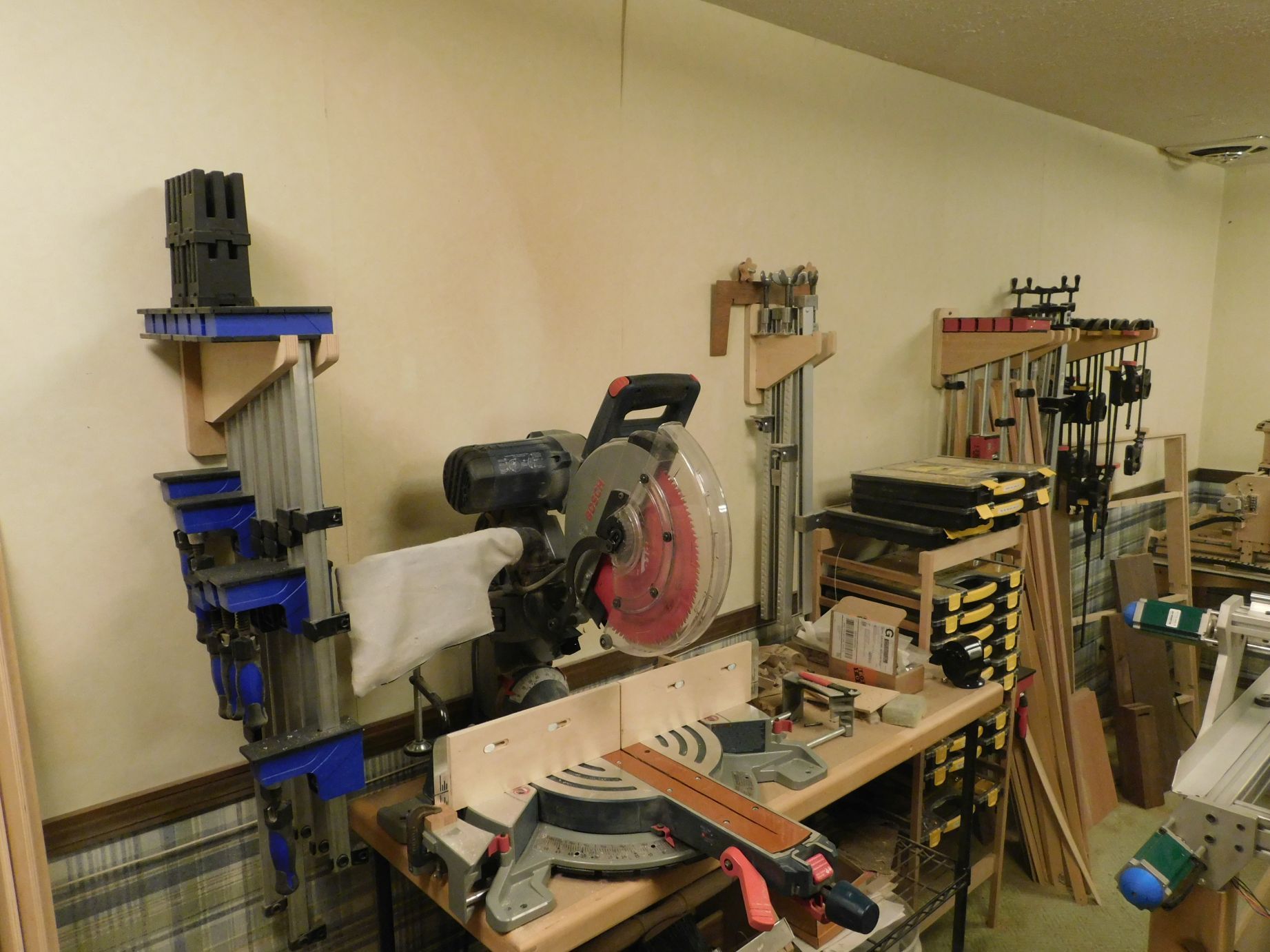

I've got more wall space than floor space, so bar clamp racks on the wall, and C-clamps hang out on the perimeter stretchers of my CNC base.

Bar clamps:

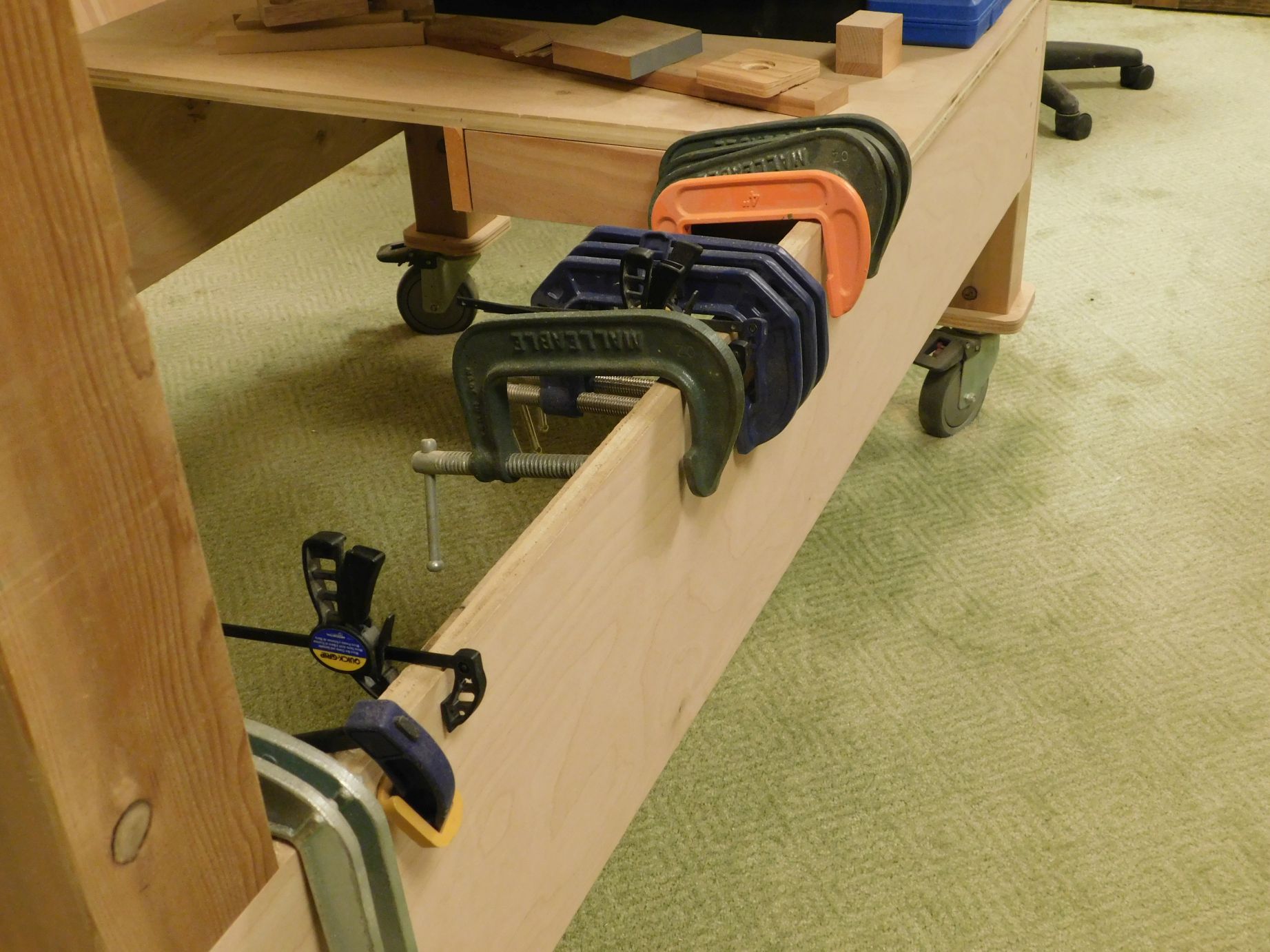

C clamps that aren't in use:

4D
