"What's It" Basic Rules Reminder

For a full run down on this project and rules please go to: "The Patriot Woodworker and MWTCA "What's It" project"

• Only Patriot Woodworker Members are eligible to participate and receive the award.
• The MWTCA only accepts a verified source to support your answer, so one should be submitted with your answer, such as a patent, catalog entry, tool book reference, or a respectable website on the subject. Do not let these requirements prevent you from having fun and submitting educated answers on the subject without verification, we can worry about references later. All answers are welcome, as well as healthy debates regarding "What's It".
• If a verified and referenced answer is not arrived at by the end of each month's "What's It" project, a random draw will be performed for a "One Year MWTCA Club Membership".
• Only Patriot Woodworker's who participate in this "What's It" topic will be included in the random draw.



Additional What's It Rules

• Unless you are completely sure what this item is, please avoid "definitive statements" that appear that you are without a doubt claiming that you know what the item is. For example stating, "this item is called a "widget xx" used for "insert purpose here". If you are making a definitive statement you must accompany your statement with evidence or proof from a secondary source.
• An example of acceptable statements within the realm of having fun and educated guesses would be something like this, "I believe it could be", or "It appears it's made for this or that", etc etc etc...



Ok ladies and gentlemen, we now have our "What's it" live and ready!

The image(s) below is a MWTCA "What's It" image for you to research, and tell us all here in this topic post, just what the heck is it!



Project Details

The information provided hereon is all the information that is provided, no further information on this item will be added.



There is no writing or print anywhere. There is a   spirit level on top.



The round knob on top will loosen to allow a tiny rule to slide completely out. It looks like a little T-Square about 3.5 inches long



There is a lever of some type on the back that will rotate up and over the spirit level and it also slides to and fro. When the rule is completely slid into place, it rest about 1/16th” above the tabletop. It is NOT flush with the bottom.

Stanley Butt hinge gauge?

Maybe for hanging doors?

Some type of measuring tool but why the level?

2 hours ago, HandyDan said:

Some type of measuring tool but why the level?

If it's used in hanging doors, the level would be handy.

Door Jambs would be the item worked on.    I don't think they used this to set the spacing on clapboards.....they had regular gauges for that.



I do remember this was made by Stanley.....just can't remember the Model No. on it.

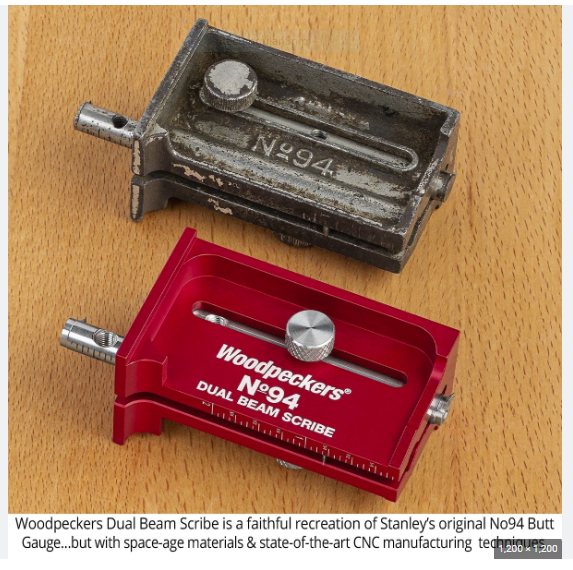

This is the butt gauge I remember old and new.





Winner

@Gene Howe has been selected as this months MWTCA Membership recipient.

We based this decision off of random picking.



Award

Gene, for your participation you have won a 2023 Calendar Year membership into the MWTCA.

Please Private Message me your contact info, shipping address, spouse or significant others name (if applicable).

Thank you all for your participation!



Links

• https://mwtca.org/member-benefits/
• https://mwtca.org/the-gristmill/
• https://mwtca.org/special-publications/



Gristmill Magazine Sample



Congratulations Gene!

Yeah Gene!!!

Congratulations Gene
