It has been several years since I have made one of the big clocks - - - so - - -- In looking at the few big clock patterns I decided to make the Work Shop Clock - - - I also decided to put the motor in it so the table saw, disk sander, etc would actually work - - - CherryTree did not include the part number of the motor that was discussed in the ad- - - called them and was advised that they no lo9nger carry said assembly ! ! ! !  Found one that I hope works.



obtw, url for the clock is HERE



Will keep y'all posted on progress.



fred

Will be interesting to see how you get that to all work.

Wow, that will be one nice clock!

Now that project ought to keep you busy and off the streets awhile Fred!  Looking forward to your progress pics.

These types of projects are always impressive.

Fred I'm not sure if you are familiar with movement thicknesses so I'll say get the movement you will use with the clock and make sure the hole size matches the movement stem diameter and it being long enough for the washer and nut. Klockit does give free hands with their movements so make sure where ever you buy get the hands at the same time and you do have to choose which style hands you prefer..

  I believe I remember reading here on the Patriot site someone ended up with hands that didn't fit ...

I did decide to buy all my movements from Klockit so every thing will fit when its time to insert the movement and hands. also most all my customers prefer the wide hands, makes it easier to see the time.

I was going to show a clock from a distance but they have removed the add a picture thingy down at the bottom left side!!!

WOW! That's gonna be one fantastic clock!

Patch - yes I am familier with the right size holes and stem length - made that mistake only once expensive mistake.



Got a couple of "in progress" pictures for ya.

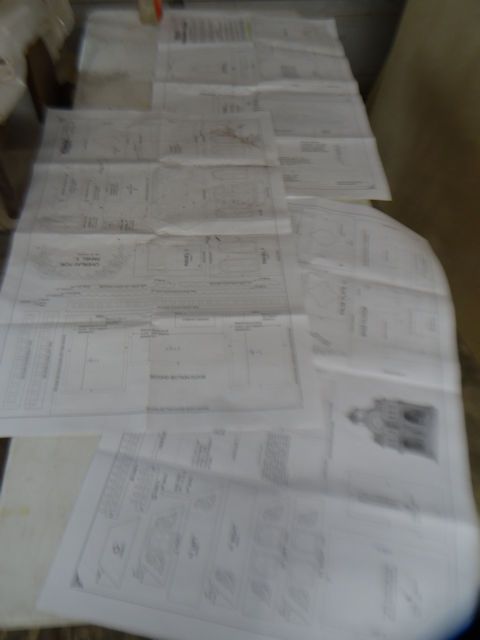

Five pages of plans

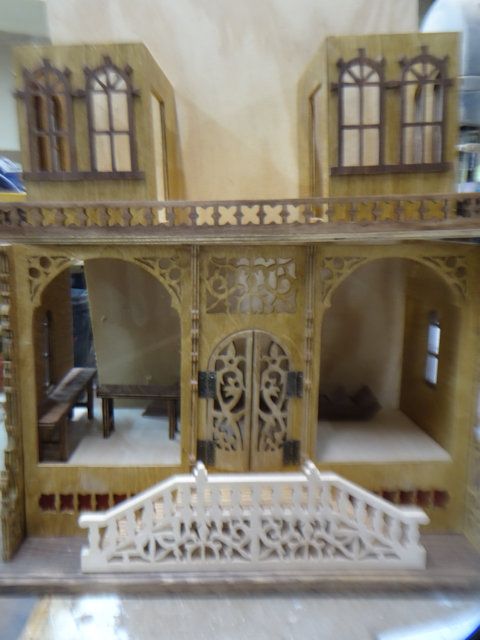

Initial phase of the first floor

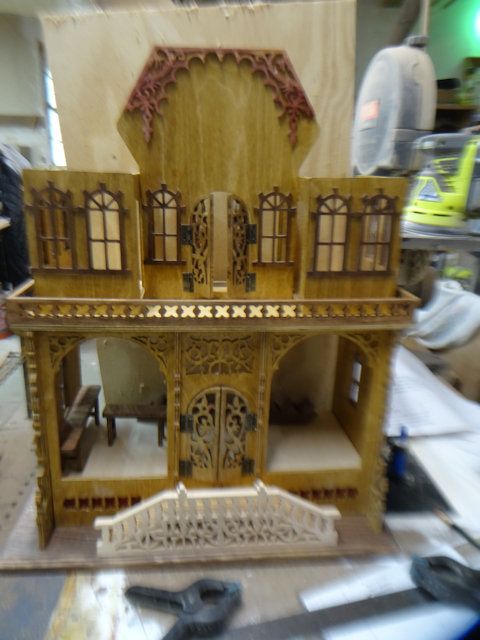

Initial view of first and second floors



Detail work on these floors has begun.    Hmmmmm interesting project so far





Off to a great start Fred. Very nice clock.

Wow!  This is one progress report that I will be watching.  Love the shop on the first floor.  Hope there is a kitchen upstairs where the cook is preparing the meals.

That's coming along nicely.  You must have the patience of a saint to do all of that fine scroll work.  I like all of the fiddly bits, just not sure I could make myself sit down and do it.



.40

You are definitely off & running Fred. What wood did you use for the front step railing?



1 hour ago, DuckSoup said:

You are definitely off & running Fred. What wood did you use for the front step railing?



Bob - I used 1/4" Maple for the railing.

Steve - great idea for the kitchen - will see what I can do

40. - cutting and gluing "fiddly bits" can be fun - mostly they can be a pain in the a _ _



Hey guys, been a while since I have updated pictures.  Clock is almost done.  Still have some work to do in making the pullies since a couple of them were, shall we say, out of round.  Tough making them on the saw.  Any how, here are the pix.

The "shop" part of the first floor.  Grinder in front, sander in the back (red) and table saw in the back left corner.  Using rubber bands for the drive belts.

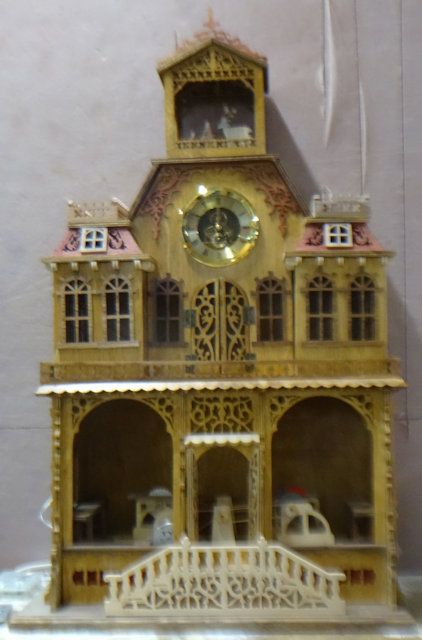

Completed clock.  With the back on, it's kind of tough to see the work shop. Soooooooooo

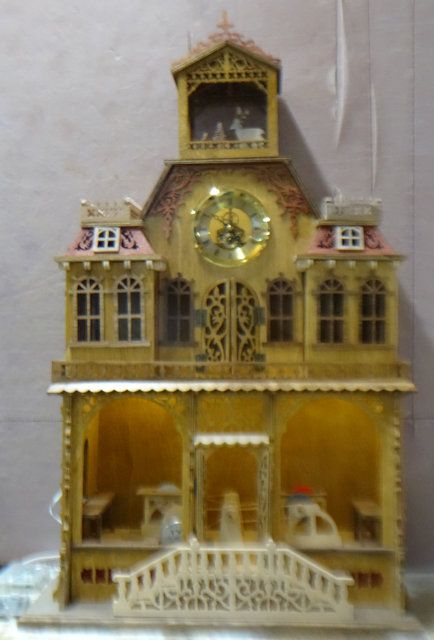

In inserted a 60-light fairy light string.  Shown here with the lights on.

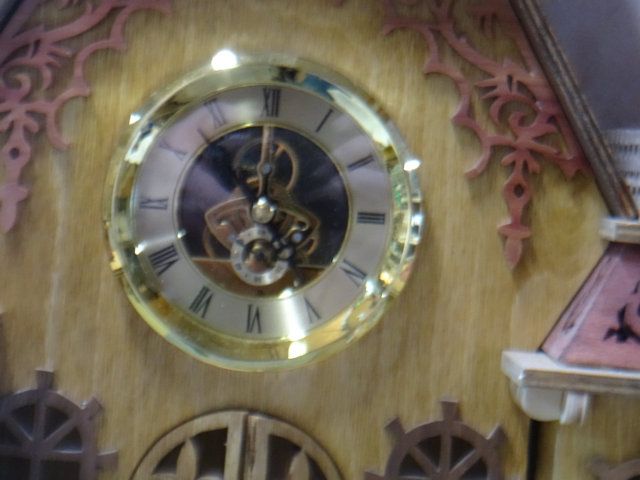

Here is the insert that I used.  Interesting to see the gears.  But.........

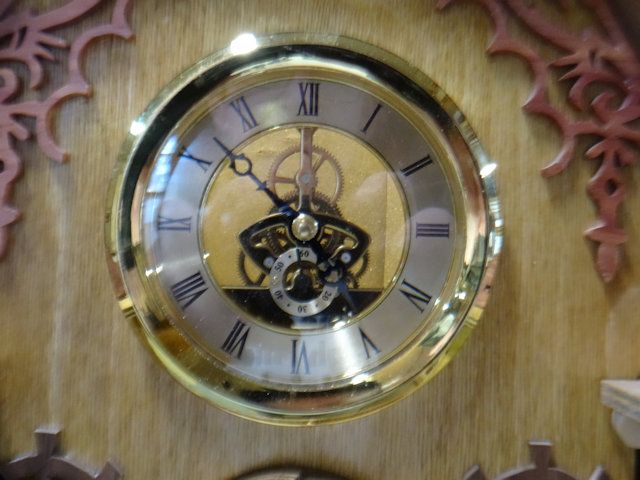

I put some lights inside the clock box.



OK, that's it for now.  No, I didn't keep track of my time.

OMG!!! That is fantastic!

Absolutely awesome!  I suppose the worker has to bring lunch and sleep on the floor.  LOL

EXCELLENT!!!!

Steve, The worker uses the stairs to go to the second floor where there will be the apartment.

Thanks guys for the kudos



fred

Holy moly! That is really nice!
