Shoulder Plane III

Dadio
Dadio
in General Woodworking

Featured Replies

  • Popular Post

Here is the 3rd version of the shoulder Plane. Input from an experienced wooden plane authority, I made some changes to improve the shoulder plane.

1. Enlarged handle so all 4 fingers would fit in side.

2.Remove the finger bumps inside the handle.

3. Tilt the handle 12°forward.

4. Make the bump on the back of the handle more rounded.

5. When I increased the size of the handle, I made the plane longer and higher to balance out the increase in handle size,

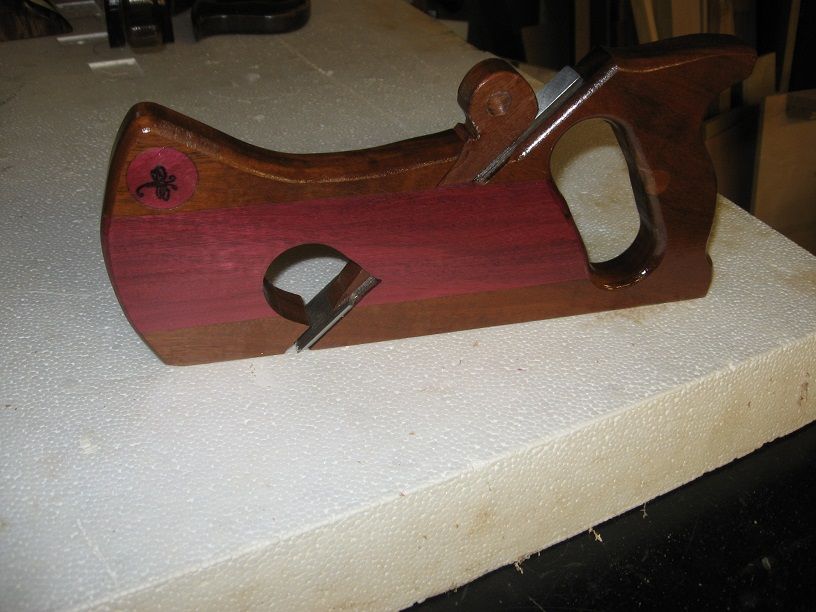

Here are the end results. It is much more comfortable,and seems easier to use.

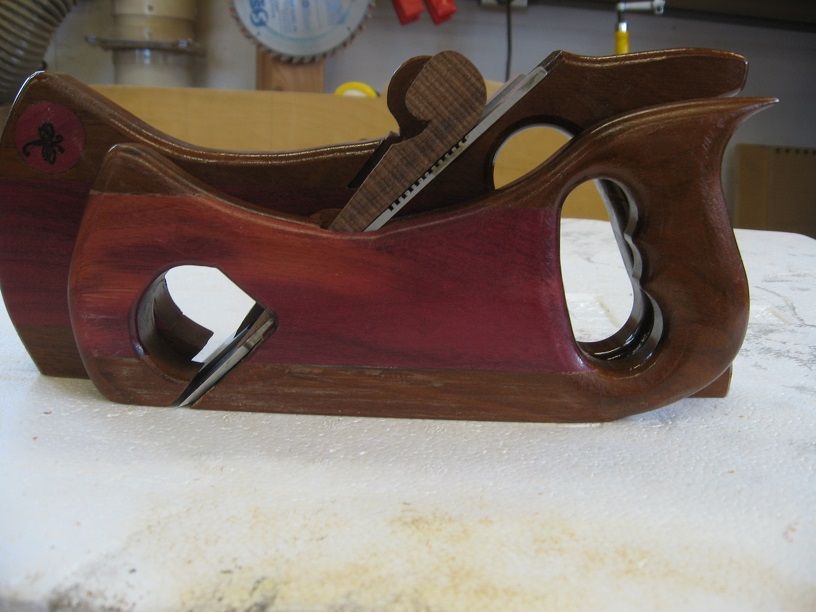

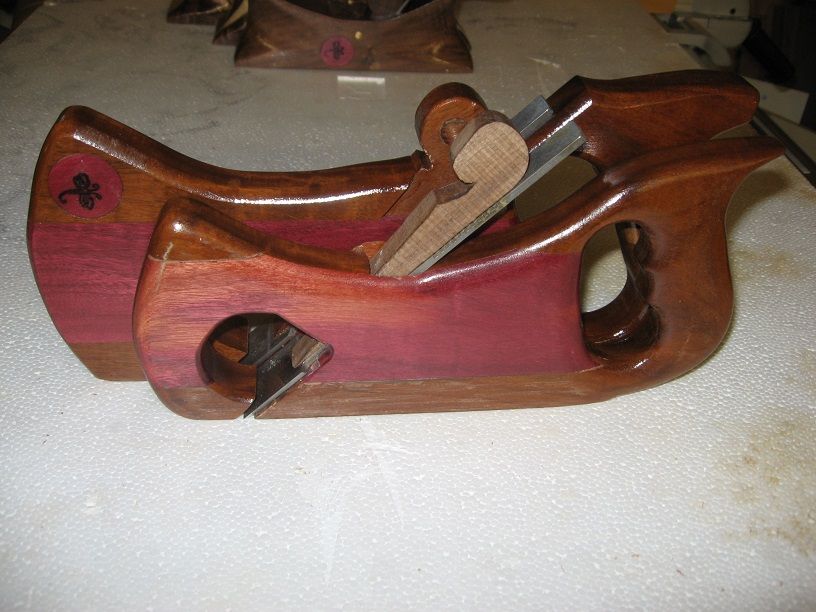

The last pictures are the comparison of the first one with the  latest one.



Herb

















Edited by Dadio

  • Quote
    • Like 8

    WOW!!!

    that is impressive...

    KUDOS to you Herb..

  • Quote
    • Like 1
    • Thanks 1
    7 hours ago, Stick486 said:

    WOW!!!

    that is impressive...

    KUDOS to you Herb..

    What he said, yessiree, what he said...

  • Quote
    • Like 2
    • Thanks 1

    :TwoThumbsUp:Sweet...the new, improved, bigger & better X.1.0 model.:P

    You are the plane master.:Praise:

    Cool medallion too.

  • Quote
    • Like 2
    • Thanks 1

    I am not worthy......:Laughing:

  • Quote
    • Haha 2

    Super job.

  • Quote
    • Thanks 1

    Looks great.

  • Quote
    • Thanks 1

    Suh...weeet. That's one very nice plane, Herb.

  • Quote
    • Thanks 1

    Herb I think you have finally got it.

  • Quote
    • Like 1
