I've been at the new house for less than a year, getting a shop together was a big priority, so I got it about 80% of the way there, then started in production work.   Still needs some more things assembled and built, when I get a round tuit.



Started off with a big empty, dark basement.   Stairway and HVAC was in the center.    So the first task was to build partition walls,doors, new 20A 120V and 220V circuits, and lights.  About 1/3 of the area partitioned off as clean area for storage and HVAC.  Here's some of the areas:

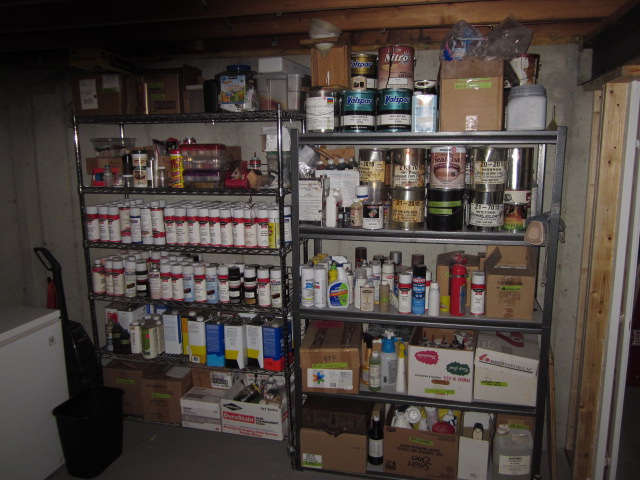

Finish storage (some of it)



Spray booth / finish room (needs a bit more assembly and lighting to be used)

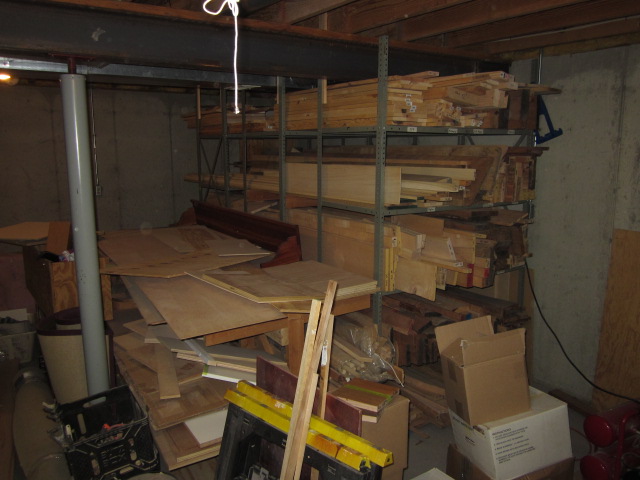

Wood storage area.   External door just to the right.

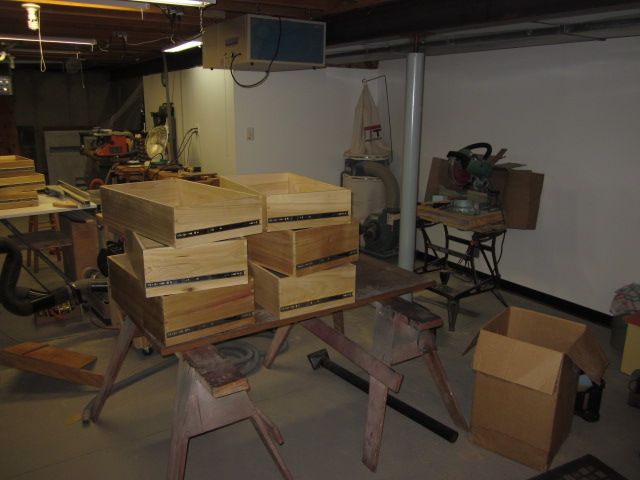

Rough dimension work / clamping area / in-progress storage area



Clamp rack (new build)

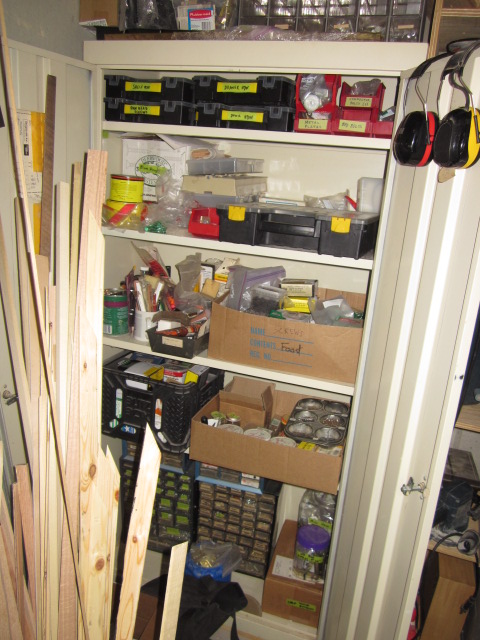

Storage cabinet #1 -- hardware storage (some of it, big stuff in storage room)

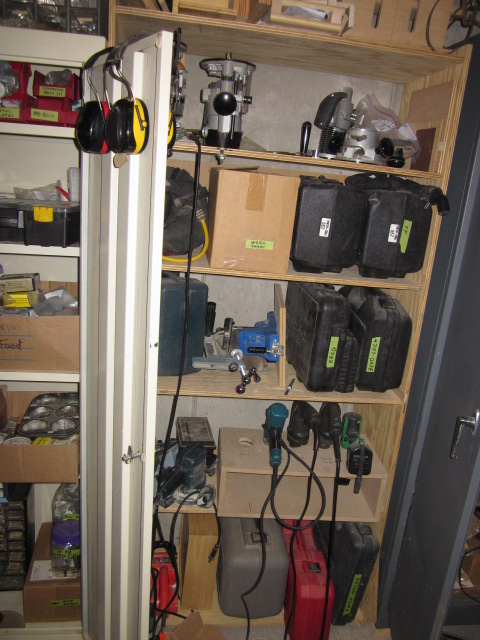

Storage cabinet #2 -- hand-held power tools

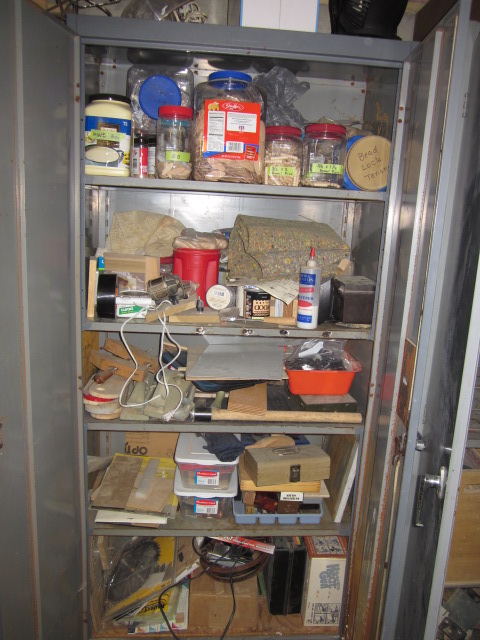

Storage cabinet #3 -- biscuit & dowels, misc small parts, carving tools *& saw blade storage

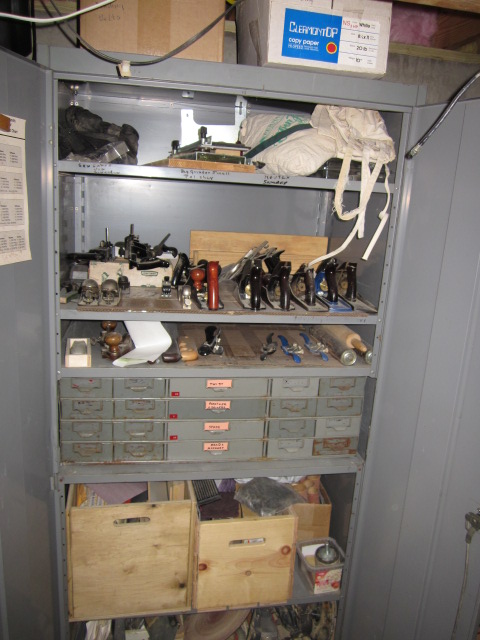

Storage cabinet #4 - planes, jigs, sandpaper, drill bits







Tage Frid inspired European workbench --  one of my first serious ww projects ca. 1982

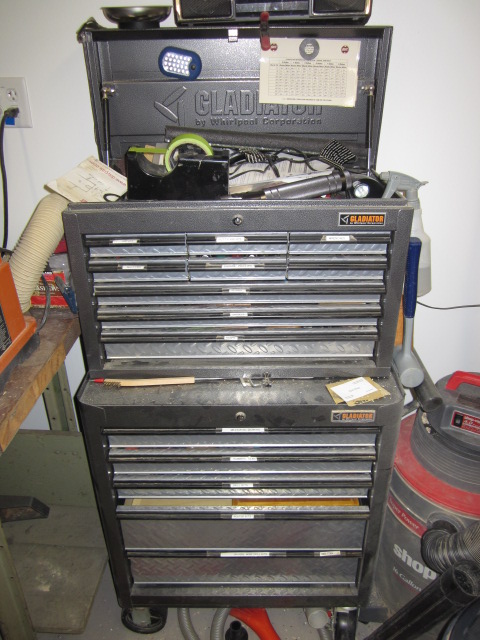

Mechanic's storage chest -- small hand tools, drill & router bits

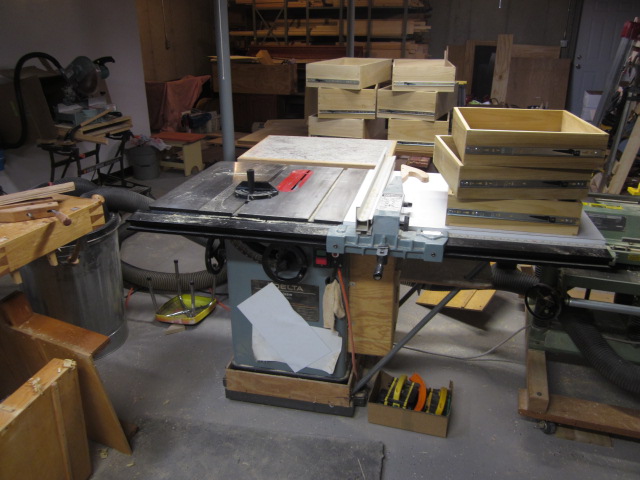

Main work area -- Unisaw

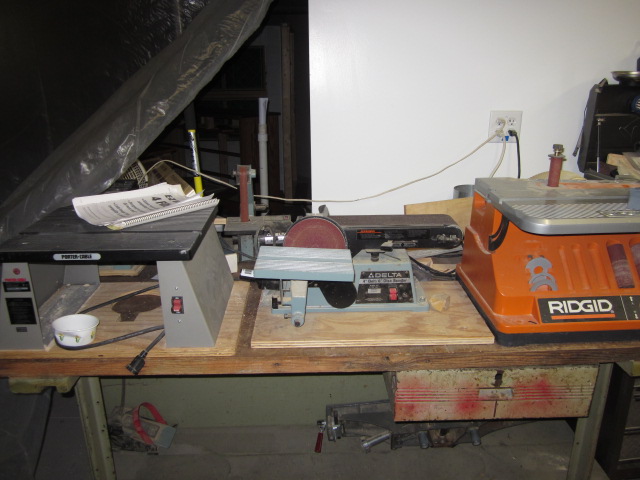

Main work area - benchtop power tools

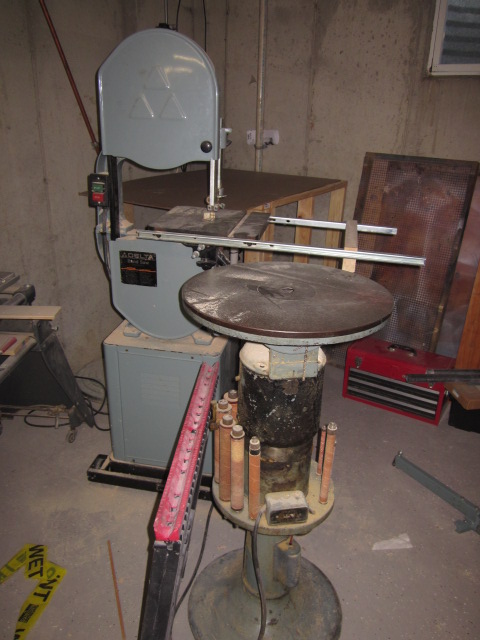

Bandsaw and spindle sander

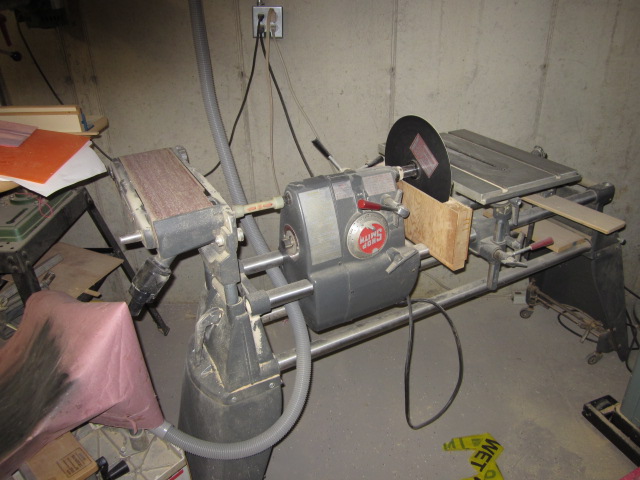

Shopsmith.   Early acquisition in my career.  Quickly outgrew it but keep it around for things it does well.

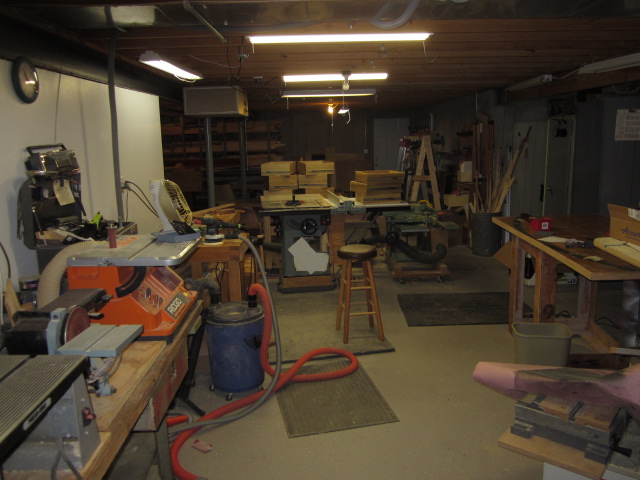

Overall view of main work area.  Makeshift assembly table to the right.  Also drill press (not shown)















Edited April 24, 20179 yr by kmealy

lookin' like a real shop...

Lookin' good, but needs a few shavings on the floor!

John

Nice! I seem to recall that was a really big area, looks like you filled all of it up.

That looks really good!!

1 hour ago, Fred W. Hargis Jr said:

Nice! I seem to recall that was a really big area, looks like you filled all of it up.

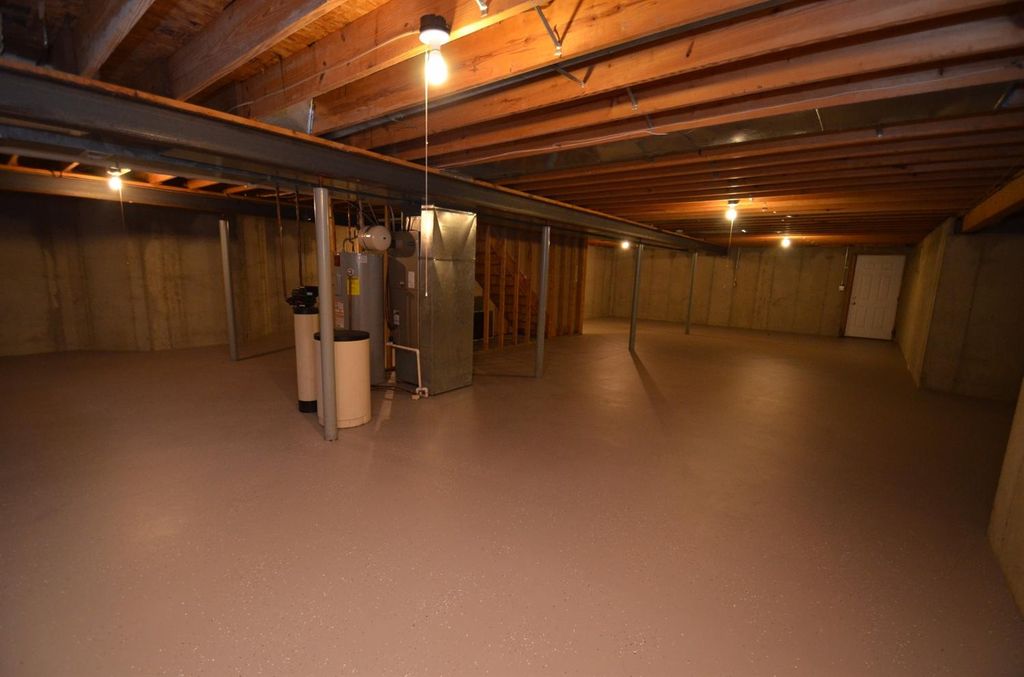

Here's the before image.   Three outlets (all on same circuit) and four light bulbs.    Partitioned off the steps and HVAC area and behind it.
