Walnut to mill down, new project start-up?

Featured Replies

taking a break from the Burnt Room Rehab......have a few planks of walnut to mill down.

Hauled the circular saws in from the trunk of the van, and took the 7-1/4 one down to the shop.

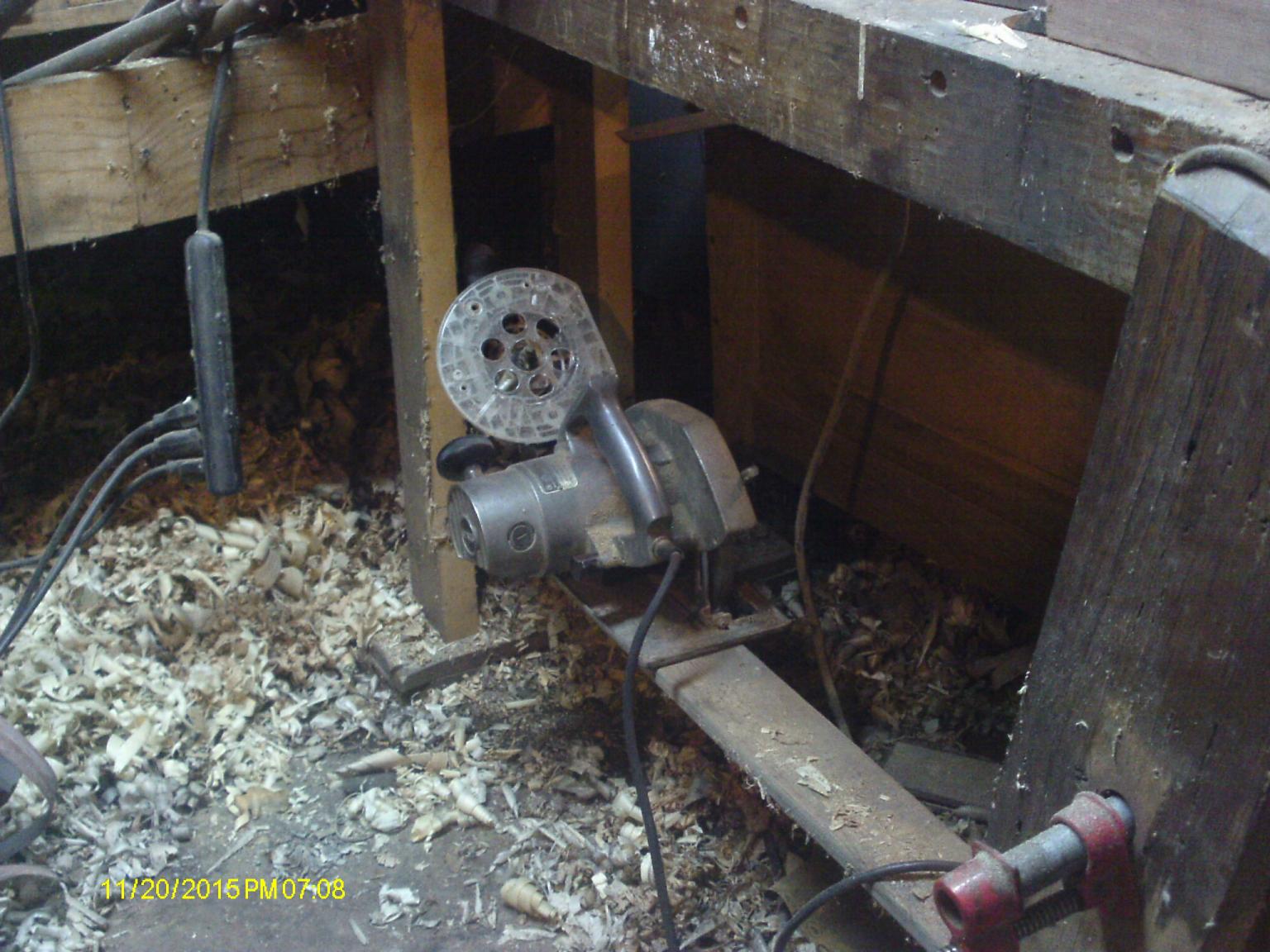

saw_on_a_shelf.thumb.JPG.a9ec064a58f08c9

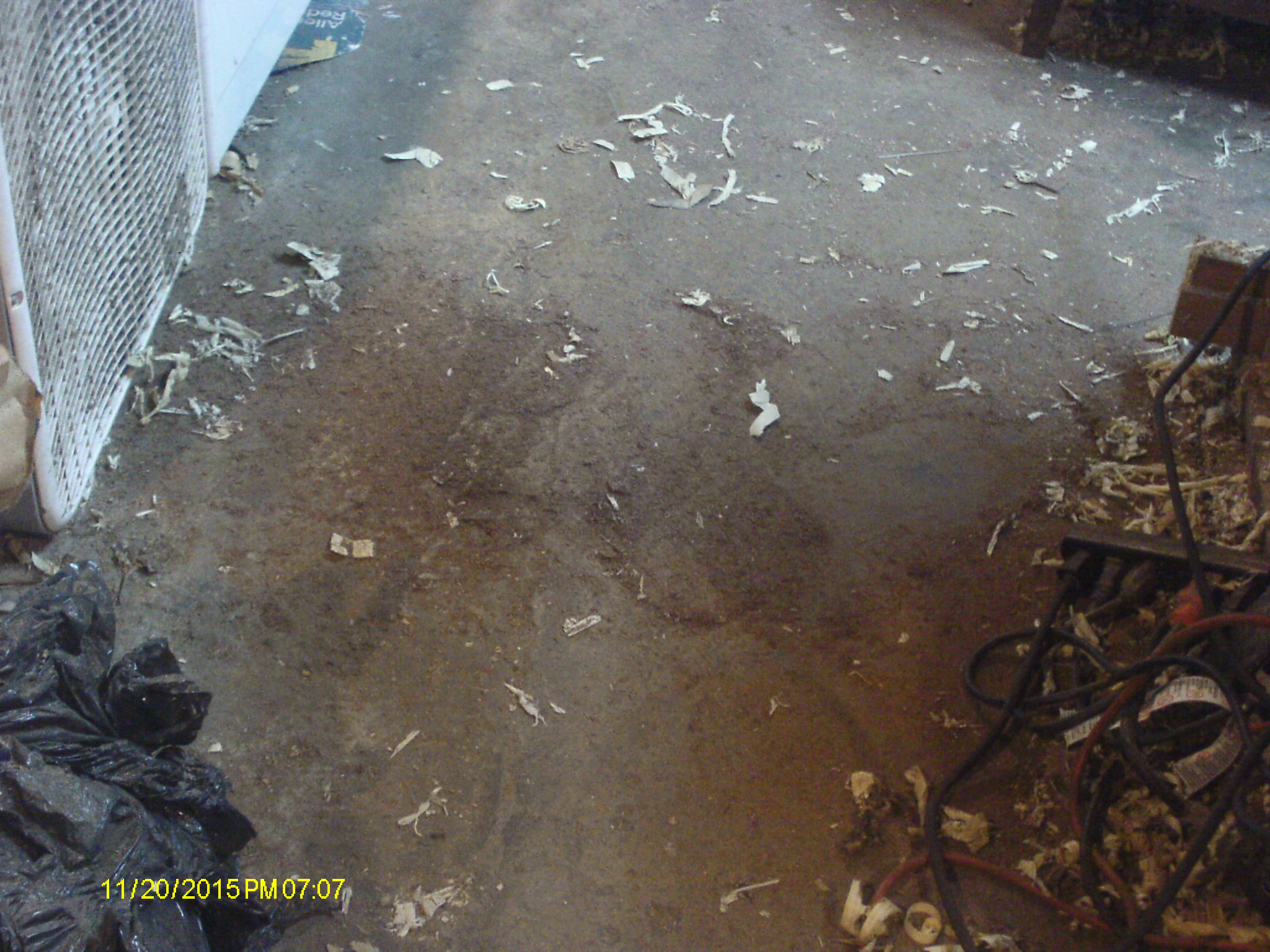

Sitting down there out of the way with a router.   Ripped a few pieces out of one plank.    It will do for starters.    Got this brown sawdust everywhere, even my hair!

dirty_floor.thumb.JPG.45dd5676a30e9e5fd8

Yeah.  Anyway, the plank is 5/4 thick.  Needed a few pieces 3" wide, by 18" long.   Had enough left over for a 2" wide filler strip, and 2 pieces @ 3" x 17" long.  Plus a short filler strip.

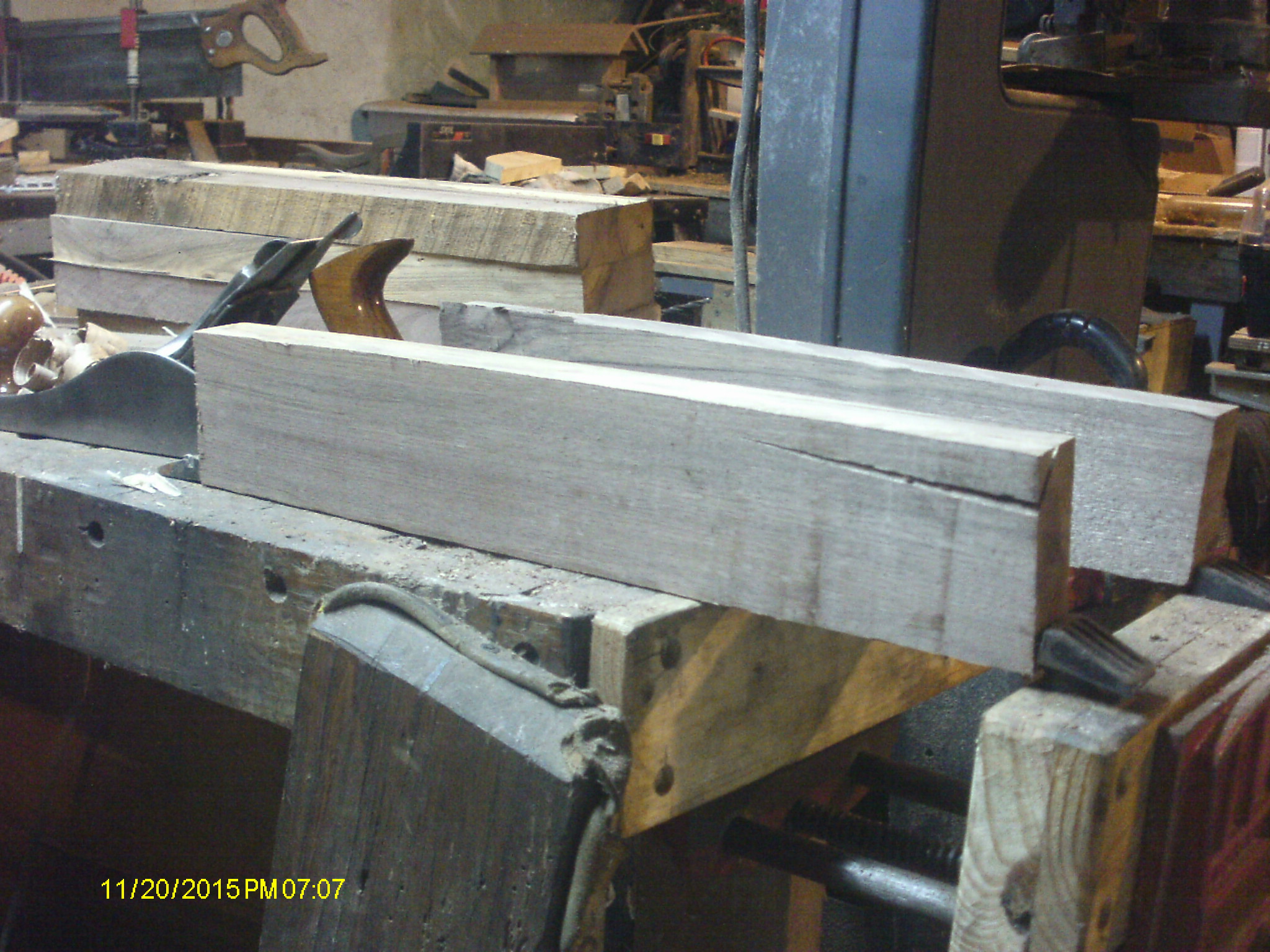

To get rid of the saw marks, and straighten a couple edges,  a Jointer Plane was dragged over to the bench..and locked a couple into the dogs and the vise..

jointer_work.thumb.JPG.28dcfe70ed92855ed

That Stanley No.7c got heavy after a while... I had to switch to a lighter No.5-1/2 to finish things up,  shoulders were hurting.  Stacked the pieces up, for now..

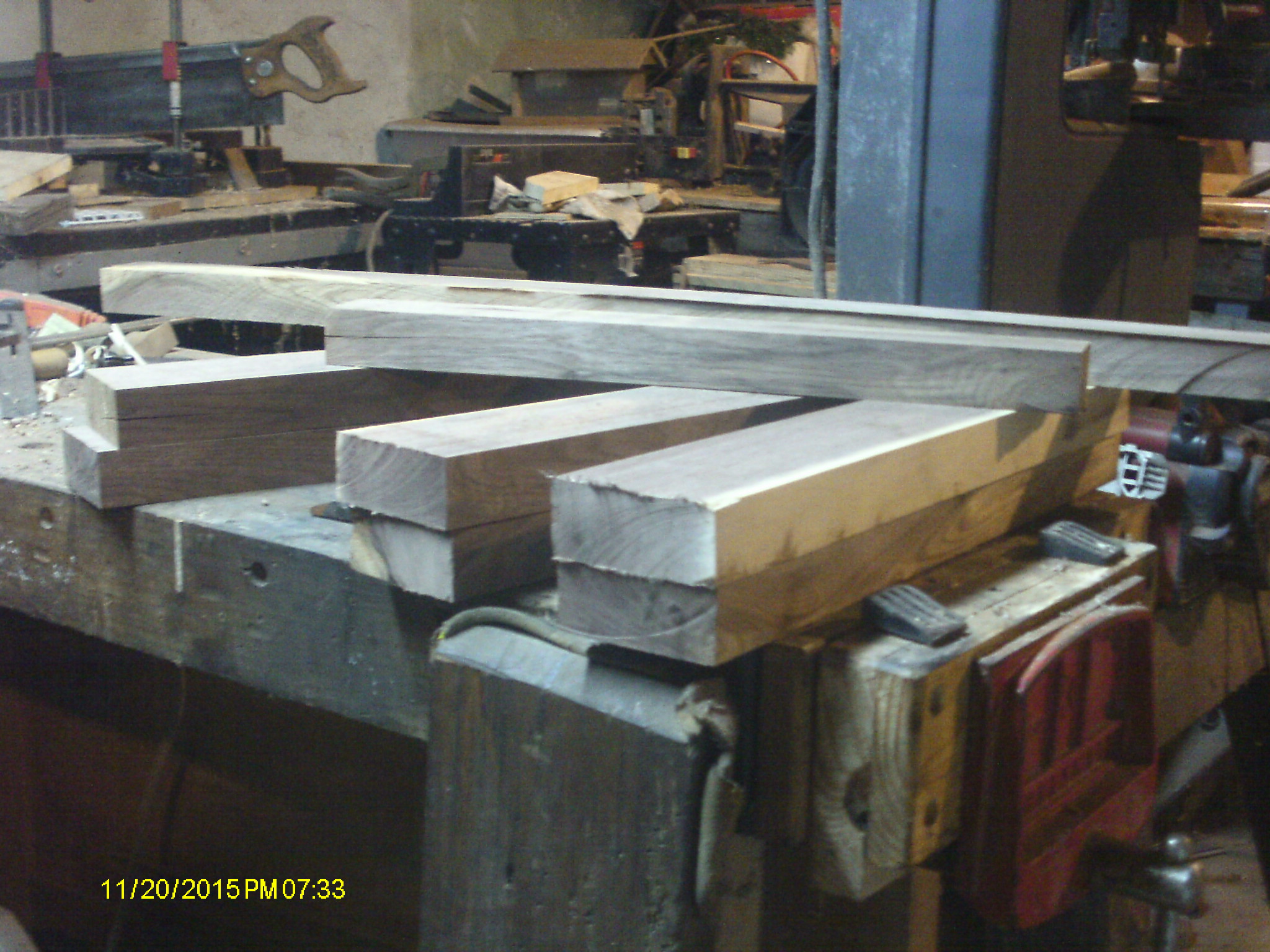

stacked_Walnut.thumb.JPG.a6baf768d85a80c

8 pieces, all but one have been jointed to remove the saw marks.  Four will be corner posts for a small Hope Chest.  The skinnier two will be ends for a frame&panel.   The long and short 2x2?  we'll see where they will go, later.   Need to move these off the bench, have another 5/4 thick plank to mill.   Then two 4/4 x 8" x 5'4"  ones to work over.   This will take awhile....at least it will keep me out of the local taverns..stay tuned



  • Author

Little bit of work today...slapped more  mud on some walls, cut another plank down to a size I can work with.

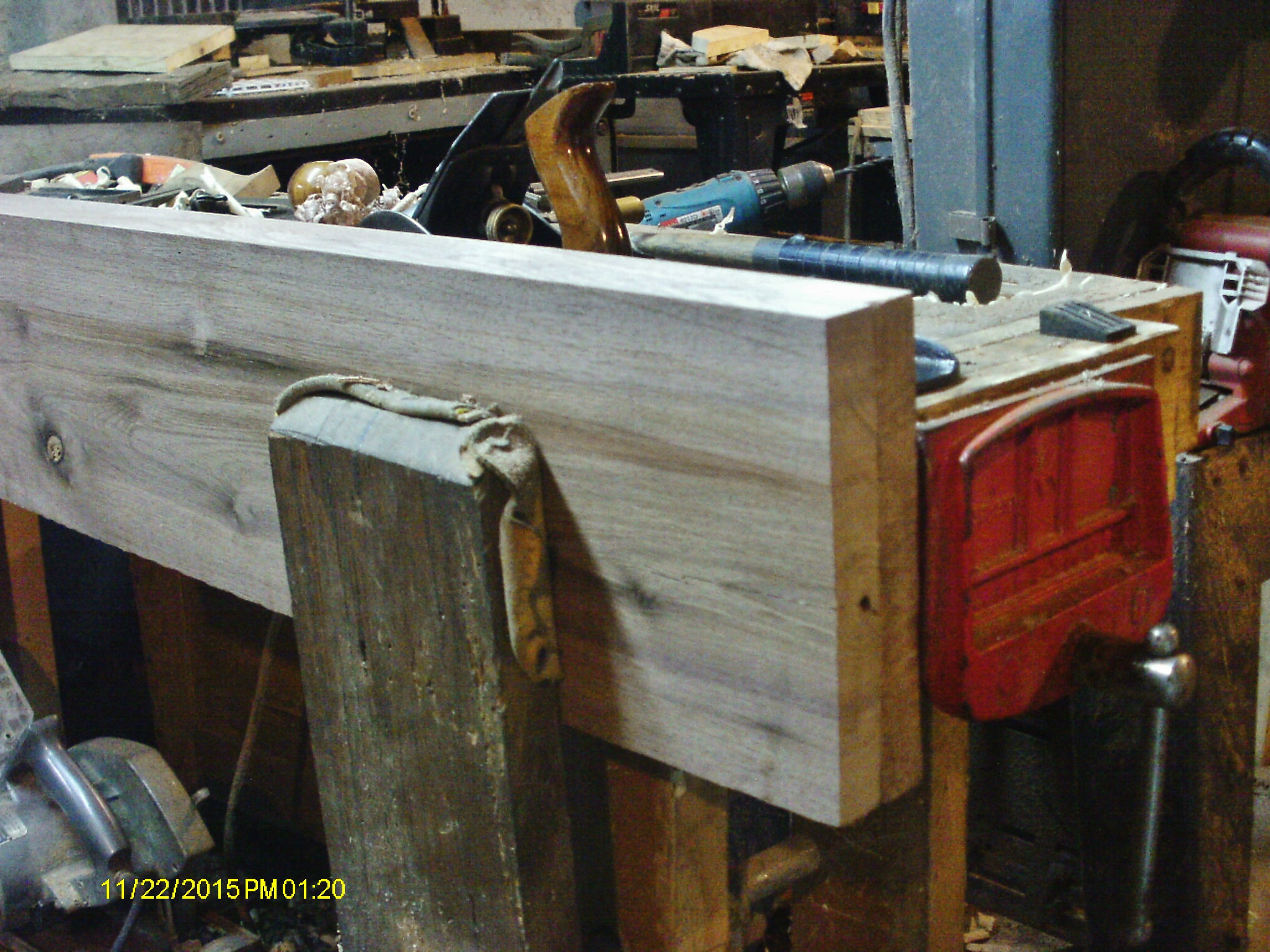

Clamped the two pieces into the leg vise, and worked on a glue ready edge..

jointed_edges.thumb.JPG.3adfab09e61588d0

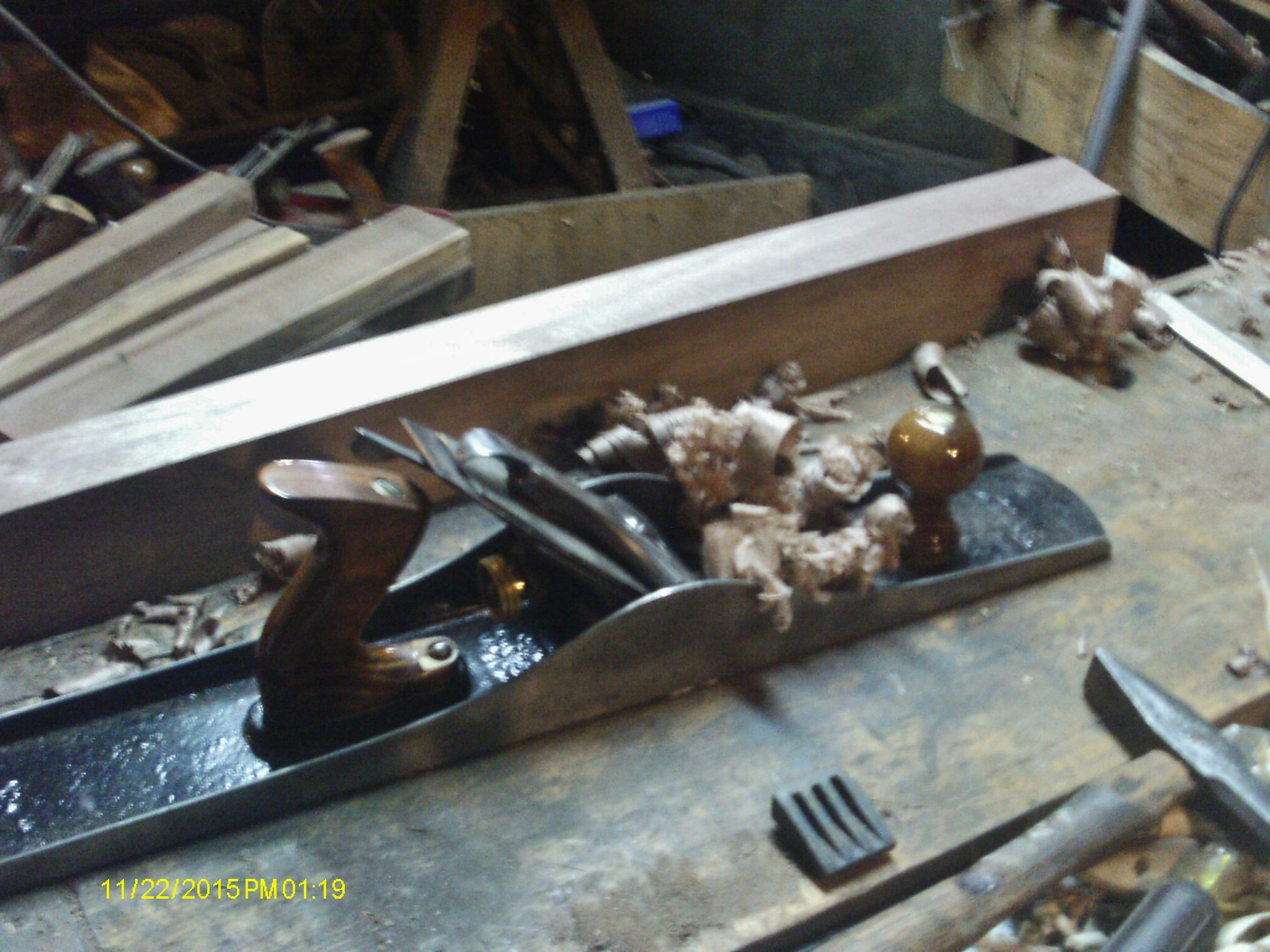

Peeking out from behind the stacked boards, is a Jointer plane..

jointer_plane.thumb.JPG.c4c15b7f17b3948c

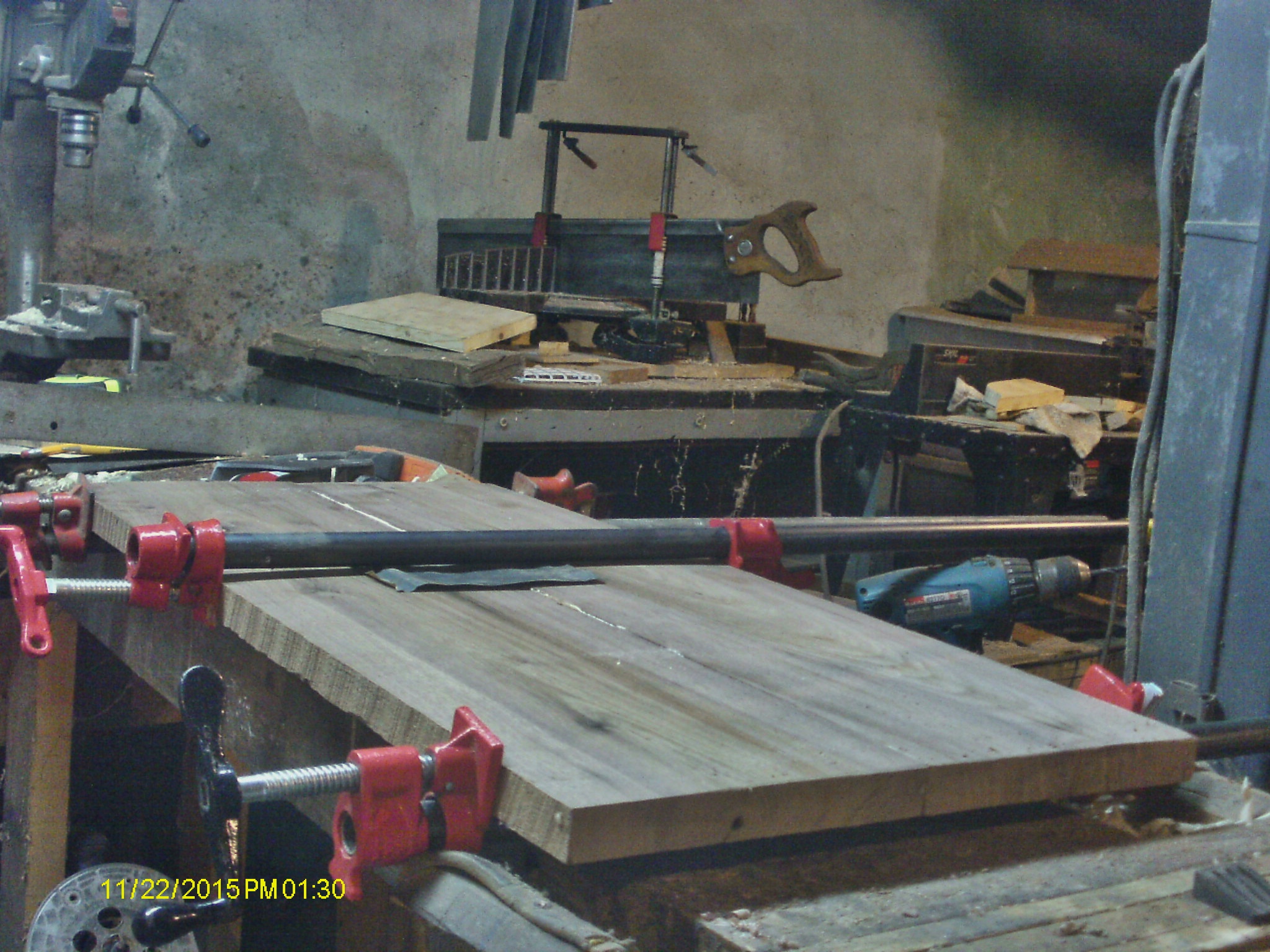

With a few Walnut shavings.  Note the shiny edges?   Now I can do a glue up..

glue_up.thumb.JPG.d92976dab93b30a8690bae

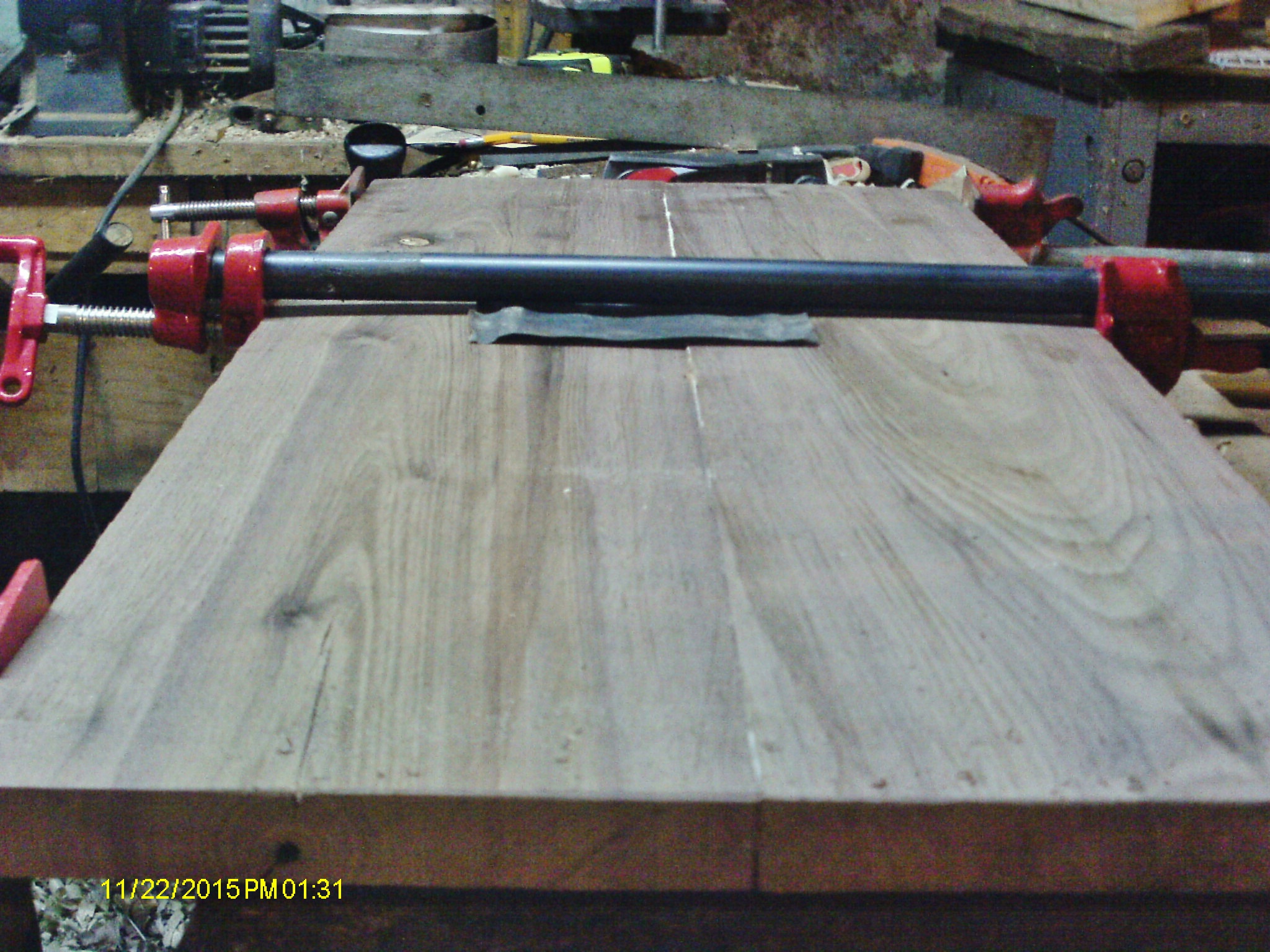

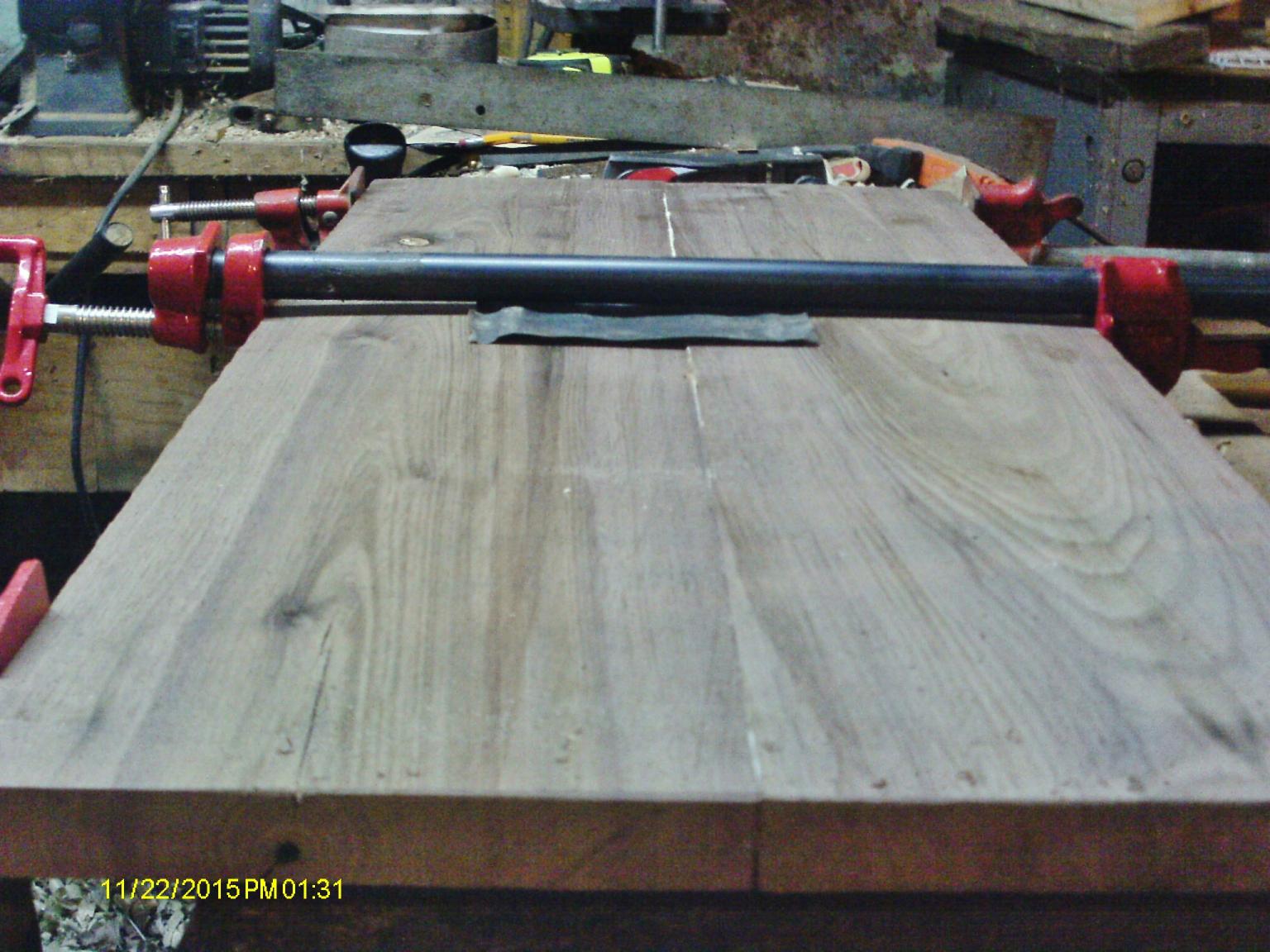

One over, two under.  The sandpaper is ther to prevent any "black marks" from the pipe.  Tried to match the grain a bit

matched_grain.thumb.JPG.6580c999c9b22dbd

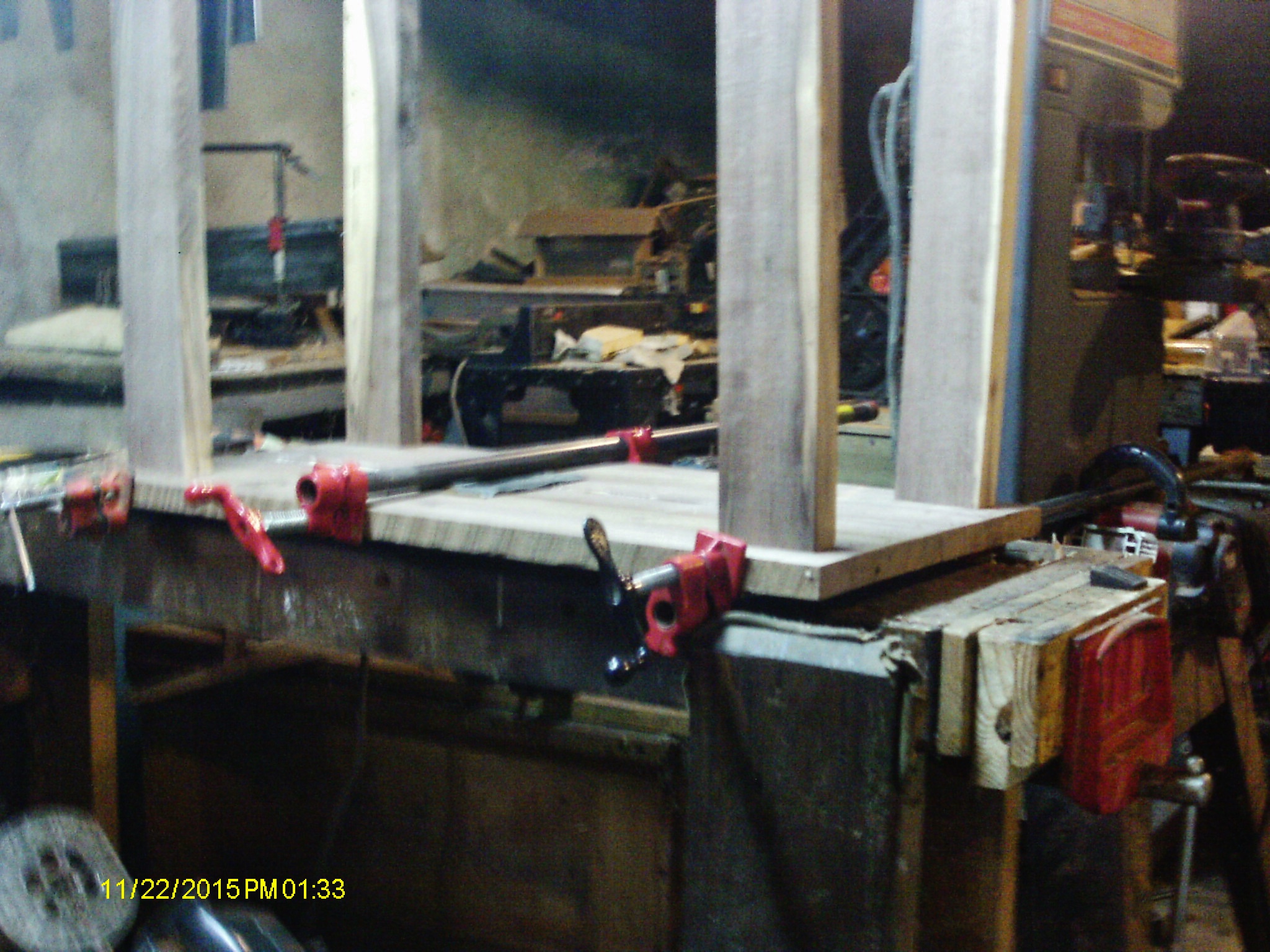

Not sure yet IF this will be a table top, or the lid for a chest.....lumber supply is a bit skimpy.    Laid out some corner posts/legs..

corner_posts.thumb.JPG.5c6217c0bbbeaf152

to see what I have to work with.   I have two more planks of Walnut to trim to sizes, as soon as I figure out what sizes I need.   Single Brain Cell Sketch Up is a bit tricky doing cut lists.....

Also have a few planks of Pine.....bottom of the chest?   And a thick (8/4!!) plank of oak.   Trying to save that one for some handles on the lathe.   Will know more as things get done...stay tuned.
