Delta Round Badge Timeline

[Larry Buskirk]

The following images can help in determining the age of your Delta machines by the badge it wears, providing the part with the badge is original to the machine.

Delta also exported their machines under the Tauco name, I've seen photos of the 1936 through 1941 style badges with the Tauco name in place of the Delta name.

I'll post those photos if I can find them.

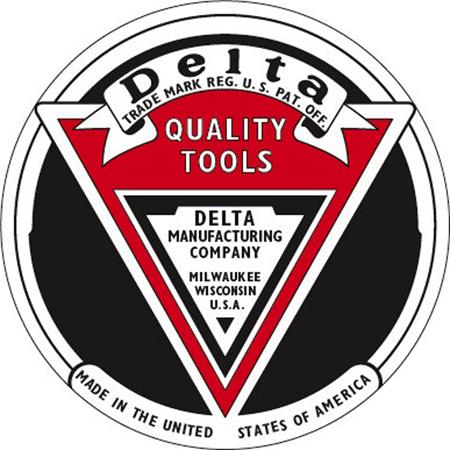

1936

1937

1938

1939-1941

1941-1952

1953-1966

1966-1973





Edited August 25, 2023 by Larry Buskirk

[Courtland]

Thanks Larry! I have my old Delta Rockwell drill press I can date now, and my scroller that's up at Dad's house. I'll provide pics when I get out to the shop later today, thanks again mate!

[Ron Dudelston]

What happened to 41-52.  It was there the other day.

[Courtland]

Here's my Drill Press Larry, looks like I have a Delta Rockwell 1953-1966.  I was born in 66'. How cool would that be if it was actually made on my b day. How can I tell the exact year of manufacturing?

[Larry Buskirk]

John,

If the machine has the Serial No. badge on it you can look here to see if the number is listed to get a mfg. date.

http://wiki.vintagemachinery.org/DeltaSerialNumbers.ashx

15" Drill Press?

[Courtland]

John,

If the machine has the Serial No. badge on it you can look here to see if the number is listed to get a mfg. date.

http://wiki.vintagemachinery.org/DeltaSerialNumbers.ashx

15" Drill Press?

Yep 15". Sounds like a train, it needs a tune up, but it looks cool. Everything seems straight, but it's just generally rough sounding, bearings?

[Larry Buskirk]

John,

How's the belt?

It may be making the press sound rough if it's developed some hardening.

[Courtland]

Larry the belt is fine, I replaced it two years ago with the standard automotive belt. Although upon closer examination the motor mounting place seems to rattle, there is the spring loaded gizmo that applies pressure to the motor mount plate that does not seem to hold the plate tight.

[Larry Buskirk]

Check parts 26,27,28 in this manual.

http://vintagemachinery.org/pubs/1141/6923.pdf

The spring is probably weak.



[Courtland]

Very awesome Larry, thanks a bunch sir.

[dgraham1995]

Hope the Delta badge history is accurate,  if so and it appears to be, thank you very much



David

[Larry Buskirk]

On 4/5/2020 at 1:41 PM, dgraham1995 said:

Hope the Delta badge history is accurate,  if so and it appears to be, thank you very much



David

David,

I have since found that the 3 stripe 1939-41 badge was first used on the Catalog No. 768 Delta 10" band saw that was introduced in 1937. So far that is the only machine I've discovered that differs from the above time line.

Edited April 7, 2020 by Larry Buskirk

[John Morris]

Thank you Larry for posting this Time Line, was going through old topics and came across this, found a link back from OWWM to this topic, very nice!

[John Morris]

We need to work this timeline into something more robust and official, it deserves a special place, hmmm, a page, timeline application, I think I have a great idea!

[Larry Buskirk]

Delta also exported their machines under the Tauco name, I've seen photos of the 1936 through 1941 style badges with the Tauco name in place of the Delta name.

I'll post those photos if I can find them.

[John Morris]

44 minutes ago, Larry Buskirk said:

Delta also exported their machines under the Tauco name, I've seen photos of the 1936 through 1941 style badges with the Tauco name in place of the Delta name.

I'll post those photos if I can find them.

Thank you Larry!

[Larry Buskirk]

Here's a link to Rockwell Delta in South Africa posted with the authors permission. Covers some of the Tauco history.

http://wiki.vintagemachinery.org/Rockwell-Delta_in_South_Africa.ashx



[David Walsh]

Thought I'd share a set of "Delta badge timeline" designs I put together recently (for purposes of printing them as posters) —









... and here's one of the rustic Quality Tools designs, because why not?



[Grandpadave52]

Very kwool David. Thanks!
