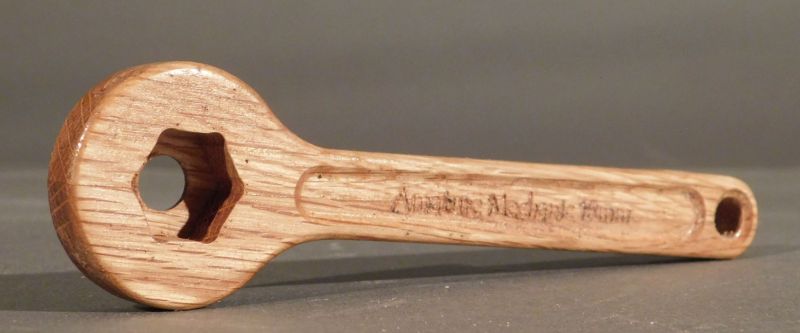

I designed and made a low profile vise for my CNC a few years back, but it needed a handle that would stay on but come off when needed, As I was looking through the wood scraps I have I came across a high density rather heavy piece of white oak that needed a use. And so was born this closed end wrench handle for my CNC vise. One the vise: Modeled it after an adjustable crescent wrench I'd been using that had been a poor handle to tighten the vise with. Coated it inside and out with some Deft to seal the pores. "Amateur Mechanic 18mm" is carved on one side. "4DTs Low Profile Vise Handle" is carved on the other side. Stays on nicely. Works like a charm. Can slip off with a little wiggling when I need to rotate it down so the CNC won't bump into it. 4D
- 4 replies
-
- 6
-
-
-
- cnc made tools
- white oak
- (and 1 more)
-
Cutting Bolt Hole Chamfers with an End Mill
4DThinker posted a topic in CNC Challenges and Solutions
With no ATC on the Probotix machines I have and used while teaching I dreaded complex jobs (just a little) that required tool but changes. Whenever a job needed chamfers on bolts hole I used this trick so I didn't have to change to a V bit. My blog: Bolt Holes with an End Mill. I've posted downloadable .CRV and .CRV3D files used to make the image above on Vectric's user forum HERE. Details on making the vectors and setting up the toolpath on my blog article. 4D
-
