pictures from a rust hunt

Featured Replies

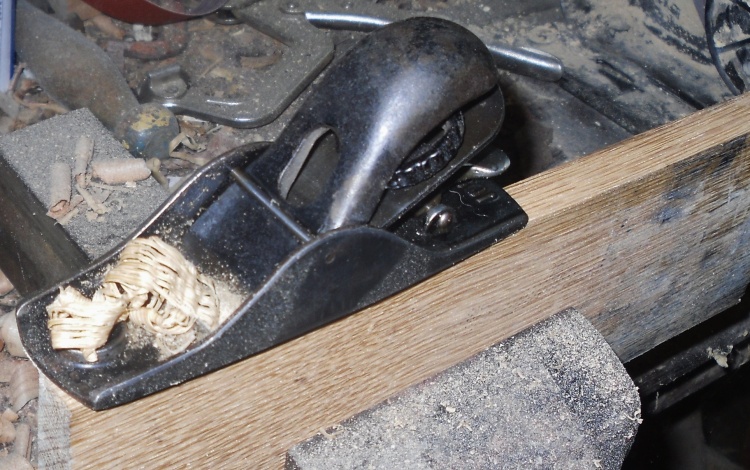

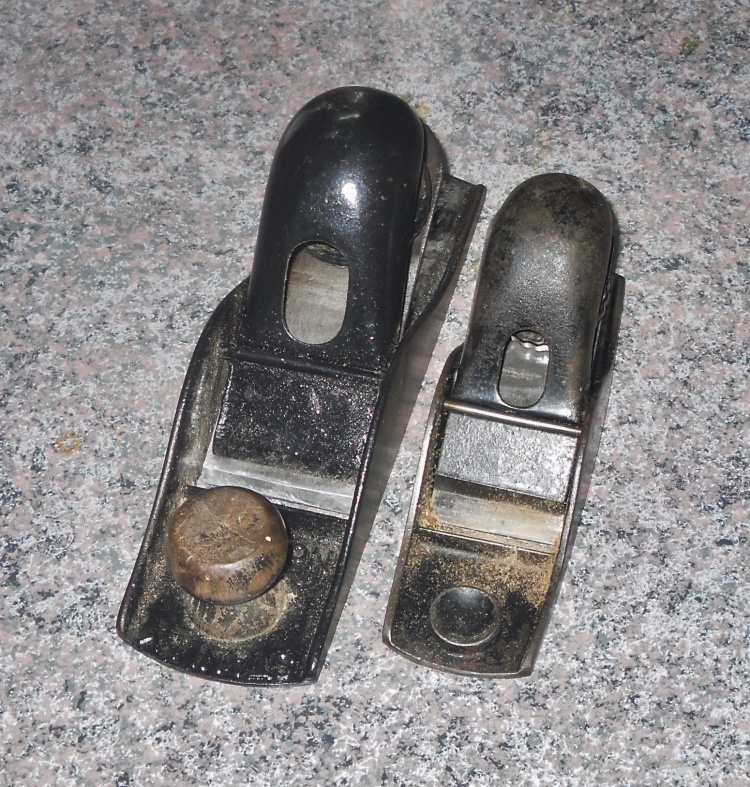

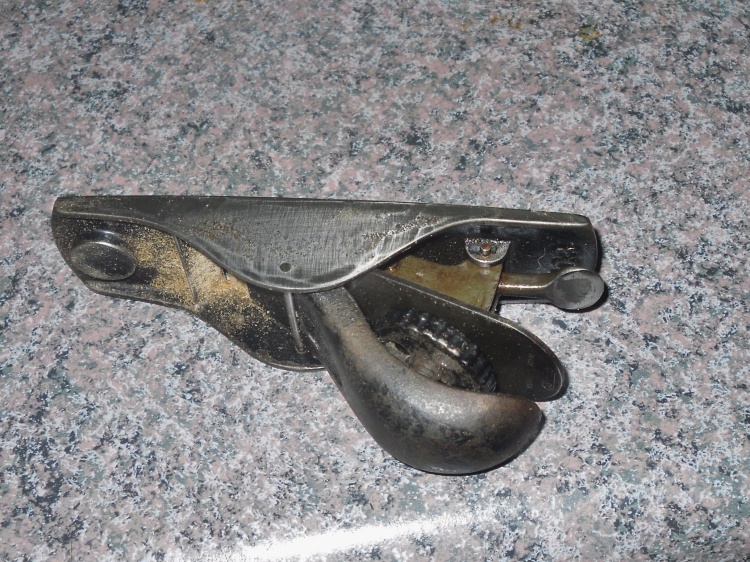

 And a cute little plane it is, tooning-sdc15687-10195-18.jpg?width=750Stanley #103, with a SW iron on it.   Cost a whopping $1ning-sdc15692-10195-37.jpg?width=750sitting next to a Stanley #110.   ning-sdc15689-10195-7.jpg?width=750the item that makes this a 103 instead of a 102 is that lever to adjust the depth with.   As for the other items in this latest hunt. well, everyone has seen a Stanley powerlock tape measure, so I will leave that out.  next item needed belts, and a set of three belts cost more than this didning-sdc15686-10195-7.jpg?width=750Those 1" x 30" belts were $5.35 counting tax.   this little toy cost me $5.    Not too bad, though.  I did pick up a firmer chisel for a buck along with that tape measure, $4 total for the twoning-sdc15691-10195-99.jpg?width=750Gee, another 3/4" wide chisel ....




Planer? I'm the 'planer', and these are what I use...

Man you find the best deals. I can't ever find one of those here for a buck.



I'm going to have to send you my wish list and let you find them. I could pay shipping and come out cheaper. LOL



Nice find. You going to restore it or use it or sell it?






John Moody
Site Administrator


John Moody Woodworks
http://www.johnmoodywoodworks.com

  • Author

Using the sander quite a bit, comes in handy on totes.    The #103 is a very nice little apron plane,  might just keep it around.  The firmer chisel is the first one that I have managed to find around here.    Might try to find a set of them...




Planer? I'm the 'planer', and these are what I use...

Nice score, Steve.


You have your Internet back yet?




Lew Kauffman-
Wood Turners Forum Host
Rolling Pin photo crop3_zps88fb0af9.jpg?width=100
Time Traveler and Purveyor of the Universe's Finest Custom Rolling Pins!

My rust hunt last evening was a good one, but I can't beat the deal Steve got.

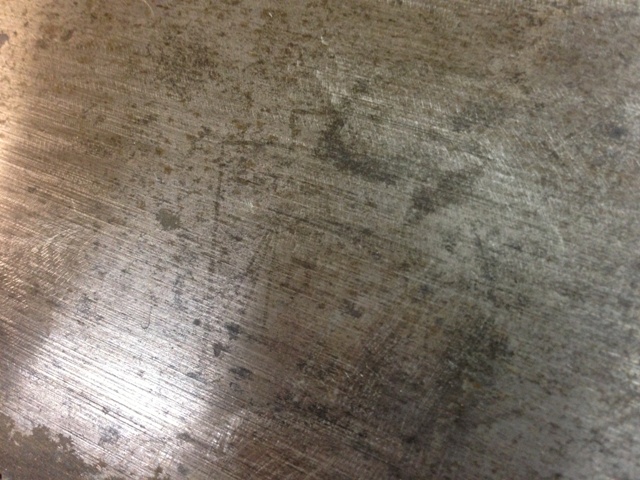

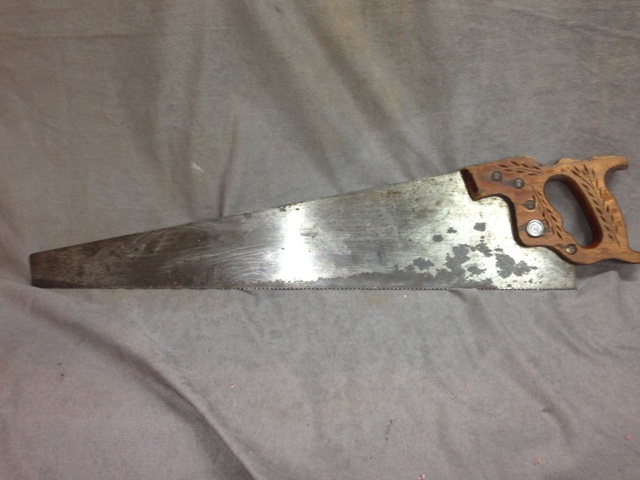

ning-img-0657-10197-62.jpgI picked up this Disston hand saw a D-23 1940-1947 model. Not a real old saw but it is older than I am so....ning-img-0660-10197-43.jpg Someone has already done some cleaning on it and you can just see the Keystone logo with the D-23 in the middle.

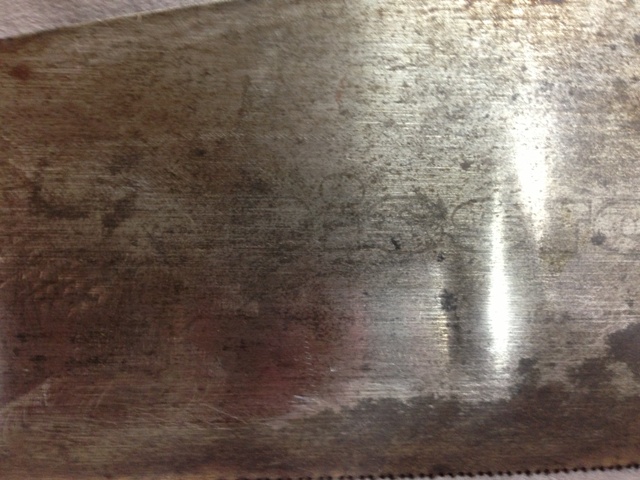

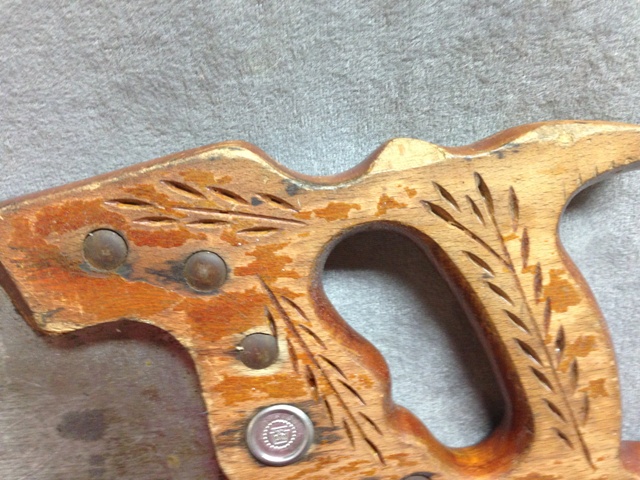

ning-img-0661-10197-6.jpgAnd you can just make out in large letters, DISSTON in an outline letter.




There is a chip from the top of the handle and the medallion was so rust I cleaned it this morning to see what model this was. The medallion dates in the 1940-1947 range.

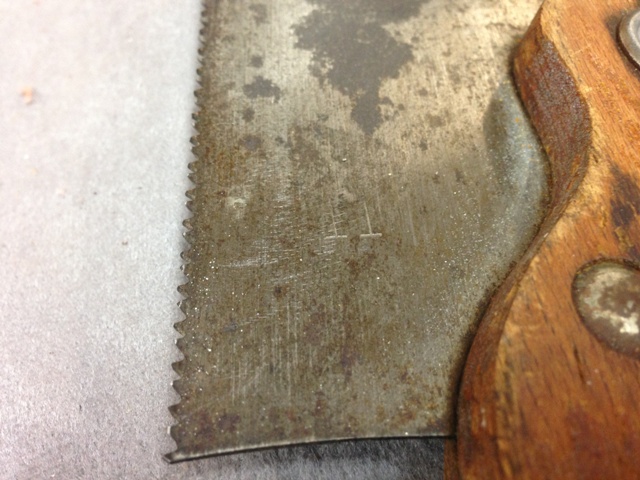

ning-img-0663-10197-67.jpgAnd it is stamped with 11 on the blade. I gave 5.00 for the saw.



Then I ran across this BAILEY No.5.

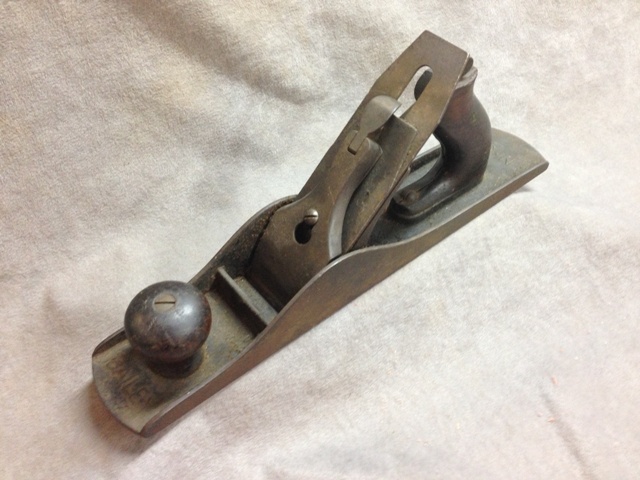

ning-img-0642-10197-29.jpgIt was pretty dirty and grimy.

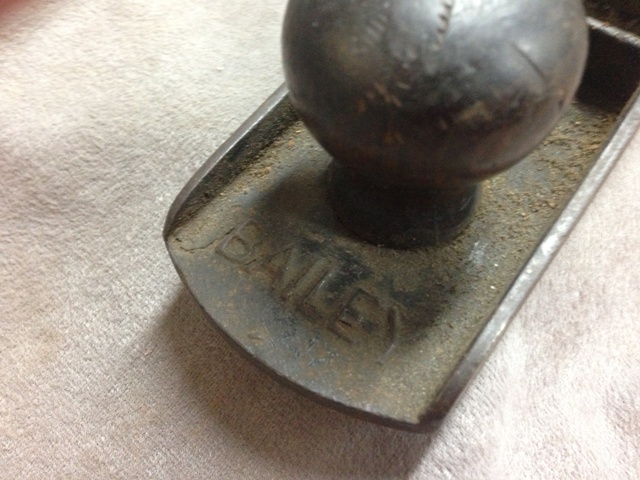

ning-img-0643-10197-83.jpgBAILEY ON THE TOP and

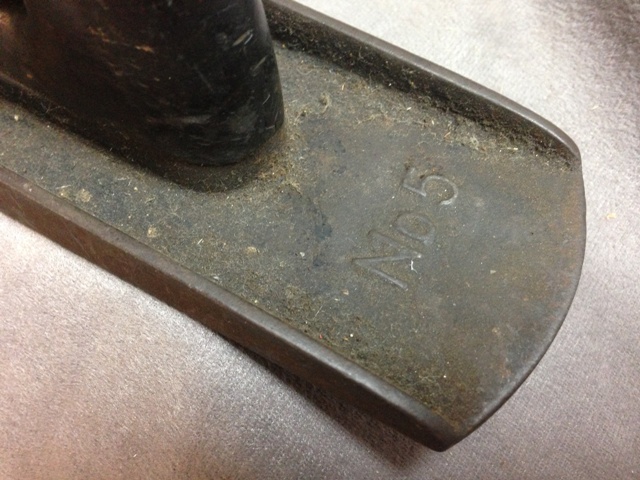

ning-img-0644-10197-68.jpgThe number on the Heel.

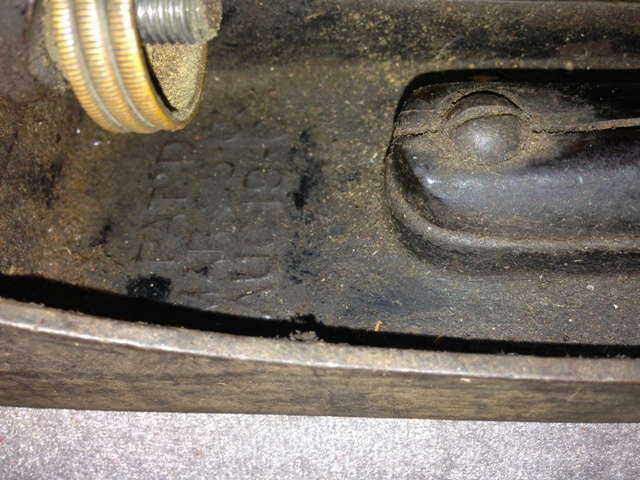

ning-img-0650-10197-2.jpgMar 02 and Aug 02 Patent dates behind the frog.

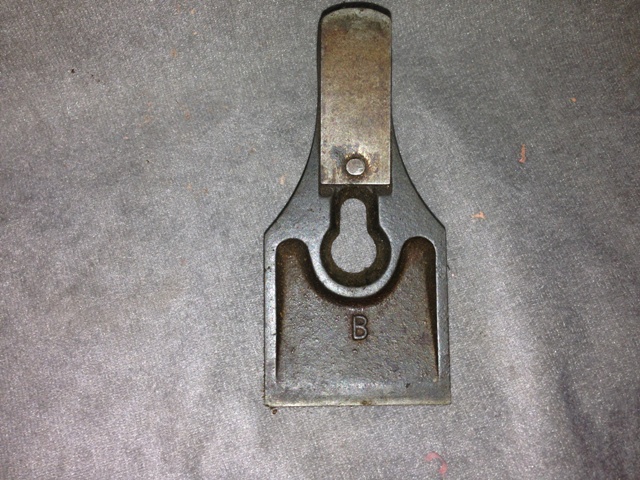

ning-img-0647-10197-79.jpgLever Cap is stamped with the "B" foundry mark on the back.


But then the problems with it.

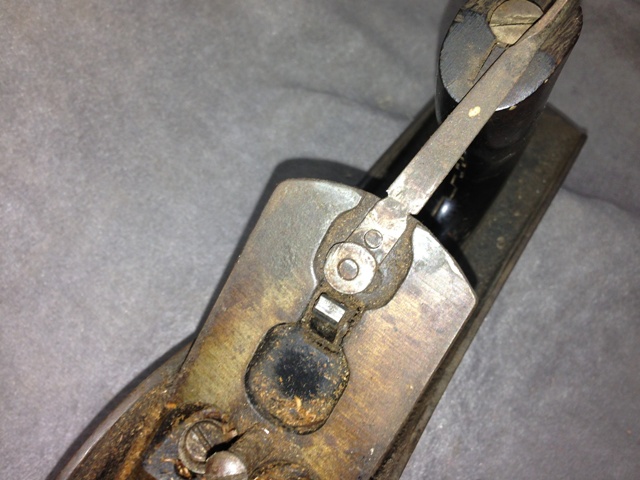

ning-img-0648-10197-34.jpgThe Lateral Adjust Lever is another of the twist type on the back and it is loose.


ning-img-0649-10197-29.jpgAnd I have never seen a tote like this or a repair made like this.

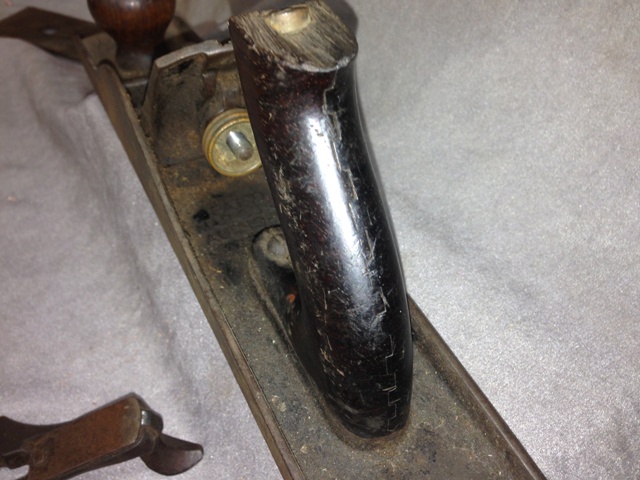

ning-img-0652-10197-86.jpgAnd it is on the front side also.

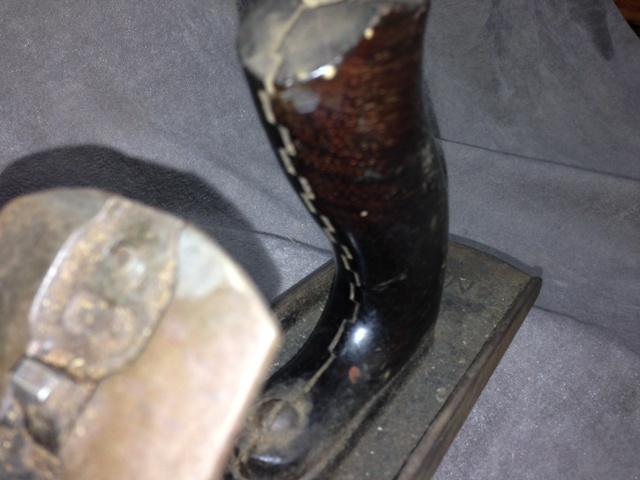

ning-img-0653-10197-56.jpgThe split is all the way around the tote but has the box joint type fix to it.


The last thing that doesn't fit the timeline is the Iron. I believe it has been changed out with a Stanley SW that would not have been released until 1925-1933. The frog, patent dates, lever cap stamps put it at 1902 but a blade that is 23 years older. Oh well. I will still clean it up and see how it goes.

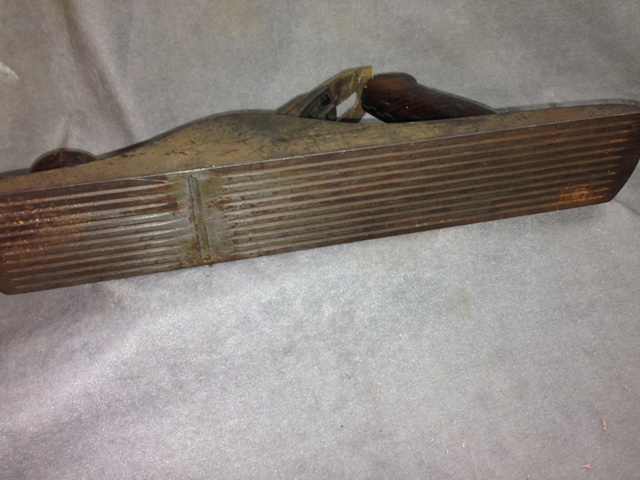

ning-img-0655-10197-43.jpgIt also has the corrugated bottom.

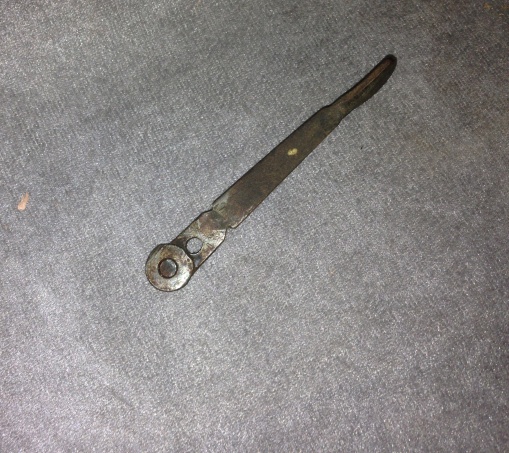

And when I got home last night the Lateral Adjustment lever for the No.18 was here.

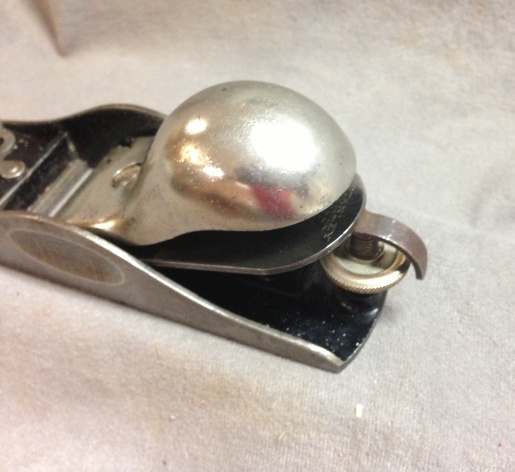

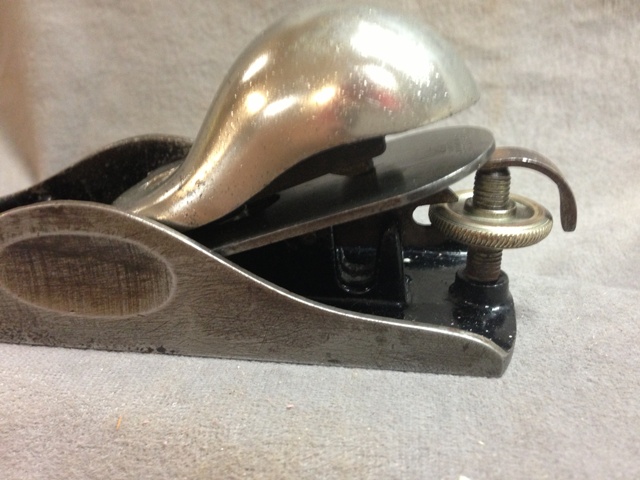

ning-img-0665-10197-91.jpgning-img-0666-10197-94.jpgSo that was my rust hunt this week. I spent 15 dollars where Steve spent a good bit less. Man I got to find some good deals.




John Moody
Site Administrator


John Moody Woodworks
http://www.johnmoodywoodworks.com

  • Author

using my son's cell phone as a hot spot capture.    Slow, and runs down his data on the phone.

Lewis Kauffman said:


Nice score, Steve.


You have your Internet back yet?




Lew Kauffman-
Wood Turners Forum Host
Rolling Pin photo crop3_zps88fb0af9.jpg?width=100
Time Traveler and Purveyor of the Universe's Finest Custom !
