Saved the rest of that old plank from the saw bench build.   Went back and found a second plank, a 2x4x 6" (r so) and a 5/4 x5  style from an old door.     Have some other scraps laying around....



 sooo, how about a Roy Underhill style work bench?



     have four legs cut to length and width from one plank, with a 10 x10 pad leftover..



have a benchtop cut to length from a 2x10.   About 48" long.



2x4s to make leg braces need to be cut, what is left over will be on the ends.



5/4 x5 x7"  should make at least one apron, and have a second apron waiting to be sized.



 Need a thinner plank for the bottom of a tool well.    Have two short pine 1x6 pieces, might stretch them into a four foot piece?



Three days off!   Gotta love this schedule!   Nice cooler weather, and DRY too.    Might just keep me out of "trouble" for a few days?      Nah......

---

Planer? I'm the 'planer', and these are what I use...

That sounds like an interesting build, Steve. 5/4 aprons? One solid bench!

---

Gene
'The true soldier fights not because he hates what is in front of him, but because he loves what is behind him.' G. K. Chesterton

Judging from the other projects you've made, Steve, it'll be an excellent workbench.

---

Lew Kauffman-
Wood Turners Forum Host

Time Traveler and Purveyor of the Universe's Finest Custom Rolling Pins!

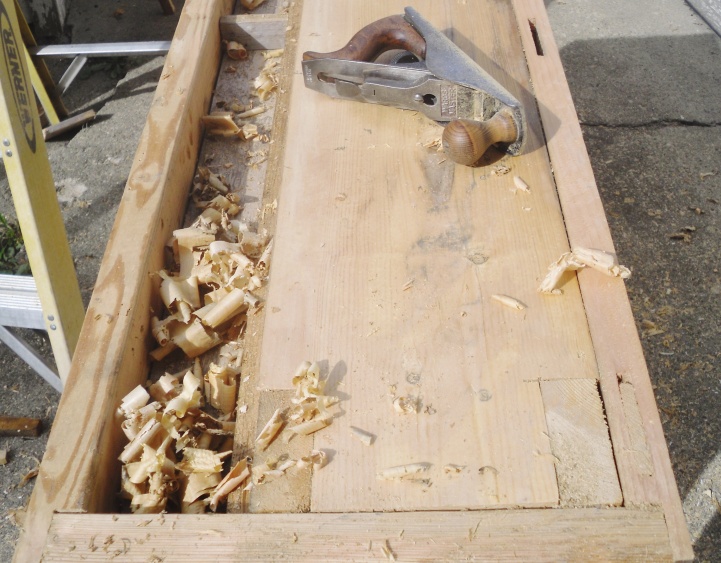

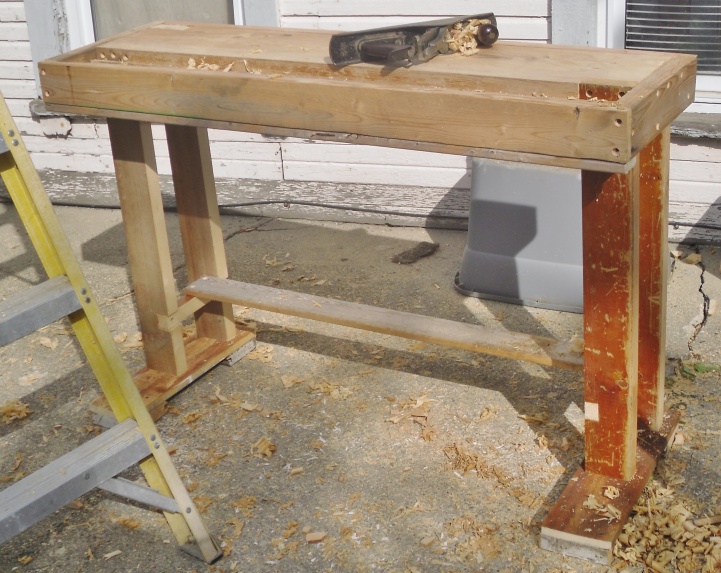

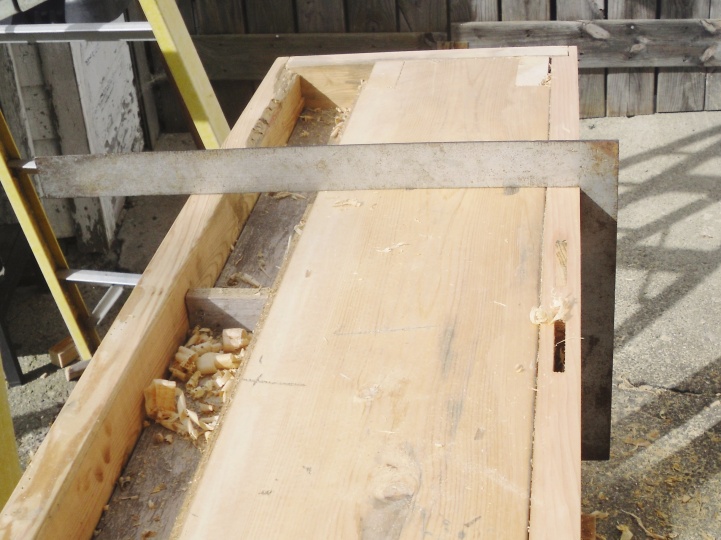

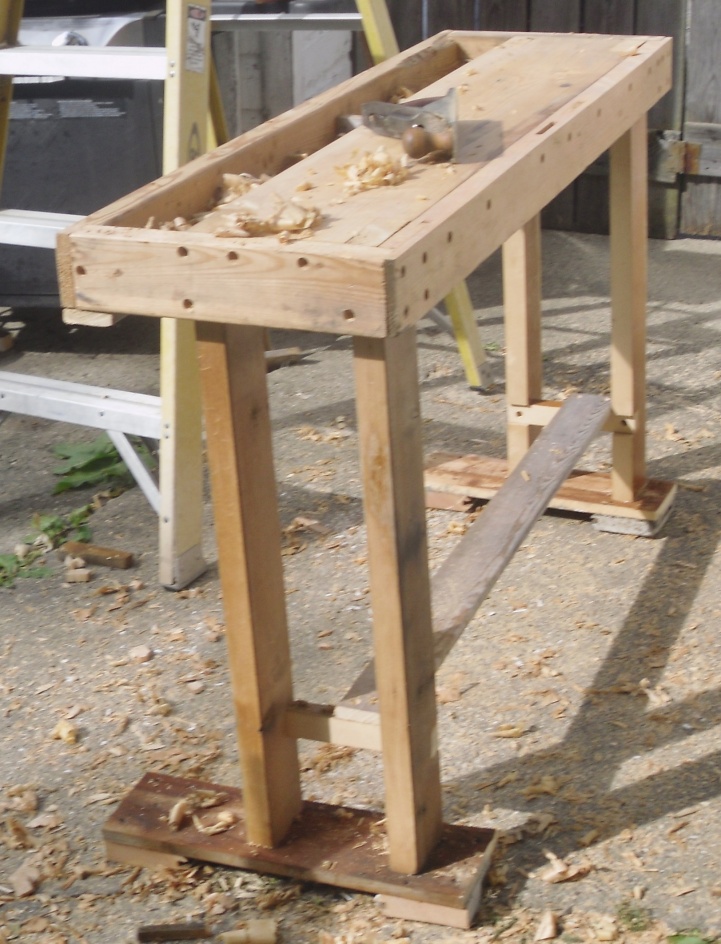

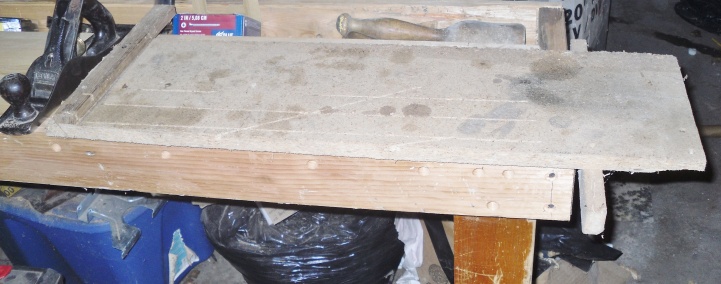

Just a look-see at what good done in about six hours today, Counting the hour it took for the wife to go and get a box of 2" screws( Lunch break??)Hey, it may not be fine furniture, but seems to be about right for some hard workIt even has a toolwell, tooeven managed to somwhow get the top flatAll done on  the back patio, on a nice Sunday afternoon.   Not too bad for Dumpster wood, is it now???

---

Planer? I'm the 'planer', and these are what I use...

---

Planer? I'm the 'planer', and these are what I use...

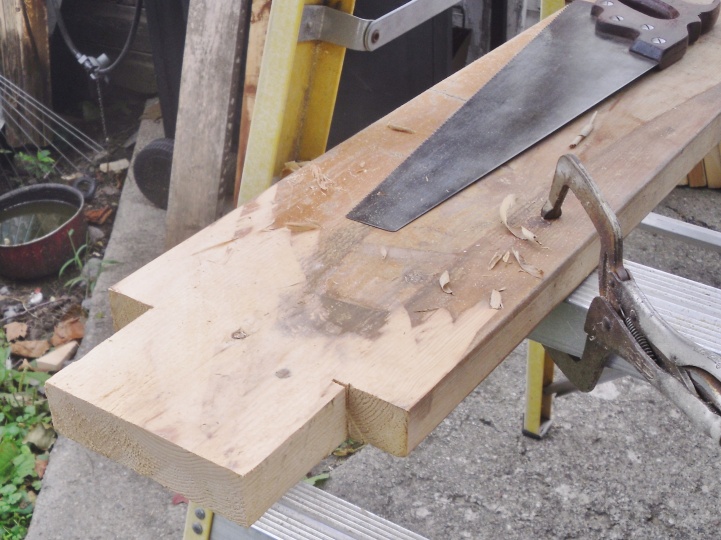

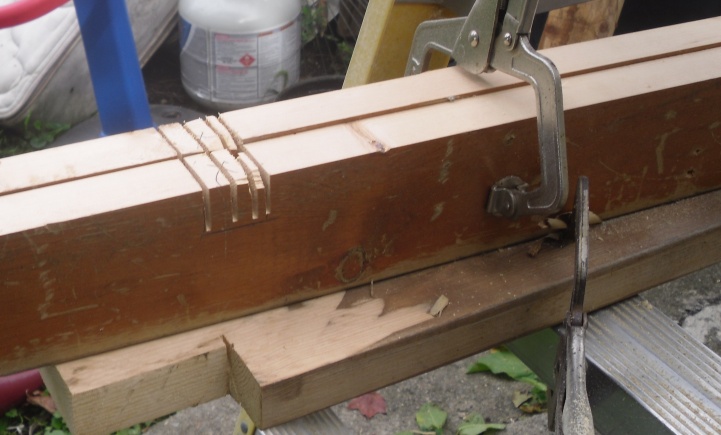

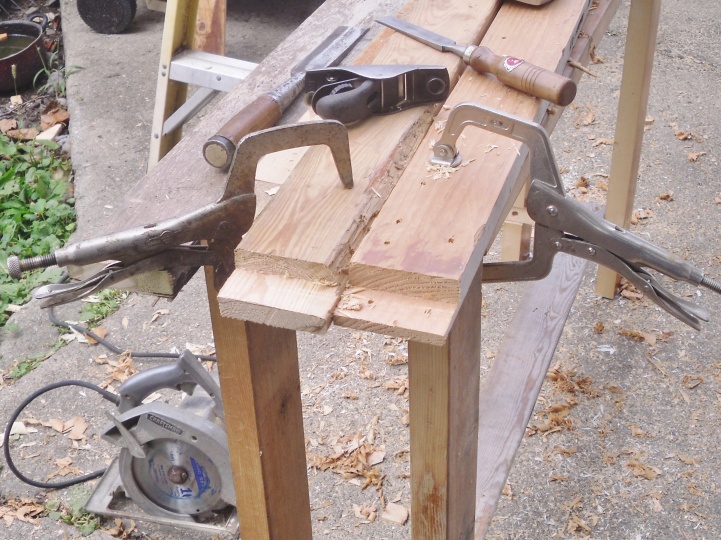

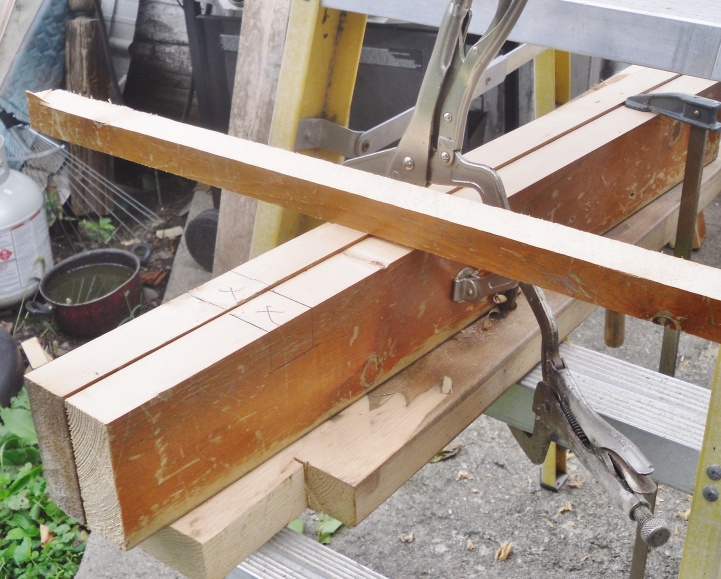

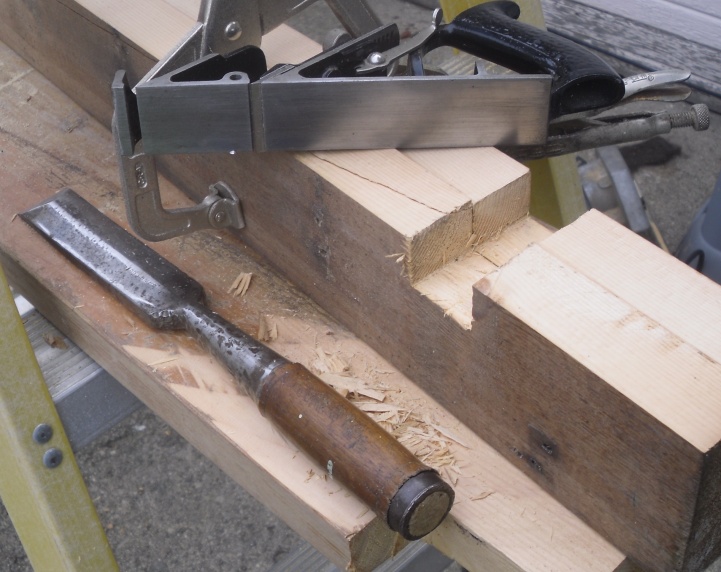

Just a few more photos of this little projectA circular saw did most of the work, finished to cuts with that handsaw.   Planed the end, to better lay the joints out. Two legs, and some layout work.  The piece laying across the legs will become a brace between the legs.   Ripped two legs from a 2x10, the strip laying there was leftover.   Saved it for the leg braces.  Once the lines were drawn, time to cut things upand then knock the waste out, a little clean up was nextAlittle chisel took the chunks out, and a bit of paring work.  Had to remove the fence and depth stop on the 78, then it fit the slot.  as for the aprons.   Front one is a 5/4 x3-1/2 , and the rest were 2x4s  Ends of the long pieces needed some joinery done to themThis is after the legs were fitted.   A stretcher was added to the legs braces.   Lots of screws were needed, too.  Had to take a break, while the better half went to get some 2" screws.   Wallyworld was out so she went to Lowes.   Had to pay three times walyworld's price....Once the aprons were attached, tried to get the top and the legs and the aprons to be flat.   Lots of handplane work...

---

Planer? I'm the 'planer', and these are what I use...

Awesome build, Steve. That's a fine bench.

---

Gene
'The true soldier fights not because he hates what is in front of him, but because he loves what is behind him.' G. K. Chesterton

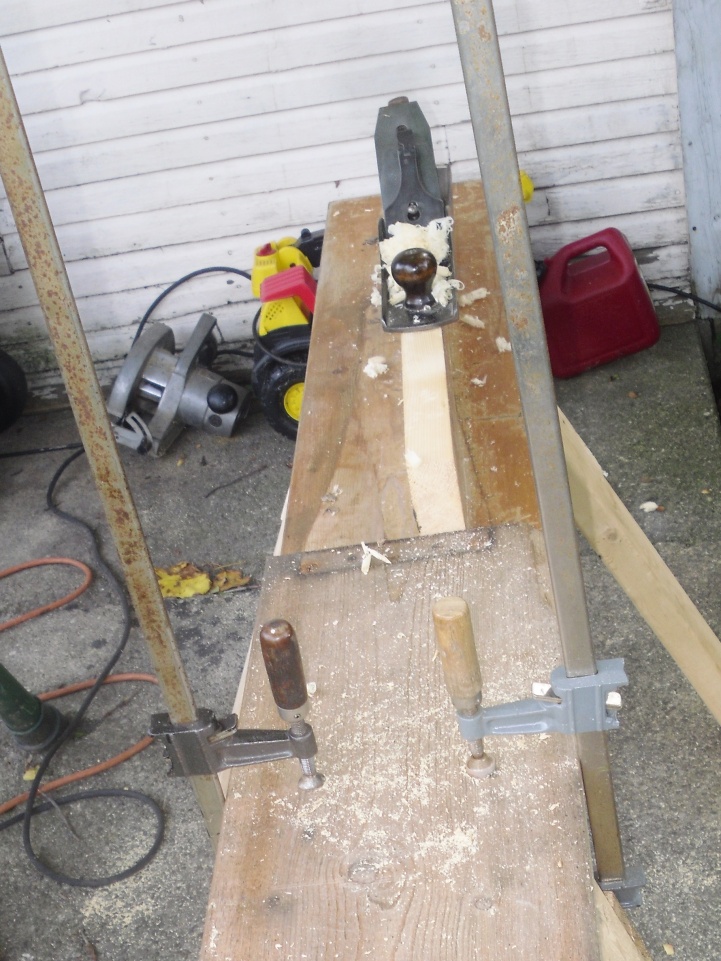

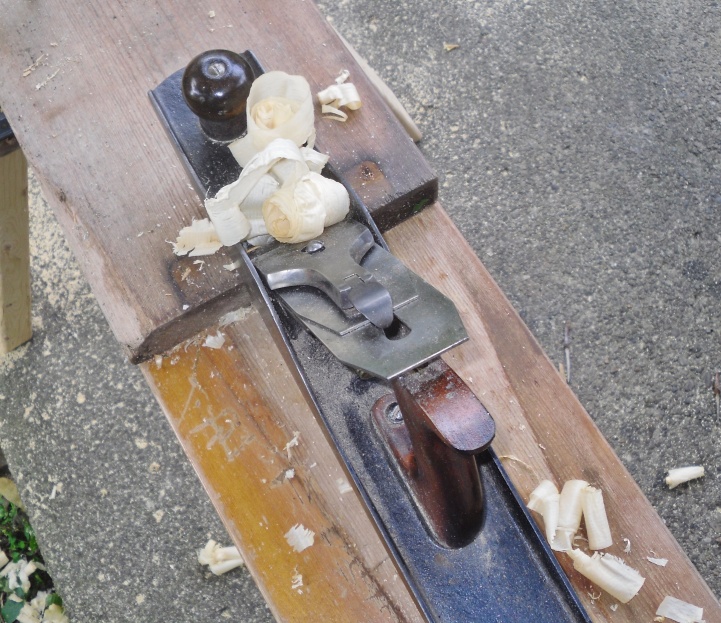

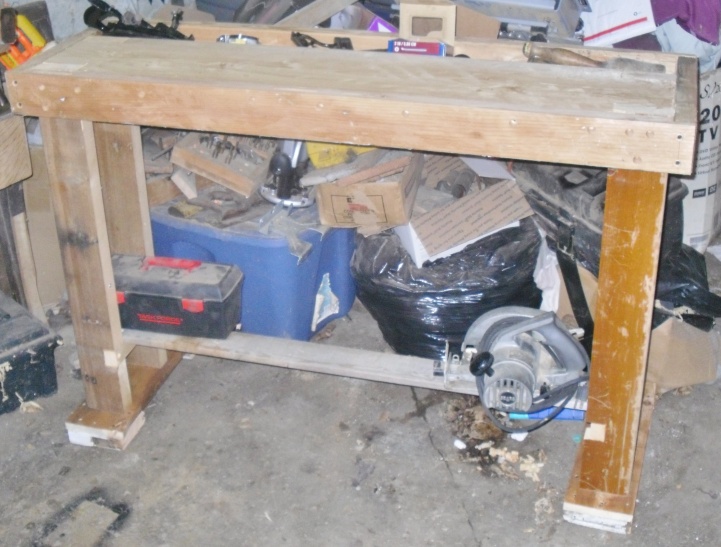

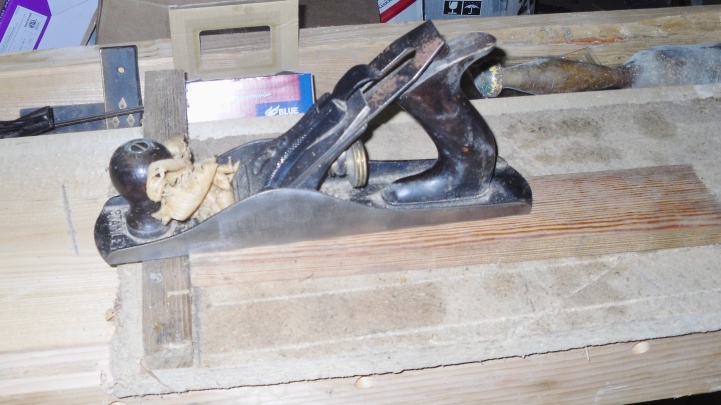

Got the bench down to the Dungeon Shopnow the shop is in the shape of a "U".   Tried out a jig on the benchand just had to try it outPart of building the bench was making the legs.. Ripped them out of a 2x10.    That left saw marks on the legs.    clamped a piece of wood to the saw benchand placed a leg against the "stop".   Grabbed a #6 small jointer, and made a shaing or twoand soon had Gossemer Shavings floating across my back yard.   Just wouldn't be proper to have legs with saw marks showing, now would it?

---

Planer? I'm the 'planer', and these are what I use...

Very nice work bench Steve. Of course all your projects turn out very nice.

---
