I don't have a lot of electric powered tools but in the past I have used routers and liked their versatility. I usually build smaller projects and have been using a trim router for a while but wanted to build a router table to make routing safer and easier.

I started to design the table on the computer but eventually it became a design as you go project. Here are some shots of the final result...

The router table sits on a rolling table that was specifically sized so that the top of the router table matches the height of my bench. I have a very small shop and rolling the router table up to the bench comes in handy when I need a larger surface to work on.

This shows the front of the router set up with the fence attached. I also made a few accessories like the push hold downs. I cut up an old mouse pad for the bottom of the hold downs and they work very well. The dust port was fashioned from galvanized duct pipe rescued from a dumpster (yeah, I dive now and then). The top is two 1/2" ply sheets sandwiched together. The box is constructed from 1/2" ply also.

This shows the other side of the fence. Lots of knobs to cut out! Actually this is the side I usually work from as the router adjustments are easier to access, I just reverse the fence. The router lift adjusts vertically and horizontally making for some interesting router bit profiles. The vertical lift adjustment works with a split nut release to quickly raise or lower the router before any fine adjustments.

A close up of the lift. The "button" on the left, midway down, is pushed in to release the split nut enabling the lift to move up and down quickly. The wheel on the bottom raises and lowers the router for fine adjustments. The knob at the top left is used to position the router laterally. It will bring a bit from dead vertical up to an angle of 48 degrees from vertical.

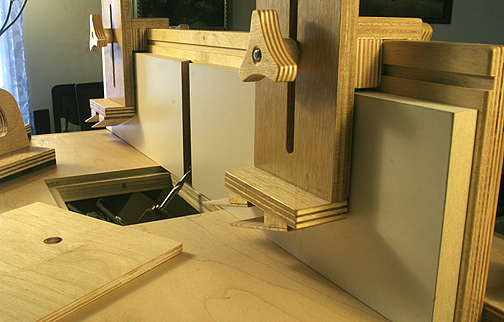

Here is a close up of the router tipped about 45 degrees in towards the fence. The fence has split faces made from melamine shelving. I am quite pleased how it turned out and since all mating surfaces are lined with window insulation there is no vibration and it's very quiet, at least until wood meets a bit.

---
