Got tired of fighting edge out of square, reversed cambered and other stuff from free-handed grinding.  Time to add a jig, real high tech one (for me)

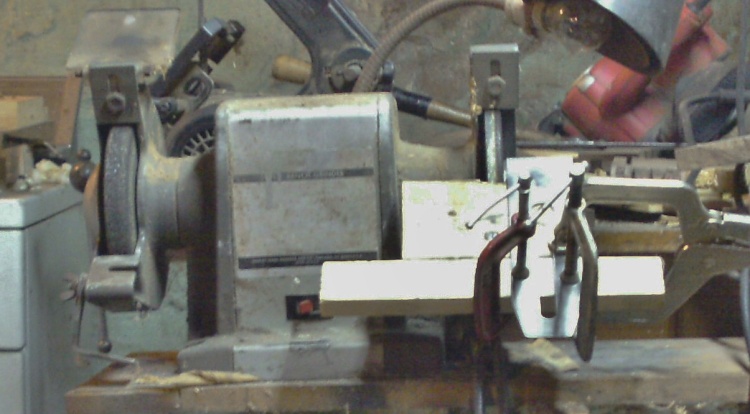

Took the rest off the right hand side.    threw away the "bolt" that almost held it.    Modified a carriage bolt to replace it.    While the rest was off, drill a hole right in the center ( by eyeball) for a jig bolt.   The jig was then bolted to the rest, and a groove for the wheel was cut....by turning the grinder on.   A look at the jigYep, High Tech right there.  Pine 3/4" scrap board.   Set at ~25 degrees to the wheel.   Now, HOW to get the iron the stay square to the wheel?  Why more High Tech stuffA 1x1 pine slider, and two C clamps.   Finger clamp is there so I could take a picture.    I get the first c clamp on with an iron and get things close as I can.  Check to make sure the iron is square to the slider's edge.   Check where the edge of the iron touches the wheel.  Then add the second c clamp.  BTW, that groove in the jig for the  wheel was done by the grinder's wheel.    Best way to line things up.    Grind the new edges, and have a cup of H2O handy to dunk it in.    Grinds a nice hollow grind edge.  Then off to the honing guide and the stones & Paper routeOne of these is a Dunlap and the other is a Lakeside iron.    Once they were honed up to 1000 grit, I installed the Dunlap iron in the Lakeside plane. Set it up for a fine cut, with the frog all the way to the rear.  Pine test tracks at the ready, soNot too bad.   Turned out that the Dunlap iron still has a hint of camber to the edge, and cuts in the middle area.    Switched it out with the improved Lakeside iron, and a second test track of pineYeah, that's a bit better than it was.    As for the tight mouth?About as tight as I can get this one.   Like that reflection on the sole?    This plane just might work out...

---

Planer? I'm the 'planer', and these are what I use...

Great job Steve. You are definitely giving me the itch to get mine done

---

Charles Nicholls
Site Host
nicholls61@att.net
Proud supporter of The Wounded Warrior Project, Homes For Our Troops and the NRA

http://www.etsy.com/shop/nichollswoodworks

We don't need no stinking Tormek!

---

Lew Kauffman-
Wood Turners Forum Host

Time Traveler and Purveyor of the Universe's Finest Custom Rolling Pins!

Nice jig, Steve. I'll keep this in mind. Perhaps make some other rests that can be swapped as needed.
