Quick Adjust Hand Screw Clamp

4DThinker
4DThinker
in CNC Challenges and Solutions

Featured Replies

  • Popular Post

Made with two sections of standard 3/8-16 all thread, I used my push button design, some HDPE, a few #6-32 flat head screws, and some scraps of red oak. All the photos were take without spinning the handles. Push buttons quick to adjust, Once set to the width you want just release the buttons and then a turn or two of the handles to clamp down tight.

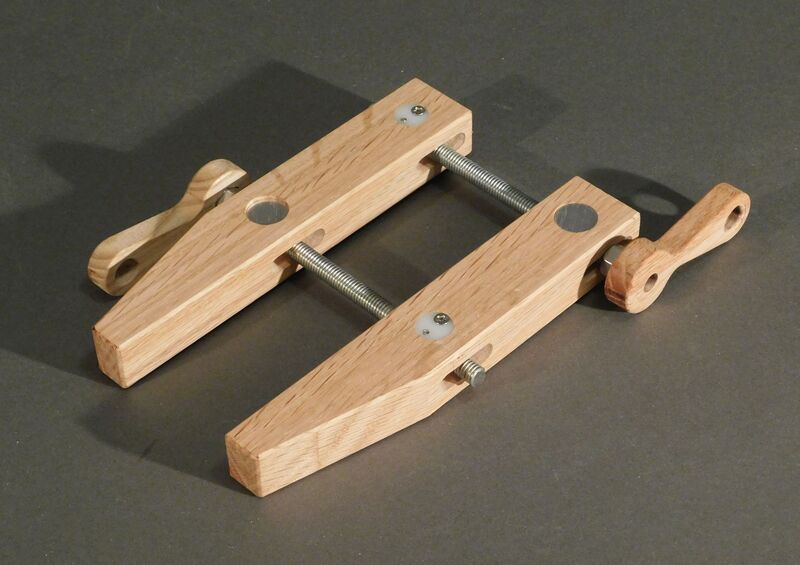

Widest apart.jpg

You can see one button depressed in the photo above. Sometimes it takes a half turn of the handle to get them to pop up.

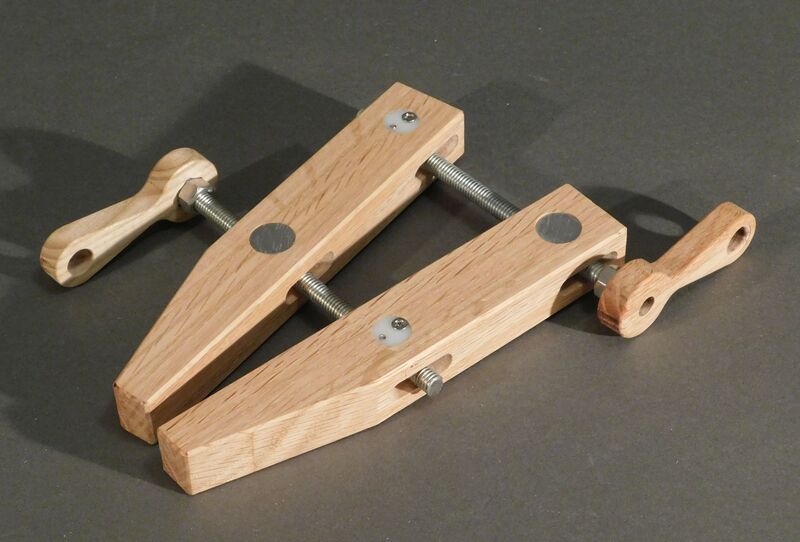

Jaw tips together.jpg

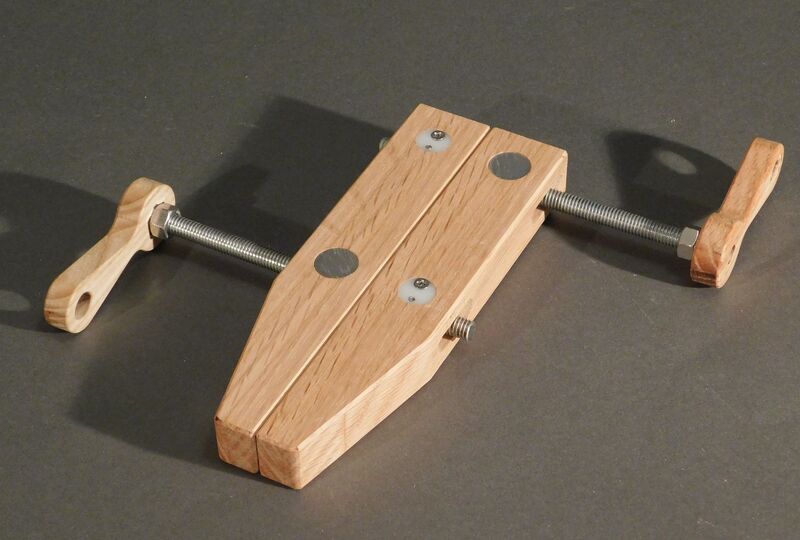

Completely closed.jpg

Likely by tomorrow I'll have a detailed story about this clamp on my blog.

4D

Edited by 4DThinker

  • Quote
    • Like 3
    • Love 3
    • Author

    Detail about construction steps and more photos now live on my blog HERE

    4D

  • Quote
    • Like 2
    • Thanks 2

    Those are almost too nice to even use 4D. Beautiful design and execution.Praise

  • Quote
    • Like 4

    Love creative ideas like this.

  • Quote
    • Like 4

    Very nice indeed! 👍

  • Quote
    • Like 1
    • Thanks 1
