Simple Edge Beading Tool

Featured Replies

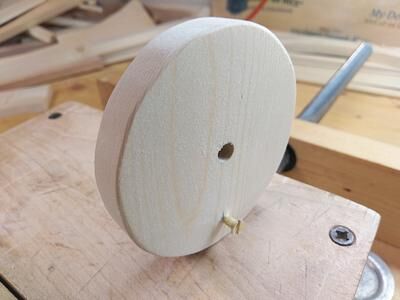

Here's a simple home made edge beading tool I made. I used the scrap plug leftover from making a hole with my hole saw.
I used a slotted flathead brass screw. Top of screw head was filed to produce a sharp edge.

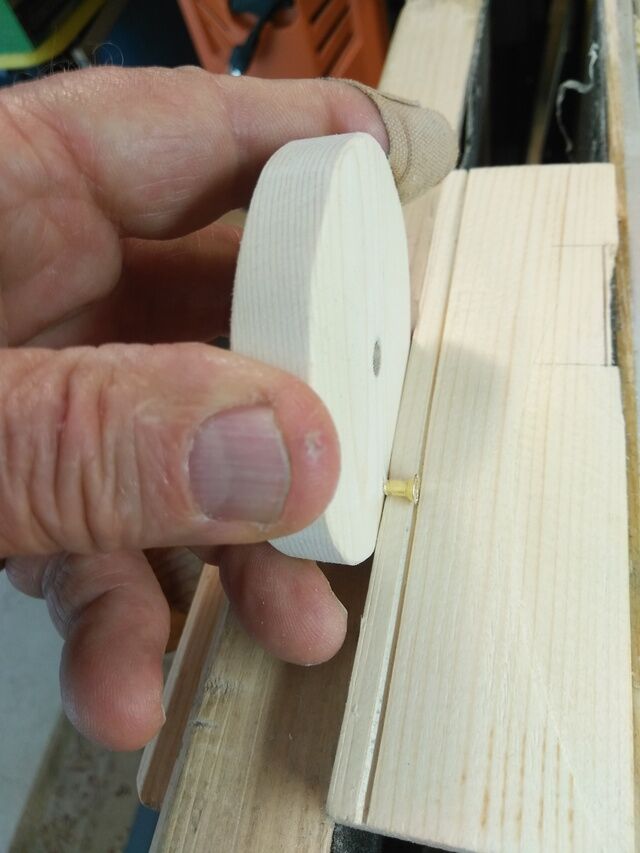

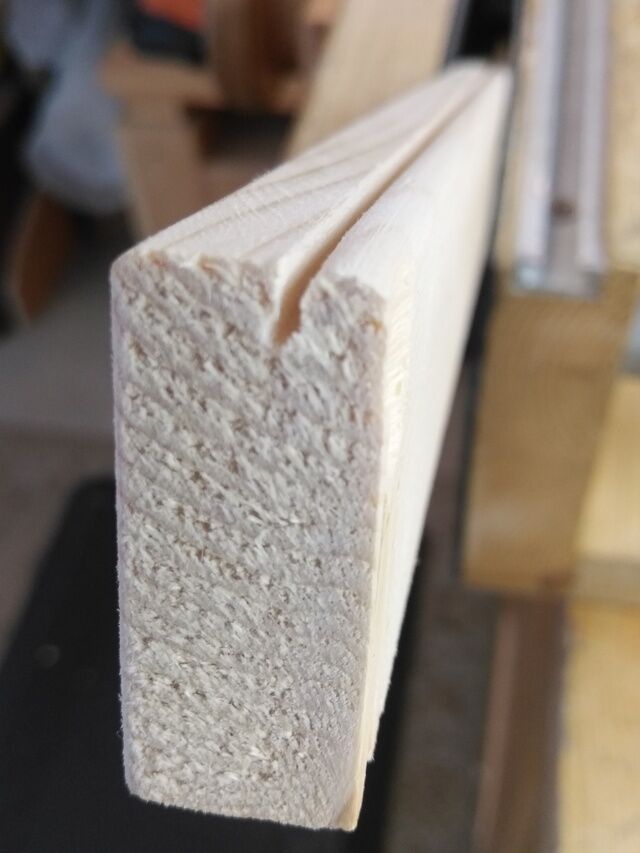

I set the screw to produce the size bead that I want and continously cut a line until the screw shaft stops the cut. It helps to face the screw slot vertically facing down. It cuts better.






Then I stick the edge of a piece of 150 grit sandpaper into the cut shot, fold it over, and sand 3 - 5 passes full length until a complete bead is formed.

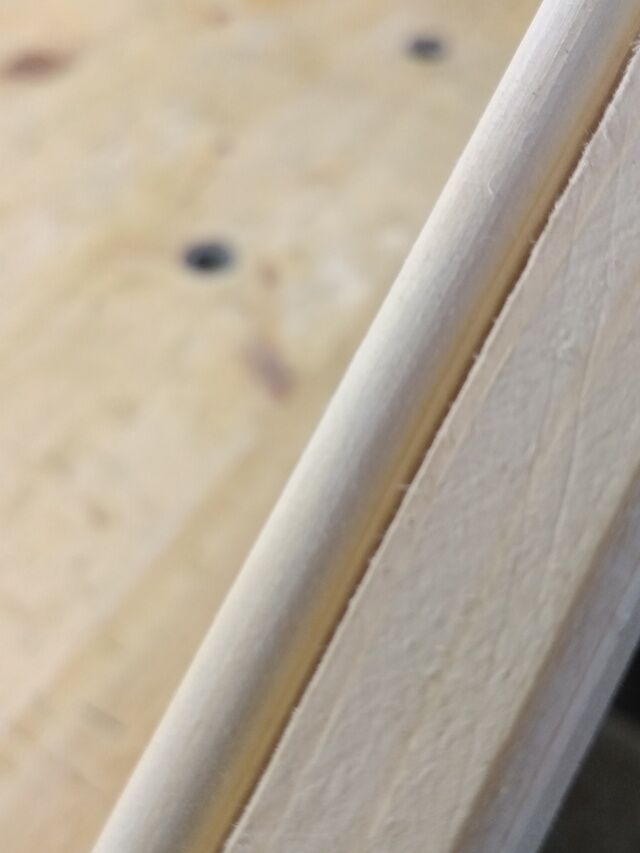

Here's the finished edge bead.






Thanks for looking!

Cheers!

MrRick

That is a cool way to make a bead. Think I will stick with router tho

An inexpensive, creative and effective alternative approach. Thanks for the tip.

  • Author
10 hours ago, Gerald said:

That is a cool way to make a bead. Think I will stick with router tho

Gerald.... this is just a tip for when you have no power or sometimes don't want to haul the router out, set it all up, just to make a simple bead. If you haven't ever tried it, give it a whirl just to be in the know.

  • Author
2 hours ago, Grandpadave52 said:

An inexpensive, creative and effective alternative approach. Thanks for the tip.



You're more than welcome Grandpadave52! Cheers!

  • Author

Lew.... I use it on hardwoods with no problem. I use it on Eastern hard rock maple and it works fine.
