Technical dust collection question

[Pauley]

I have a when 13 inch thickness planer with a 2 1/2 inch dust port.  Right now I have it attached too a rigid shop vac and it fills it up pretty quick.  So I was thinking about attaching a 4 inch adapter to the 2 1/2 inch port and hooking it to my larger shop vac, but Im not sure if it’s a waste of time because of the loss of cfm…? Or should I see if I can find someone to maybe 3d print something that will work.  Any thoughts, please.  Im really getting annoyed with all this dust collection stuff…sheesh.

[Fred W. Hargis Jr]

I would try to hook it to the DC, but not with the 2.5" port. What about looking in the HVAC section at the box store and seeing if there's a boot that comes cloes to what will fit on the planer and use that? Another thoght would be to cut the 2.5" port off the OEM, and fasten a 4" opening to it in some manner.

[Gunny]

I'd try the adapter and see how it works.

[lew]

22 minutes ago, Fred W. Hargis Jr said:

Another thoght would be to cut the 2.5" port off the OEM, and fasten a 4" opening to it in some manner.

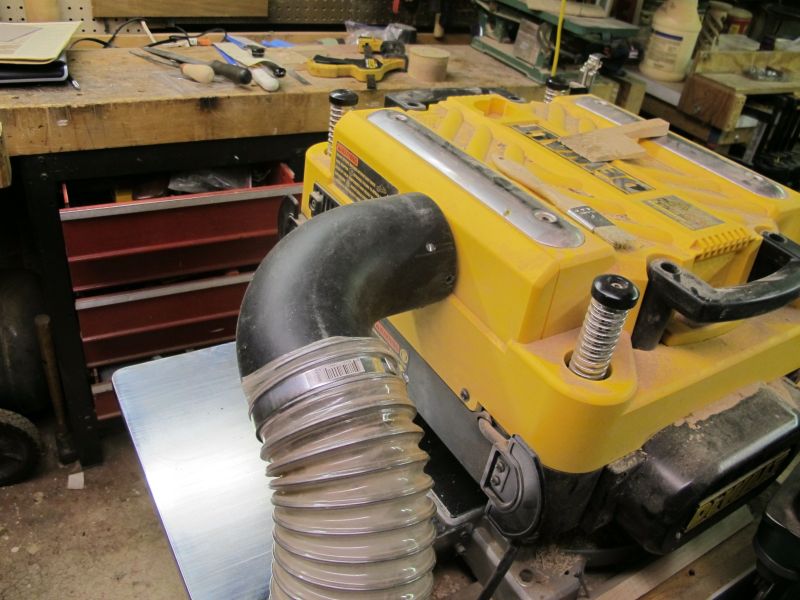

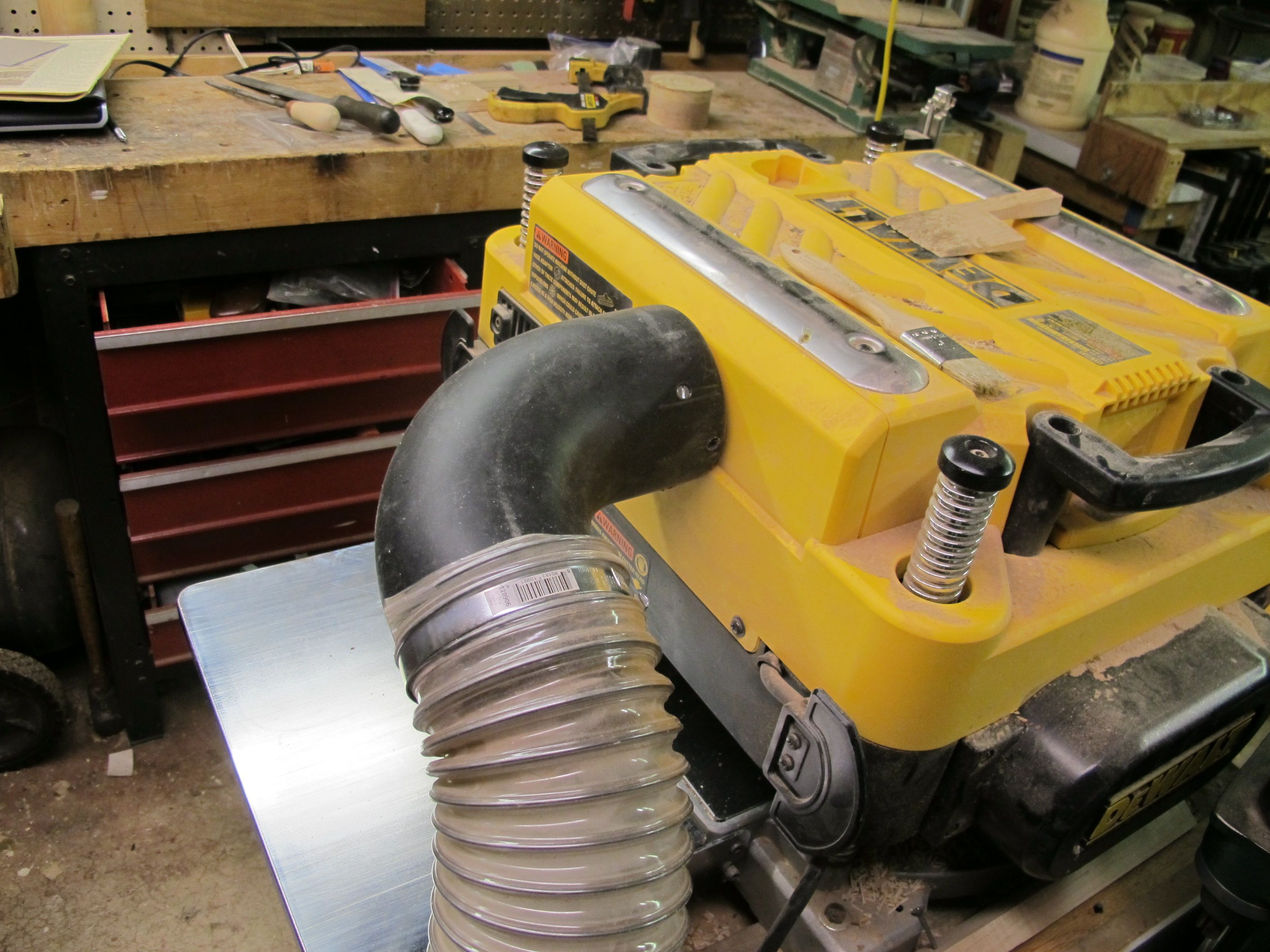

That's what I did with my Dewalt. I didn't cut off the OEM port but adapted it to a larger hose.







Another thing you can do is add a separator between the machine and your dust collector. I installed a home made "Thein" separator inline to collect almost all of the chips/shavings before they got to the dust collector.





Some Ideas-

https://www.jpthien.com/smf/index.php?topic=1428.0

https://www.jpthien.com/cy.htm

https://www.woodcraft.com/products/woodriver-dust-connection-mini-dust-collection-separator

[kmealy]

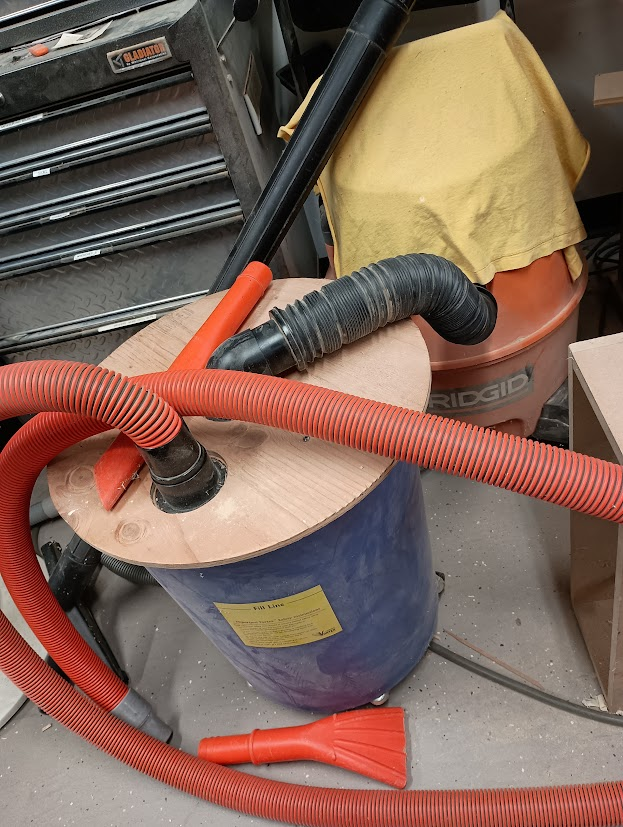

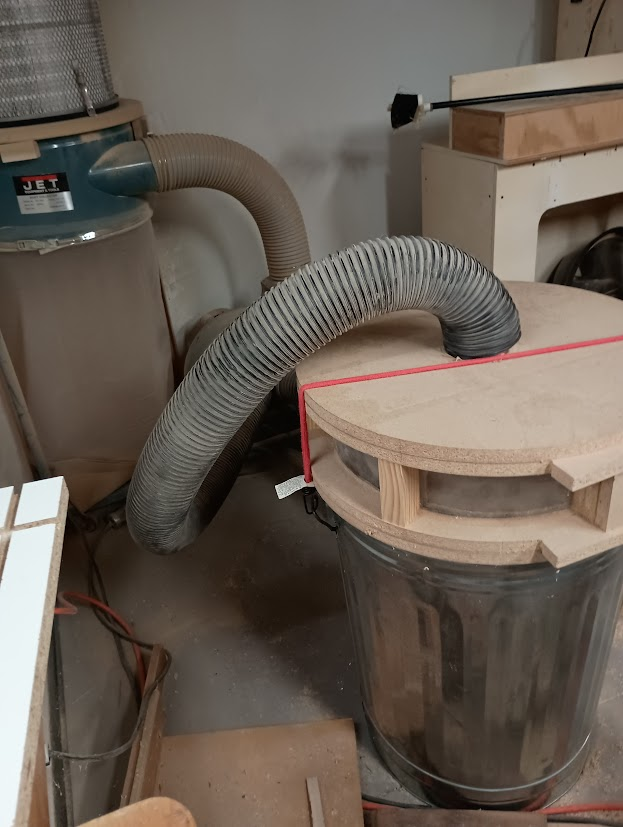

Likewise, I have two Thien collectors, one on a 30 gal garbage can for the planer and table saw, connected to a Jet dust collector, and the other on an 8 gal or so for hand held power tools like sanders and biscuit joiner, and general clean up, then runs into a  Ridgid shop vacuum.  Both extract a vast majority of the dust.

[kmealy]

6 hours ago, kmealy said:

Likewise, I have two Thien collectors, one on a 30 gal garbage can for the planer and table saw, connected to a Jet dust collector, and the other on an 8 gal or so for hand held power tools like sanders and biscuit joiner, and general clean up, then runs into a  Ridgid shop vacuum.  Both extract a vast majority of the dust.



[Gerald]

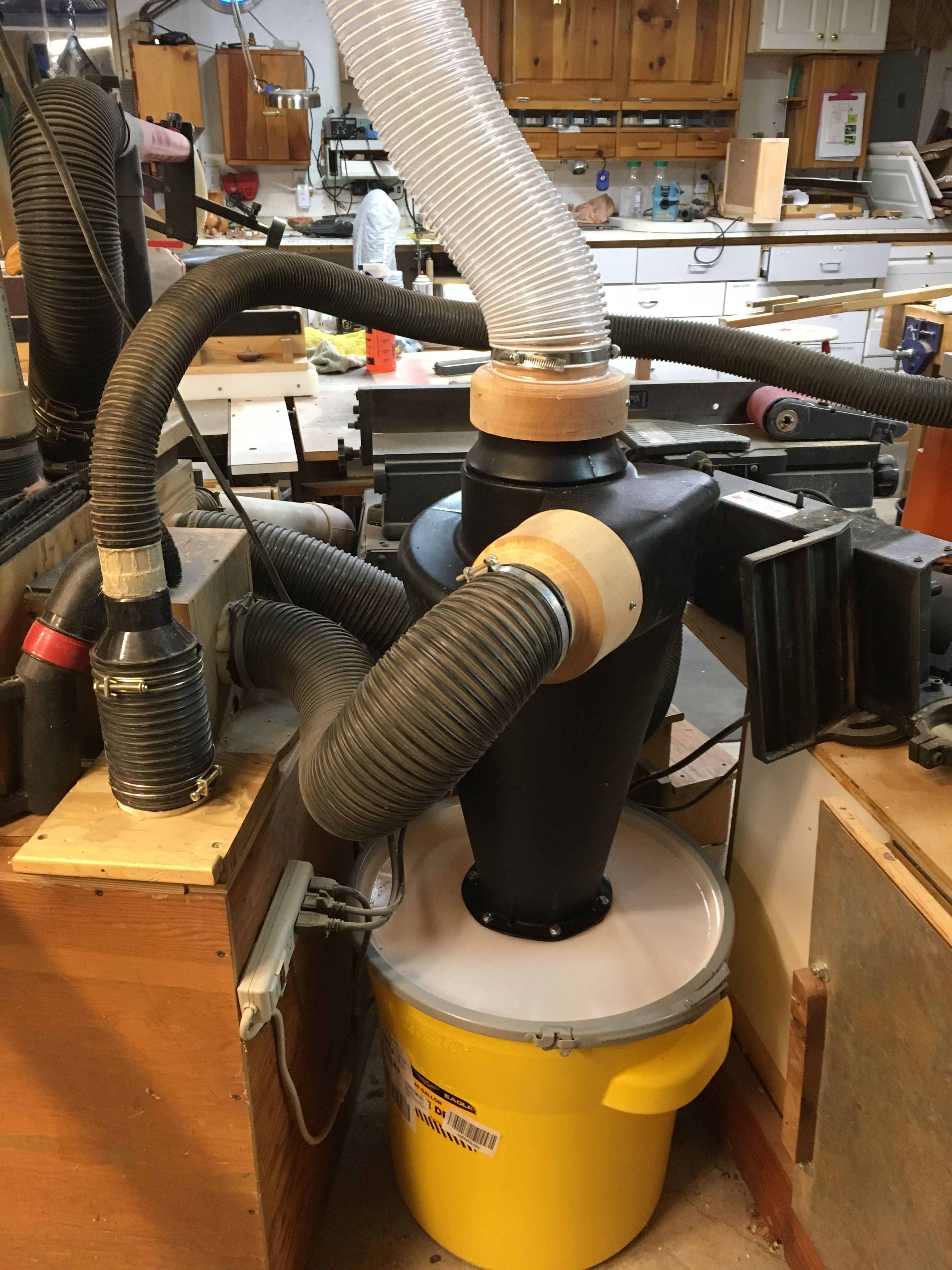

I would go with the adapter . There are many variations out there. I put a Dust Deputy between my drop box and the DC. It collects almost all the fines.

[Pauley]

18 hours ago, Gunny said:

I'd try the adapter and see how it works.

I guess that would be the right thing to do…try this first. Thank you.

[Pauley]

18 hours ago, lew said:



That's what I did with my Dewalt. I didn't cut off the OEM port but adapted it to a larger hose.







Another thing you can do is add a separator between the machine and your dust collector. I installed a home made "Thein" separator inline to collect almost all of the chips/shavings before they got to the dust collector.





Some Ideas-

https://www.jpthien.com/smf/index.php?topic=1428.0

https://www.jpthien.com/cy.htm

https://www.woodcraft.com/products/woodriver-dust-connection-mini-dust-collection-separator

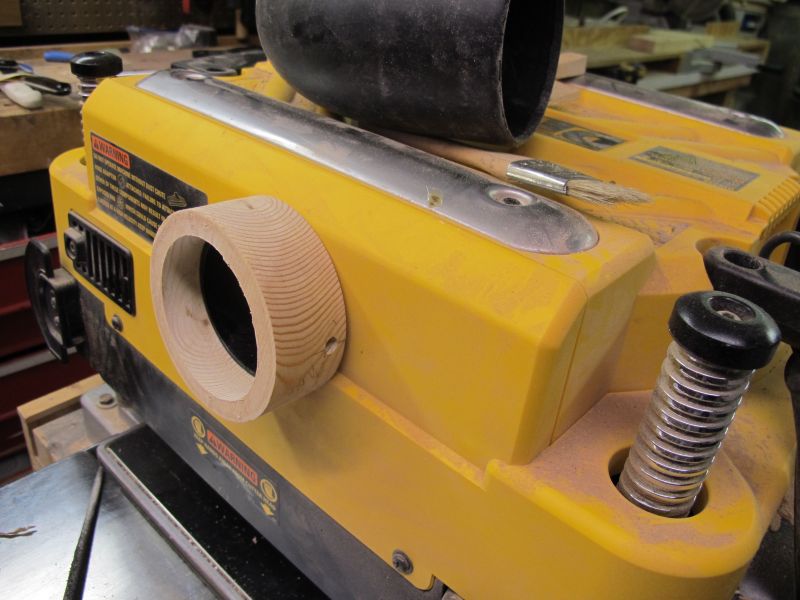

Thanks Lew.  I do have a separator. I like the way you made the adapter.

[Pauley]

14 hours ago, kmealy said:

Likewise, I have two Thien collectors, one on a 30 gal garbage can for the planer and table saw, connected to a Jet dust collector, and the other on an 8 gal or so for hand held power tools like sanders and biscuit joiner, and general clean up, then runs into a  Ridgid shop vacuum.  Both extract a vast majority of the dust.

Thank you mealy.

[Pauley]

6 hours ago, Gerald said:

I would go with the adapter . There are many variations out there. I put a Dust Deputy between my drop box and the DC. It collects almost all the fines.



Good place to start.  Thanks Gerald.

[Cliff]

4" might be too big for a shopvac.  You really should do the math  to determine the CFM  you'd get vs what you need.



here is a calculator but you still need the CFM  you are pulling in your best Dust vac https://www.nordfab.com/en-us/technical/ducting-calculator

Edited August 30 by Cliff

[Pauley]

4 hours ago, Cliff said:

4" might be too big for a shopvac.  You really should do the math  to determine the CFM  you'd get vs what you need.



here is a calculator but you still need the CFM  you are pulling in your best Dust vac https://www.nordfab.com/en-us/technical/ducting-calculator

Hi Cliff.  Im not hooking to my shop vac, I want to get away form using the shop vac because if just fills up to quickly.  Ill be hooking it to my larger dust collector.

[Cliff]

1 hour ago, Pauley said:

ll be hooking it to my larger dust collector.

you should be able to get a CFM for that in the doc's that came with it.

My RL160 maxes out at 6" or 160mm

Edited August 30 by Cliff

[Pauley]

15 hours ago, Cliff said:

you should be able to get a CFM for that in the doc's that came with it.

My RL160 maxes out at 6" or 160mm

Thanks Cliff.

[JWD]

For adapters you can't beat the Home Depot (or wherever) plumbing aisle.  Lots of rubber sleeves with hose clamps from one size to another.  One group I worked with called them "slumlord specials"



A separator sounds like it would solve your problems too.

Edited August 31 by JWD

[lew]

22 hours ago, Pauley said:

Hi Cliff.  Im not hooking to my shop vac, I want to get away form using the shop vac because if just fills up to quickly.  Ill be hooking it to my larger dust collector.



Why not add a "separator" to both? Lots of examples of examples of shop made separators for shop-vac on line.

[Pauley]

4 hours ago, JWD said:

For adapters you can't beat the Home Depot (or wherever) plumbing aisle.  Lots of rubber sleeves with hose clamps from one size to another.  One group I worked with called them "slumlord specials"



A separator sounds like it would solve your problems too.

Hi Cliff.  I have a separator on my shop vac, t the blue barrel one from rockers.  Also my larger has a separator on it. I have gotten this rubber sleeves before and they work great, but never heard the term slumlord specials, that’s funny.

[Pauley]

4 hours ago, lew said:



Why not add a "separator" to both? Lots of examples of examples of shop made separators for shop-vac on line.

Hello Lew, i do already have separators on both my shop vac and the larger collector.

[lew]

17 minutes ago, Pauley said:

Hello Lew, i do already have separators on both my shop vac and the larger collector.



Sorry, I misunderstood what you currently have. I'm and idiot
