Rusty & Krusty Rehab

steven newman
steven newman
in Hand Tools

Featured Replies

  • Popular Post

As this "Thing" has sat around in a window sill for way too long...:OldManSmiley:


Hauled it down to the shop...and took it apart..:Cheer:

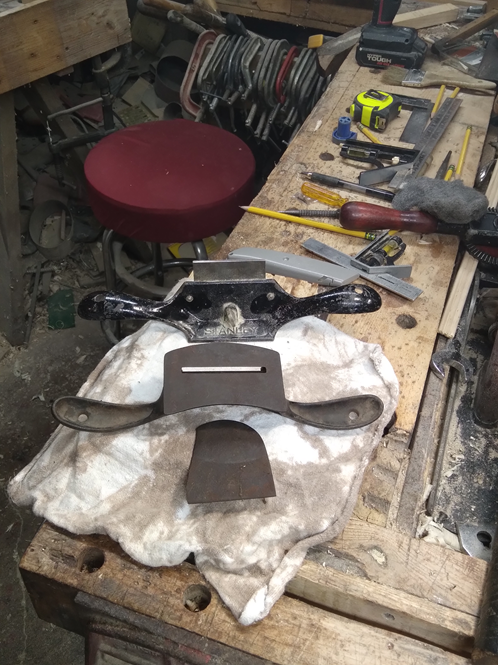

Compared to one of the other No. 80 scrapers I have...:ChinScratch:

Bolts and the keeper were wire wheeled a bit cleaner..the "Before":JawDrop:


And the "After"...:TwoThumbsUp:


Yep..the Keeper bar is a Stanley SW model:JawDrop:

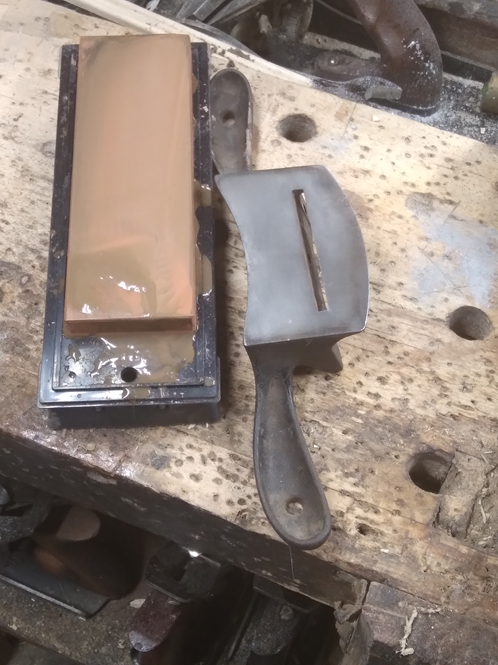

Gave the sole of the body a ride on the beltsander...then the fancy stones...:Praise:


I tried to flatten the back of the blade...:JawDrop:

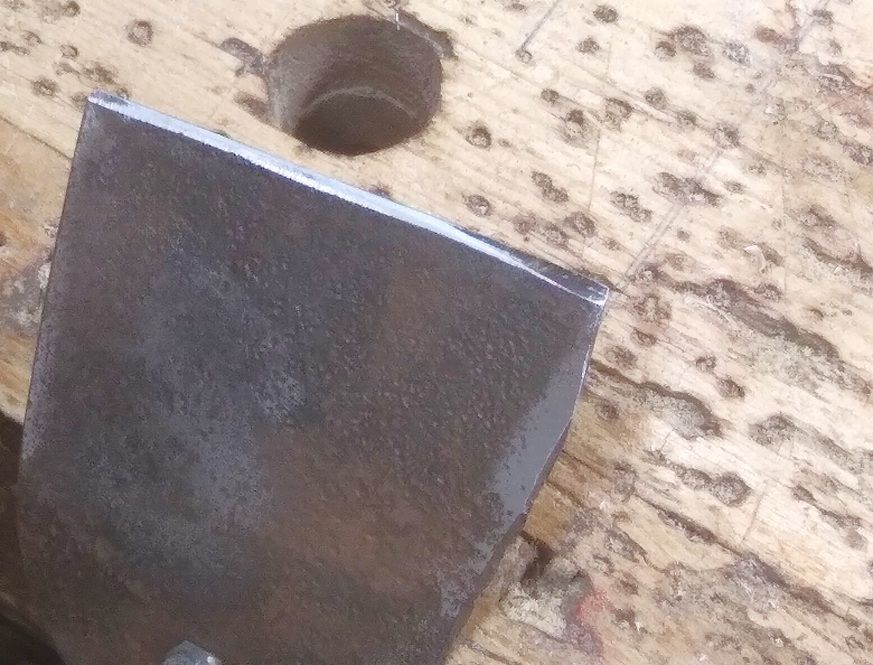

Have to remember, unlike a Bench Plane's iron, this blade with get bowed a bit in use...as for the bevel..:ChinScratch:


This is right off the grinder,,,before the stones  get to work on it...:OldManSmiley:

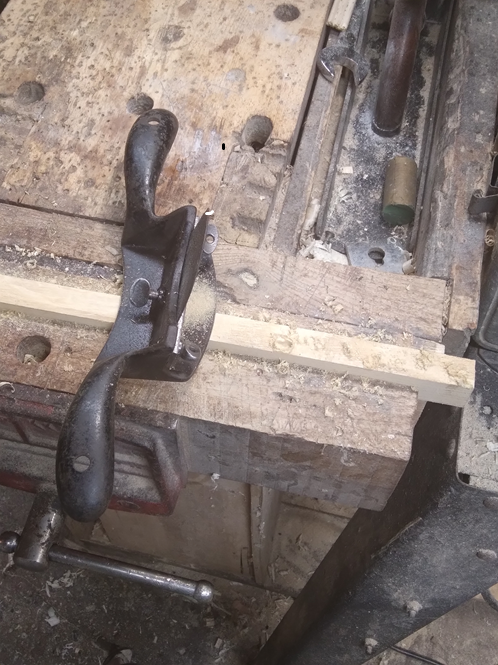

Was finally able to take it for a test drive, on a stick of Ash scrap..:ChinScratch:


So, for now, I think I'll call this one done...:TwoThumbsUp:


Gave it a wipe down in 3in1 oil, and hung it up on the Tool Cabinet door....:OldManSmiley:

Thanks for looking in.:TwoThumbsUp:



  • Quote
    • Like 10
    • Love 1
    • Popular Post

    Good save. Happy to see the stones are useful.

  • Quote
    • Like 4
    • Thanks 1

    Awesome!



  • Quote
    • Like 2
    • Thanks 1
