Everything Cabinet Deconstructed

Dan Cooper
Dan Cooper
in Plans and Software

Featured Replies

I received a question about how to take this apart to move it. Maybe this would help? Not technical drawings, but shows most of the pieces. I guess it could be made with pocket screws.

Dan

Everything Cabinet Apart 1.png

Everything Cabinet Apart 2.png

  • Quote
    • Like 4
    • Author

    No, I just took apart the Sketchup model.

    Dan

  • Quote
    • Like 2
    39 minutes ago, Dan Cooper said:

    No, I just took apart the Sketchup model.

    Dan

    This Sketchup extension-  https://sketchucation.com/pluginstore?pln=Eclate_Deplace   will do that for you in one step



    The Sketchup model before-

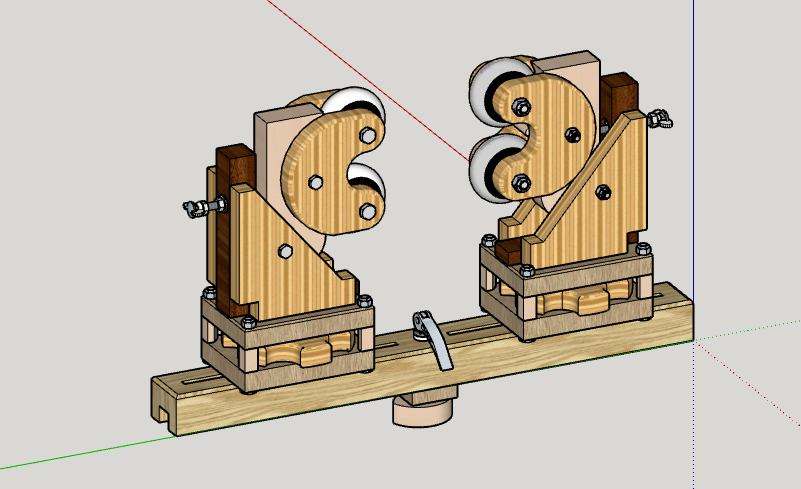

    2024-08-10 19_31_39-Layered buildup.skp - SketchUp Pro 2020.png





    The model after running the plugin-

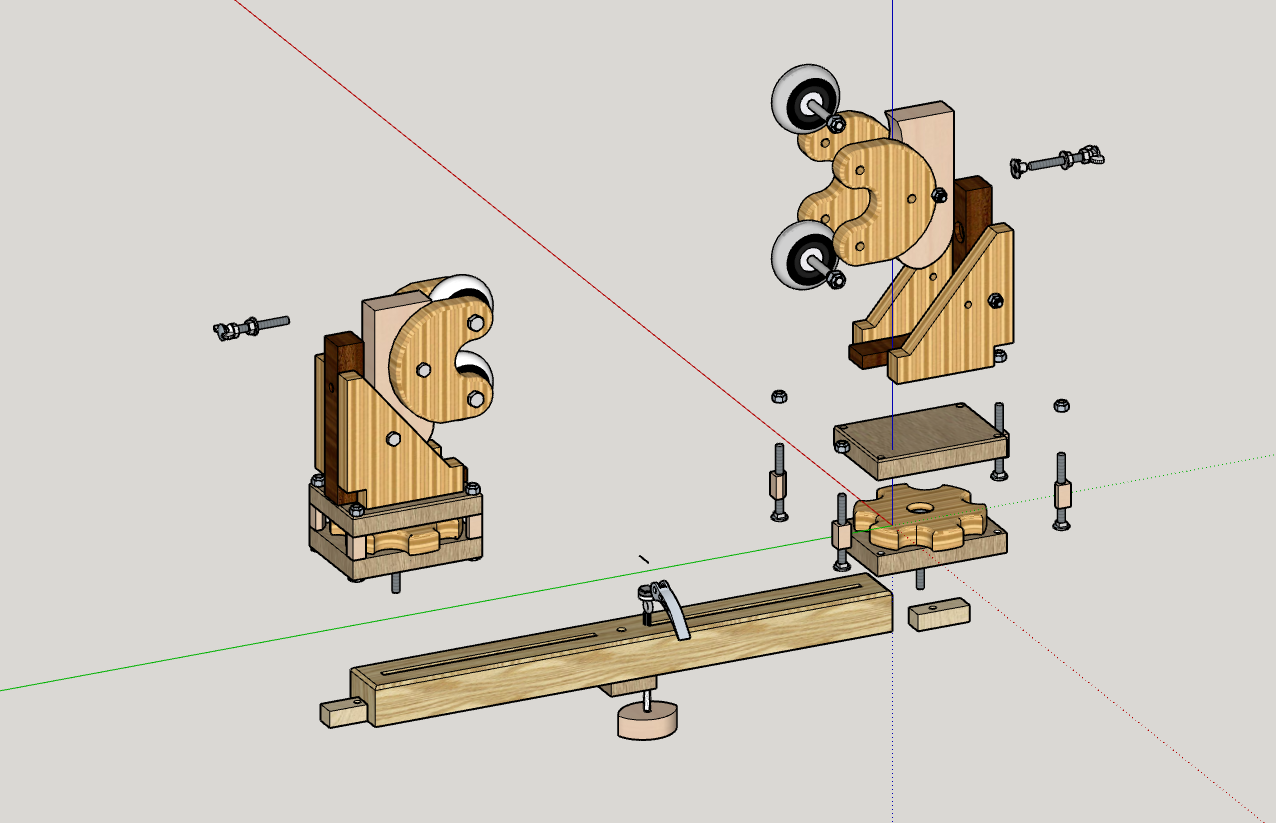

    2024-08-10 19_31_13-Layered buildup.skp - SketchUp Pro 2020.png





    In my model, I created components of some of the sub-assemblies then made copies. That's why the wheel assembly on the left is not completely "disassembled". The plugin provides options on how to display the "exploded view". I'm using it on Sketchup Make Free 2017



  • Quote
    • Like 1
    • Author

    Thanks Lew,

    I'll check it out. I love your model.

    Dan

  • Quote
