Just got this ancient Grizzly 16" band saw for fairly cheap with the idea I need to replace just about everything to get it up to speed again.  Right now I'm trying to get the wobble out of the machine (seen when running) and the first thing I'm gonna replace are the 2 drive belts.  I've heard about a new (to me) type of replacement belt that is supposed to turn more smoothly and is adjustable with links in it.  Not sure what they're called but would they be an appropriate replacement part for this saw?

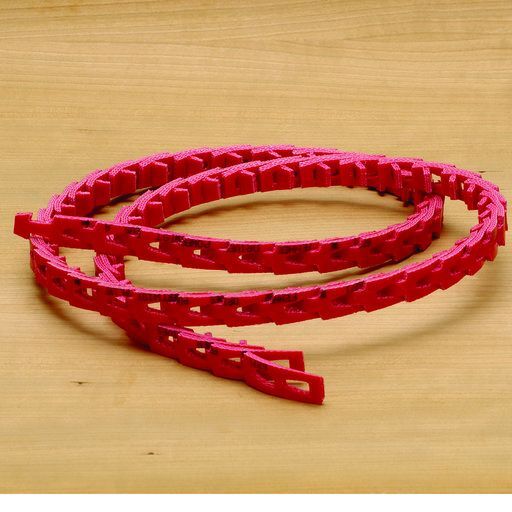

I think what you refer to are the Fenner Link Belts. They really do make a belt drive run more smoothly, but many folks claim they wear out the sheaves (pulleys) quickly. I have no long term experience with them, but I did put one on my contractor saw when I had it and was really surprised at the change...much more smooth. HF sells a knock off that may be less expensive. They are directional so if you pick them make sure you get them on in the right direction. Also, the belt may "stretch" slightly after running a short time as the links set, so recheck the tension.

Check here, at Woodcraft-

https://www.woodcraft.com/products/4-foot-of-1-2-link-belt?gclid=CjwKCAjwmeiIBhA6EiwA-uaeFd0zN7bSOjZU21Jg7bVmB18HArCL2dtoEJlGdQZPjgf0eeNXB8RPEBoCpv0QAvD_BwE



Cheaper





Edited August 16, 20214 yr by Gunny

Yep that's exactly what I was looking for.  Although I've been told there are lots of other reasons a band saw can be out of balance besides the belt I'm sure the belts need replacing regardless.  Thanks for the links.  Oh BTW the Horror Freight version goes for $35 so I'll prob go that direction.

Not sure if this is pertinent but I have read that the blade wheels can get out of round if left under pressure for a long time. Also, the rubber tires can get worn or have sawdust buildup.

1 hour ago, bradleyheathhays said:

Yep that's exactly what I was looking for.  Although I've been told there are lots of other reasons a band saw can be out of balance besides the belt I'm sure the belts need replacing regardless.  Thanks for the links.  Oh BTW the Horror Freight version goes for $35 so I'll prob go that direction.



I have used them for years on two Delta Table saws, no issues.  They do stretch but easy enough to remove few links once in awhile.

Oh wow that's the first I've heard about wheels going out of round.  Fairly old saw so it's possible.  I've got a dial caliper on magnetic base so I'll give the wheels a measure and see if anything turns up.



Glad the links are removable on these belts.  The one at HF seems long enough I might be able to split it and have enough for both the belts.

Tires on old bandsaws tend to get flat spots if left under tension. So could be another problem.



Something you may want to look at also is the guides. I upgraded my Grizzley to Carter ball berring guides and they are fantastic. Even a old dull blade will cut s straight line

Yes, the guide bearings were the first thing I replaced.  Probably because they were the first thing I saw that were ragged and just looked like they needed replacing.  Got the cheapest one I could find on Amazon and they seem to be working ok, although I'm not sure how long they'll last.  My usage on the badsaw will probably be fairly light so maybe I'll be able to get some good miles out of em.

If you are rehabbing a band saw check out this guy.





Thanks  for the video!

Been using the Snodgrass method for about 7 years and then finally about 3 years ago got the Carter Bearings , talk about a difference.
