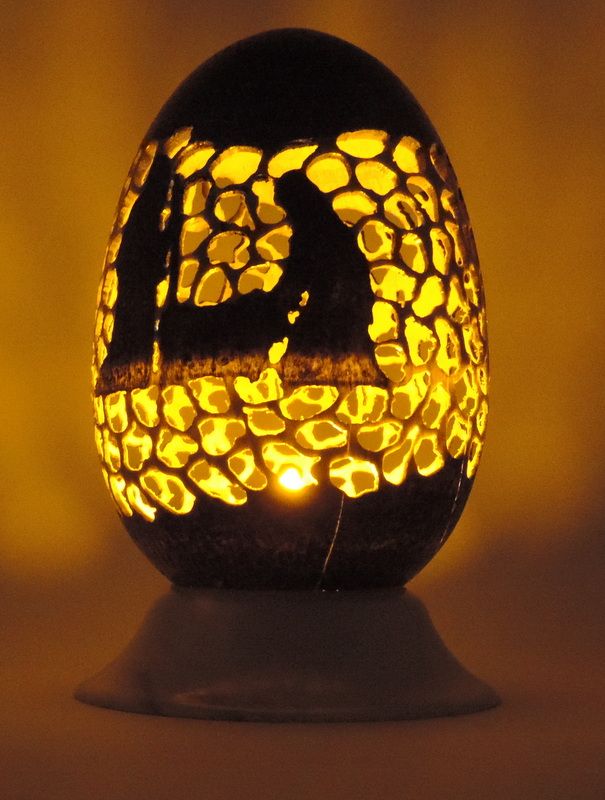

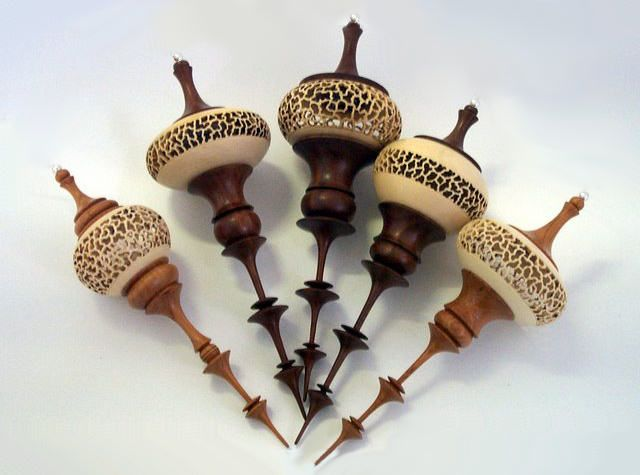

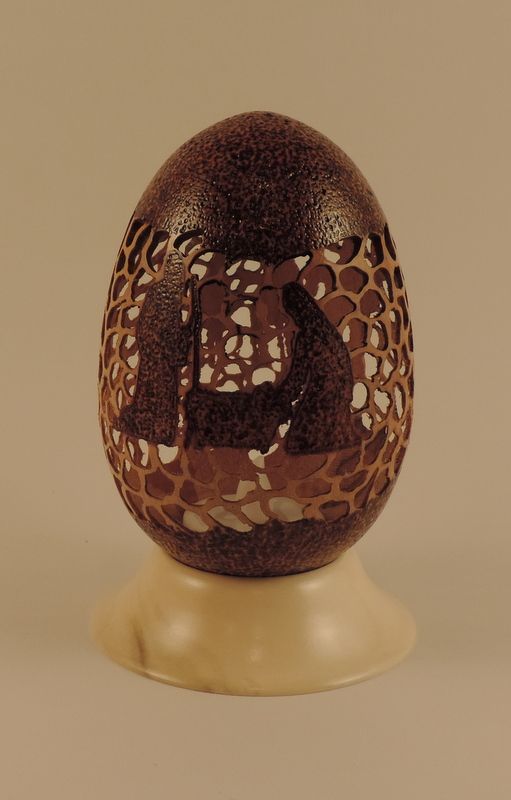

December 14, 20205 yr Popular Post comment_251158 How did they a\get the openings in the body? CNC? Report
December 14, 20205 yr Popular Post comment_251163 Ron, it's done freehand. Most guys who are piercing at that level are using an NSK Presto dental hand piece. Or, at least it's based on one of those. They are pneumatic and turn at about 350,000 rpm and it's important that the work is around 1/16" thick. It's normal to use carbide or diamond burs less than a mm in diameter. I have done something similar but use a much cheaper version I got on Ebay. https://highspeedengraving.com/product/nsk-presto-handpiece/ Edited December 14, 20205 yr by Steve Krumanaker Report
December 15, 20205 yr Popular Post comment_251176 Here's an article from the AAW- AW3302p22-27.pdf Report
December 15, 20205 yr Popular Post comment_251195 Like Steve said if you can turn thin , that is 1/16 the piercing is easy . The pro tools run upwards of 300 to 400. Captain Eddie has a video showing a cheaper way to get there and it is also a NSK. You can find then on ebay under 20. Then just a few more parts and HF has that. Report
