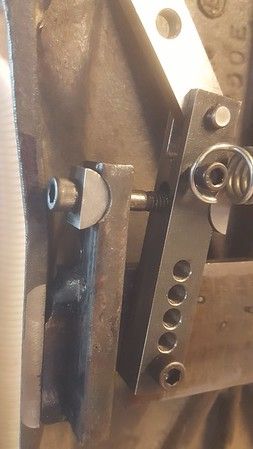

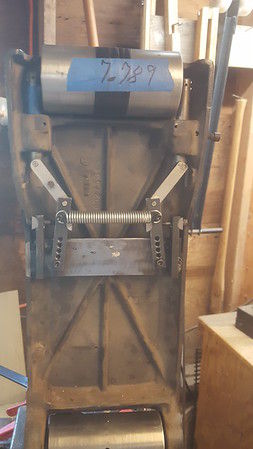

October 6, 20205 yr Some time ago I bought a $40.00 sander used and beat, really beat. It'd been owned by a welder. I had to do the bearings. the disk part was wrecked but I wasn't interested in that. But it had an impossible problem. Nothing I could do with the thing would get it to track correctly. - The adjusters were these cheesy cams that moved way too much with too little input. So they were useless. I replaced them with these difficult shop made gizmos that allowed me to use screws to adjust the tracking but it was scary to use because I have to be working inside the thing as it was running. So i decided that an new improved version was in order. Not I can adjust it safely from outside the belt and it is much finer than even the screws I made up a1/4" plate and mounted the adjustment hardware that I designed and machined on it. Then bolted that in a notch I machined out of the cast iron with a little10-32 screw. later i will braze it in place. but it works perfectly now. it's a simple mechanism
October 6, 20205 yr Author the video is not displaying properly link here https://the-axlotal-tank.smugmug.com/The-Machine-Shop/i-RbQq4n4/A
October 6, 20205 yr Cool upgrade! I had an old Craftsman belt sander that would not track. Threw it away
October 6, 20205 yr 6 x 48 belt sanders arent bad if you have the belt system attachments for the smaller wheels and such.
October 8, 20205 yr The drive wheel and belt attachments some machines can completely rotate on their sides and use a smaller wheel drive attachment to get the narrower spaces. Something like this...
