difalkner

CNC mistake for your entertainment

Rate this topic

Recommended Posts

Almost two years ago I fired up the CNC for the first time and right away decided to cut a sign with several bit changes, varying depths of cut on the letters, generated in one G-code, and no clue how to make bit changes once it took off.  But, it was an inexpensive and soft piece of WRC so I let 'er rip.  Well, I completely messed it up and kept the piece as a reminder as to what happens when you get in over your head.



The other day I decided I would modify the file because I know a WHOLE lot more about Fusion 360 now and thought I'd see if I could cut the sign properly on the other side of the same board.

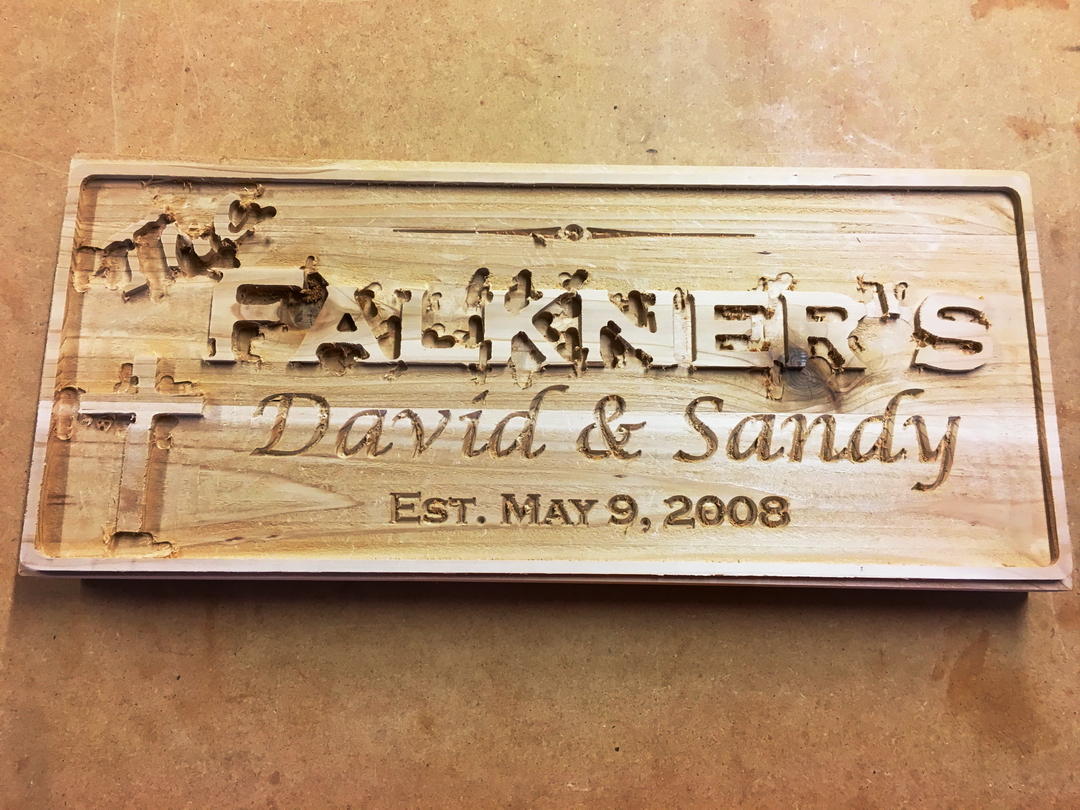

Here's the one from Dec. 2016 -

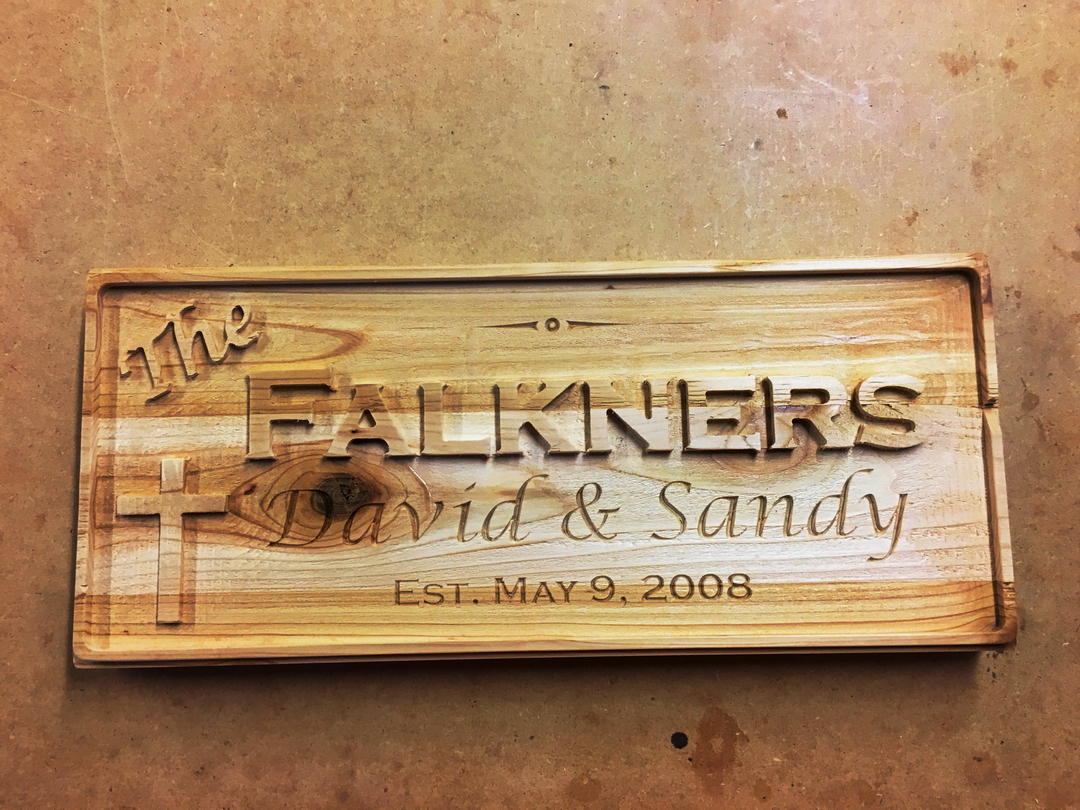

And the one from this week -




I haven't decided whether to paint it, stain it, or just leave it alone.  If I hang it on the house it will be out of the weather and away from the sun.



You have my permission to laugh at my expense - I did!  LOL! :D


David
